Front Door Latch: Service and Repair

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION







CAUTION:

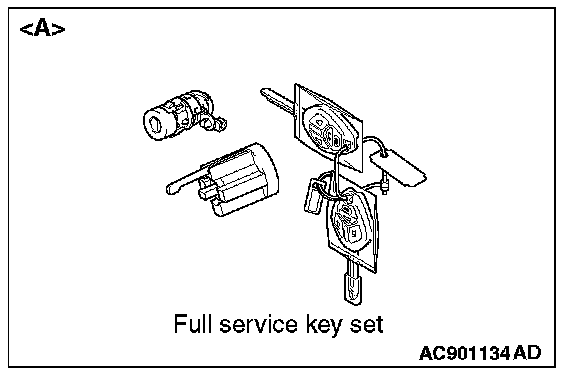

- When the door lock key cylinder is replaced by full service key set of illustration [A], register the encrypted code with the barcode on the ignition key in the full service key set. Refer to Chassis Electrical, Encrypted Code Registration Criteria Table.

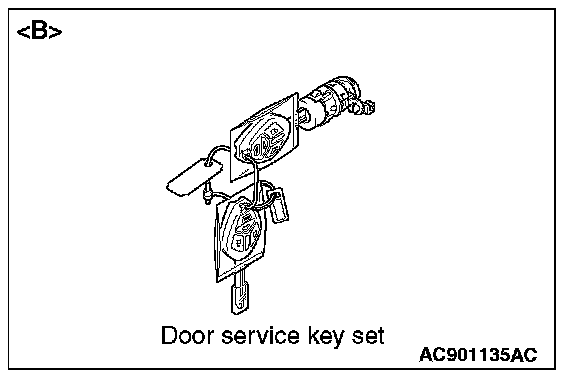

- When the door lock key cylinder is replaced by door service key set of illustration [B], do not register the encrypted code with the barcode on the ignition key supplied simultaneously.

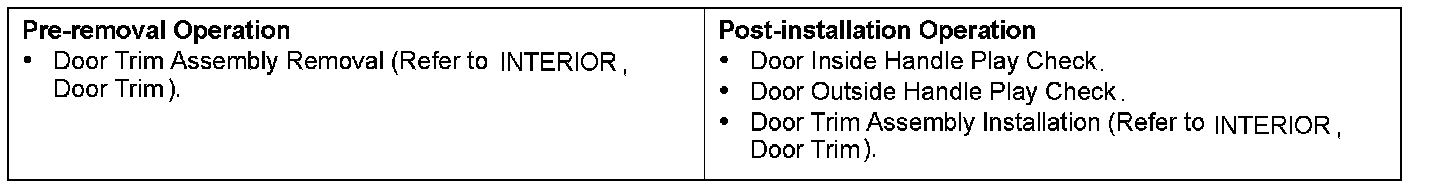

Pre-removal and Post-installation Operation:

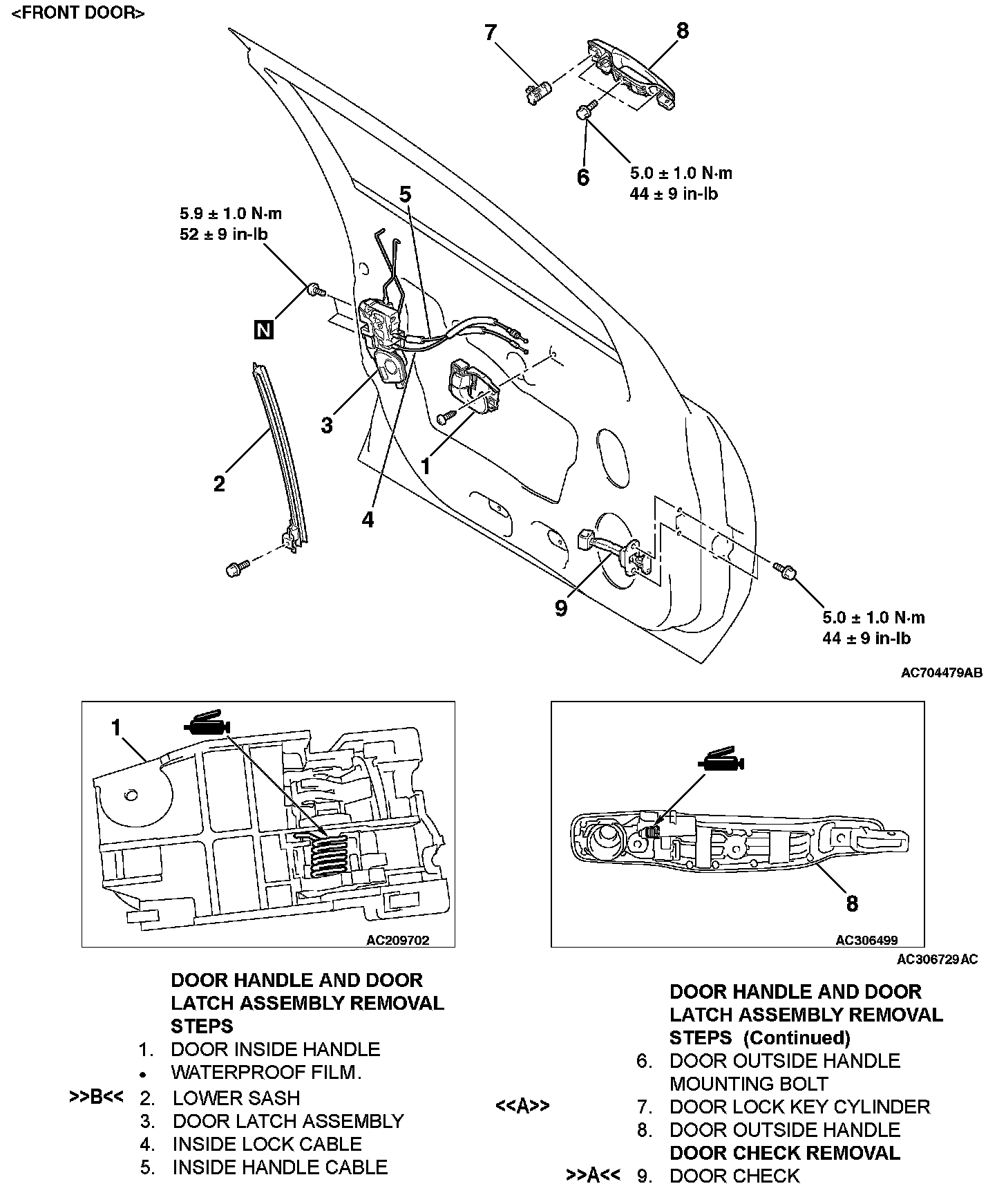

Removal Steps 1-9:

Required Special Tool:
- MB991223: Harness Set

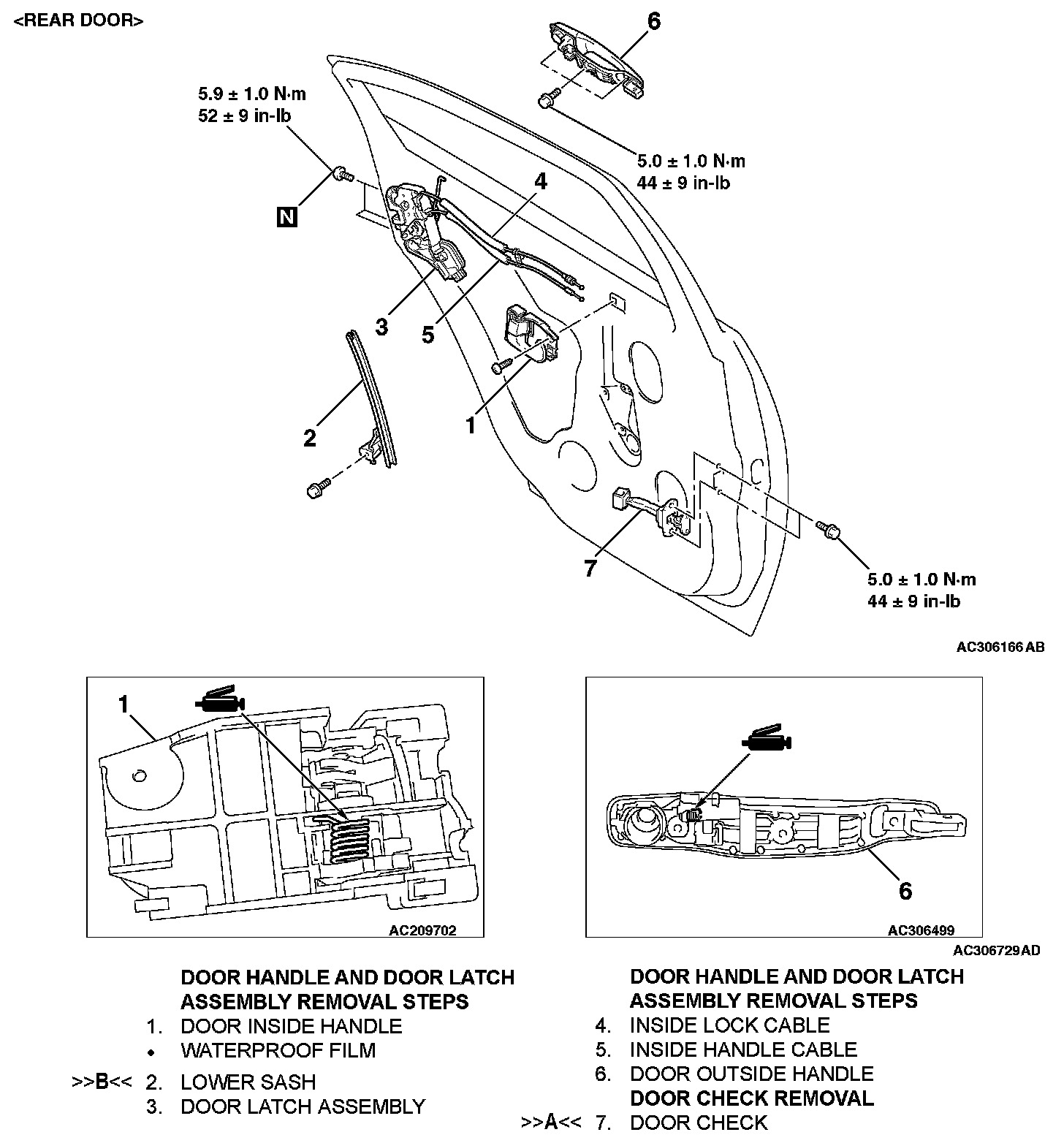

Removal Steps 1-7:

Required Special Tool:
- MB991223: Harness Set

REMOVAL SERVICE POINT

[[A]] DOOR LOCK KEY CYLINDER REMOVAL

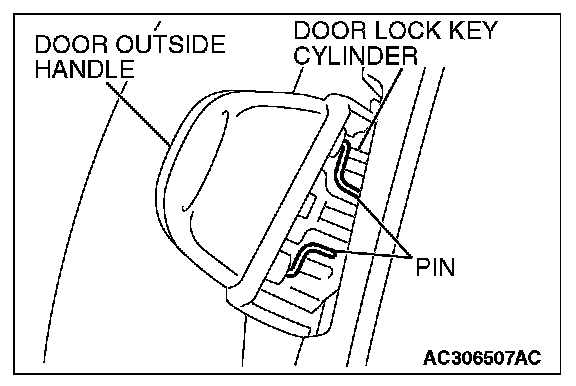

1. Create clearance between the door panel and the door outside handle to access the pin.
2. Open the pin and remove the door lock key cylinder.

INSTALLATION SERVICE POINTS

]]A[[ DOOR CHECK INSTALLATION

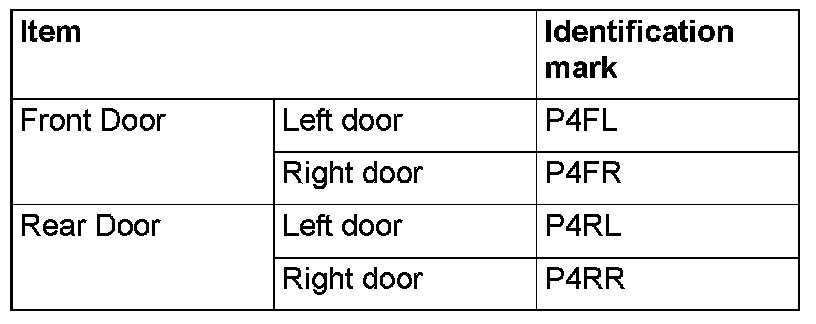

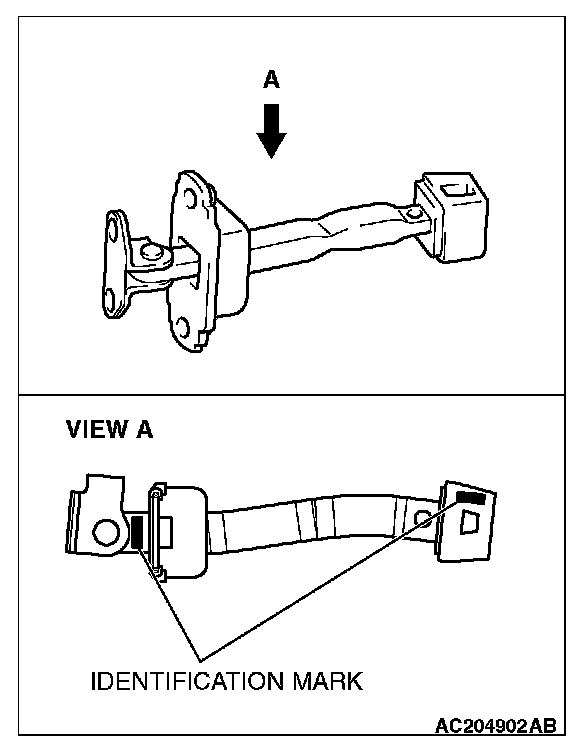

Install the door check so that the identification mark faces upwards.










]]B[[ LOWER SASH INSTALLATION
Securely insert the lower sash into the window rear sash.
