Input Signal Chart

SWS MONITOR

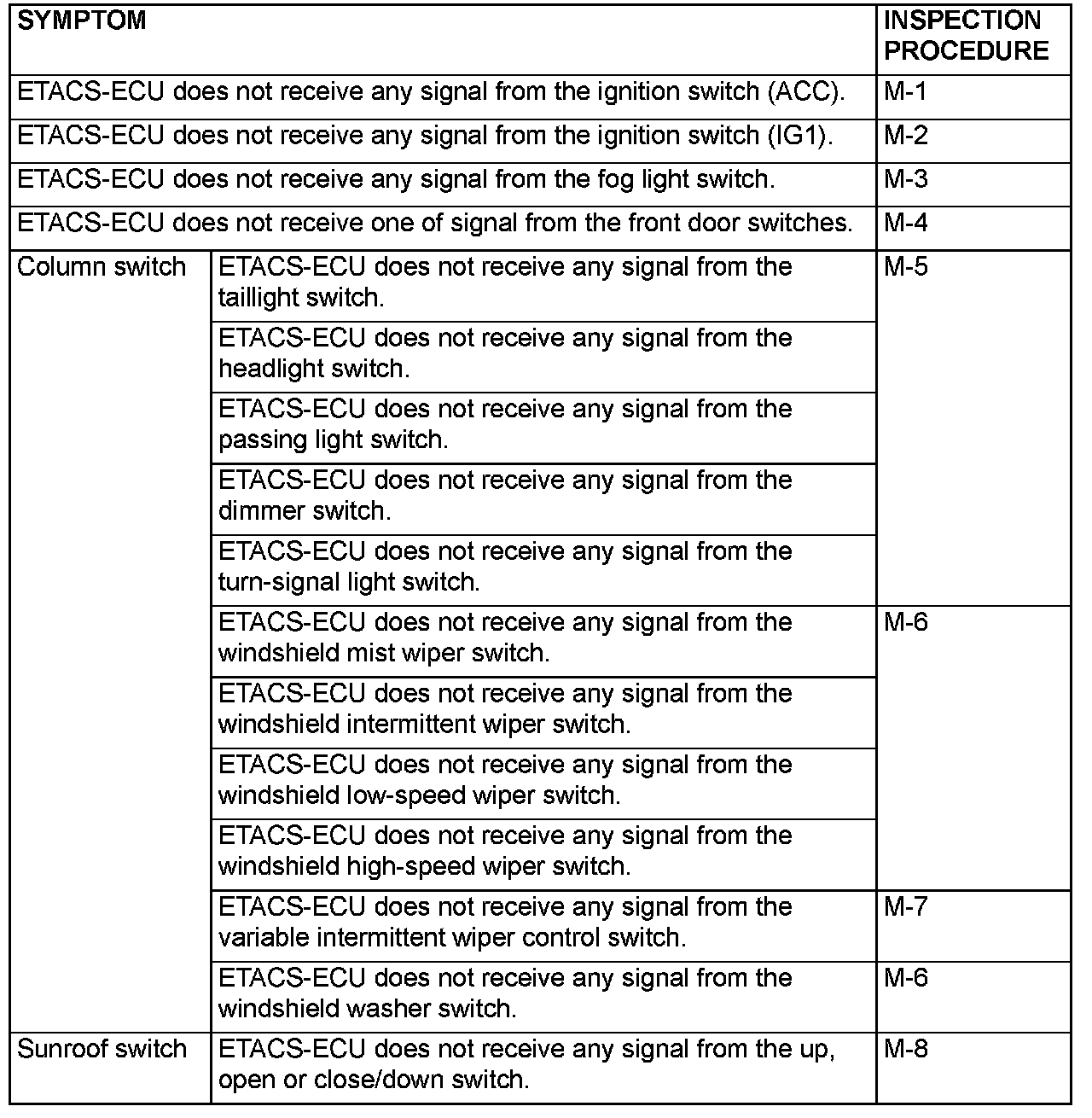

If a problem is found in the Data List inspection, observe the table below.

SWS Monitor:

SCAN TOOL OR VOLTMETER

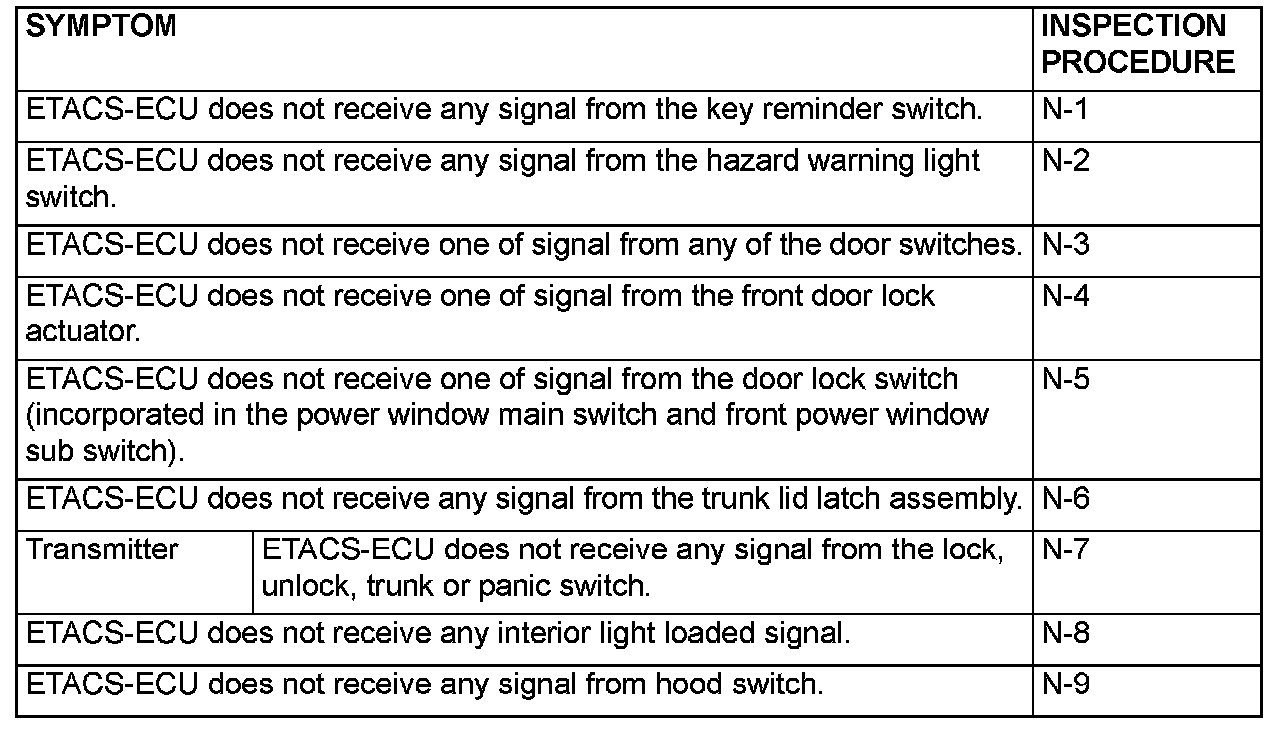

If a problem is found in the Pulse Check, observe the table below.
