Data List Reference Table

[DATA LIST REFERENCE TABLE]
The table below shows the service data and their normal condition, which are displayed during the "Data List."

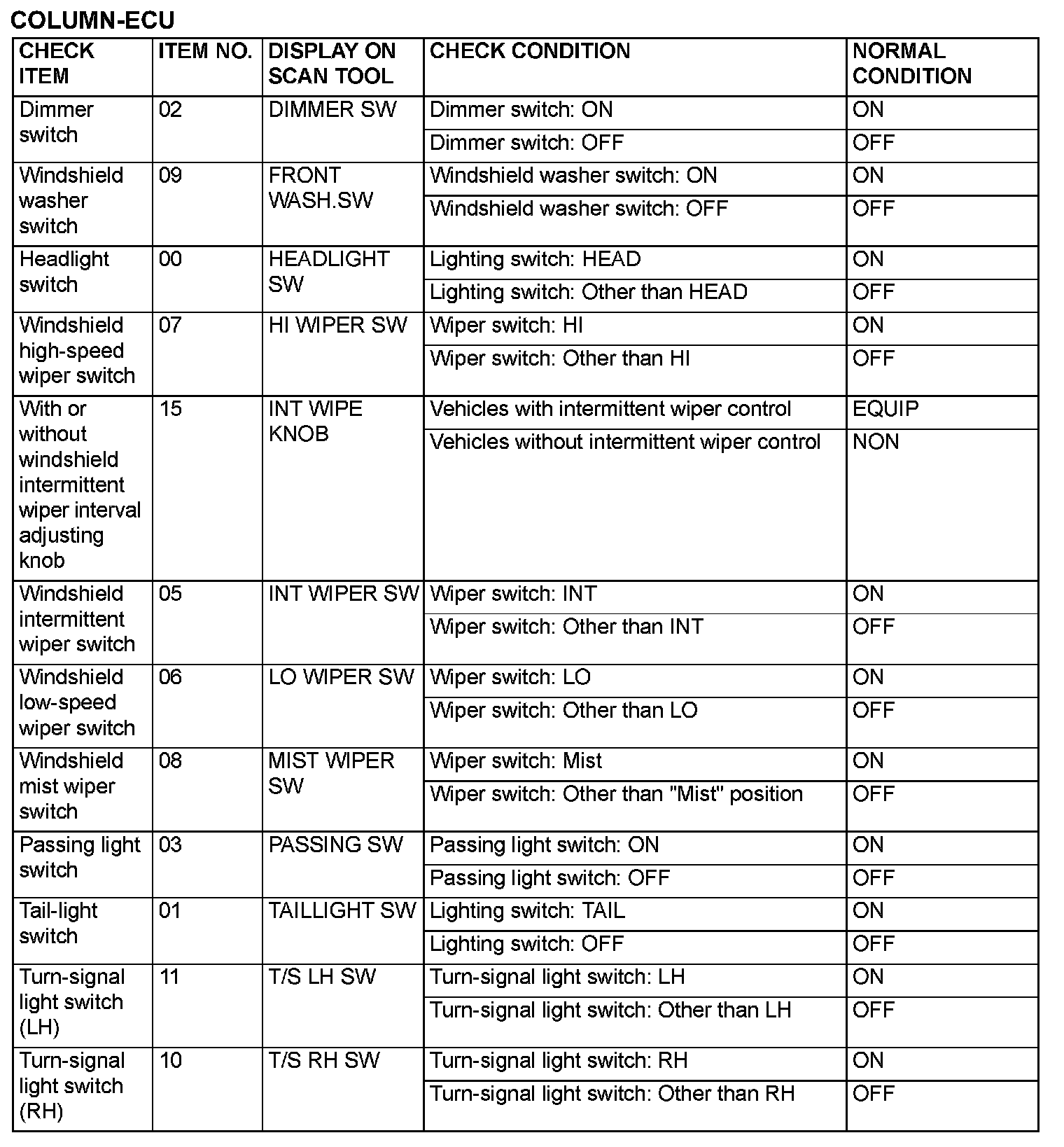

COLUMN-ECU

Column - ECU:

ETACS-ECU

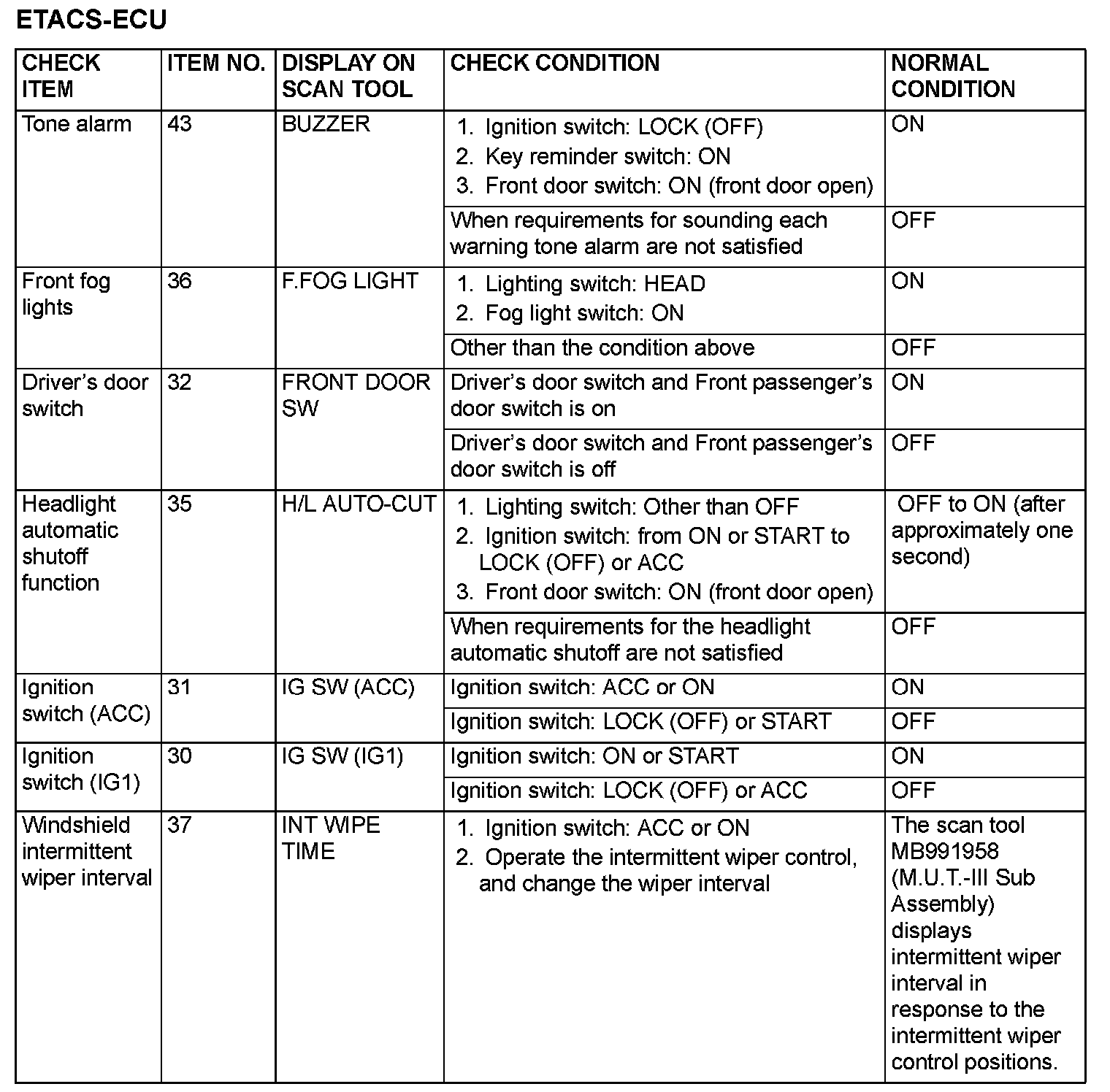

ETACS-ECU:

NOTE: For item No.43, the scan tool MB991958 (M.U.T.-III Sub Assembly) also displays "ON" when the light reminder tone alarm or the seat belt tone alarm function is triggered.

Front-ECU, Sunroof-ECU

Front-ECU, Sunroof-ECU:

NOTE:
- For item No.70, the scan tool MB991958 (M.U.T.-III Sub Assembly) also displays "NG" under "ECU COMM Check" when it displays "NO ACK" under the front-ECU check.
- For item No.72, the scan tool MB991958 (M.U.T.-III Sub Assembly) also displays "NG" under "ECU COMM Check" when it displays "NO ACK" under the sunroof-ECU check.


[FUNCTION DIAGNOSIS]
The table below shows the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal condition" shows values that are shown when each operation is made.

WIPER

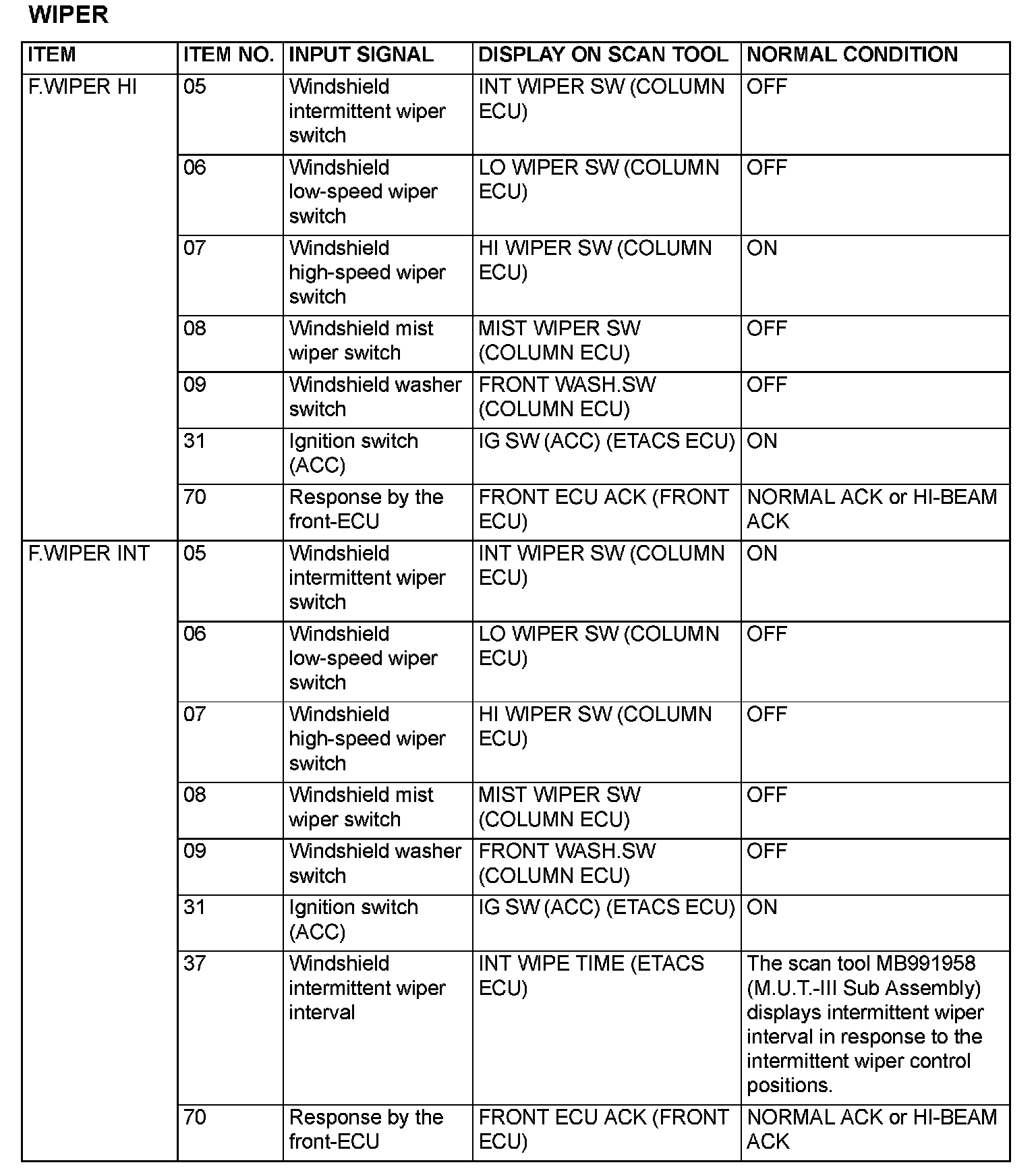

Wiper (Part 1):

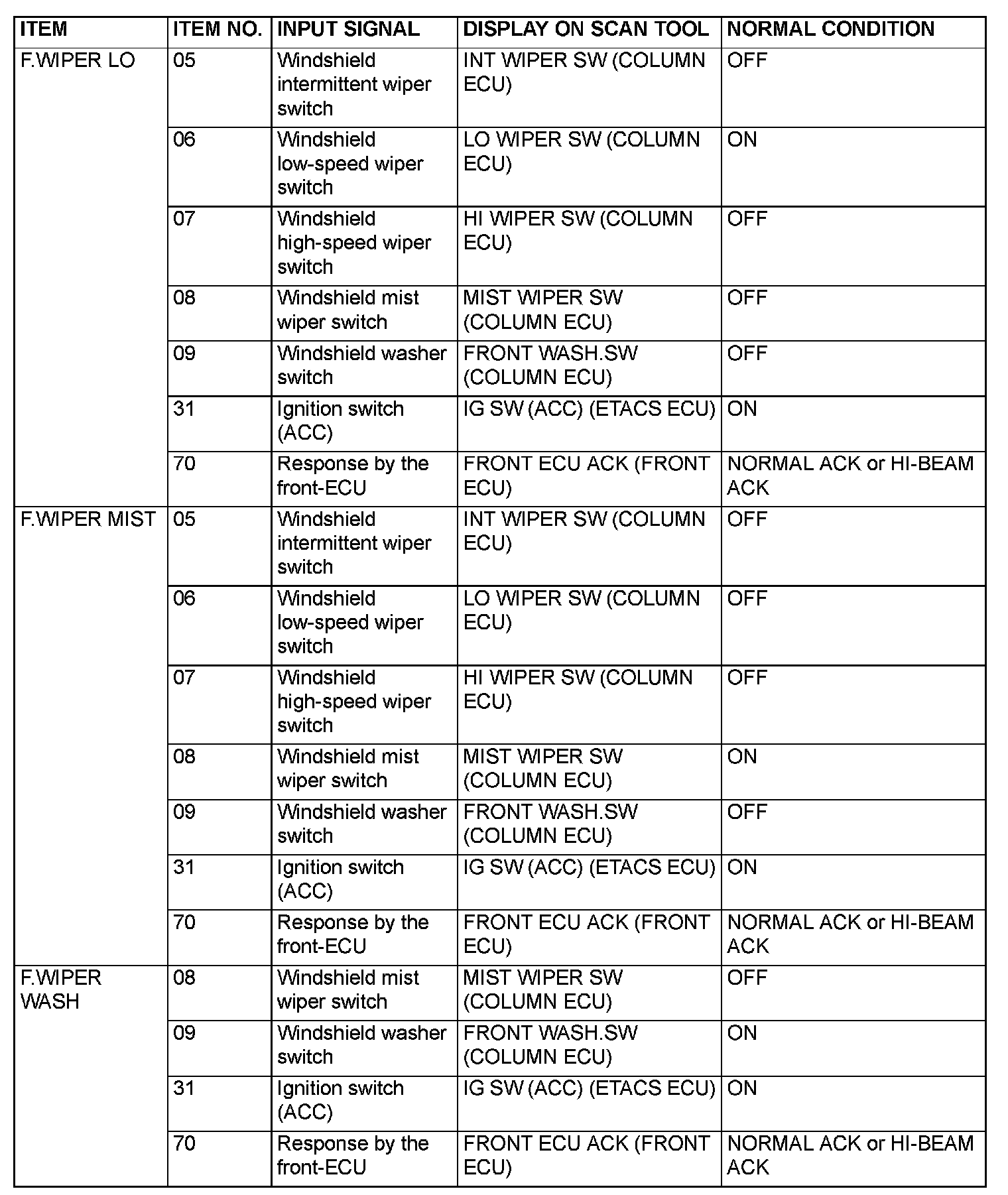

Wiper (Part 2):

LIGHTING

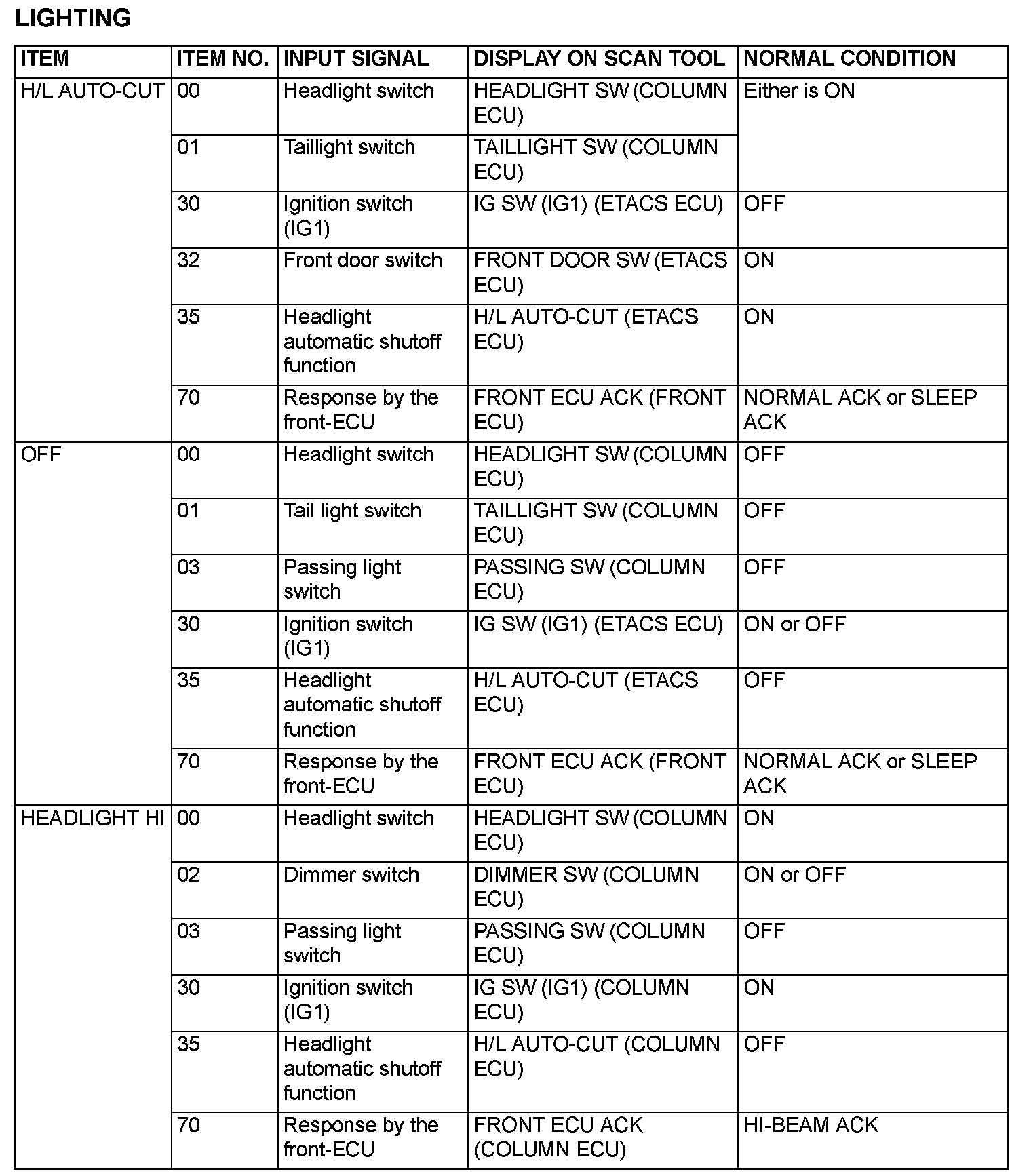

Lighting (Part 1):

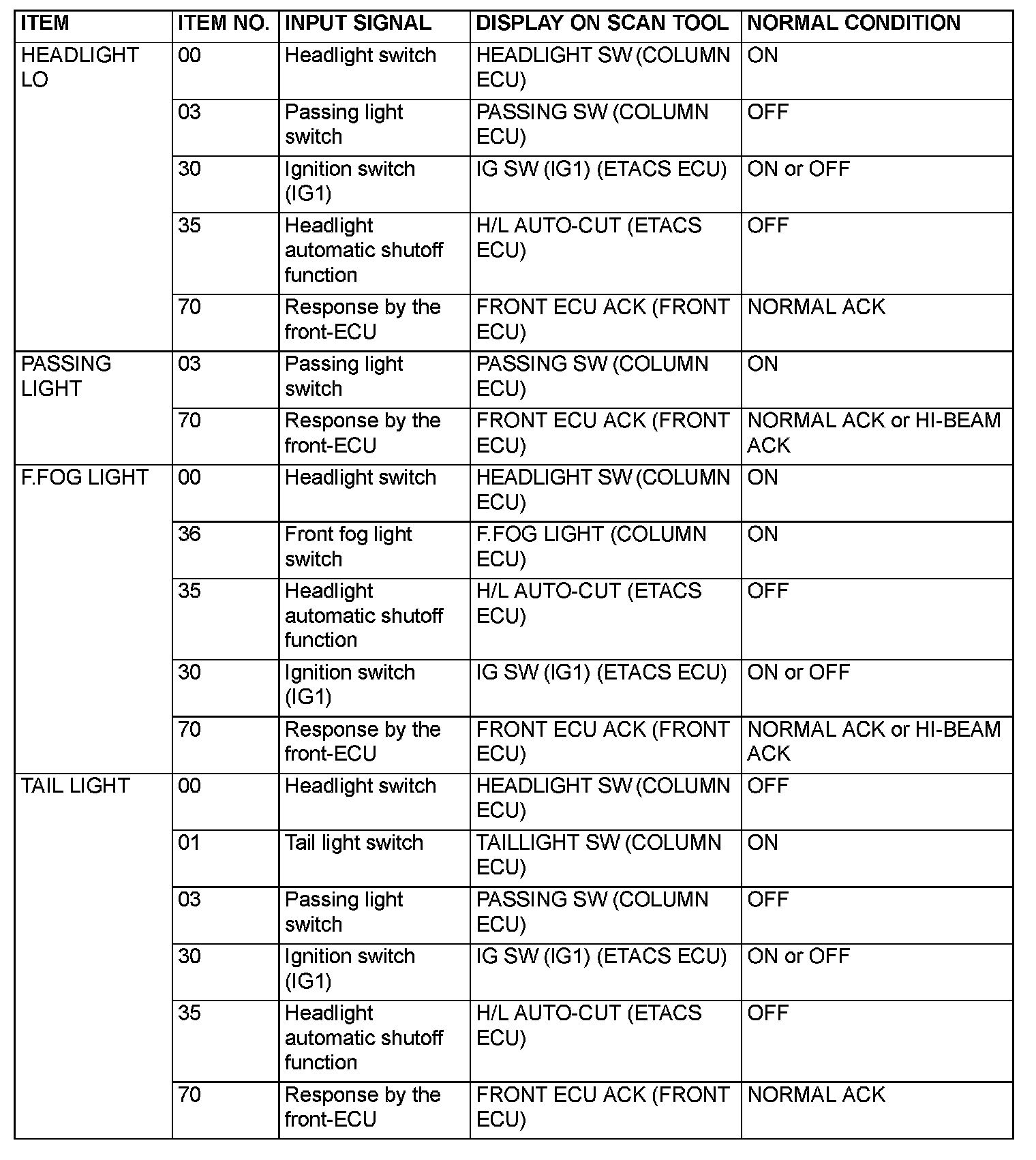

Lighting (Part 2):

NOTE: When checking the input signals (off, tail, low-beam or high-beam), turn the ignition switch to the "ON" position in order to disable the headlight automatic shutoff function. However, since the headlight operation does not depend on the ignition switch positions, the scan tool MB991958 (M.U.T.-III Sub Assembly) does not display the title "IGNITION SWITCH".

For checking item "HEADLIGHT HI", the scan tool MB991958 (M.U.T.-III Sub Assembly) displays "OFF" on the item No.2 "DIMMER SW" when the headlights are at high-beam. Therefore, the scan tool MB991958 (M.U.T.-III Sub Assembly) should display "ON" momentarily when the dimmer switch is operated.

TURN SIGNAL

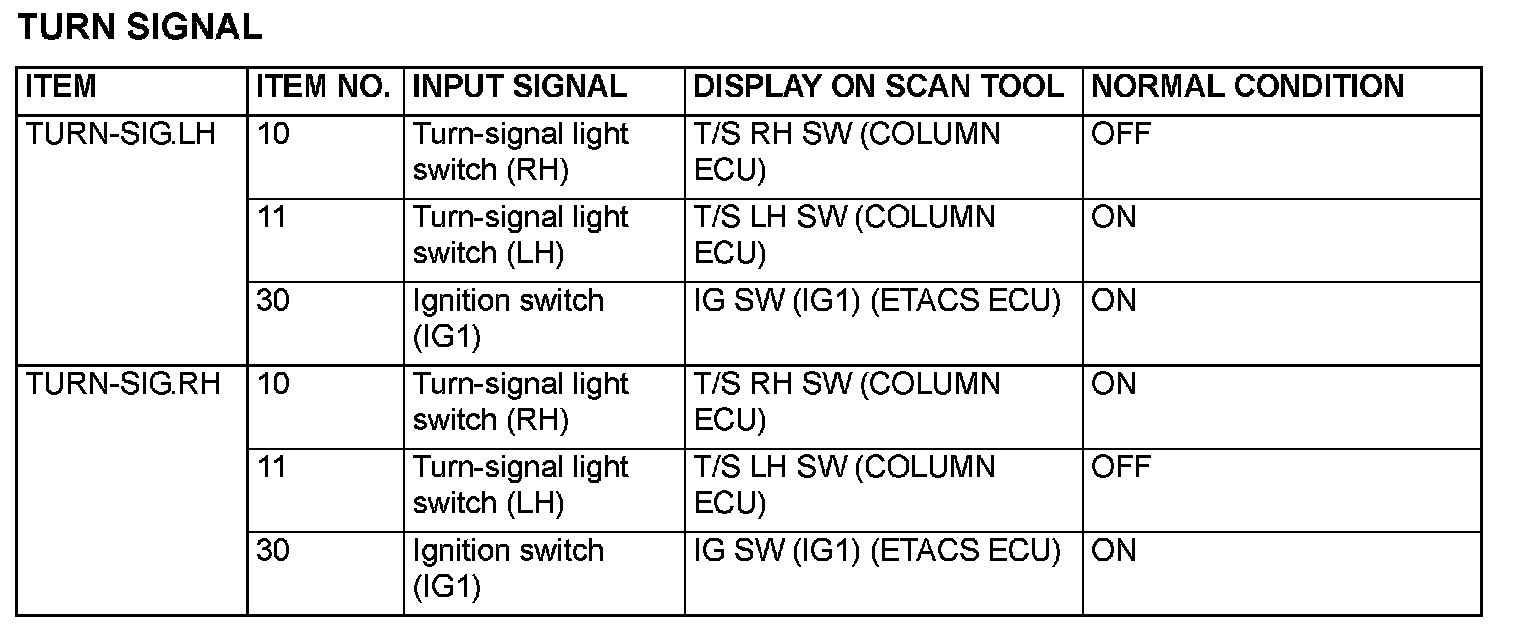

Turn Signal:

BUZZER

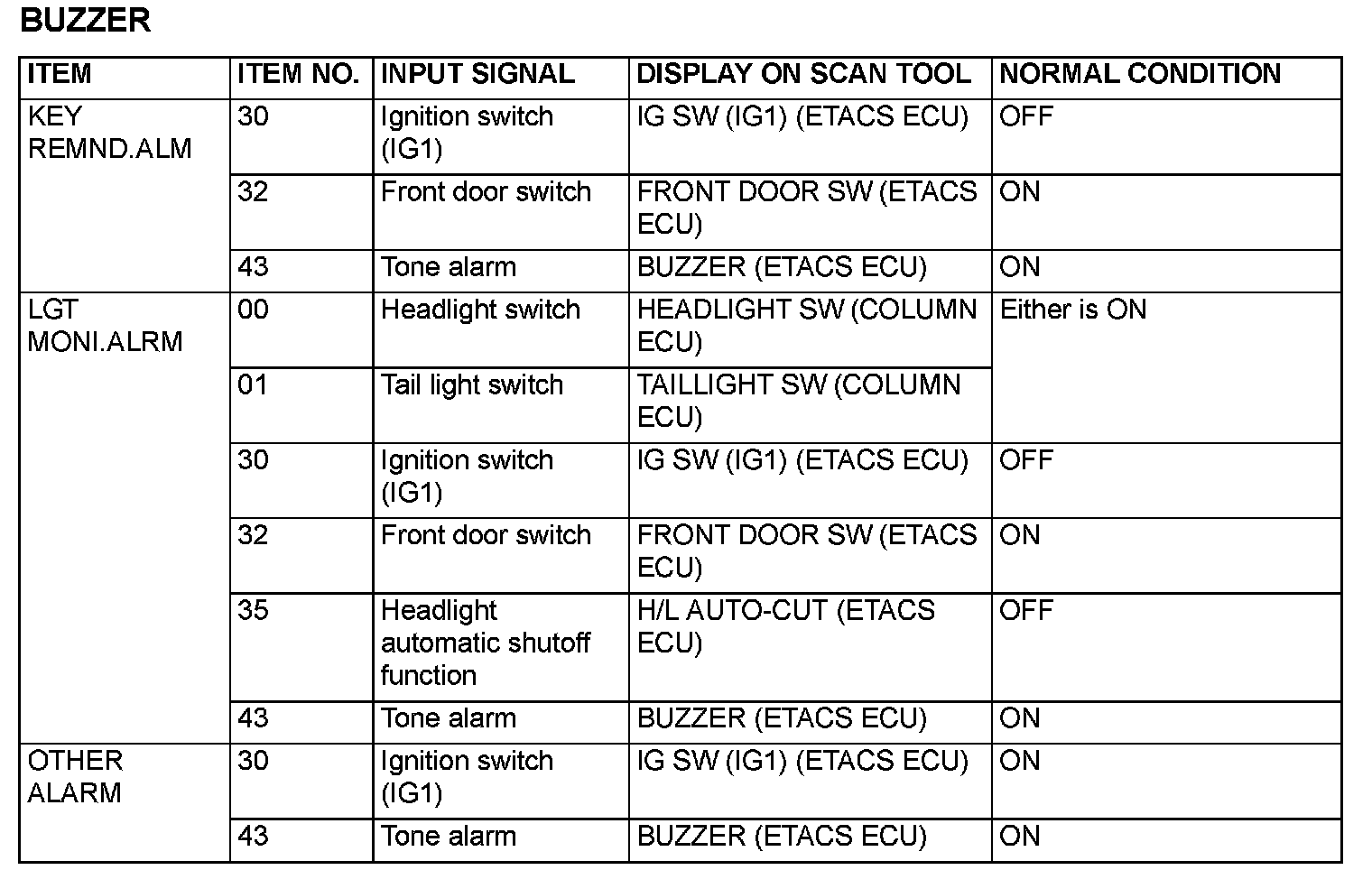

Buzzer:

NOTE: The headlight automatic shutoff function operates approximately one second after the lighting monitor tone alarm starts sounding, and then the tone alarm ceases sounding.

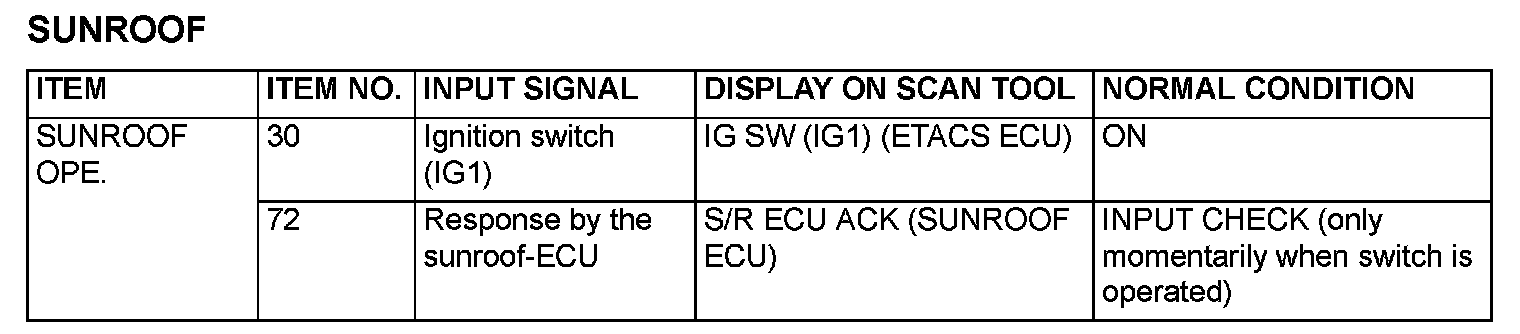

SUNROOF

Sunroof:

PULSE CHECK

1. The input signals (signals other than SWS communication line signals), which are compatible with the SWS monitor by using the scan tool MB991958 (M.U.T.-III Sub Assembly) or voltmeter, can be confirmed by the Pulse Check.
2. Use the scan tool MB991958 (M.U.T.-III Sub Assembly) or voltmeter to check the following input signals.

NOTE: If a problem is found in the Pulse Check, refer to Input Signal Chart. Input Signal Chart

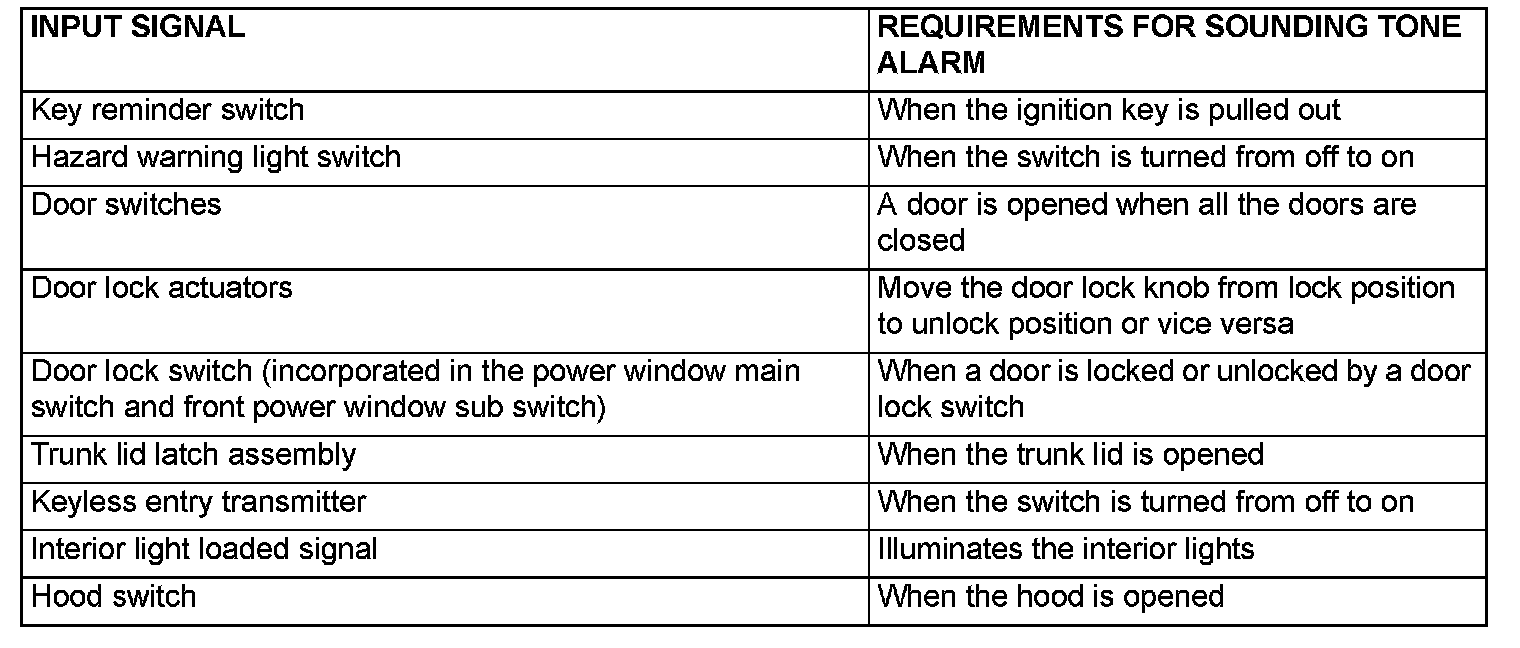

Switches and their conditions, which are applicable for Pulse Check
