Part 2

TONE ALARM

GENERAL DESCRIPTION CONCERNING THE TONE ALARM

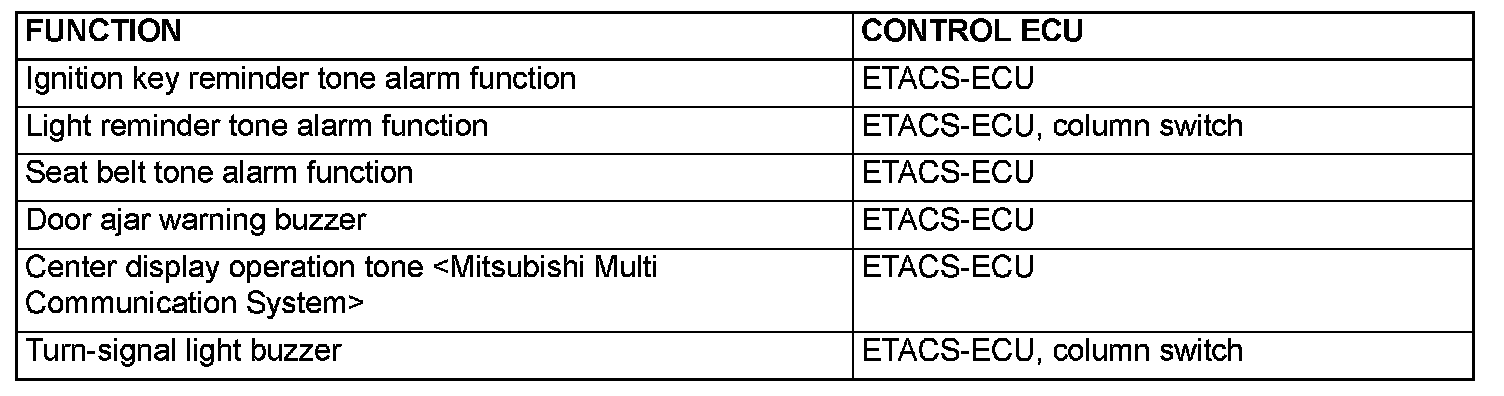

The tone alarm functions are as follows. These functions are controlled by relevant ECUs.

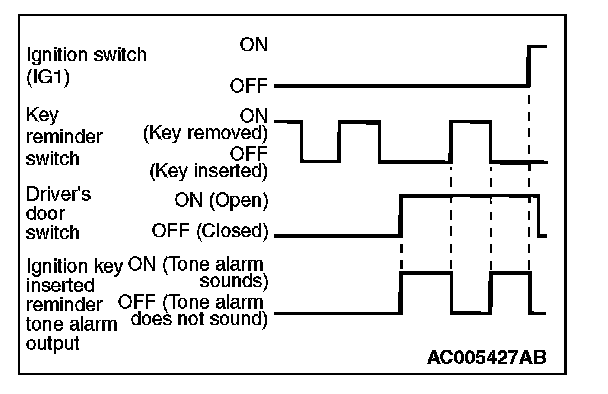

Ignition key reminder tone alarm function

When the driver's door is opened with the ignition key inserted in the ignition key cylinder (ignition switch is in the OFF position,) the tone alarm sounds intermittently to indicate that the ignition key has not been removed.

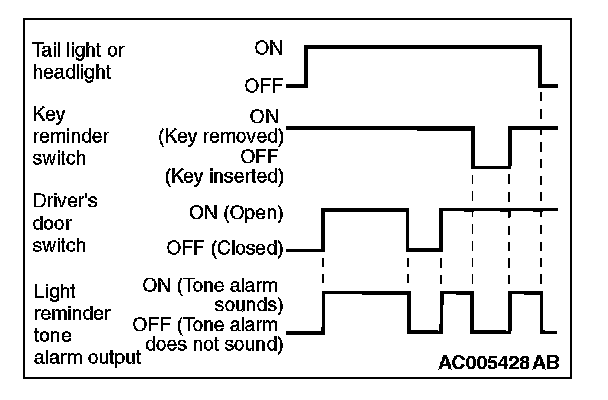

Light reminder tone alarm function

When the taillights or headlights is the ON position, if the ignition key is removed and the driver's door is opened, a tone alarm will sound continuously to warn that the lights are on. However, if the taillights or headlights have been turned off by the headlight automatic-shutoff function, the tone alarm will not sound.

Seat belt tone alarm function

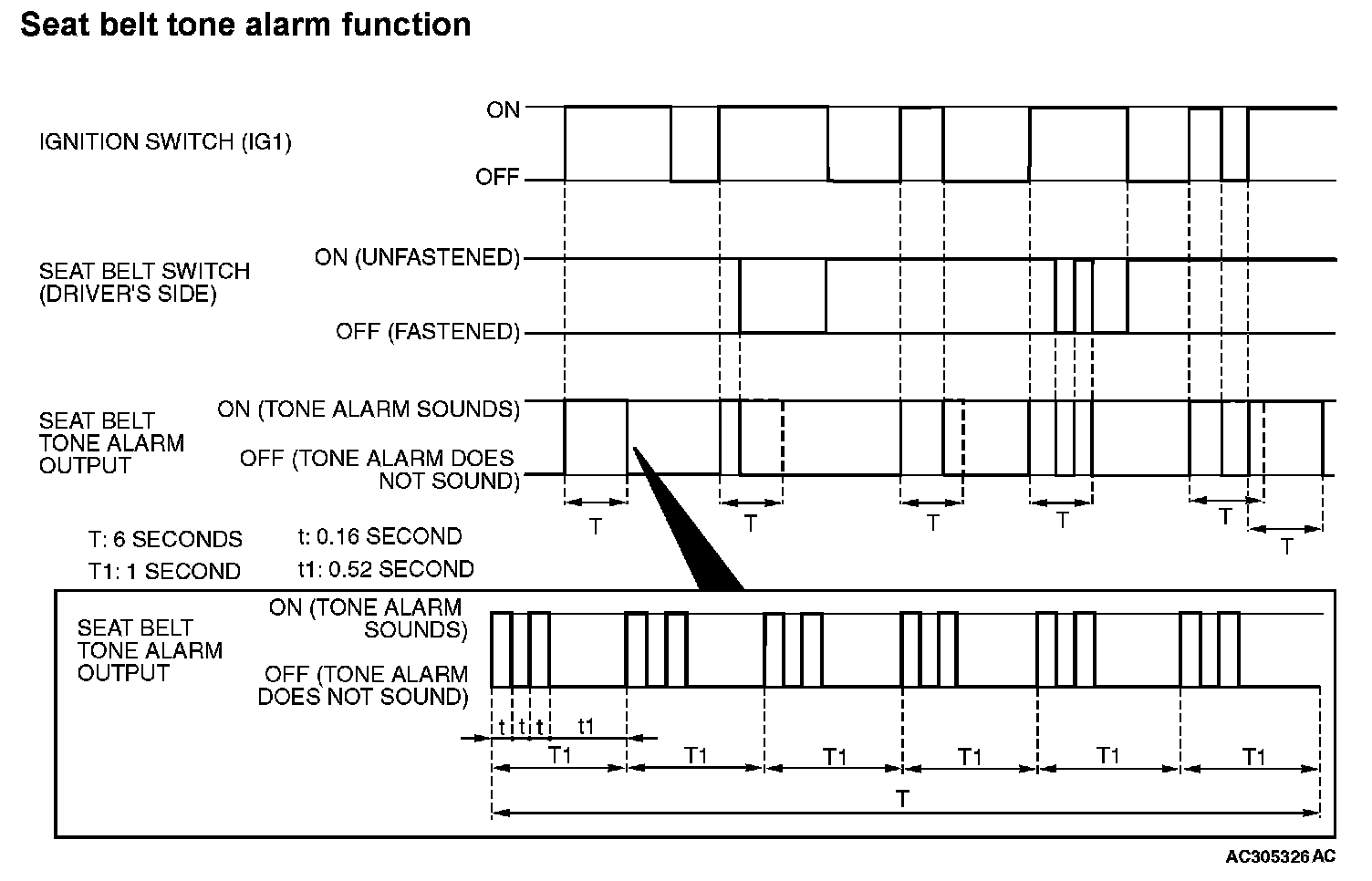

Seat Belt Tone Alarm Function (Part 1):

Seat Belt Tone Alarm Function (Part 2):

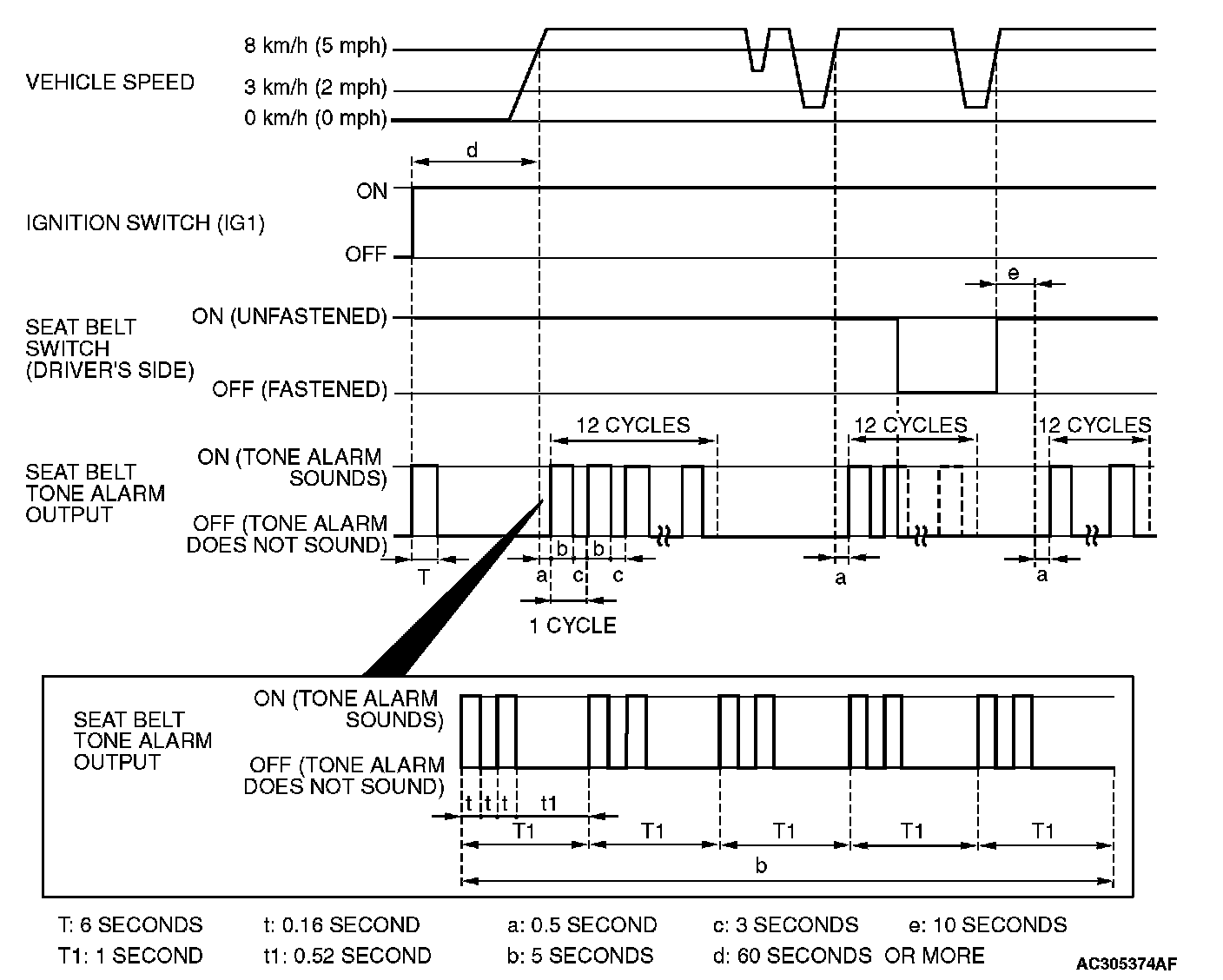

If any of the following conditions is met with the ignition switch at "ON" or "ST," the ETACS-ECU sounds the tone alarm by using the driver's seat belt switch signal and the vehicle speed signal sent from the combination meter.
- Sounds the tone alarm for six seconds when the ignition switch is turned "ON" with the seat belt switch on (the driver's seat belt is not fastened). This is called "Timer function".
- Sounds the tone alarm 12 cycles (after 0.5 second) if any of the following conditions is met when sixty seconds or more have elapsed since the ignition switch is turned "ON." One cycle consists of five-second "on" and then three-second "off."
a. The vehicle speed has reached 8 km/h (5 mph) while the seat belt switch is turned on (driver's seat belt is not fastened) with the ignition switch "ON."
b. The seat belt switch has been turned on (driver's seat belt has not been fastened) for at least ten seconds while the ignition switch has been turned "ON" and the vehicle speed has been 8 km/h (5 mph) or more.

NOTE: Once the tone alarm has sounded 12 cycles, it does not sound again until the vehicle speed reduces to 3 km/h (2 mph) or less even if any of the following conditions is met.

- The tone alarm stops sounding if the ignition switch or the seat belt switch is turned off (the driver's seat belt is fastened) while the timer operation is active.

Door ajar warning buzzer
The buzzer is sounded 4 times by the ETACS-ECU to warn the driver if any door is open when the ignition is switched "ON" and the vehicle speed reaches 8 km/h (5 mph) or faster. The buzzer will continue to sound for 4 times even if the ignition, door status, or vehicle speed requirements are not maintained.

NOTE: The warning buzzer can be customized on vehicles equipped with a multi-center display (middle-grade type).

Multi-center display operation tone [Mitsubishi Multi Communication System]
The ETACS-ECU sounds the buzzer when the buzzer signal is sent from the multi-center display.

Turn-signal light buzzer
The ETACS-ECU sounds the buzzer in sync with the turn-signal lights or hazard warning lights.

NOTE: The turn-signal light buzzer can be customized on vehicles equipped with a multi-center display (middle-grade type).

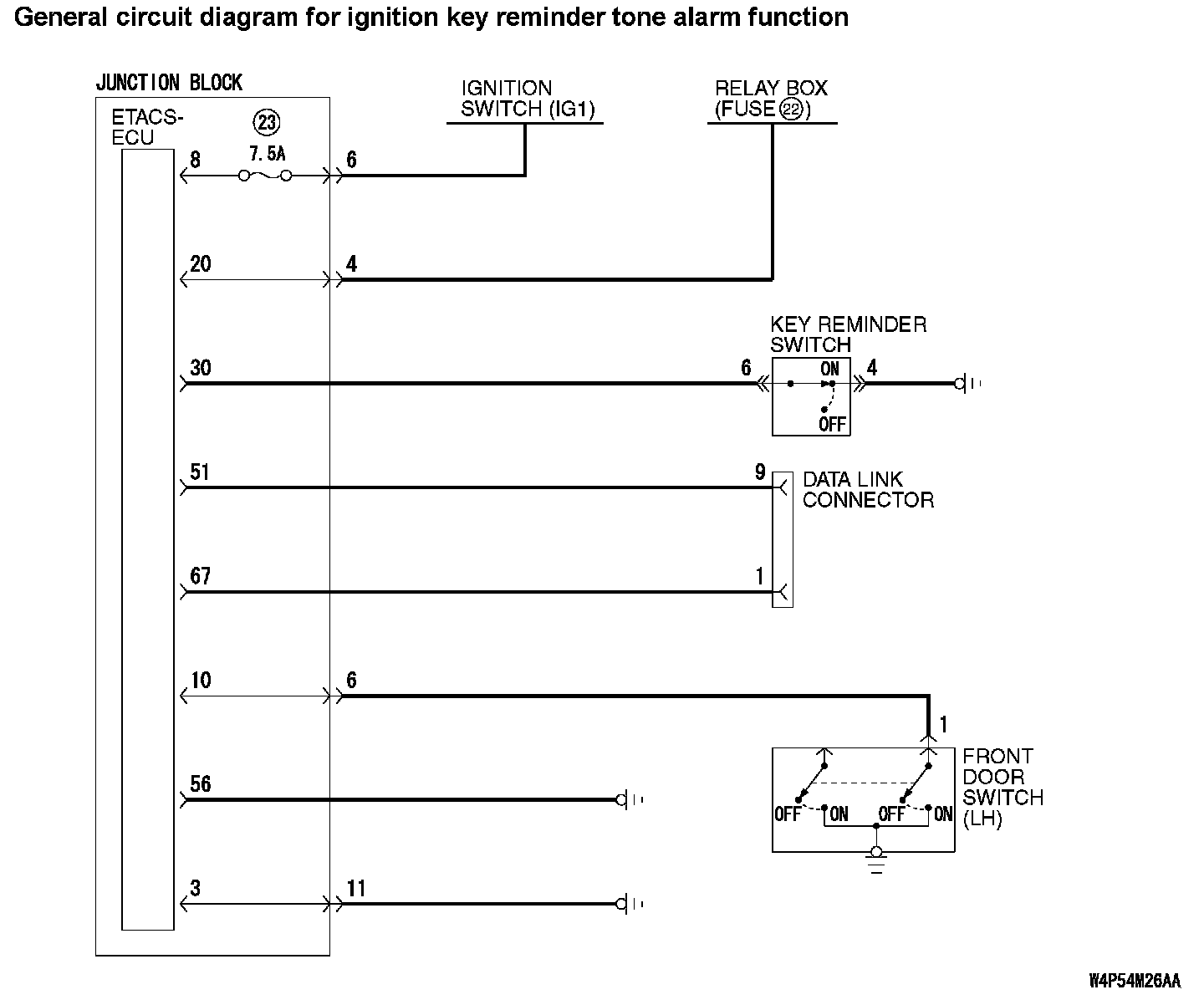

General circuit diagram for ignition key reminder tone alarm function

General Circuit Diagram For Ignition Key Reminder Tone Alarm Function:

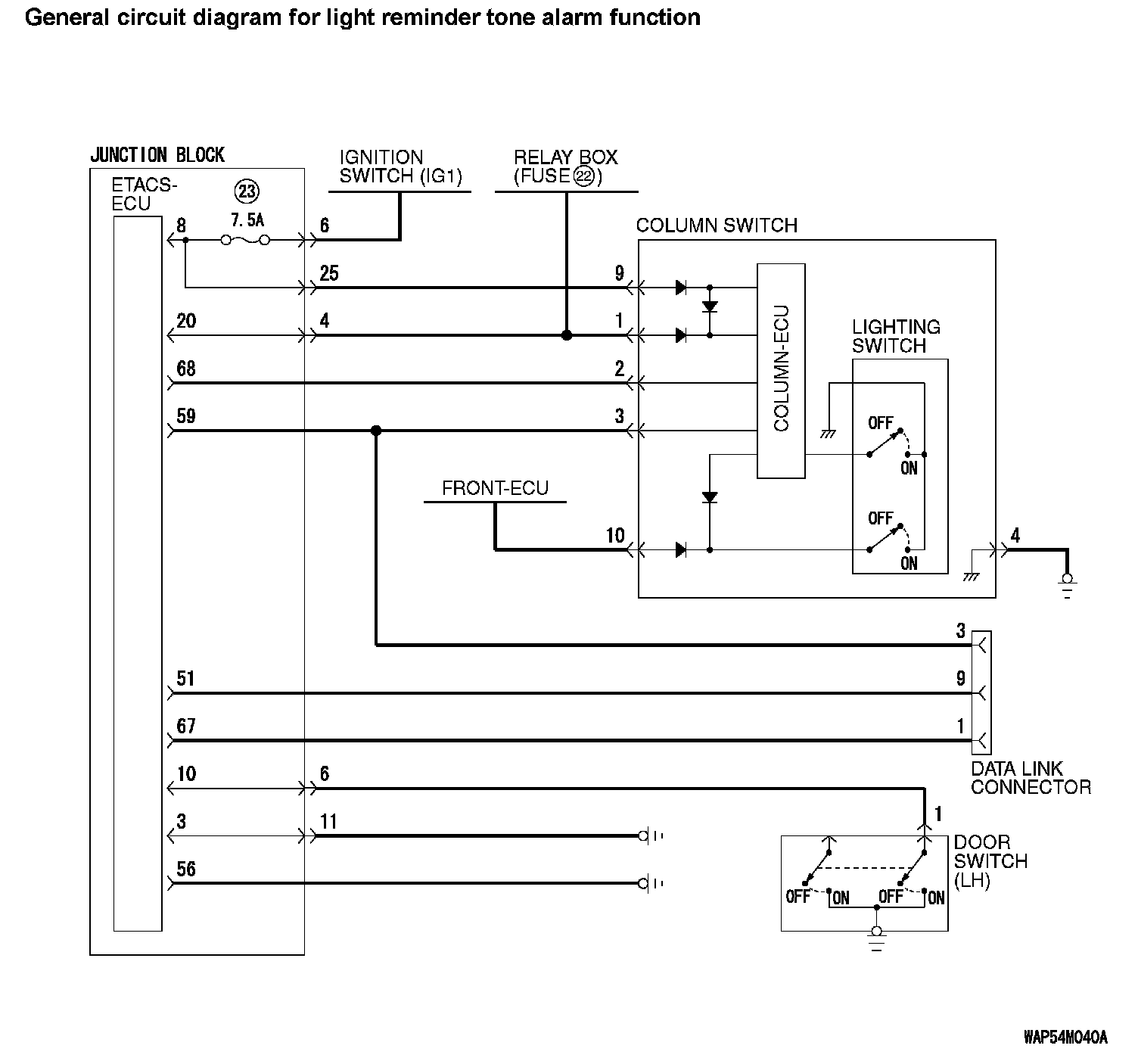

General circuit diagram for light reminder tone alarm function

General Circuit Diagram For Light Reminder Tone Alarm Function:

General circuit diagram for seat belt tone alarm function

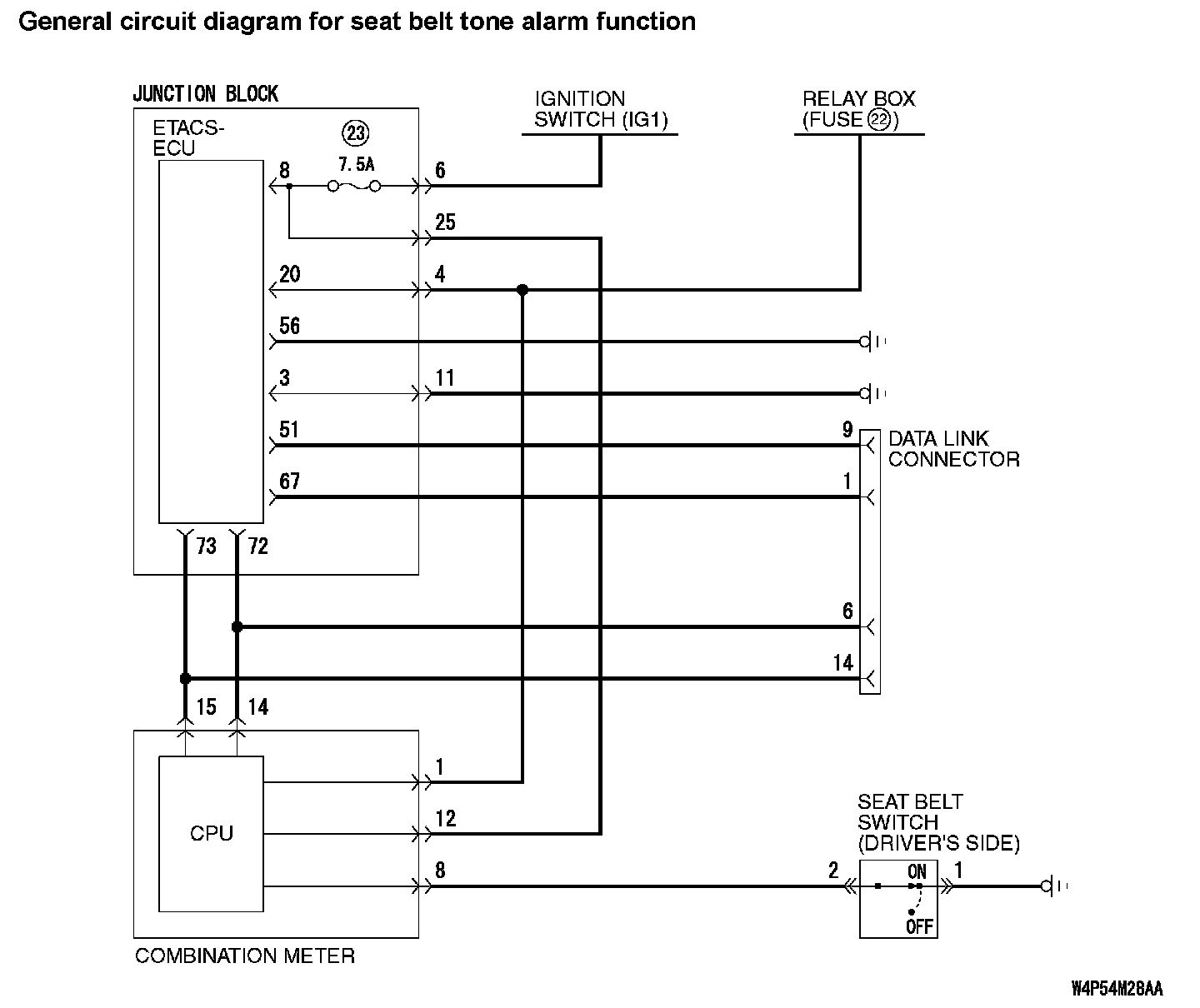

General Circuit Diagram For Seat Belt Tone Alarm Function:

CENTRAL DOOR LOCKING SYSTEM

GENERAL DESCRIPTION CONCERNING CENTRAL DOOR LOCKING SYSTEM

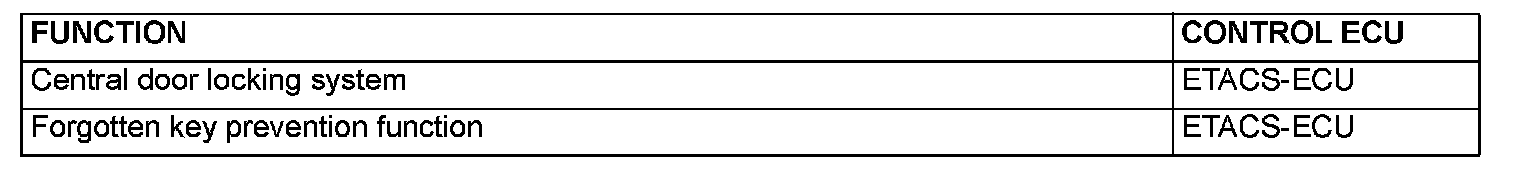

The following ECUs affect the functions and control of the central door locking system.

CENTRAL DOOR LOCKING SYSTEM

DOOR UNLOCKING BY OPERATING THE DRIVER'S DOOR LOCK KEY CYLINDER
When the ignition key is inserted in the driver's door lock key cylinder and turned clockwise to unlock the driver's door, the ETACS-ECU operates its door unlock relay and passes a current through the door lock actuator of the driver's door for 0.25 second to unlock only the driver's door.

DOOR LOCKING OR UNLOCKING BY OPERATING THE DRIVER'S OR FRONT PASSENGER'S DOOR LOCK SWITCH

When the door is locked by the driver's or front passenger's door lock switch, the ETACS-ECU operates its door lock relay and passes a current through the door lock actuators of all doors for 0.25 second to lock all doors.
When the door is unlocked by the driver's or front passenger's door lock switch, the ETACS-ECU operates its door unlock relay and passes a current through the door lock actuators of all doors for 0.25 second to unlock all doors.

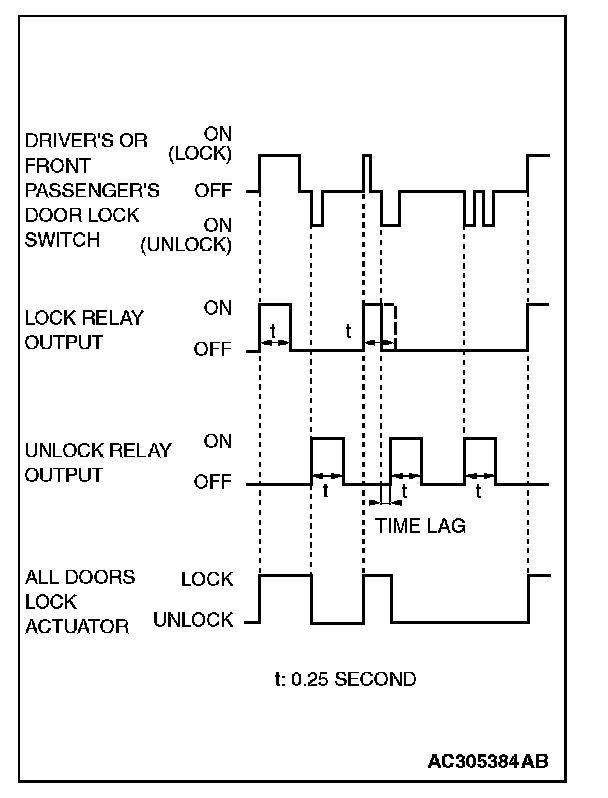

When the door is locked and unlocked by driver's or front passenger's door lock switch consecutively, the ETACS-ECU operates its door lock relay and passes a current through the door lock actuators of all doors for 0.25 second to lock all doors. Then, the ETACS-ECU operates its door unlock relay and passes a current through the door lock actuators of all doors for 0.25 second to unlock all doors. Due to this, there may be a time lag between the driver's or front passenger's door lock switch actuation and the time when all doors are unlocked.

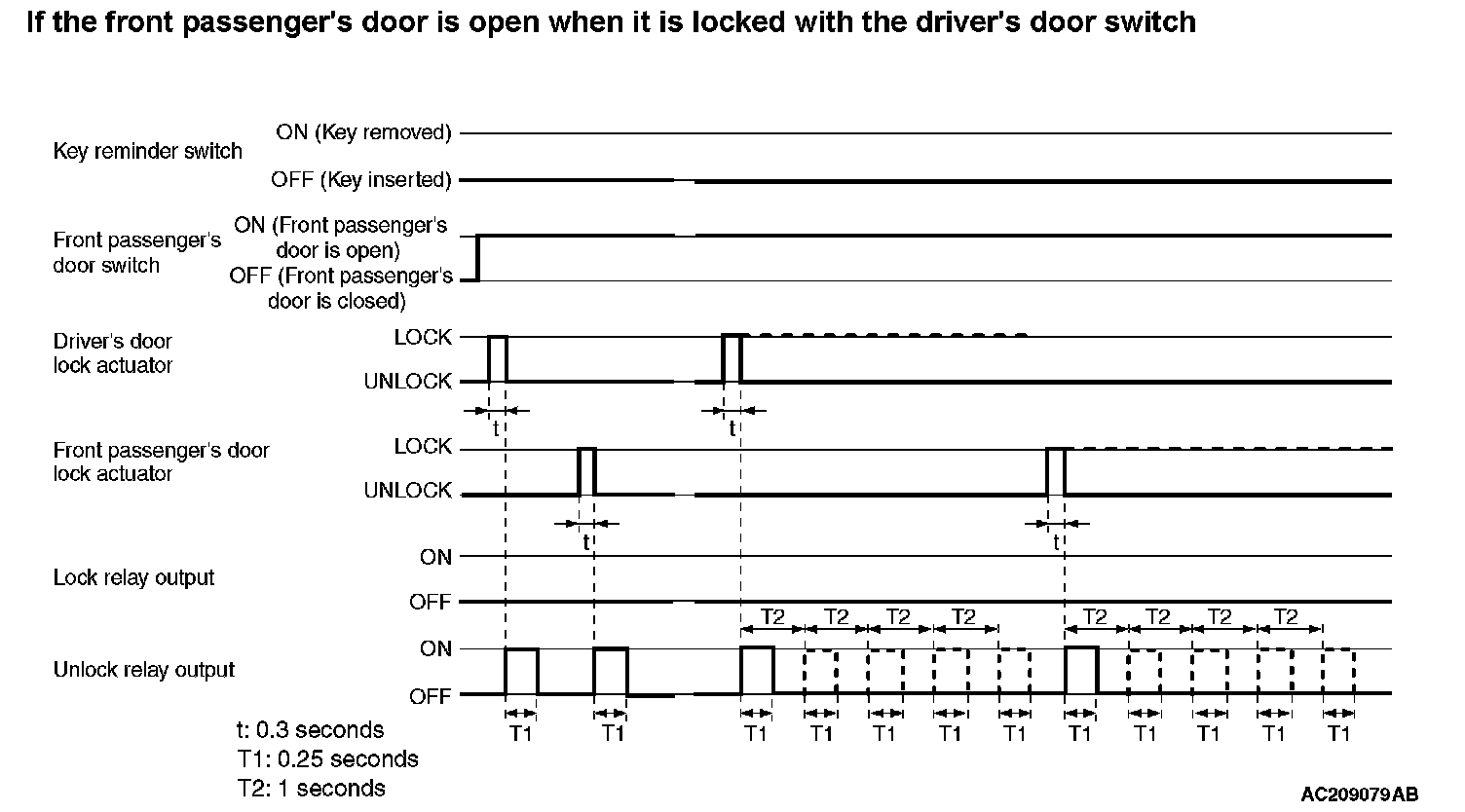

FORGOTTEN KEY PREVENTION FUNCTION

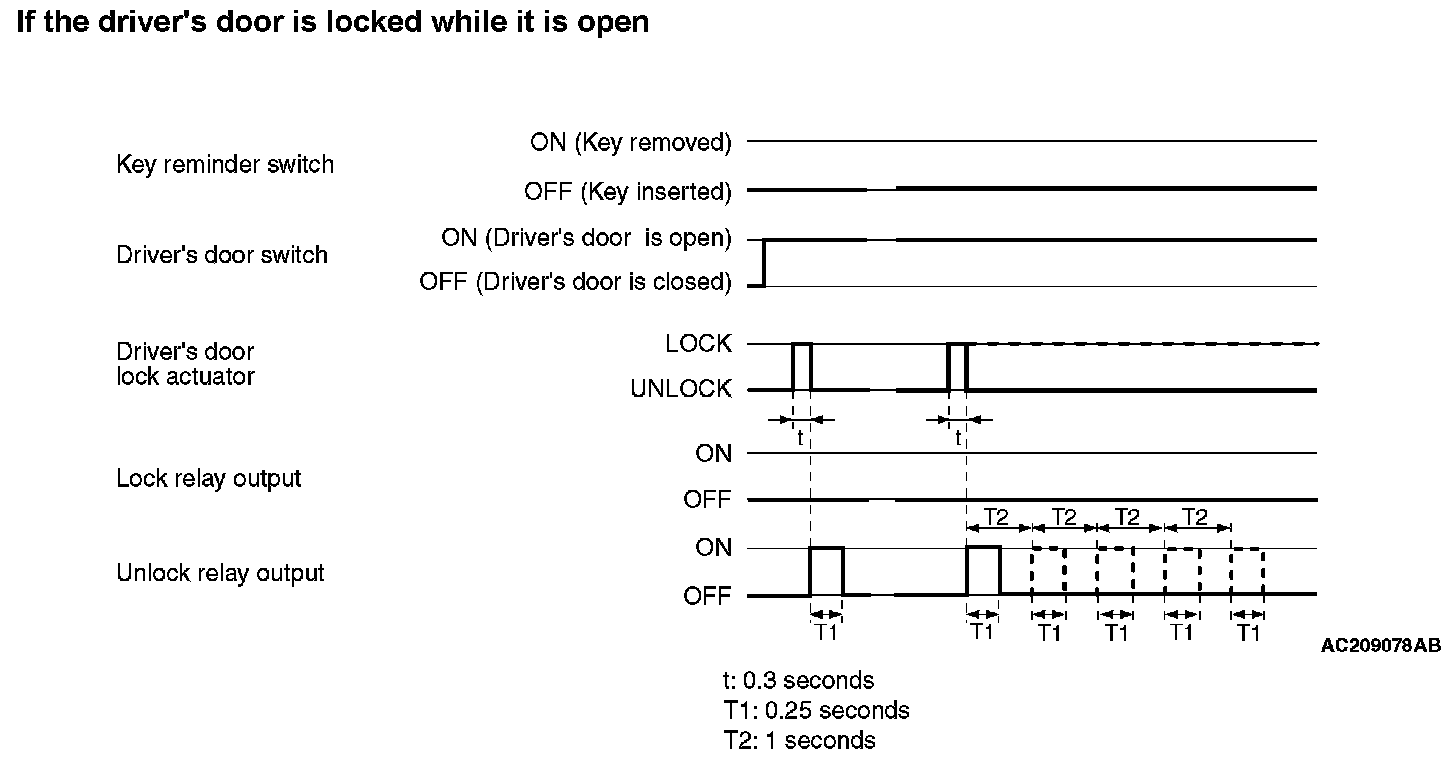

If the driver's door is locked while it is open and when the key is still in the ignition key cylinder, approximately 0.3 second later the ETACS-ECU activates the unlock relay output for 0.25 second to prevent the door from being locked with the key inside the vehicle.
In addition, if locking the door was not prevented, a re-try current is sent (an unlock relay output ON is sent for 0.25 second up to 5 times including the first attempt).

NOTE: The dotted line indicates that the system is trying to turn on the unlock relay if the door cannot be unlocked.

If the passenger's door or driver's door are locked while the passenger's door is open and when the key is still in the ignition key cylinder, approximately 0.3 second later the ETACS-ECU activates the unlock relay output for 0.25 second to prevent the door from being locked with the key inside the vehicle.
In addition, if locking the door was not prevented, a re-try current is sent (an unlock relay output ON is sent for 0.25 second up to 5 times including the first attempt).

NOTE: The dotted line indicates that the system is trying to turn on the unlock relay if the door cannot be unlocked.

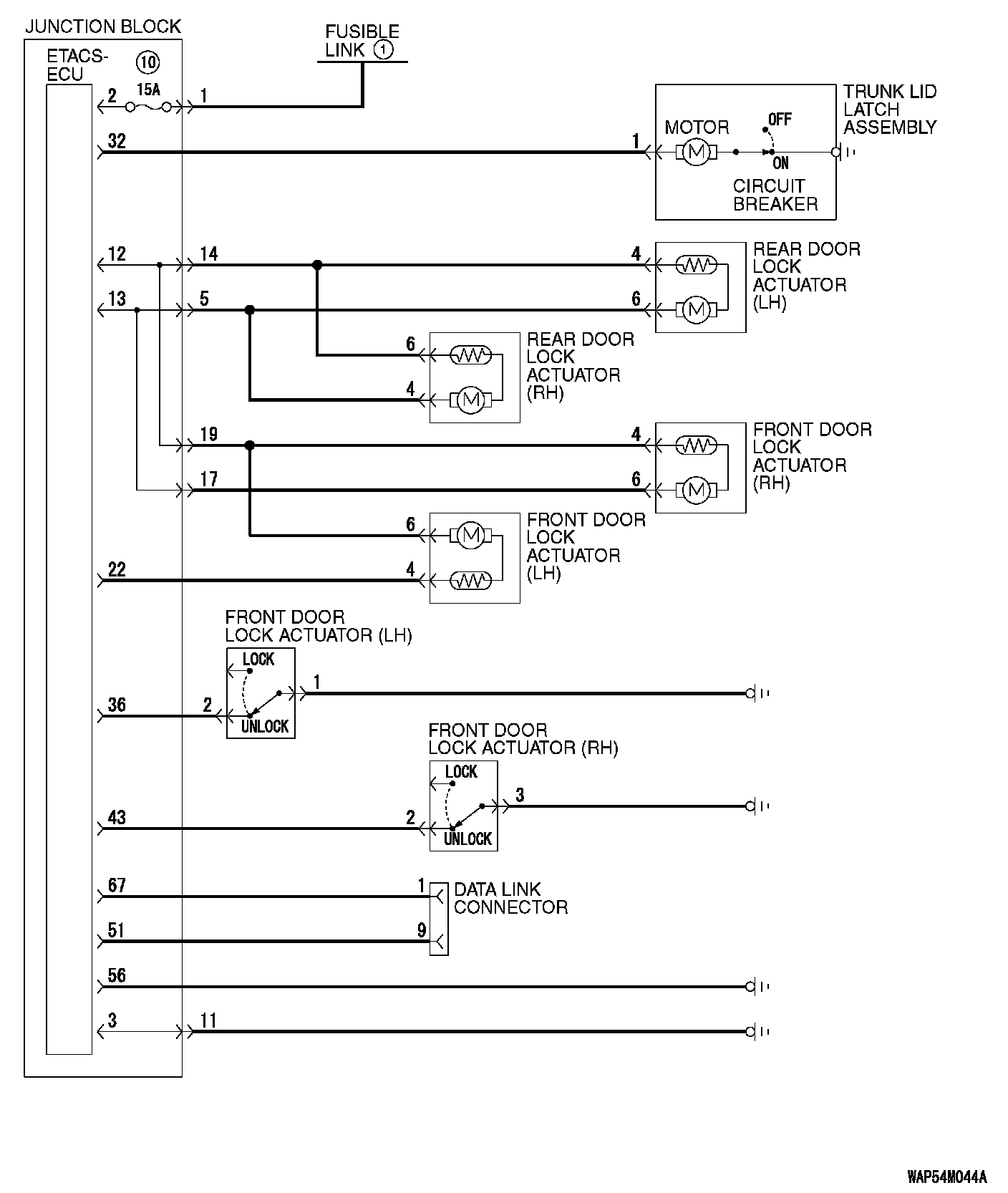

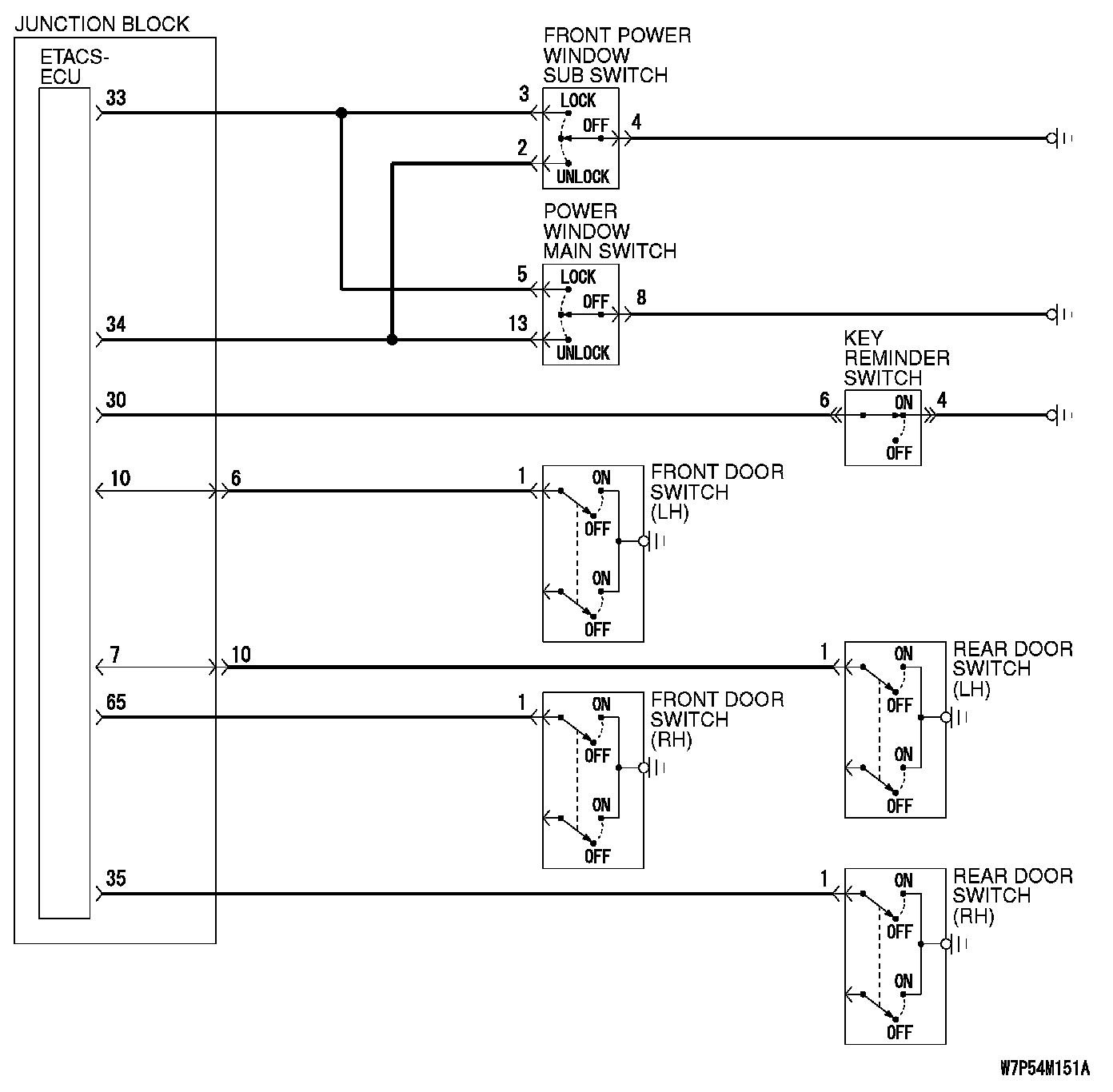

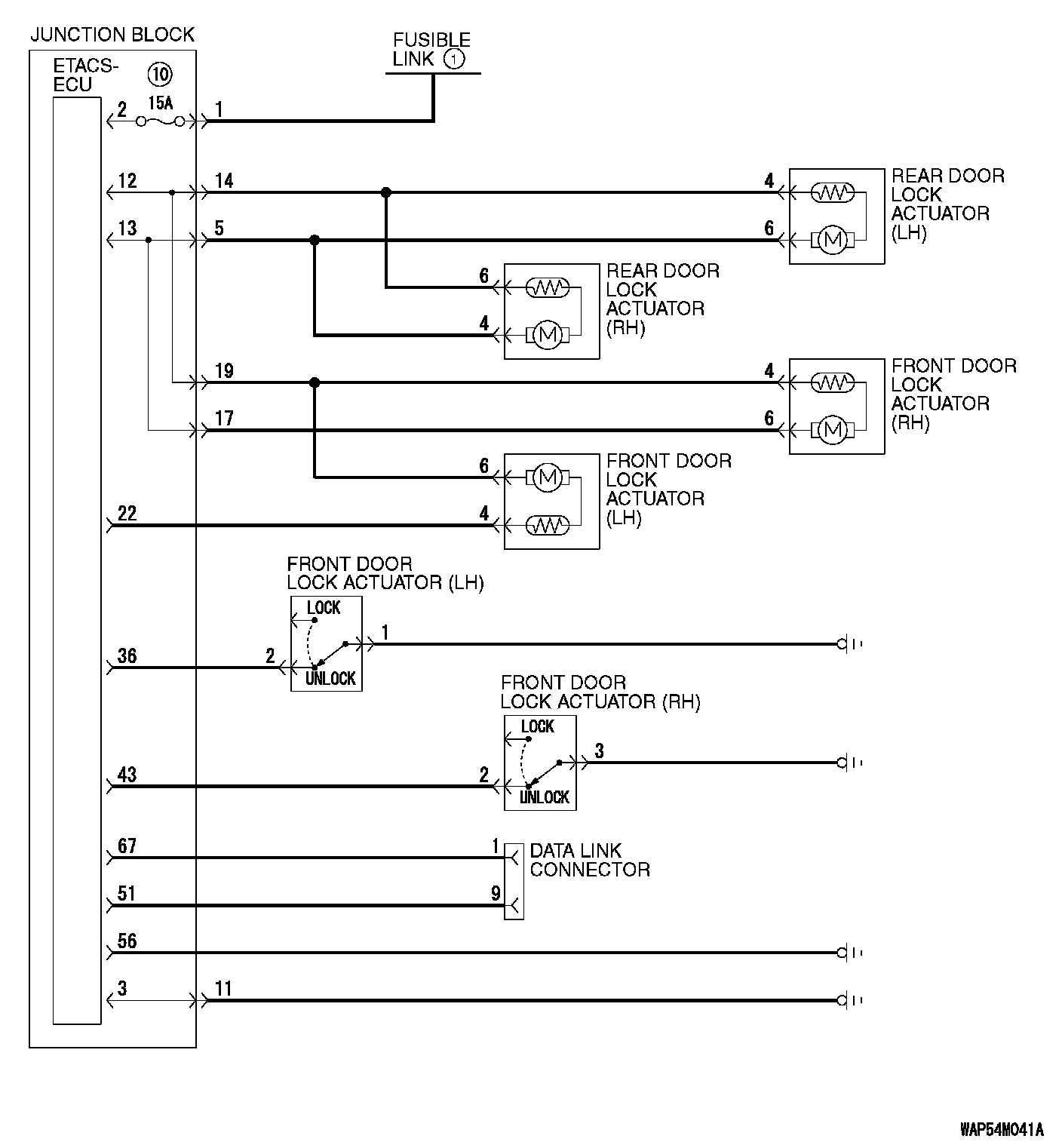

GENERAL CIRCUIT DIAGRAM FOR THE CENTRAL DOOR LOCKING SYSTEM

Part 1:

Part 2:

POWER WINDOWS

GENERAL DESCRIPTION CONCERNING THE POWER WINDOWS

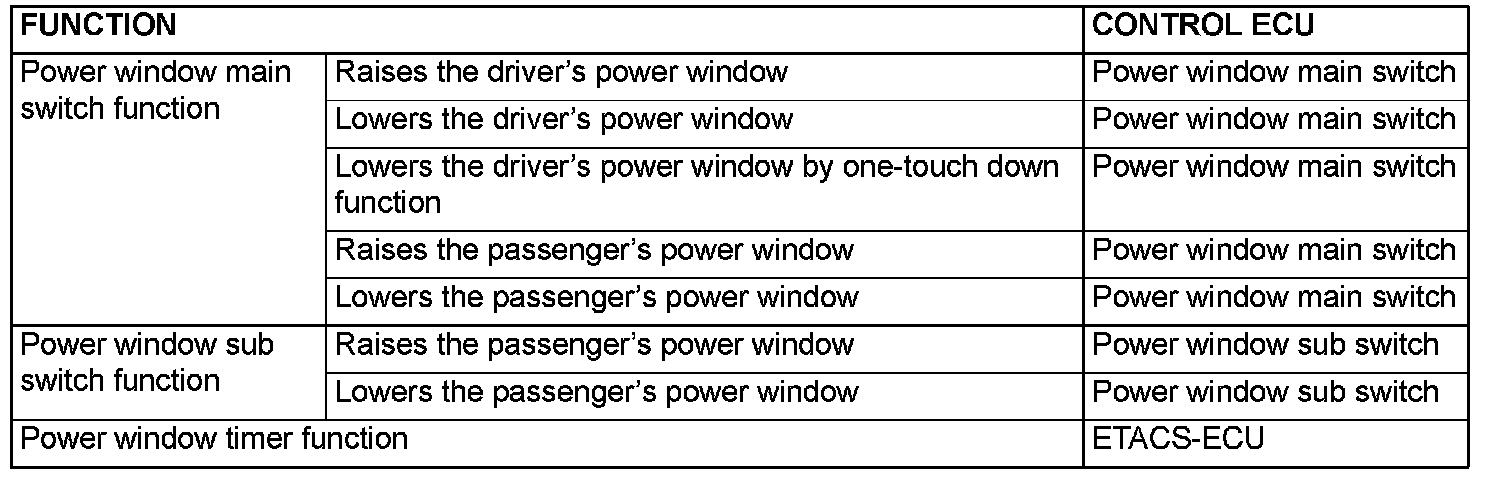

The following ECUs affect the functions and control of the power windows.

POWER WINDOW MAIN SWITCH FUNCTION

The main switch is located on the driver's door.

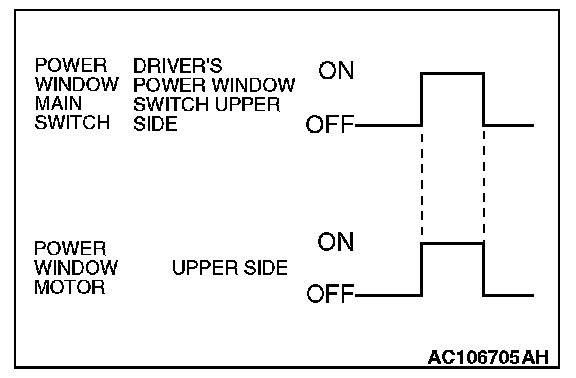

Raises the driver's power window

When the driver's power window switch on the power window main switch is pulled up, the system energizes its respective power window motor, and then the driver's window glass rises.

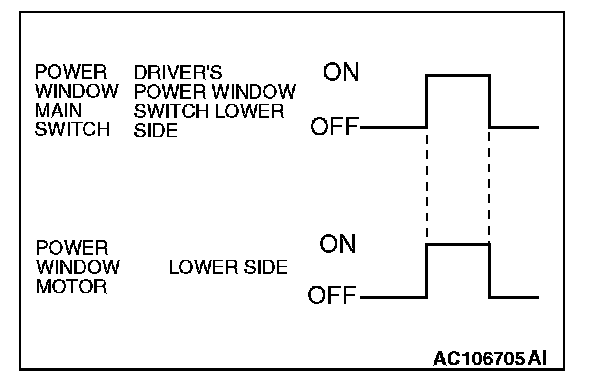

Lowers the driver's power window

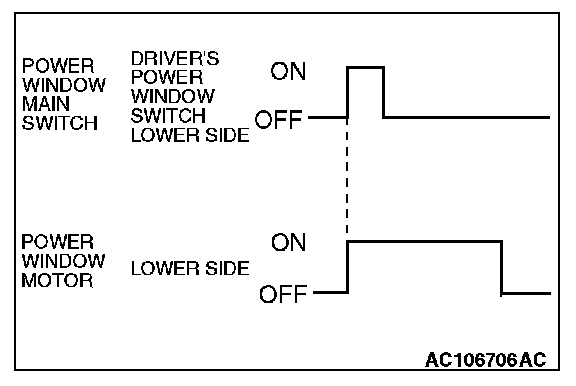

When the driver's power window switch on the power window main switch is pushed down, the system energizes its respective power window motor, and then the driver's window glass lowers.

Lowers the driver's power window by one-touch down function

When the driver's power window switch on the power window main switch is pushed down fully, the system energizes its respective power window motor, and then the driver's window glass moves to its lowest position.

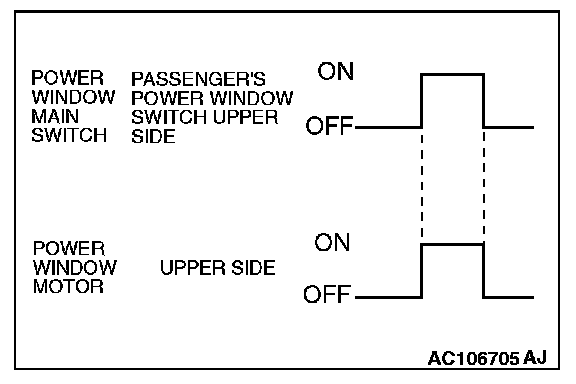

Raises the passenger's power window

When the passenger's power window switch on the power window main switch is pulled up, the system energizes its respective power window motor, and then the passenger's window glass rises.

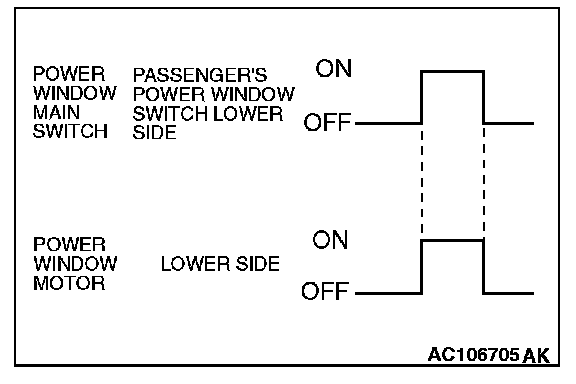

Lowers the passenger's power window

When the passenger's power window switch on the power window main switch is pushed down, the system energizes its respective power window motor, and then the passenger's window glass lowers.

POWER WINDOW SUB SWITCH FUNCTION

The sub switches are located on the passenger's doors.

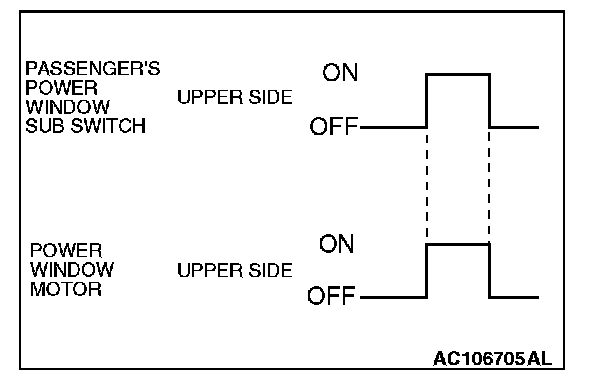

Raises the passenger's power window

When the power window sub switch is pulled up, the system energizes its respective power window motor, and then the passenger's window glass rises.

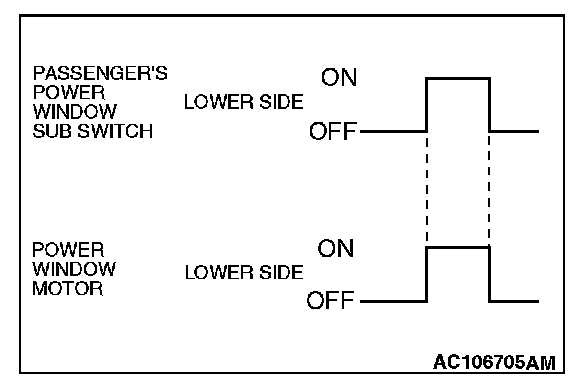

Lowers the passenger's power window

When the power window sub switch is pushed down, the system energizes its respective power window motor, and then the passenger's window glass lowers.

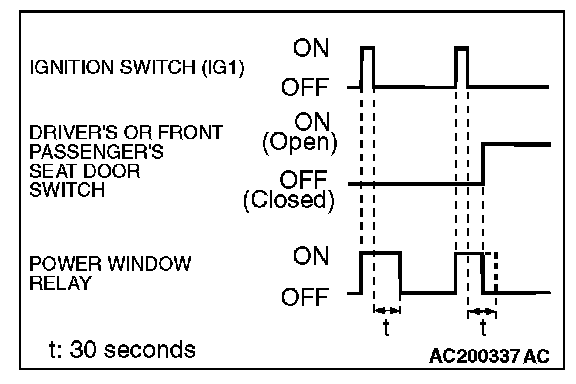

Power window timer function

Even after the ignition is switched off, the ETACS-ECU keeps the power window relay activated for approximately 30 seconds, enabling raising and lowering of the power windows by using the power window switches. After approximately 30 seconds, the power window relay is deactivated. During this timed operation, if the driver or passenger doors are opened, the power window relay is deactivated from that moment.

GENERAL CIRCUIT DIAGRAM FOR THE POWER WINDOWS

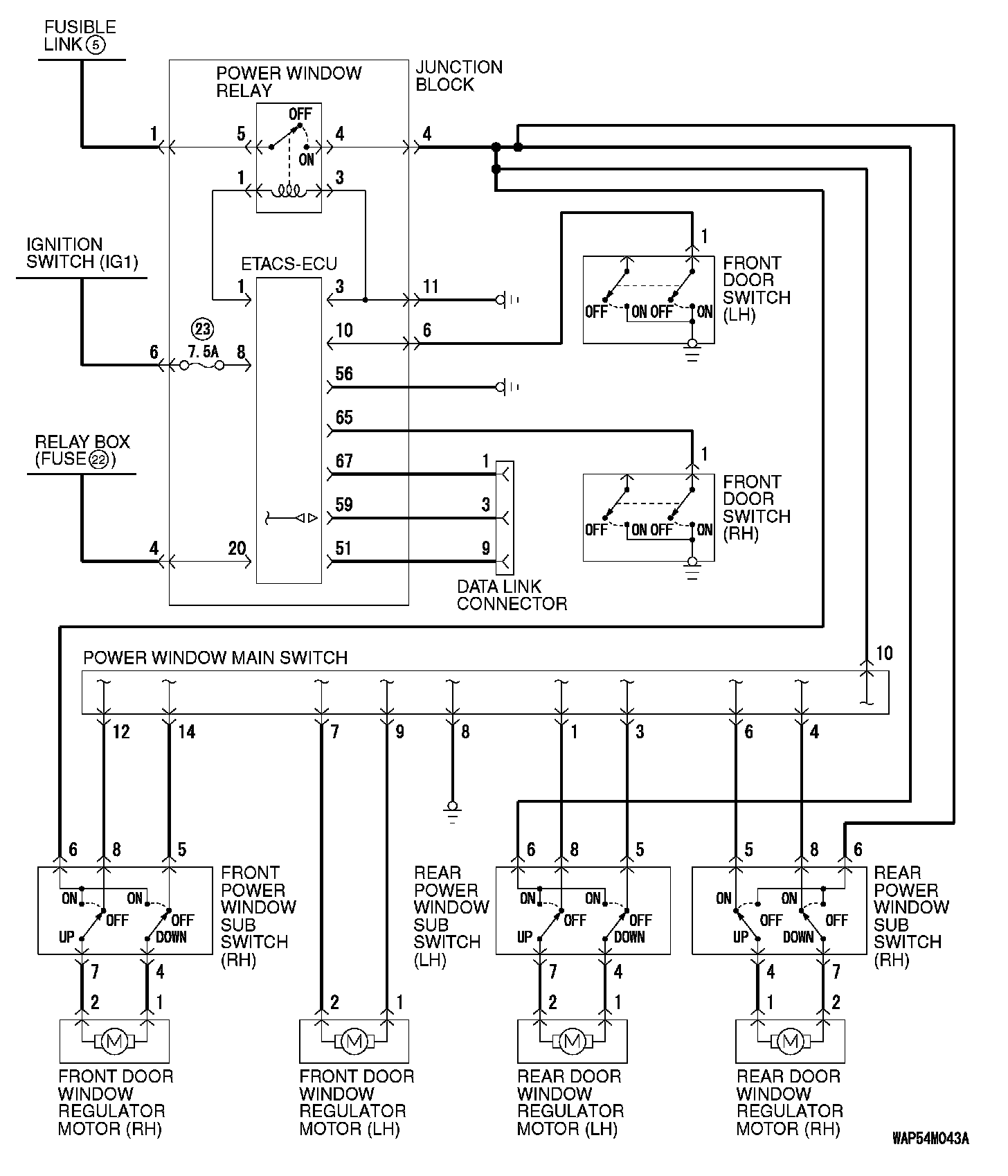

General Circuit Diagram For The Power Windows:

KEYLESS ENTRY SYSTEM

GENERAL DESCRIPTION CONCERNING THE KEYLESS ENTRY SYSTEM

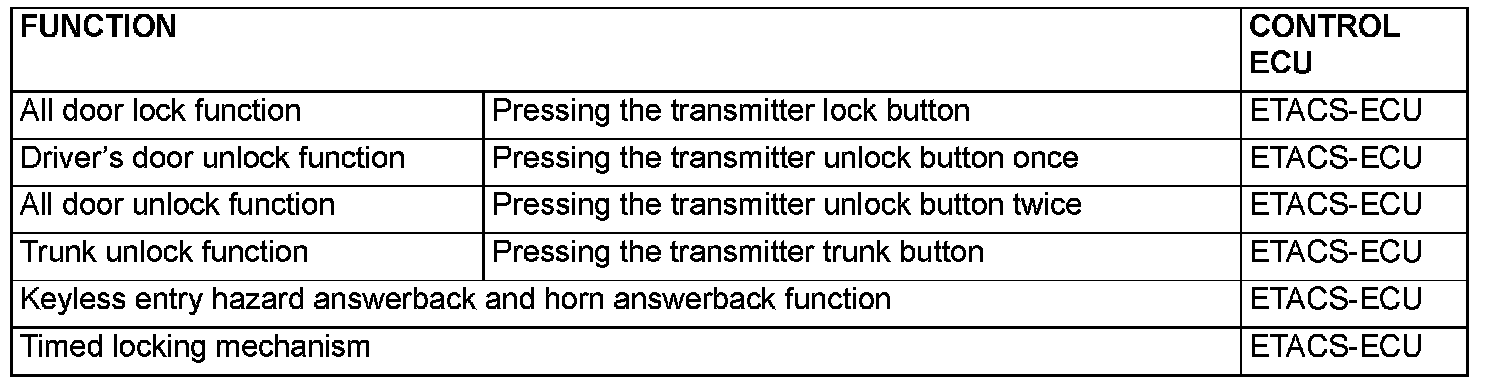

The following ECUs affect the functions and control of the keyless entry system.

ALL DOOR LOCK FUNCTION

PRESSING THE TRANSMITTER LOCK BUTTON

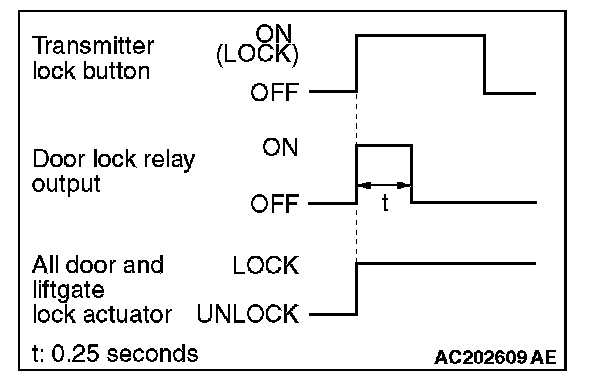

When the transmitter lock button is pressed, the ETACS-ECU energizes its door lock relay to operate all the door lock actuators for 0.25 second, locking all doors.

DRIVER'S DOOR UNLOCK FUNCTION

PRESSING THE TRANSMITTER UNLOCK BUTTON ONCE

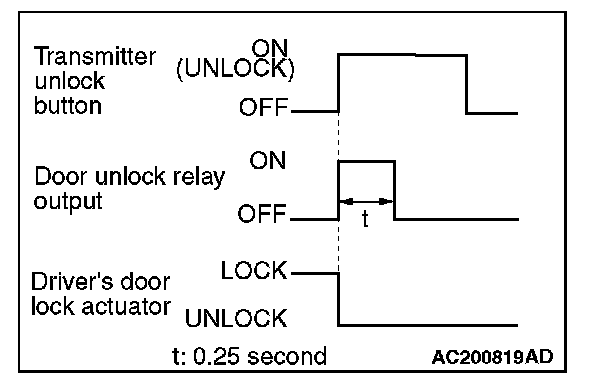

When the transmitter unlock button is pressed once, the ETACS-ECU energizes its door unlock relay to operate the door lock actuator of the driver's door for 0.25 second, thus unlocking only the driver's door.

ALL DOOR UNLOCK FUNCTION

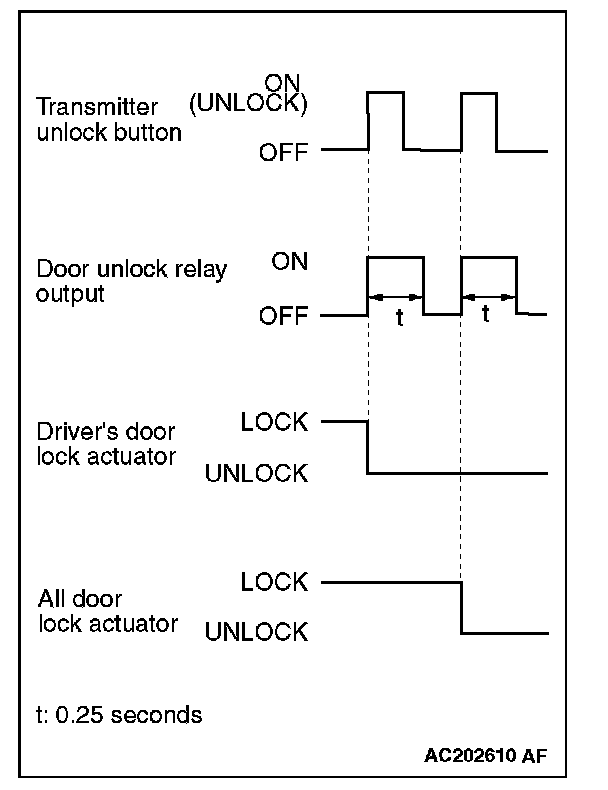

PRESSING THE TRANSMITTER UNLOCK BUTTON TWICE

When the transmitter unlock button is pressed twice, the ETACS-ECU energizes its door unlock relay to operate the driver's door lock actuator and the other door lock actuators for 0.25 second each in succession. All the doors will be unlocked.

NOTE: If the timed locking function is available, the doors will be locked in 30 seconds after the initial unlocking. Therefore, the second door unlocking should be done within 30 seconds after that initial unlocking.

TRUNK UNLOCK FUNCTION

PRESSING THE TRANSMITTER TRUNK BUTTON

Press the "TRUNK" button twice within 5 seconds and the trunk lid will be unlocked.

KEYLESS ENTRY HAZARD ANSWERBACK AND HORN ANSWERBACK FUNCTION

KEYLESS ENTRY HAZARD ANSWERBACK FUNCTION*1

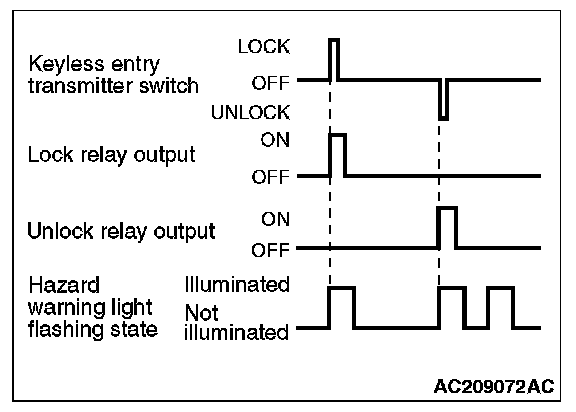

If the keyless entry transmitter is used to send a lock signal to the ETACS-ECU, all doors are locked and the hazard warning lights flash once. If an unlock signal is sent, the driver's door is unlocked first,*2 and if a second signal is sent, all doors are unlocked. Each time the unlock signal is sent, the hazard warning lights flash twice.

NOTE:
- *1: The hazard answerback function can be customized using the keyless entry transmitter or by using the multi center display (middle grade type).
- *2: Vehicles with a multi center display (middle grade type) can be customized so that a single unlock operation will unlock all doors.

KEYLESS ENTRY HORN ANSWERBACK FUNCTION

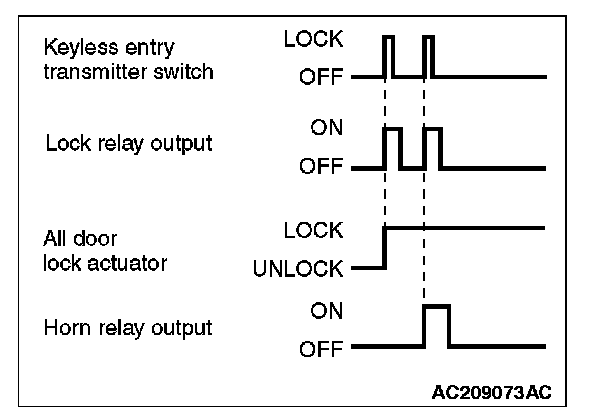

If the keyless entry transmitter is used to send a lock signal to the ETACS-ECU, the first signal locks all doors while the second signal sounds the horn once.

NOTE: The horn answerback function can be customized by using the keyless entry transmitter or by using the multi center display (middle grade type).

TIMED LOCKING MECHANISM

After unlocking the doors with the keyless entry transmitter, if no doors are opened, if the ignition key is not inserted or if the locking function is not operated, the ETACS-ECU automatically locks the doors in 30 seconds.

NOTE: The timed locking function can be customized on vehicles equipped with a multi center display (middle grade type).

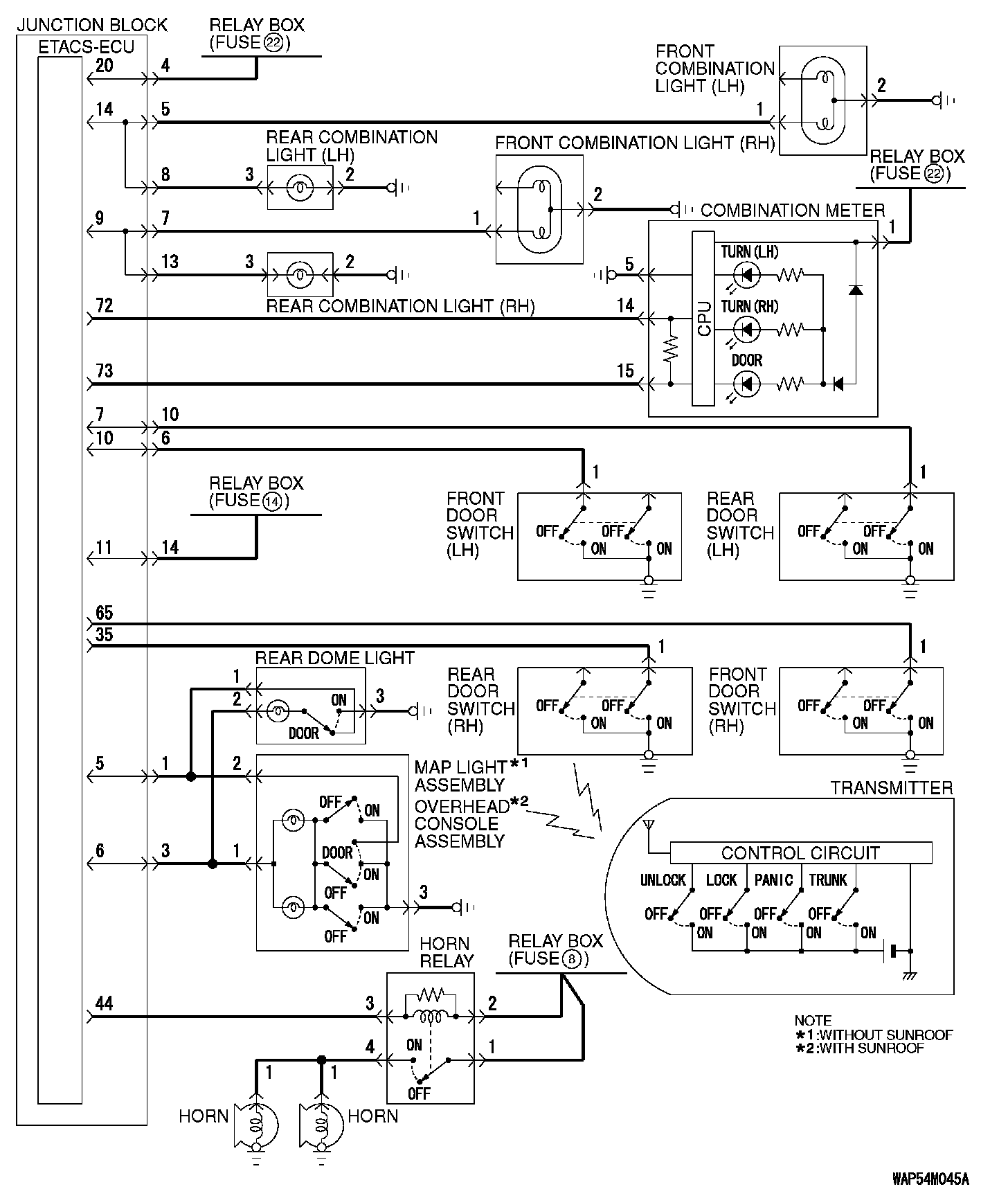

GENERAL CIRCUIT DIAGRAM FOR THE KEYLESS ENTRY SYSTEM
