Simplified Wiring System (SWS)

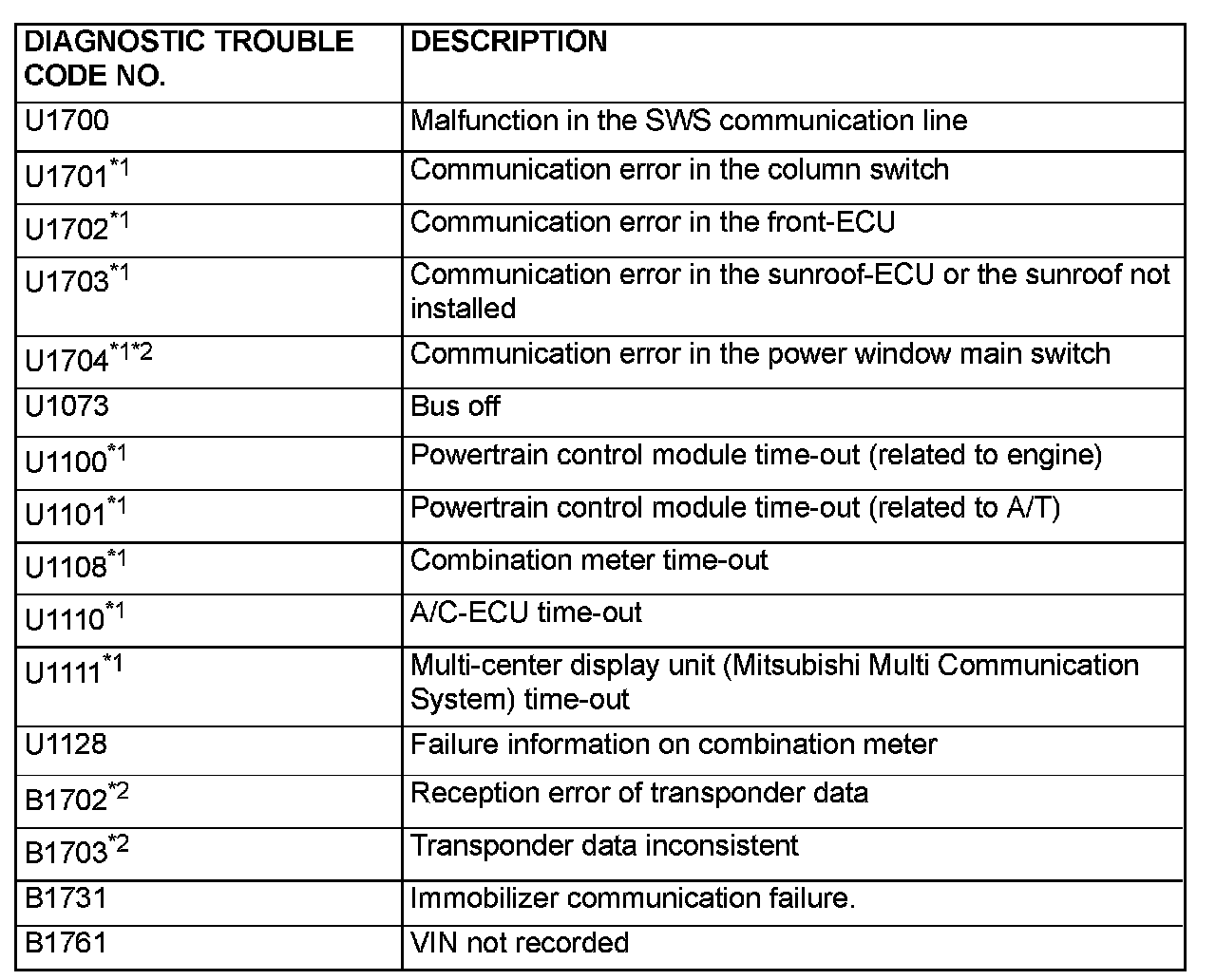

DIAGNOSTIC TROUBLE CODE CHART

U1700/U1128 - B1702/B1761:

NOTE:
- *1: When the DTC relating to the CAN communication error are output, make sure of the vehicle equipment. When the vehicle is not equipped with the system the ETACS-ECU communicates to, the DTC is always output. This is not abnormal.
- *2: The diagnostic trouble code for the past problem is not sent.
