Intersystem Affiliated DTC Reference Table

INTERSYSTEM AFFILIATED DTC REFERENCE TABLE

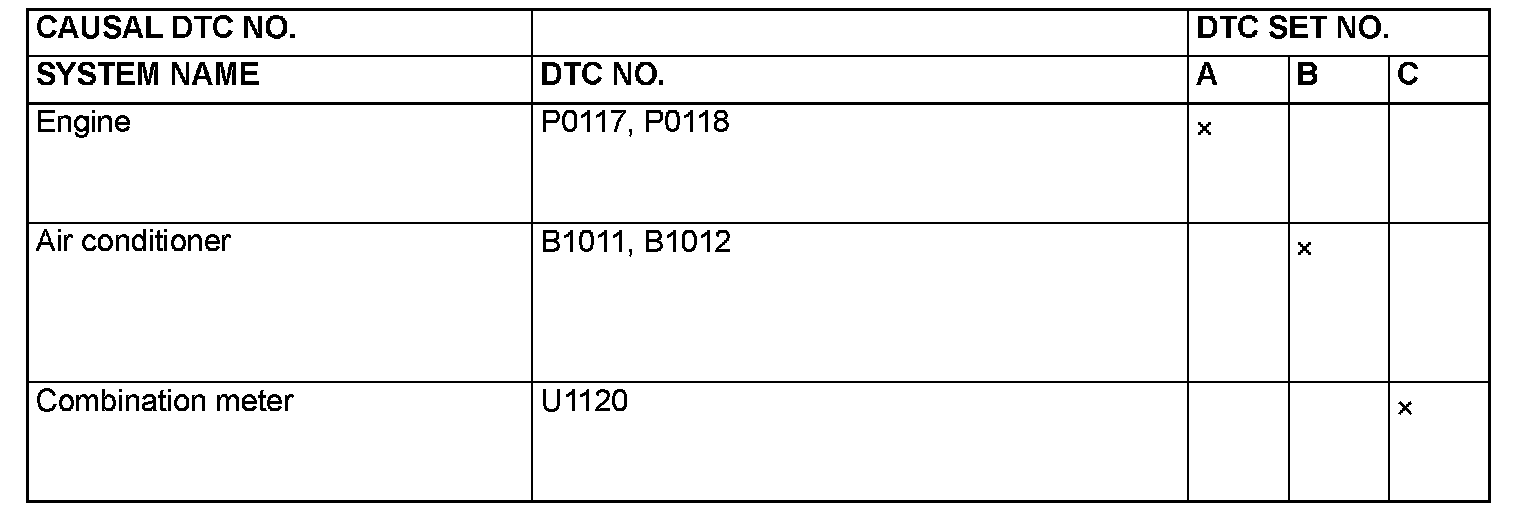

For vehicles with CAN, when DTC which influences the transmission data is set to the ECU which sends the data, DTC also could be set to the ECU which receives and controls the transmission data. The table below shows the relativity of DTC between ECUs. In addition, the alphabet shows the following DTC.
^ A: Air conditioner - DTC No. U1120 (Refer to - Manual A/C diagnosis. Manual A/C Diagnosis)
^ B: Multi-center display - DTC No. 022 (Refer to - Multi-center display. Driver/Vehicle Information Display)
^ C: SWS - DTC No. U1128 (Refer to - SWS diagnosis. SWS Diagnostic Troubleshooting Strategy)
