Controller Area Network (CAN) Communication-Related DTC (U-Code) Table

CAN COMMUNICATION-RELATED DTC CODE (U CODE) TABLE

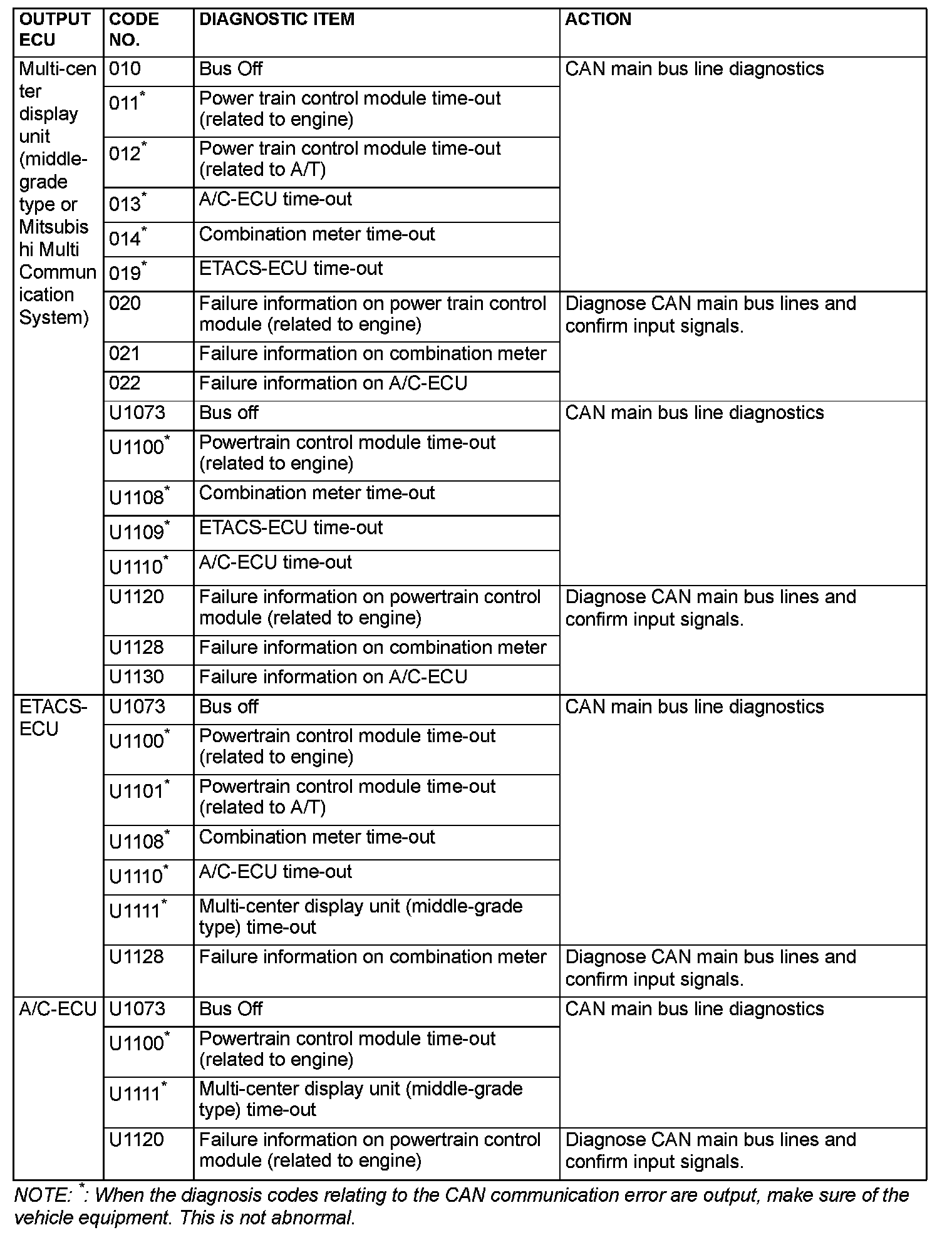

Can Communication-Related DTC Code (U Code) Table (Part 1):

Can Communication-Related DTC Code (U Code) Table (Part 2):

NOTE: *: When the diagnosis codes relating to the CAN communication error are output, make sure of the vehicle equipment. This is not abnormal.
