Rear Wiper and Washer

REAR WIPER MOTOR CHECK







Inspect the rear wiper motor by removing the harness connector with the motor attached to the vehicle.

WIPER MOTOR OPERATION

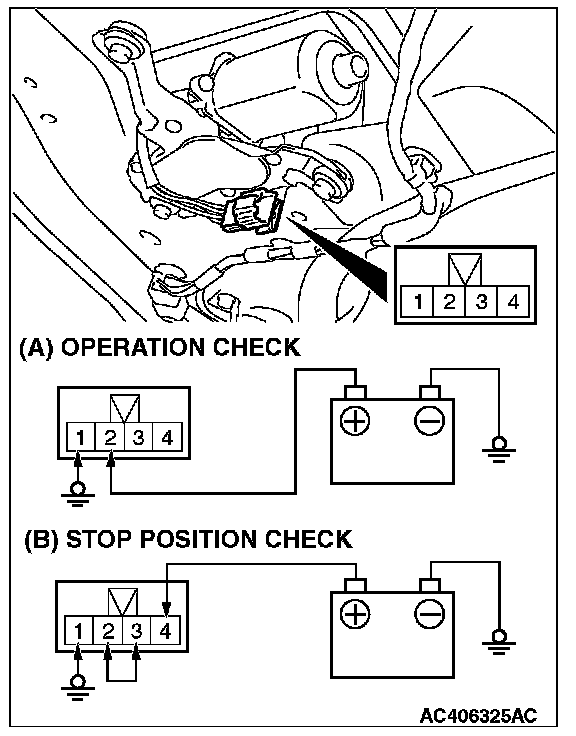

Connect the battery to the rear wiper motor as shown in figure (A) and check the motor operation.

WIPER MOTOR AT STOP POSITION OPERATION







1. Connect the battery to the rear wiper motor as shown in figure (A).
2. Disconnect the battery cable from the rear wiper motor while it is turning and then check to see that the motor stops.
3. Re-connect the battery as shown in figure (B).
4. Check to see that the rear wiper motor runs and then stops at the automatic stop position.

REAR WASHER FLUID EJECTION CHECK







REAR WIPER AND WASHER SWITCH CHECK

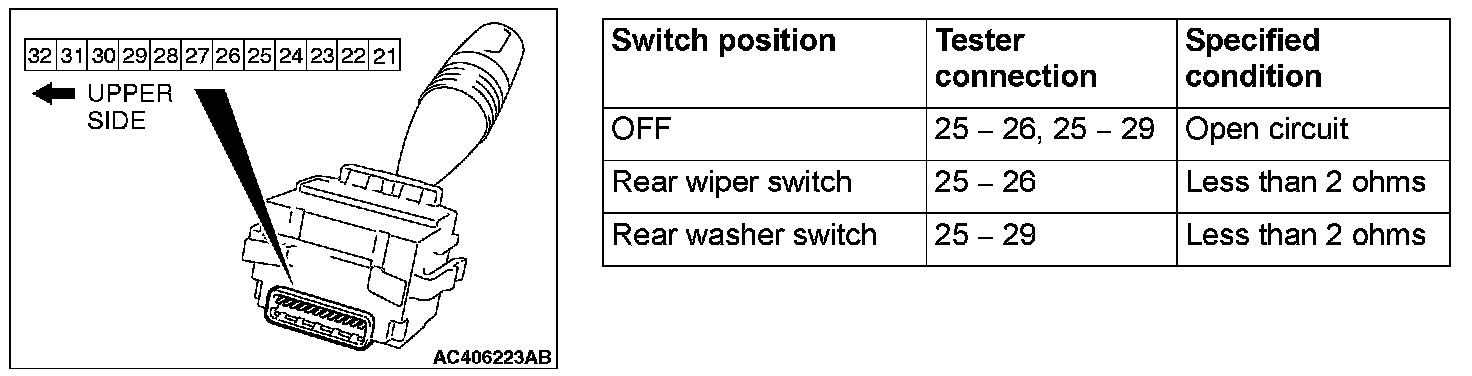

Check continuity between the switch terminals.

Rear Wiper And Washer Switch Check:
