Windshield Wiper

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

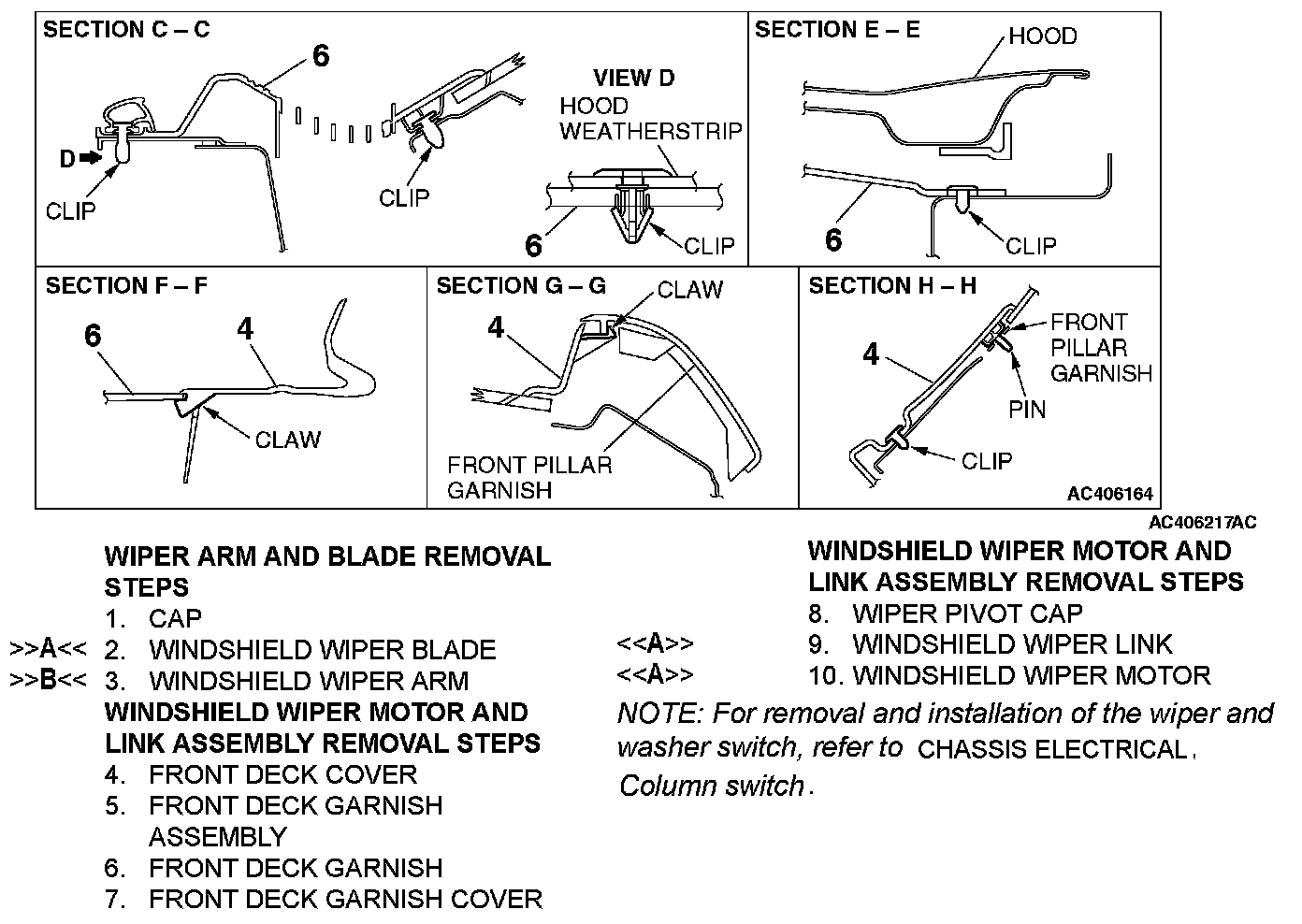

Removal Steps 1-10 (Part 1):

Removal Steps 1-10 (Part 2):

REMOVAL SERVICE POINT

[[A]] WINDSHIELD WIPER LINK/WINDSHIELD WIPER MOTOR REMOVAL

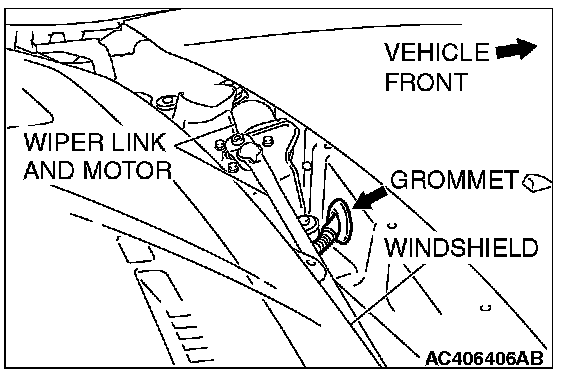

Disengage the harness grommet as shown in the illustration before removing the wiper link and motor.

INSTALLATION SERVICE POINTS

>>A<< WINDSHIELD WIPER BLADE INSTALLATION

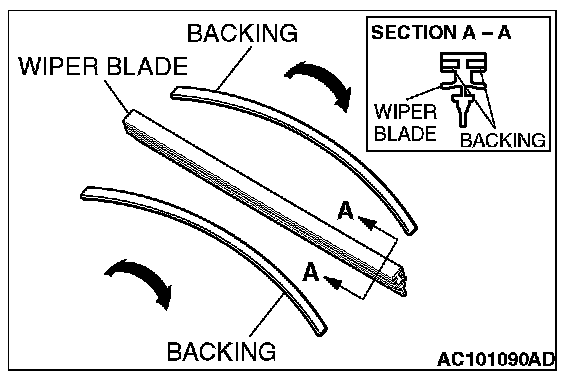

CAUTION: Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.

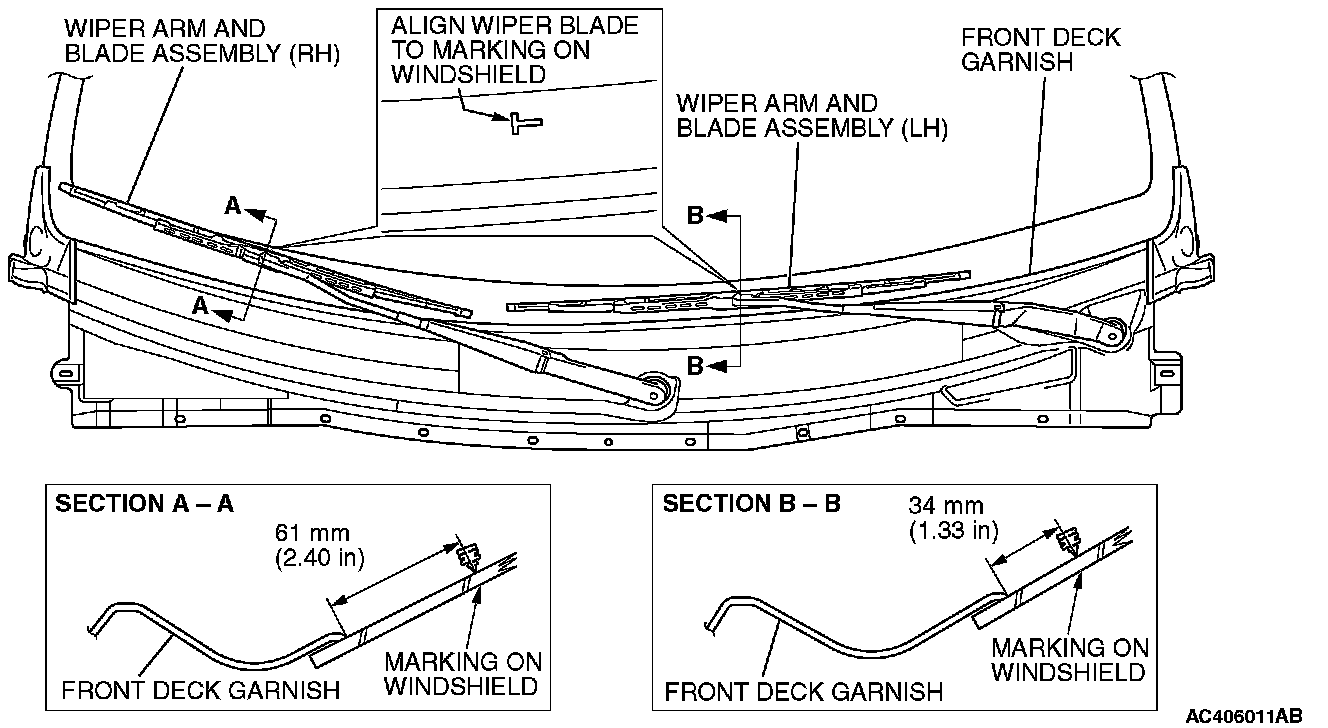

>>B<< WINDSHIELD WIPER ARM INSTALLATION







Install the wiper arm and blade at the position specified above.
