Power Window Relay Check
Power Window Relay Check

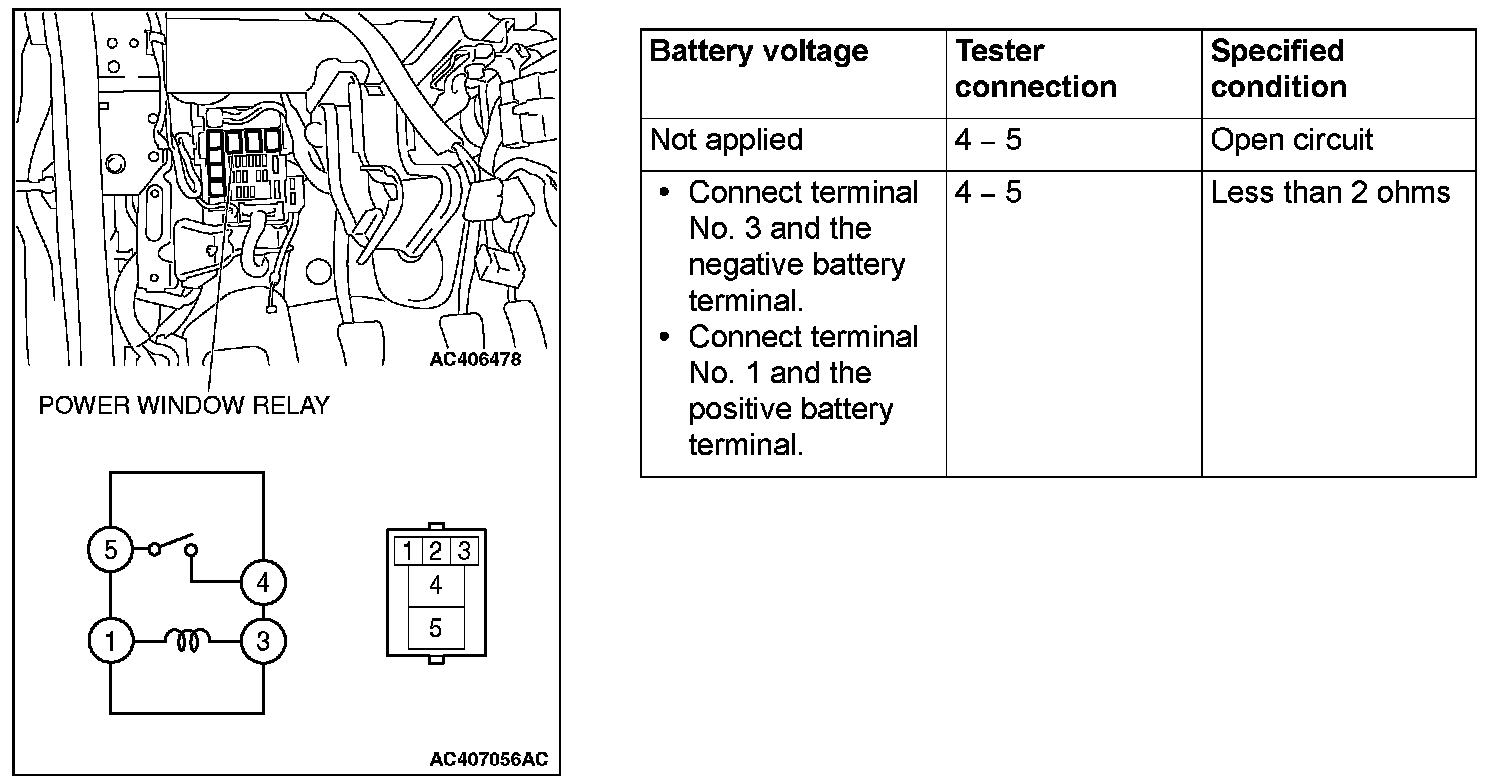

POWER WINDOW RELAY
CHECK
Power Window Relay Check:
