Select Lever
DISASSEMBLY AND ASSEMBLYSELECT LEVER

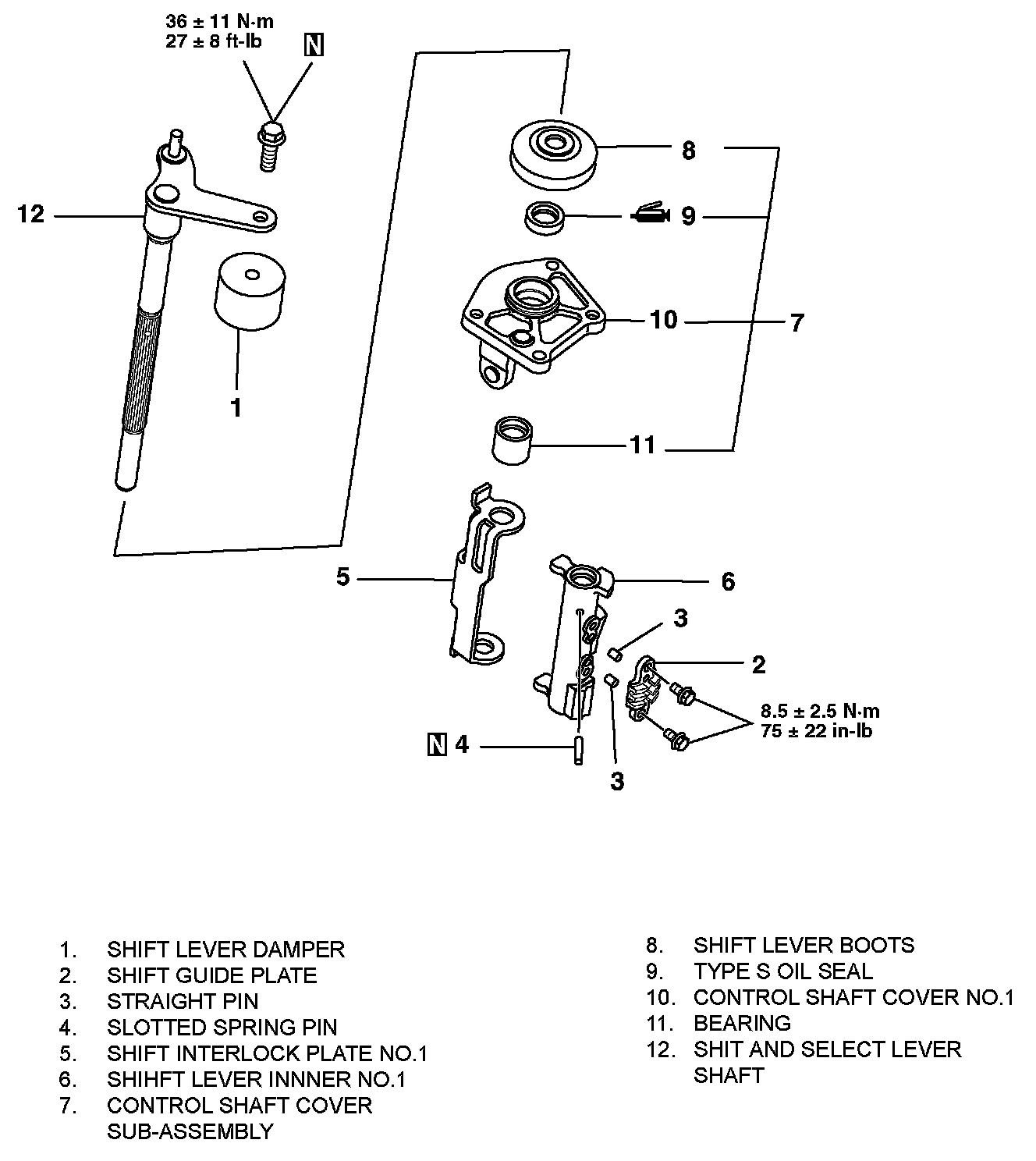

DISASSEMBLY AND ASSEMBLY
Required Special Tools:
MD998368: Bearing installer
DISASSEMBLY
1. Remove the shift lever damper.
2. Remove the shift guide plate and straight pin.
3. Remove the slotted spring pin and pull out the shift and select lever shaft with control shaft cover assembly.

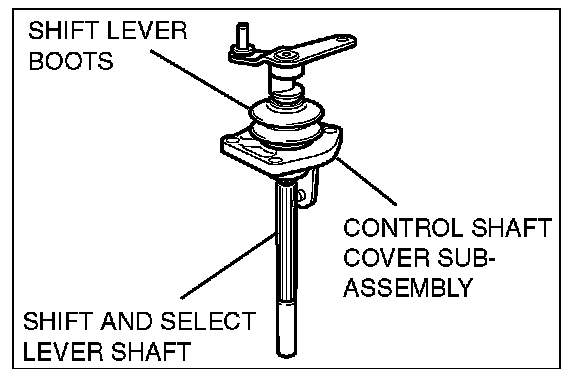

4. Remove the shift lever boots and then pull out the shift and select lever shaft from control shaft cover sub-assembly.

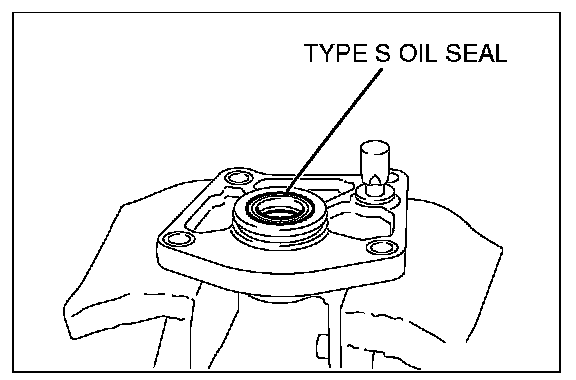

5. Remove the type S oil seal.

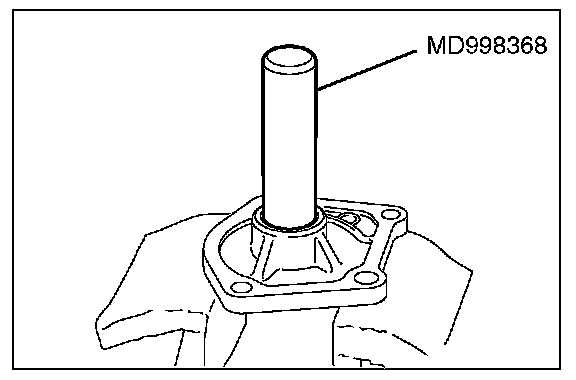

6. Using special tool MD998368, remove the bearing.
ASSEMBLY
1. Using special tool MD998368, install the bearing.

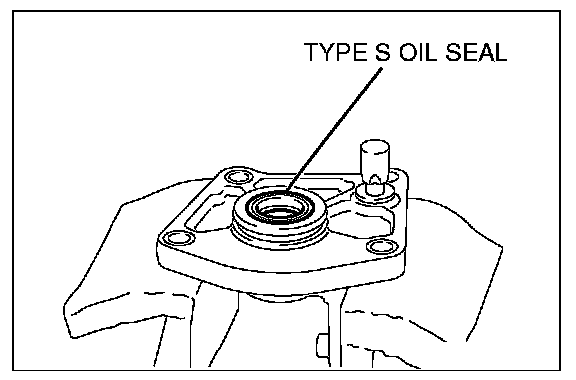

2. Install the type S oil seal.
3. Pack grease to the type S oil seal lip area.
Specified grease:
Mitsubishi Part No. 0101011 or equivalent

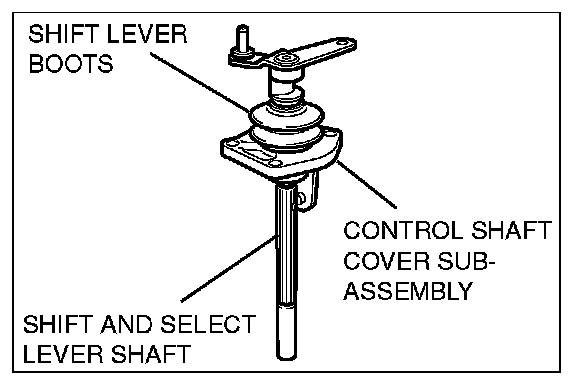

4. Install the shift lever boots to shift and select lever shaft and then install the control shaft cover No.1
5. Install the shift interlock plate No.1 and shift lever inner No.1

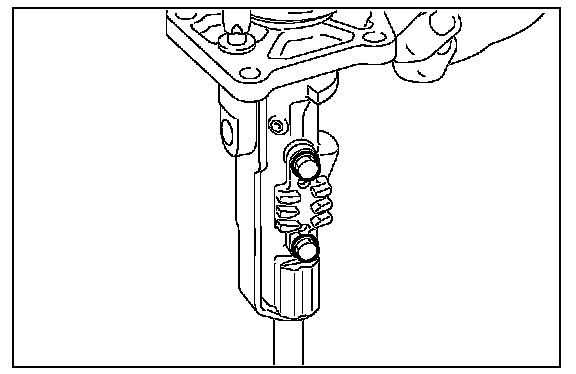

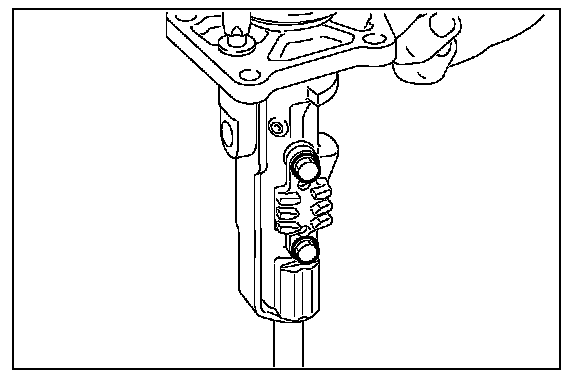

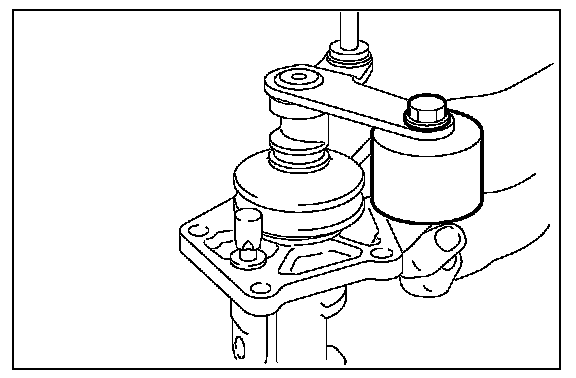

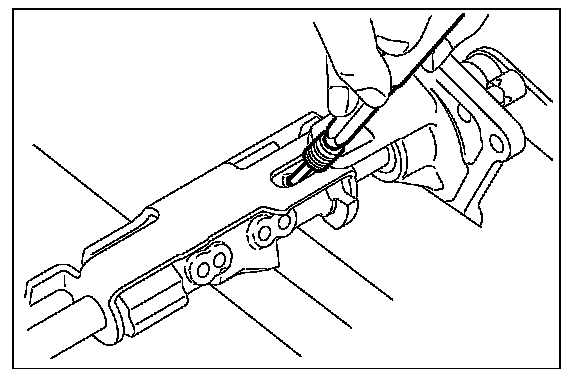

CAUTION: As shown in the illustration, remove the slotted spring pin, not touching the shift interlock plate No.1.

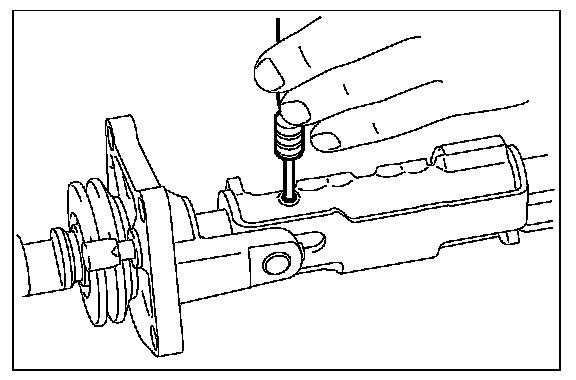

6. Stick the slotted spring pin in the shift and select lever shaft.
7. Install the straight pin and shift guide plate and tighten to the specified torque.
Tightening torque: 8.5 ± 2.5 Nm (75 ± 22 in-lb)

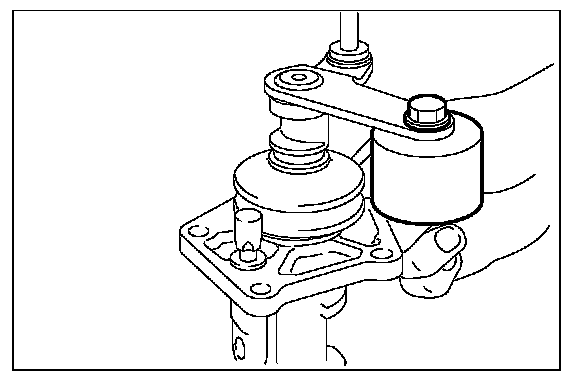

8. Install the shift lever damper and tighten to the specified torque.
Tightening torque: 36 ± 11 Nm (27 ± 8 ft-lb)
