Removal and Replacement

TRANSMISSION OIL REPLACEMENT

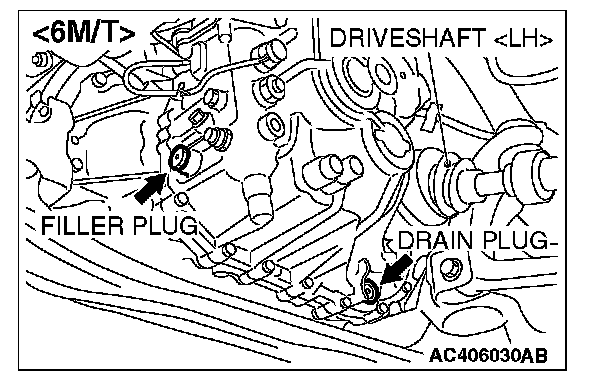

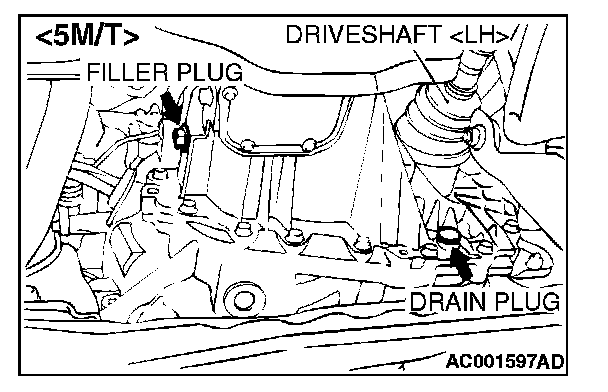

1. Remove the filler plug.
2. Remove the drain plug and drain the oil.
3. Tighten the drain plug to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
4. Fill with DiaQueen NEW MULTI GEAR OIL 75W-80 (GL-3) until the level comes to the lower portion of filler plug hole.
Quantity:
[5M/T] 2.2 dm3 (2.3 quarts)
[6M/T] 2.2 dm3 (2.3 quarts)





5. Tighten the filler plug to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
