Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Description and Operation
>>
6M/T
6M/T

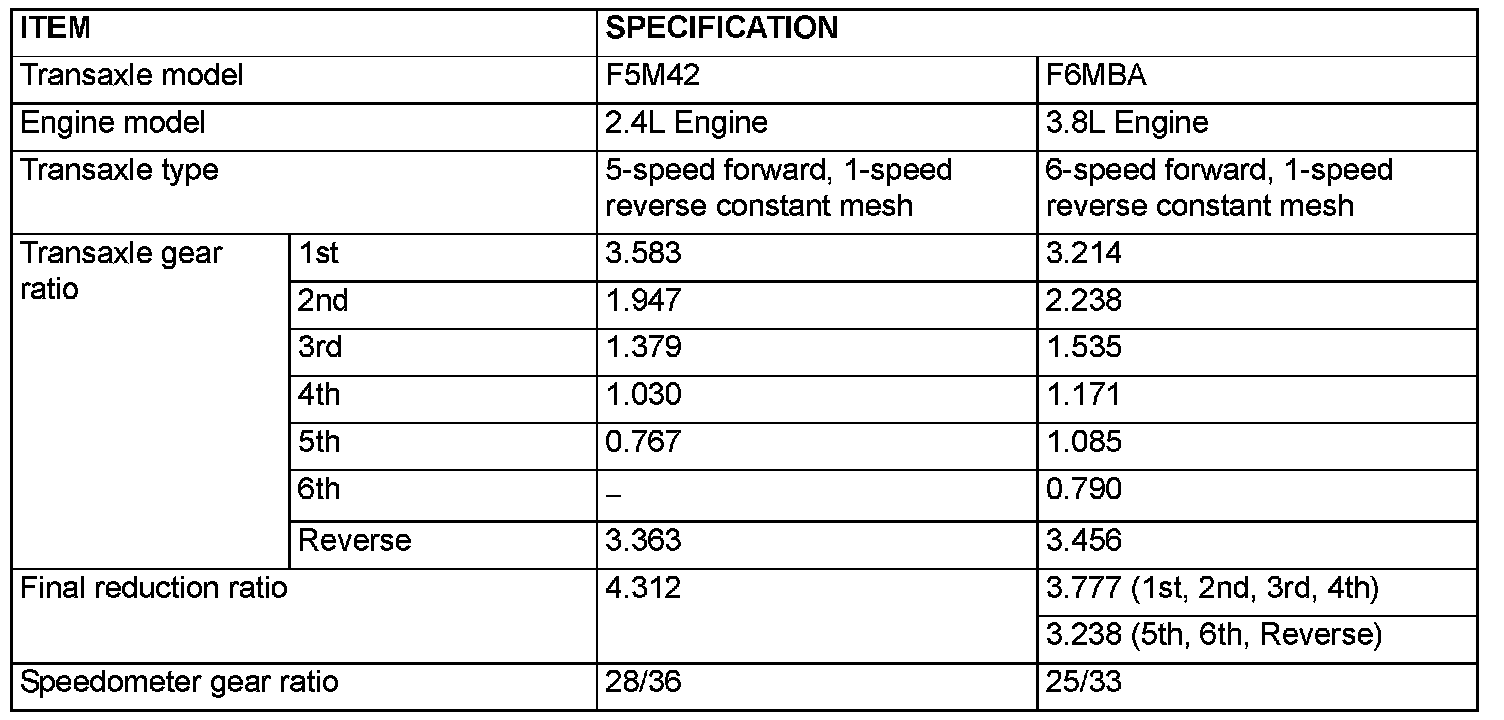

GENERAL DESCRIPTION

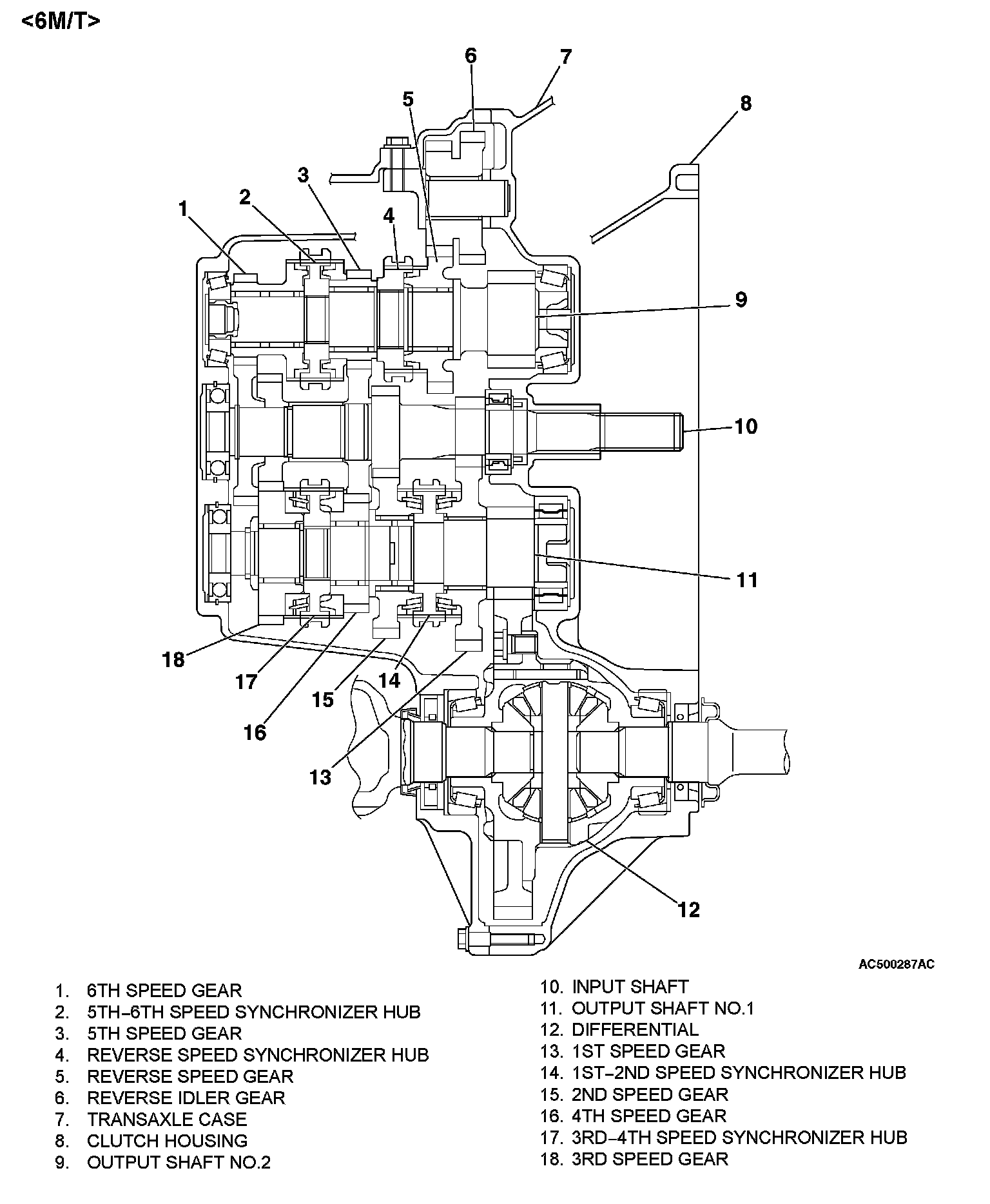

SECTIONAL VIEW
[6M/T]
