CLUTCH OVERHAUL [F5M42]

CLUTCH

DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT

Removal Steps 1-15:

[A] RELEASE FORK REMOVAL

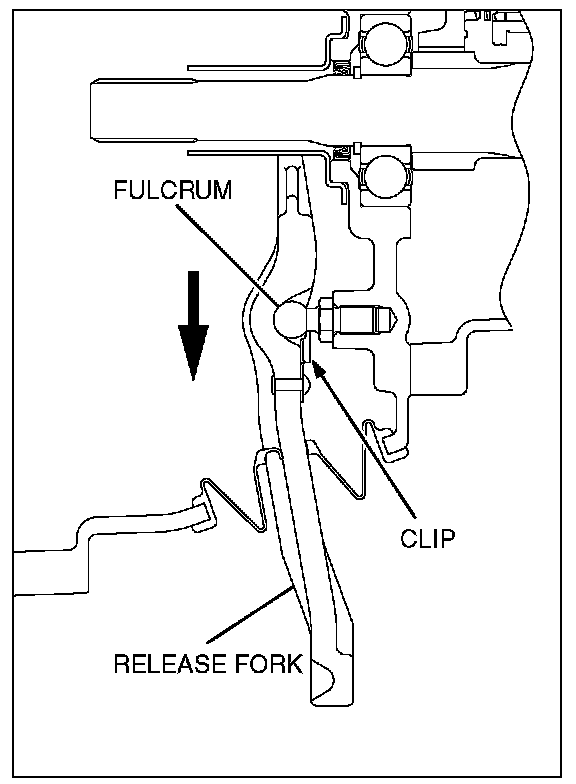

Move the release fork in the direction shown to remove the clip from the fulcrum.

ASSEMBLY SERVICE POINTS

[A] RELEASE FORK INSTALLATION

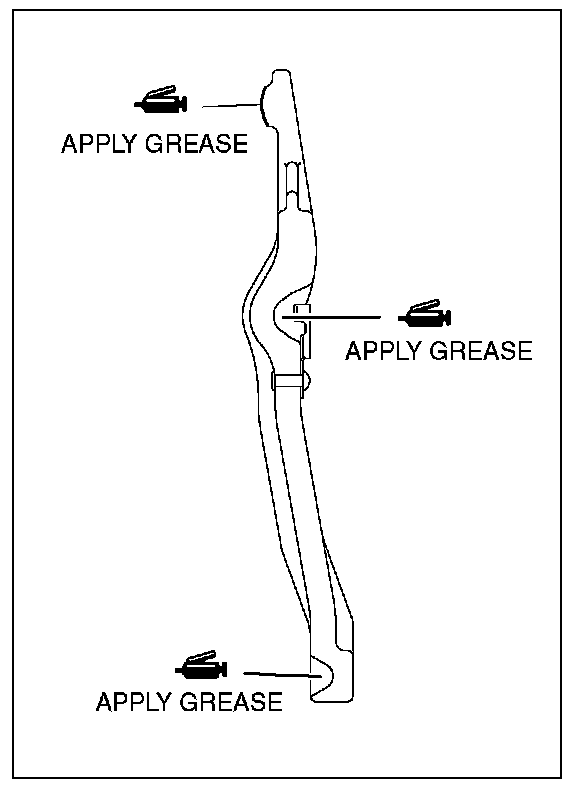

1. Apply Mitsubishi Part number 0101011 or equivalent to the illustrated positions of the release fork.
2. Install the release fork to the fulcrum.

[B] CLUTCH DISC AND CLUTCH COVER INSTALLATION

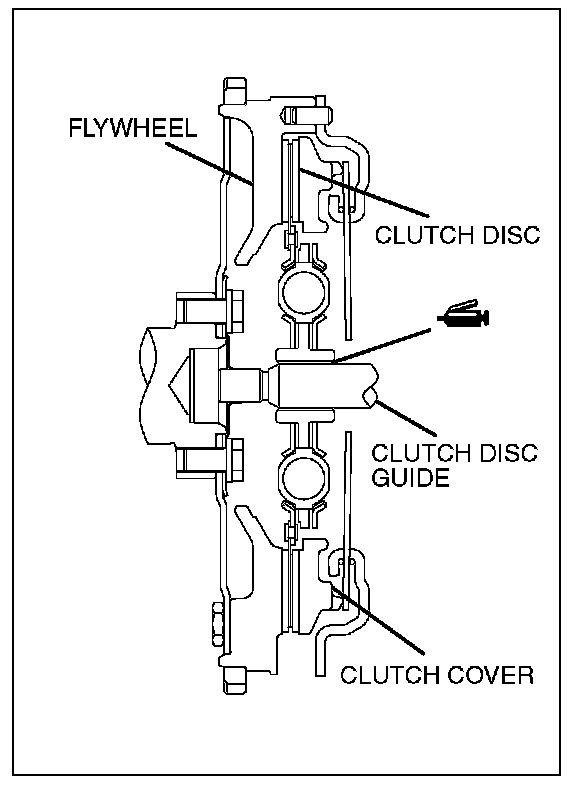

1. Apply Mitsubishi Part number 0101011 or equivalent to the clutch disc splines and rub it in the splines with a brush.
2. Using the clutch disc guide to position the clutch disc on the flywheel.
3. Install the clutch cover onto the flywheel.
