Overhaul

CLUTCH RELEASE CYLINDER

DISASSEMBLY AND ASSEMBLY

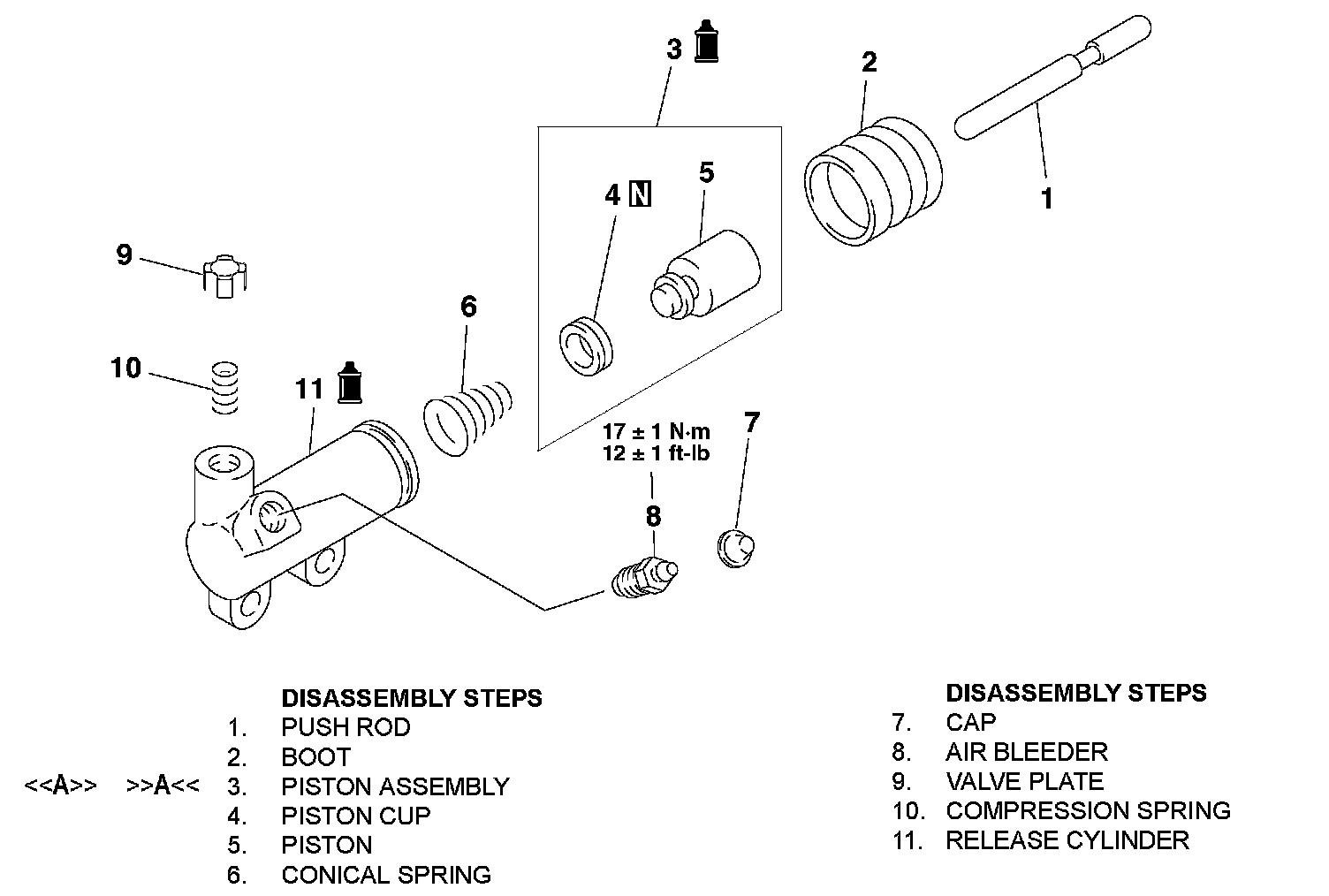

Disassembly Steps 1-11:

DISASSEMBLY SERVICE POINT

[A] PISTON ASSEMBLY REMOVAL

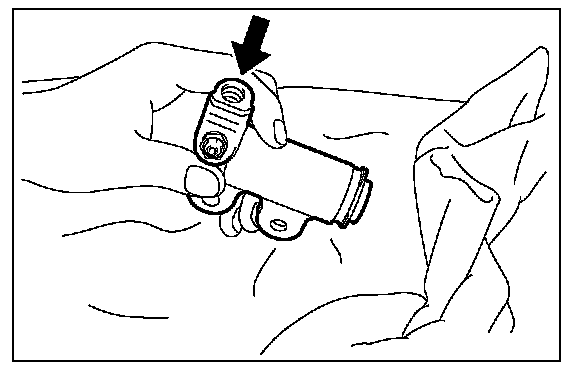

1. Cover with a shop towel to prevent the piston from popping out.

CAUTION: Apply compressed air slowly to prevent brake fluid from splashing.

2. Apply the compressed air into the tube mounting hole to remove the piston assembly.

ASSEMBLY SERVICE POINT

[A] PISTON ASSEMBLY INSTALLATION

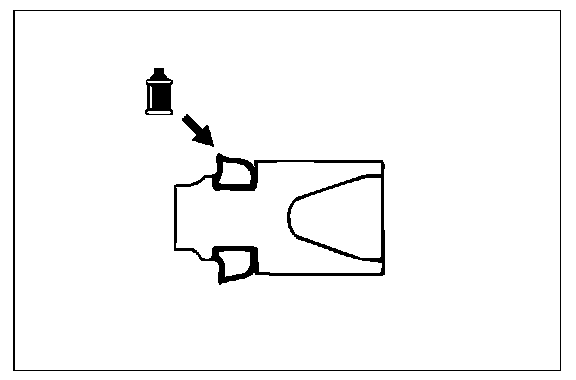

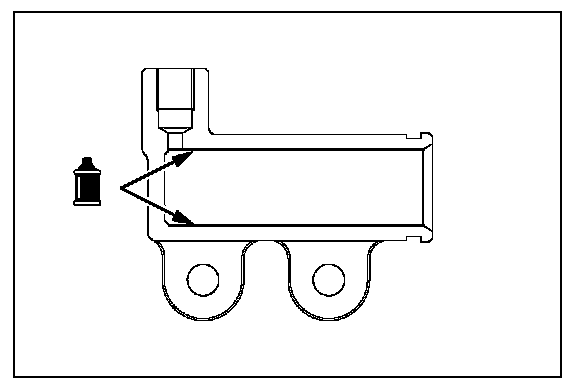

1. Apply brake fluid SAE J1703 (DOT3) to the piston cup and inner surface of the release cylinder.
2. Insert the piston assembly into the release cylinder.
