Transmission Mount: Service and Repair

TRANSAXLE MOUNTING

REMOVAL AND INSTALLATION [2.4L ENGINE]

CAUTION
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

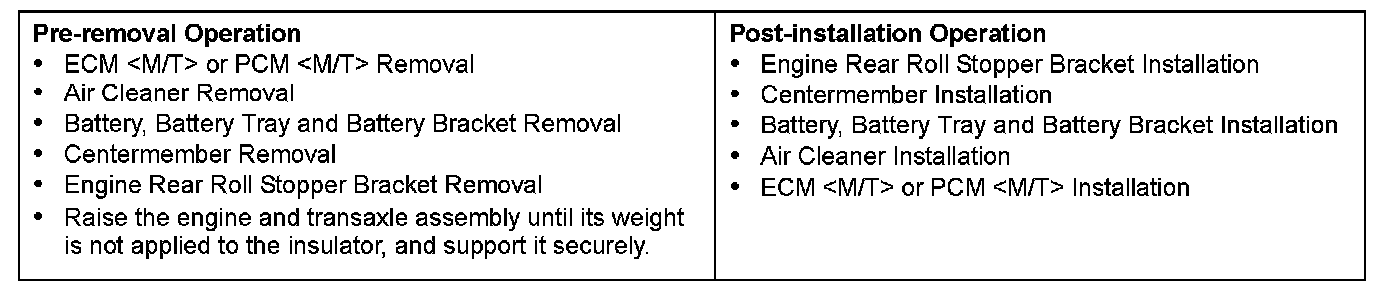

Pre-removal & Post-installation Operation:

Removal Steps 1-3:

INSTALLATION SERVICE POINT

[A] TRANSAXLE MOUNTING STOPPER INSTALLATION





Install the transaxle mounting stopper so that its arrow points upward.
