Planetary Gear

PLANETARY GEAR

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-10:

ASSEMBLY SERVICE POINTS

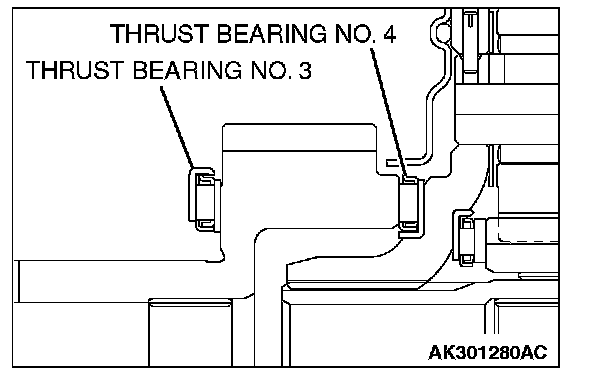

[A] THRUST BEARING NUMBER 3 AND THRUST BEARING NUMBER 4 INSTALLATION

CAUTION: Use care to install the thrust bearings in the correct direction.





Check the installation direction of thrust bearings number 3 and 4, and install them as shown.

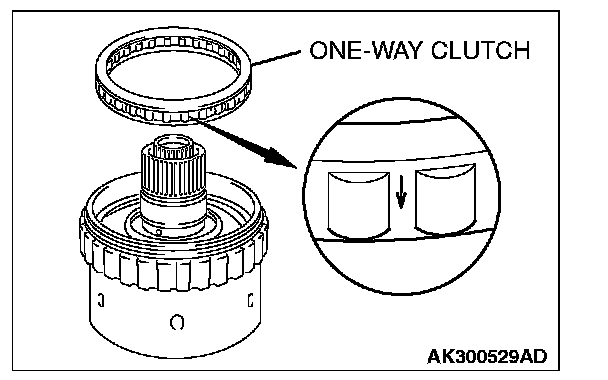

[B] ONE-WAY CLUTCH INSTALLATION





Insert the one-way clutch into the low and reverse annulus gear so that the arrow points towards the output planetary carrier.
