Part 2
ASSEMBLY Continued

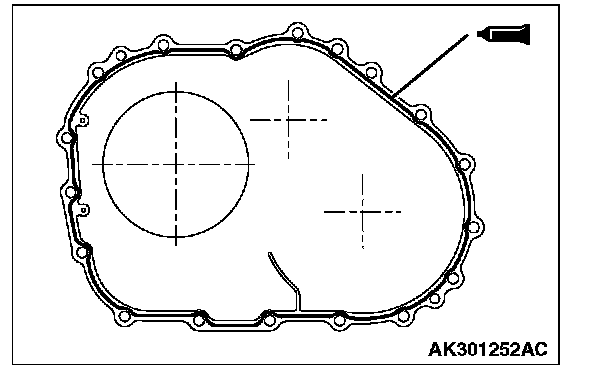

50. Apply a 1.6 mm (0.06 inch) diameter bead of sealant to the illustrated position of the rear cover.
Specified sealant:
Mitsubishi Part No. MD974421 or equivalent
NOTE: Be sure to install the case quickly while the sealant is wet (within 15 minutes). Leaks will occur if the rear cover is installed after the sealant dries.

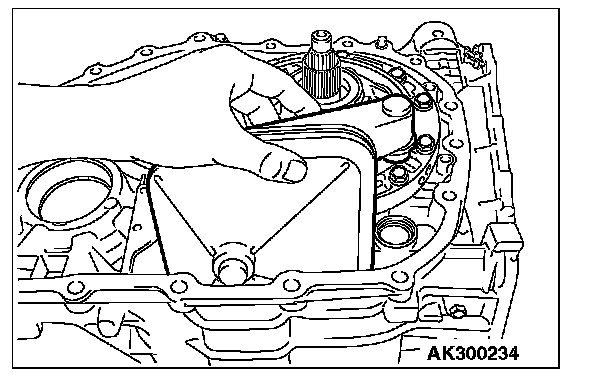

51. Install the rear cover, and tighten its mounting bolts to the specified torque.
Tightening torque: 23 ± 3 Nm (17 ± 2 ft-lb)
NOTE: After installation, keep the sealed area away from ATF for approximately one hour.

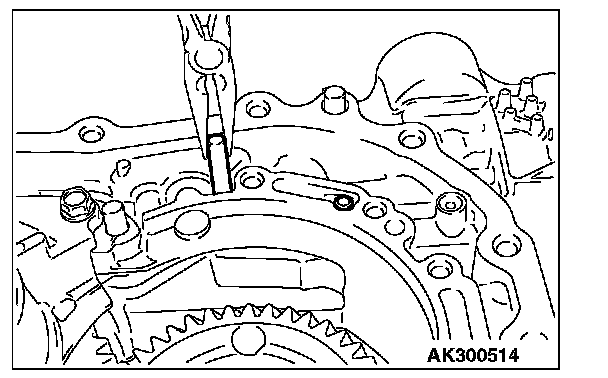

52. Install the parking pawl, spacer, and spring. Then insert the parking pawl shaft.
53. Install the parking roller support, and then insert the parking roller support shafts (two pieces).
54. Install the underdrive clutch hub to the underdrive sun gear.

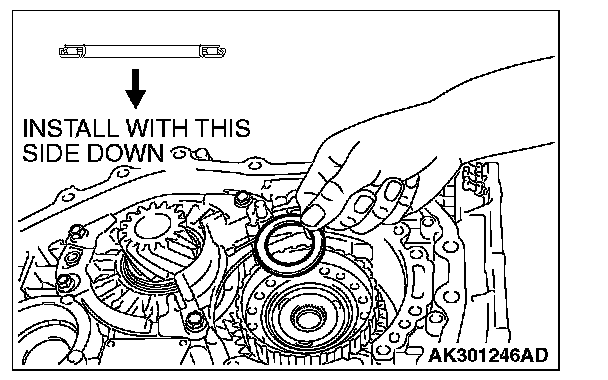

CAUTION: Be sure to install the thrust bearing in the correct direction as shown.
55. Check the installation direction of thrust bearing number 2, and install it on the underdrive clutch hub.

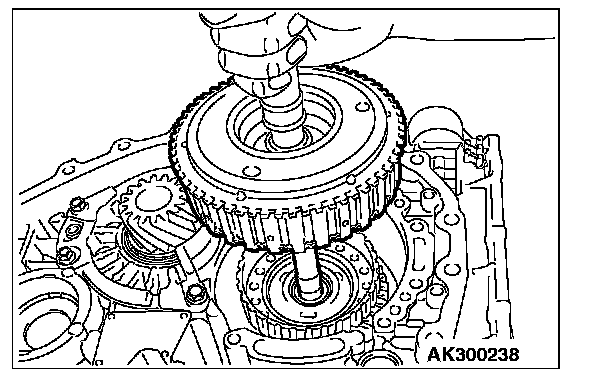

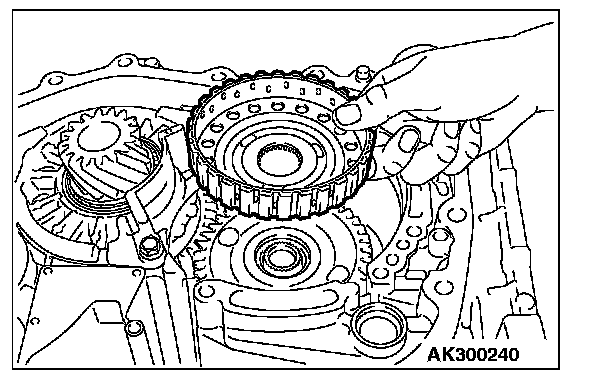

56. Hold the input shaft, and install the underdrive clutch.
57. Adjustment of input shaft end play and select the thrust washer number 1.

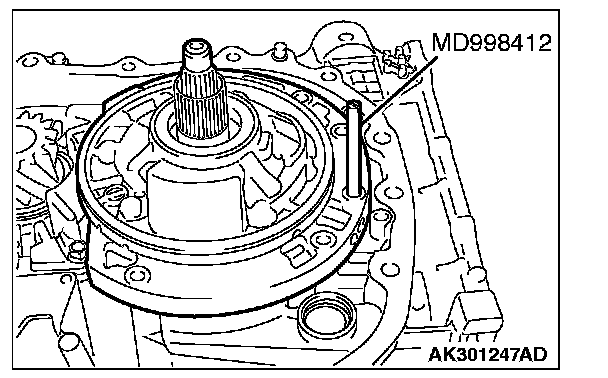

58. Install special tool MD998412 as shown.

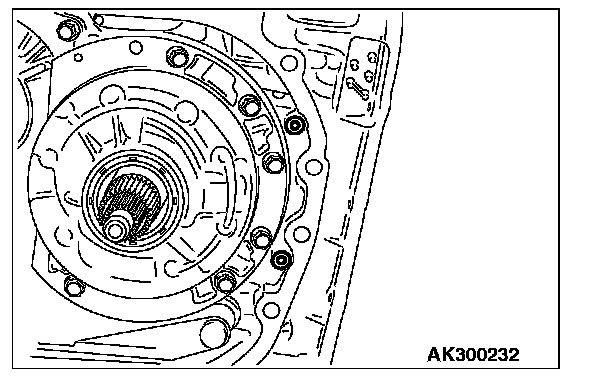

59. Install the oil pump to the transaxle case.
NOTE: Do not install the oil pump gasket at this time.
60. Tighten the six oil pump mounting bolts to the specified torque.
Tightening torque: 29 ± 2 Nm (21 ± 1 ft-lb)

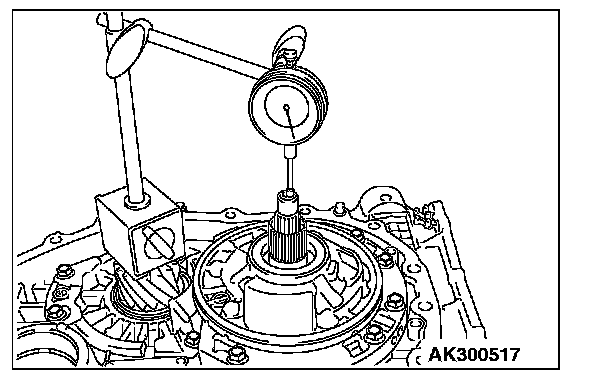

61. Make sure that the input shaft end play meets the standard value.
Standard value of end play:
0.70 - 1.45 mm (0.028 - 0.057 inch)
62. Install the oil filter.

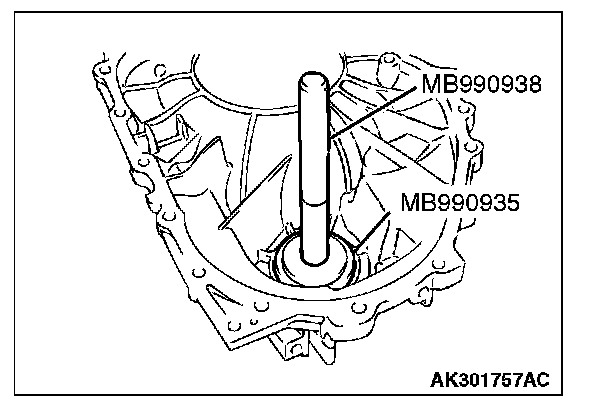

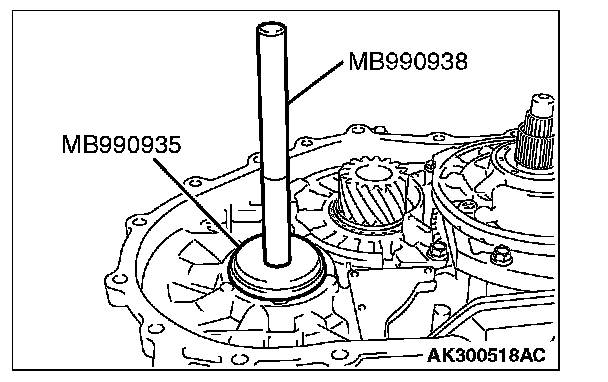

63. Use special tools MB990935 and MB990938 to tap the differential bearing outer race in the transaxle case.

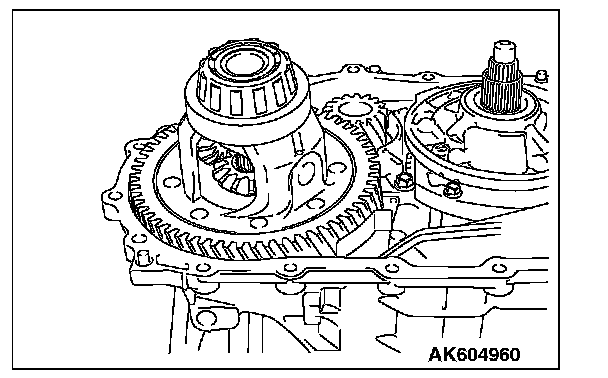

64. Install the differential.
65. Adjustment of differential case preload and select the spacer.
66. Install the selected spacer to the torque converter housing.
67. Use special tools MB990935 and MB990938 to press the differential bearing outer race into the torque converter housing.
CAUTION:
^ Completely degrease the FIPG-applied surface so that water and oil including the old sealant cannot adhere to the surface coated with the sealant. Never touch the degreased surface by hand.
^ Make sure the starting point and the ending point are about the middle between the bolts.

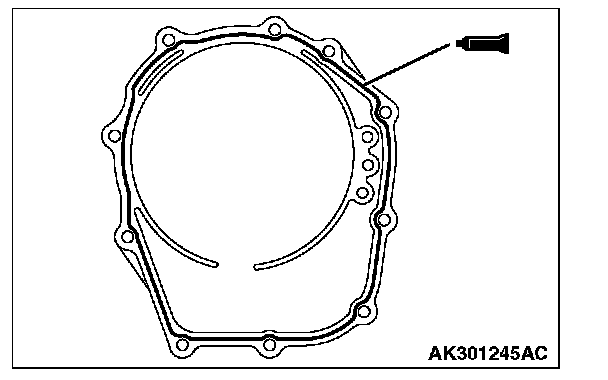

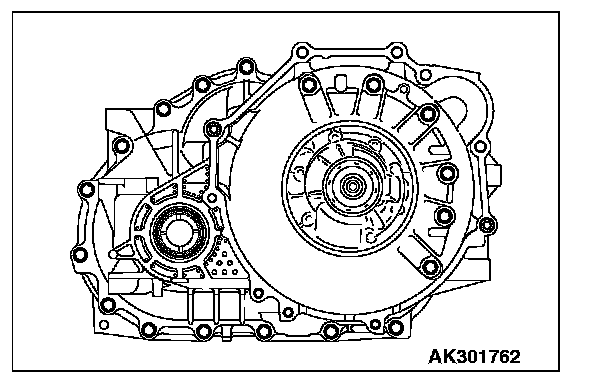

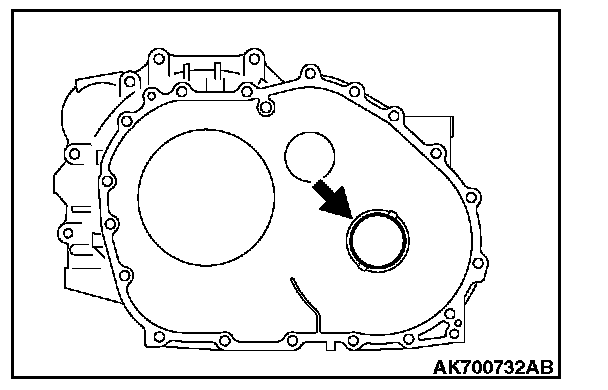

68. Apply a 1.6 mm (0.06 inch) diameter bead of sealant to the torque converter housing in the area shown.
Specified sealant:
Mitsubishi Part No. MD974421 or equivalent
NOTE: Be sure to install the case quickly while the sealant is wet (with 15 minutes). Leaks will occur if the rear cover is installed after the sealant dries.
NOTE: After installation, keep the sealed area away from ATF for approximately one hour.
69. Install the O-rings (two pieces).
70. Install the torque converter housing and then tighten its mounting bolts (eighteen pieces) to the specified torque.
Tightening torque: 48 ± 6 Nm (35 ± 4 ft-lb)
71. Insert the O-rings (two pieces) into the grooves of the manual control lever shaft.

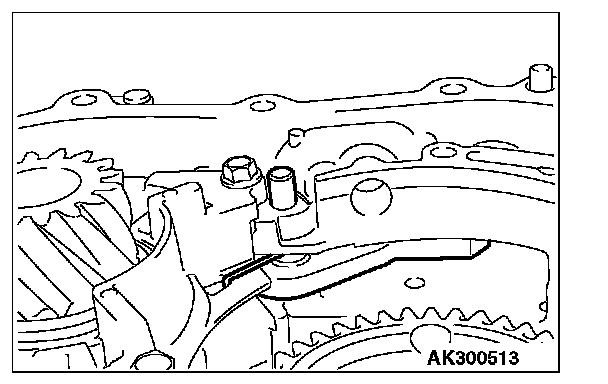

72. Install the manual control lever shaft and parking pawl rod.

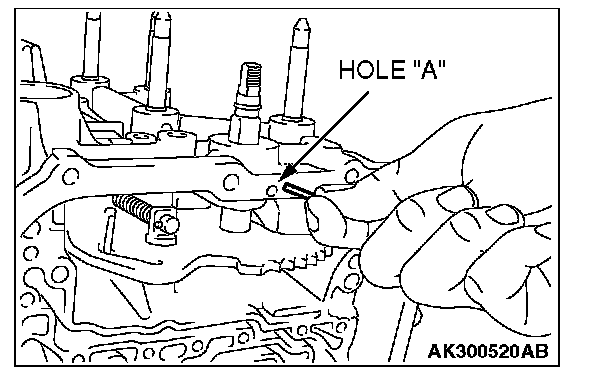

73. Align hole "A" with the groove in the manual control lever shaft. Insert the manual control lever shaft roller into hole "A".
74. Insert the new seal rings in the grooves of the accumulator pistons.
NOTE: The piston and seal ring are common parts.

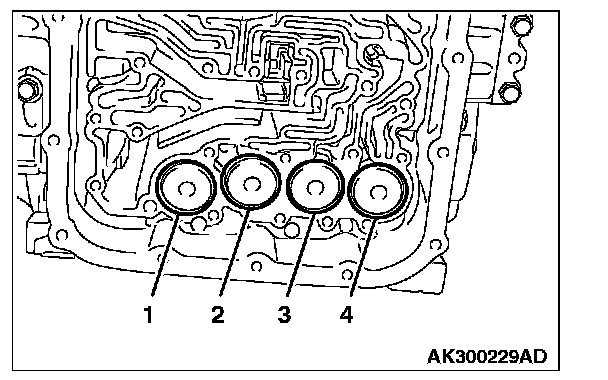

75. Identify the accumulator spring and insert it and the accumulator piston into each hole of the transaxle case.

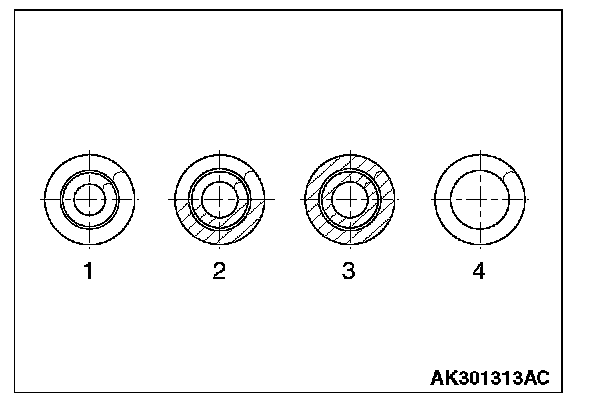

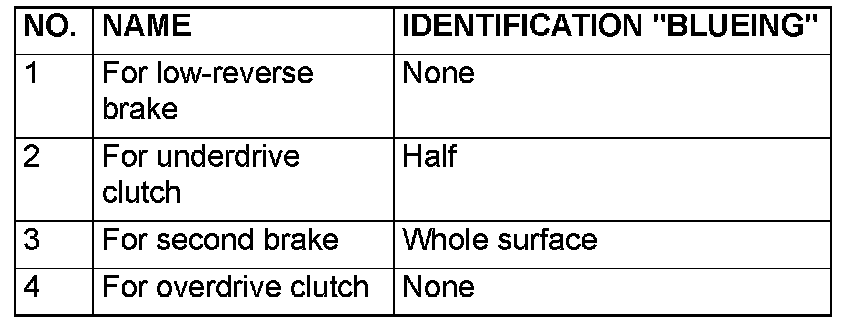

NOTE: Accumulator springs are identified as shown in the illustration.

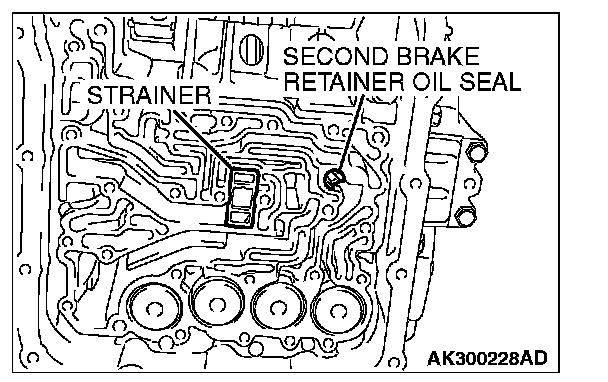

76. Install the strainer and second brake retainer oil seal.
77. Insert a new O-ring to the groove of the solenoid valve harness connector.

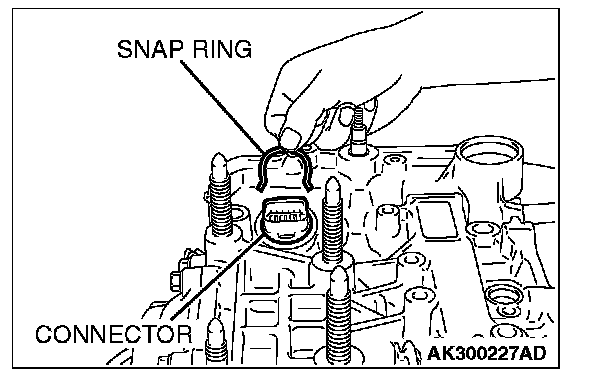

78. Insert the solenoid valve harness connector into the hole from the inside of the transaxle case so it is oriented as shown in the illustration. Then secure the snap ring to the connector groove.

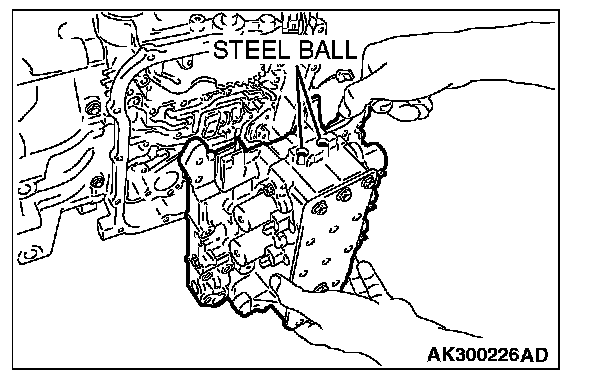

79. Install the steel balls into each of the two holes in the top face of the valve body (outside valve body).
80. Install the valve body to the transaxle case. Make sure that the manual valve's pin is in the groove in the detent plate of the manual control lever.
