Automatic Transmission/Transaxle: Locations

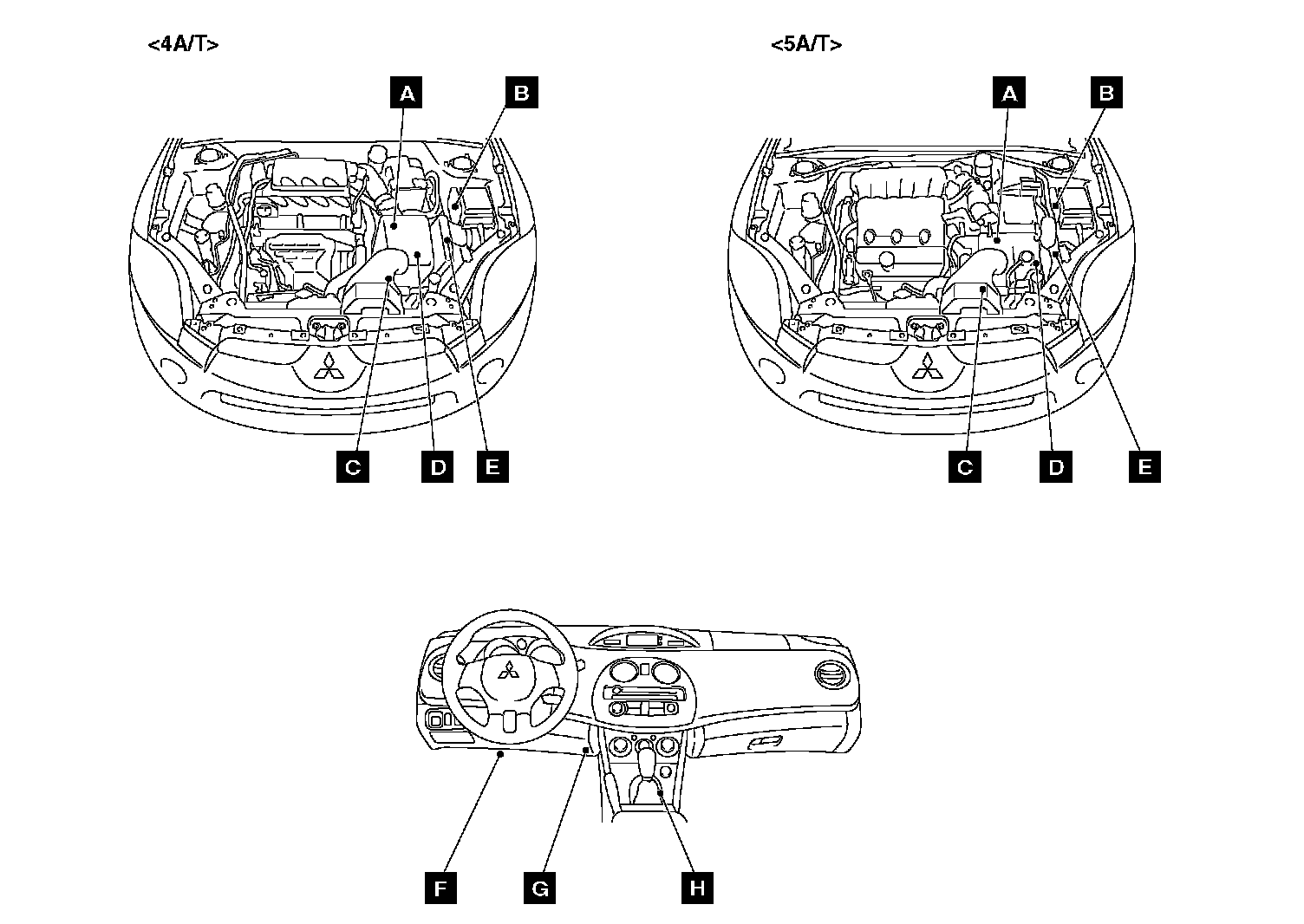

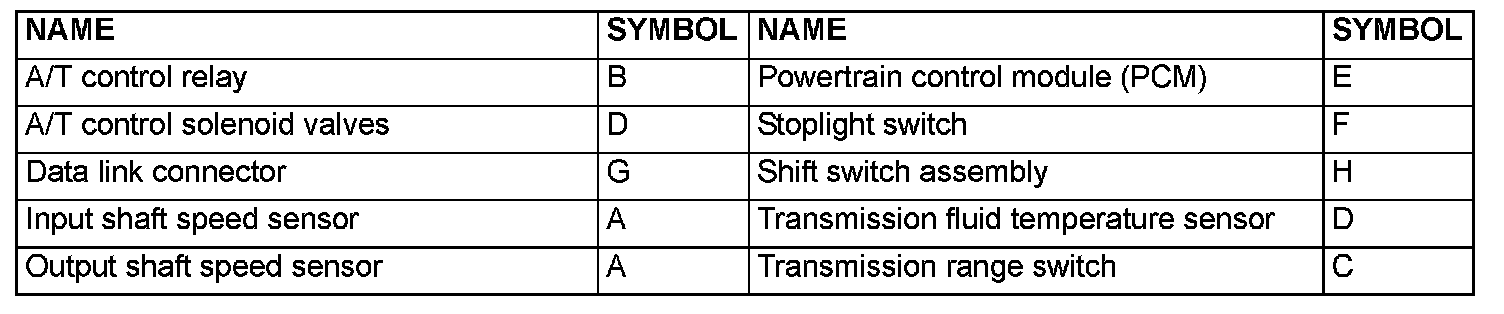

A/T CONTROL COMPONENT LAYOUT

Overall View:

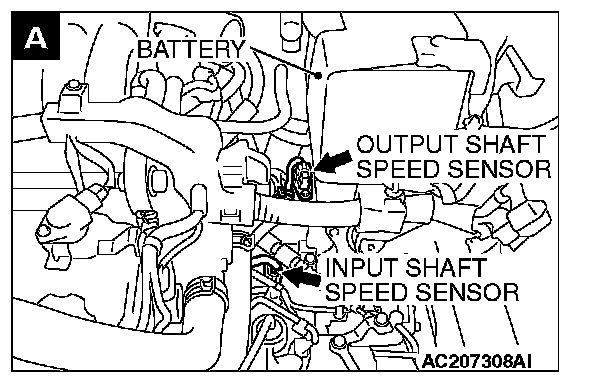

View A:

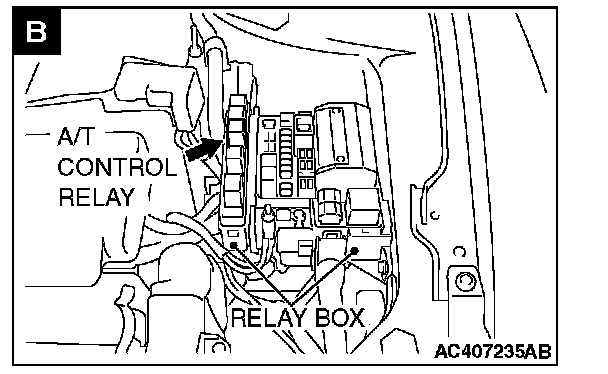

View B:

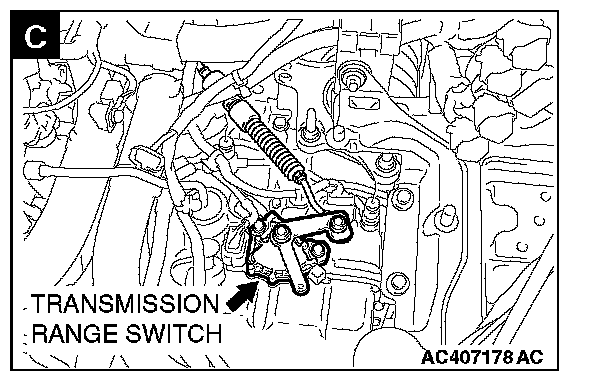

View C:

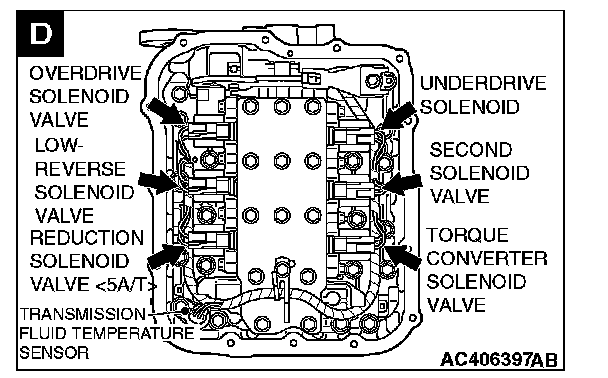

View D:

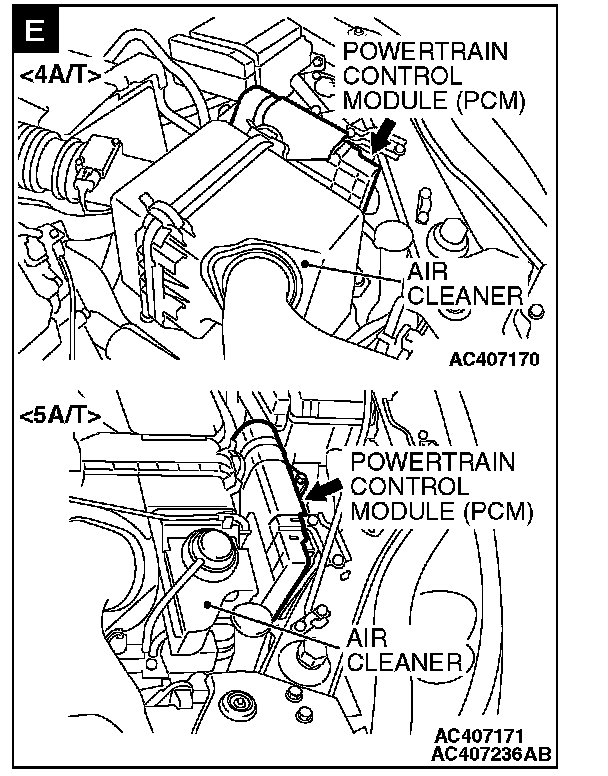

View E:

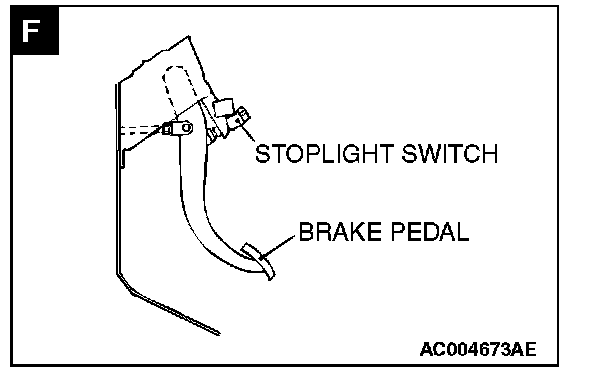

View F:

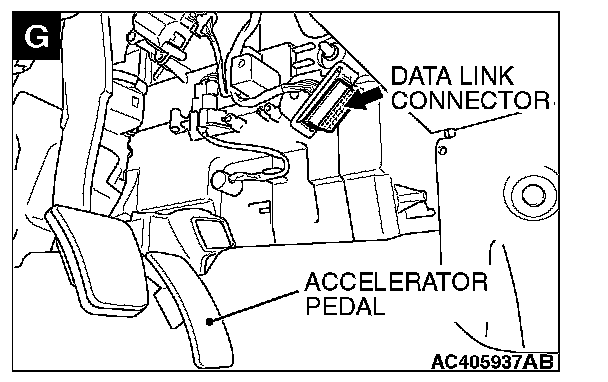

View G:

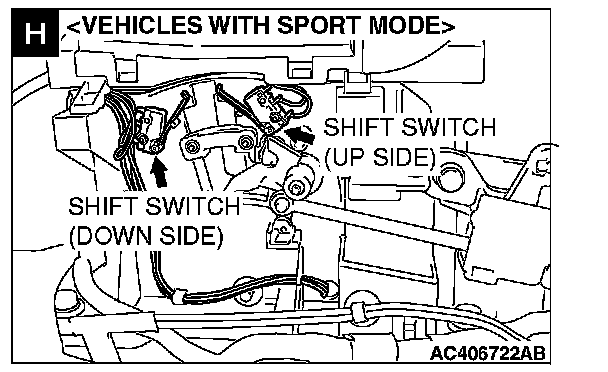

View H:
