Adjusting Plate, Snap Ring and Spacers

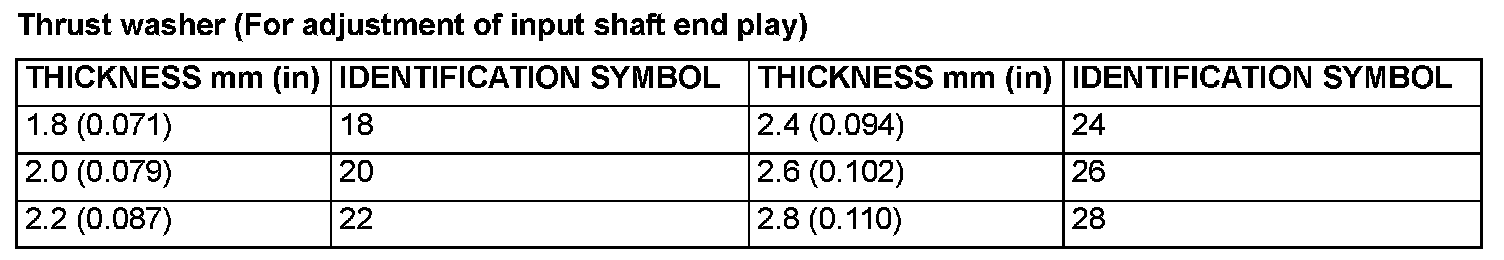

ADJUSTING PLATE, SNAP RING AND SPACERSThrust washer (For adjustment of input shaft end play)

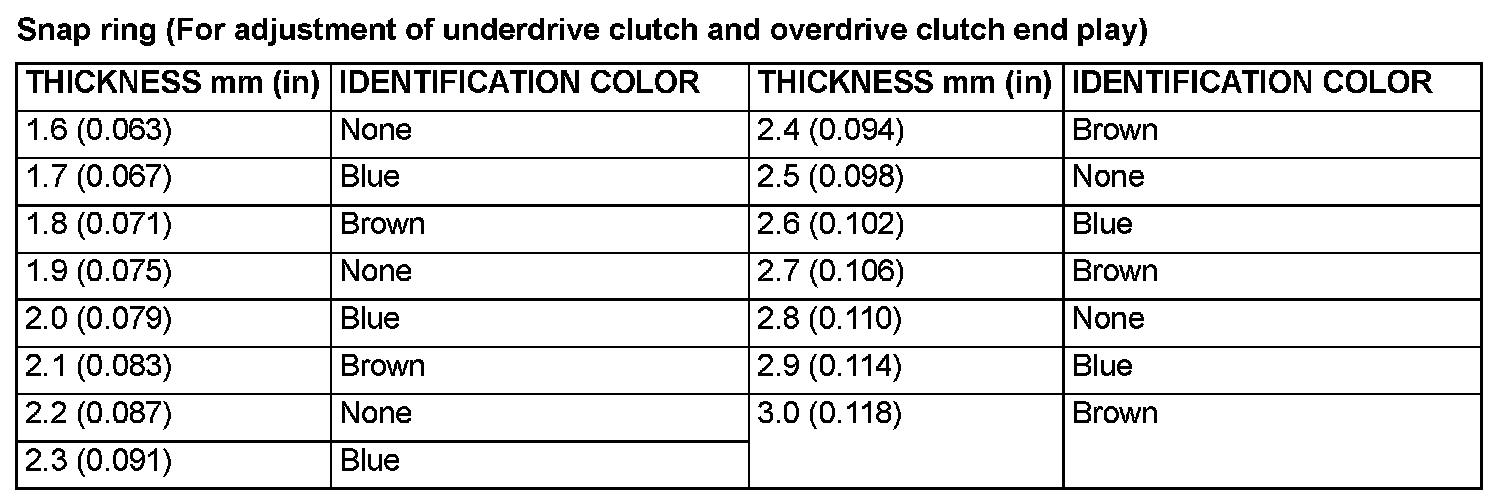

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play)

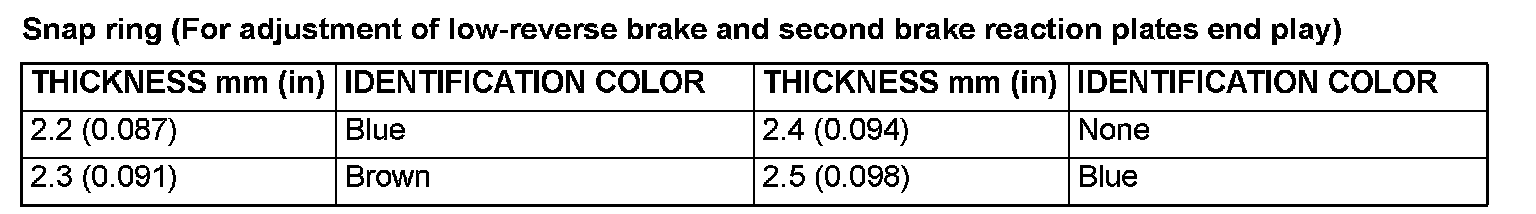

Snap ring (For adjustment of low-reverse brake and second brake reaction plates end play)

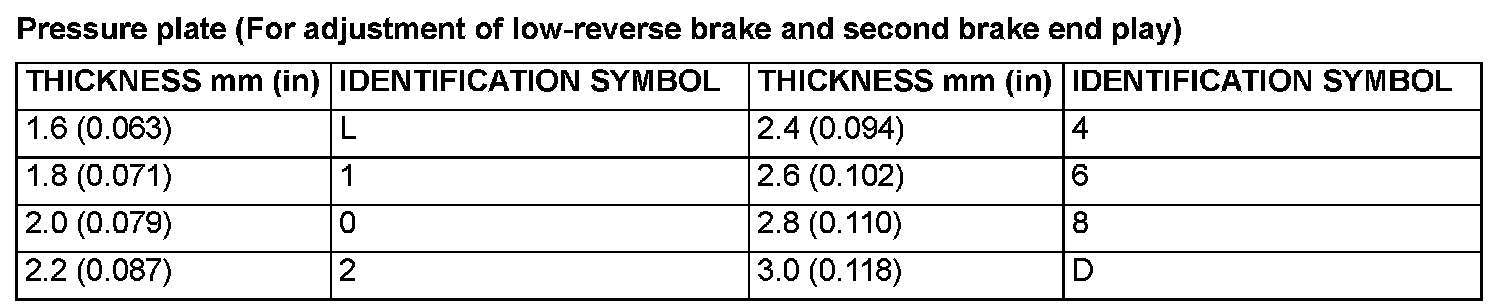

Pressure plate (For adjustment of low-reverse brake and second brake end play)

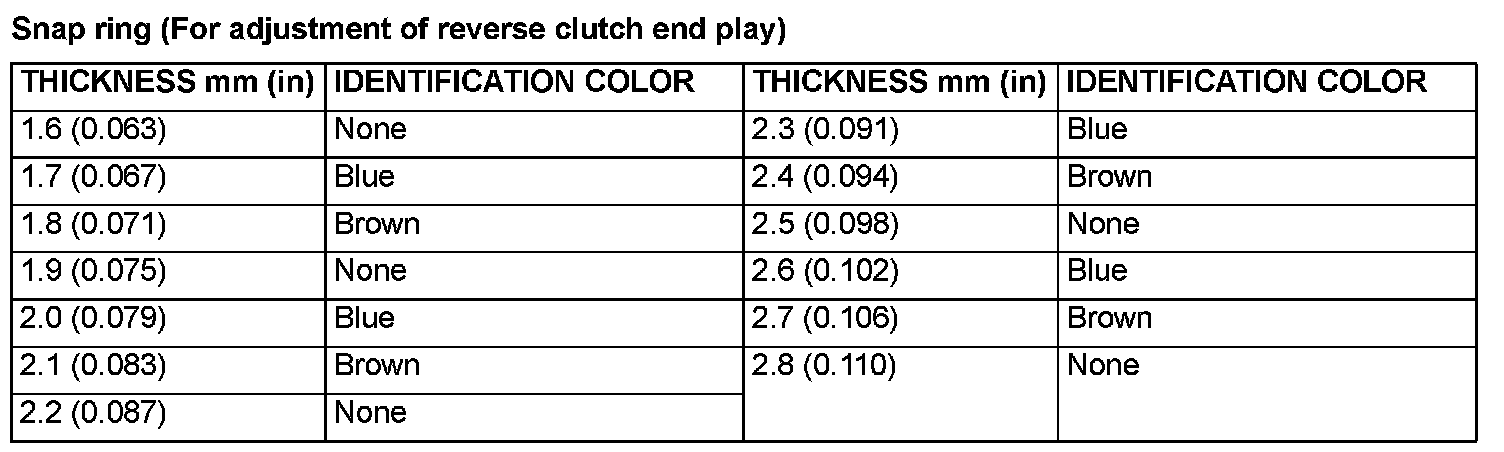

Snap ring (For adjustment of reverse clutch end play)

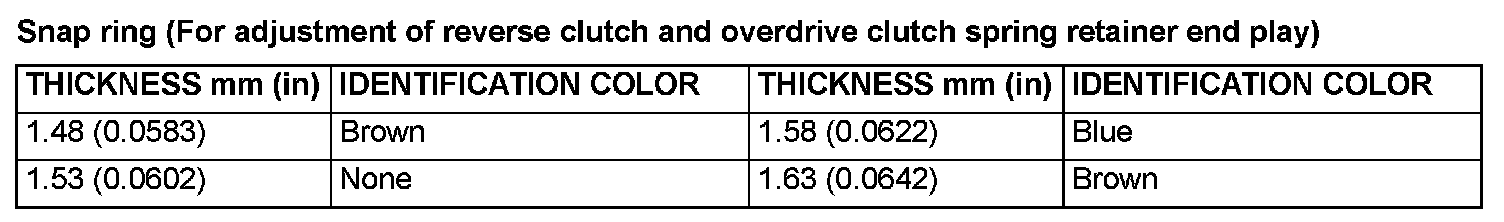

Snap ring (For adjustment of reverse clutch and overdrive clutch spring retainer end play)

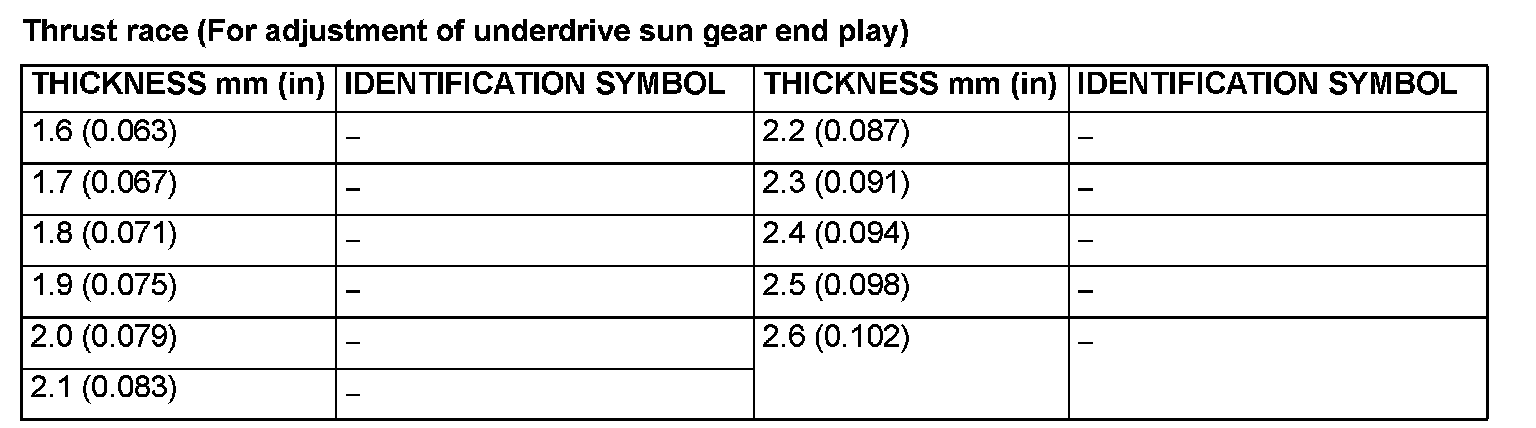

Thrust race (For adjustment of underdrive sun gear end play)

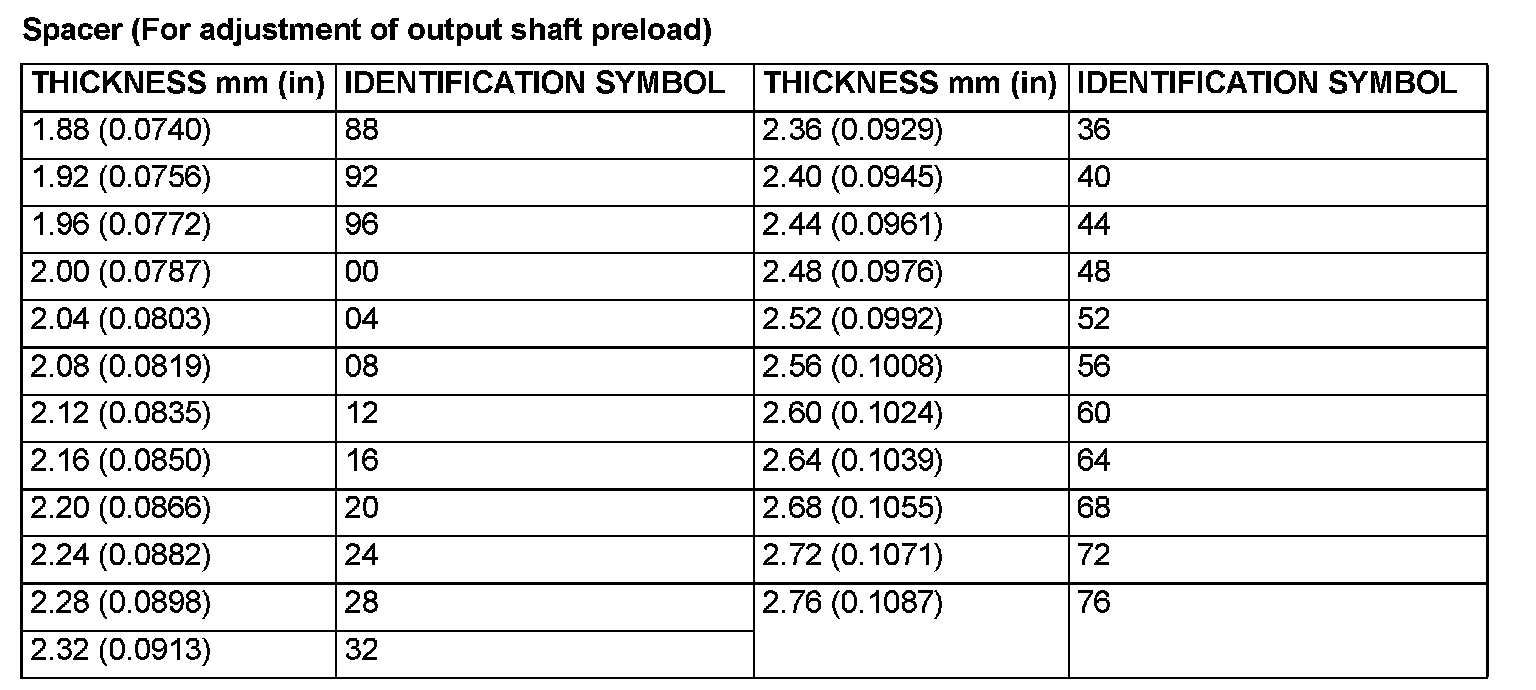

Spacer (For adjustment of output shaft preload)

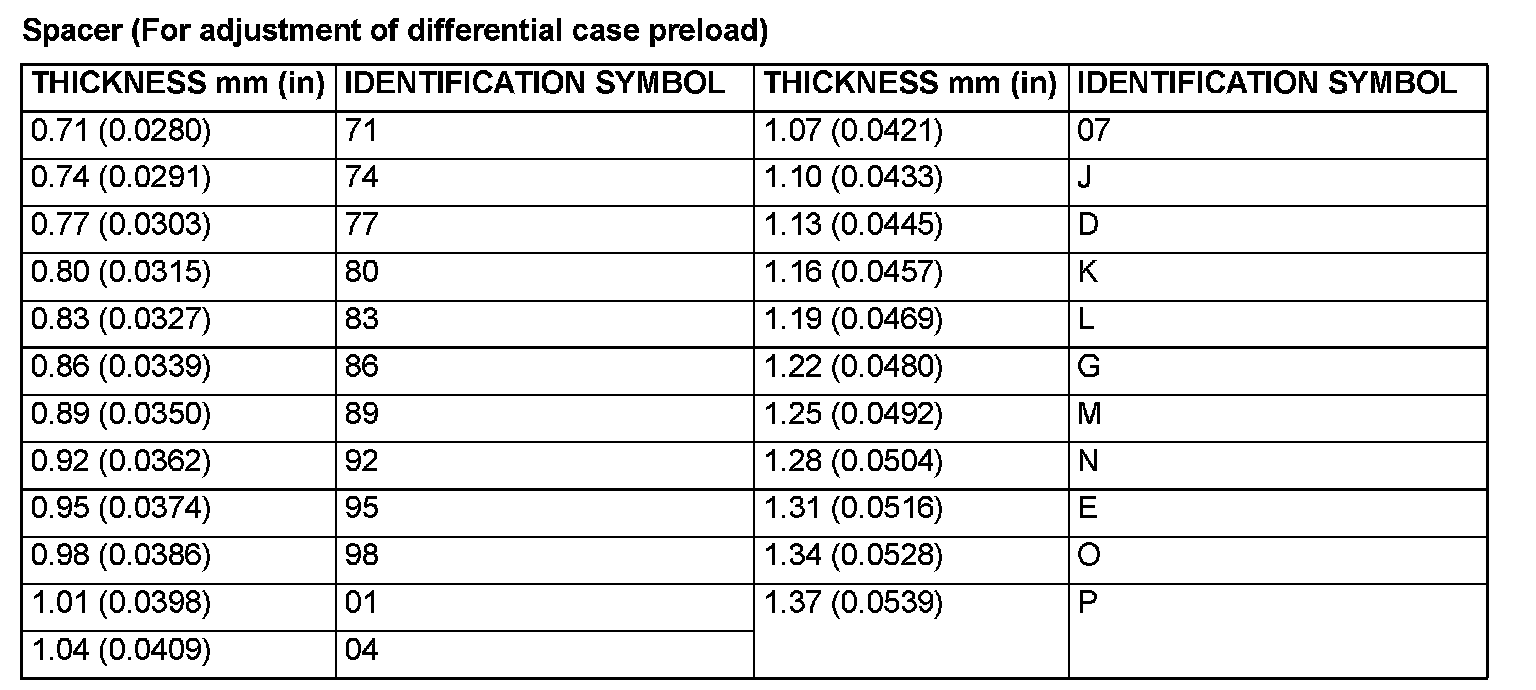

Spacer (For adjustment of differential case preload)

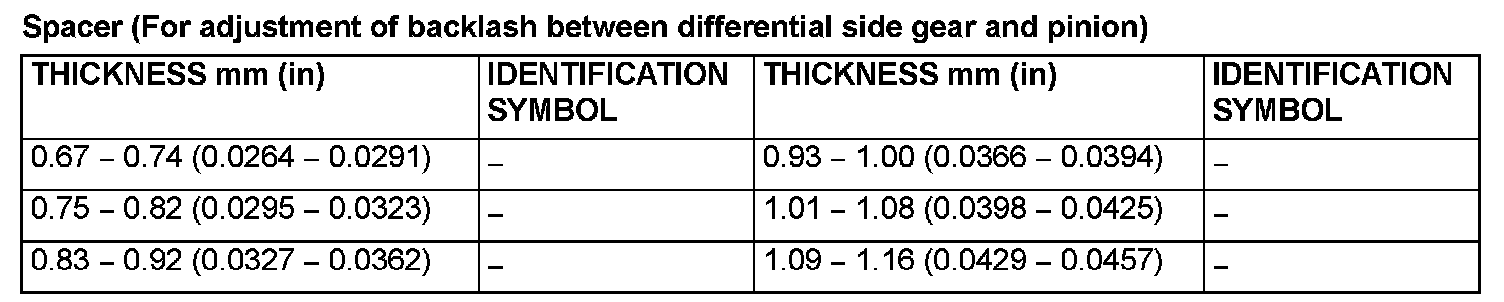

Spacer (For adjustment of backlash between differential side gear and pinion)
