Pinout Values and Diagnostic Parameters

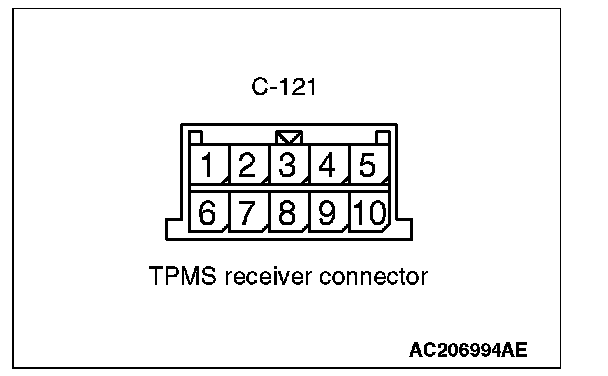

CHECK AT TPMS RECEIVER

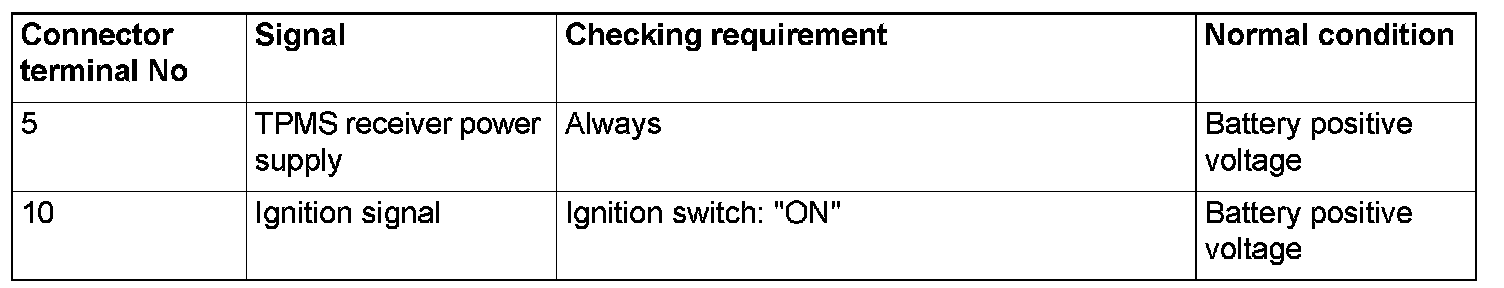

TERMINAL VOLTAGE CHECK CHART





Measure the voltages between terminal 6 (ground terminal) and each respective terminal.





TPMS RECEIVER GROUND CHECK
1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the TPMS receiver connector.

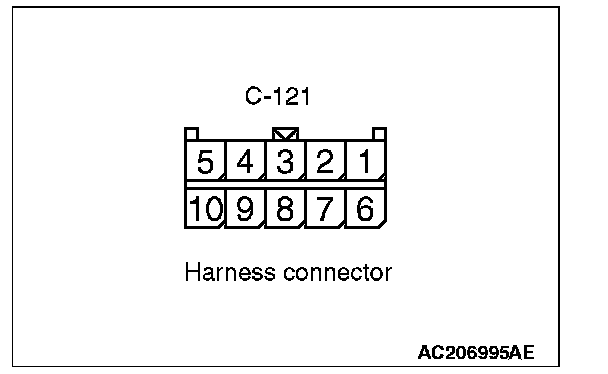

2. Check the resistance and continuity between terminal 6 of the harness connector and body ground. The resistance should measure less than 2 ohms.
