Front Suspension

STRUT ASSEMBLY

REMOVAL AND INSTALLATION

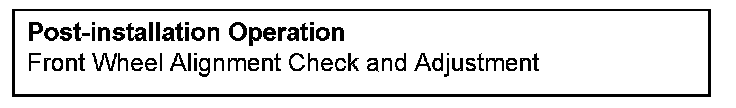

Post-installation Operation:

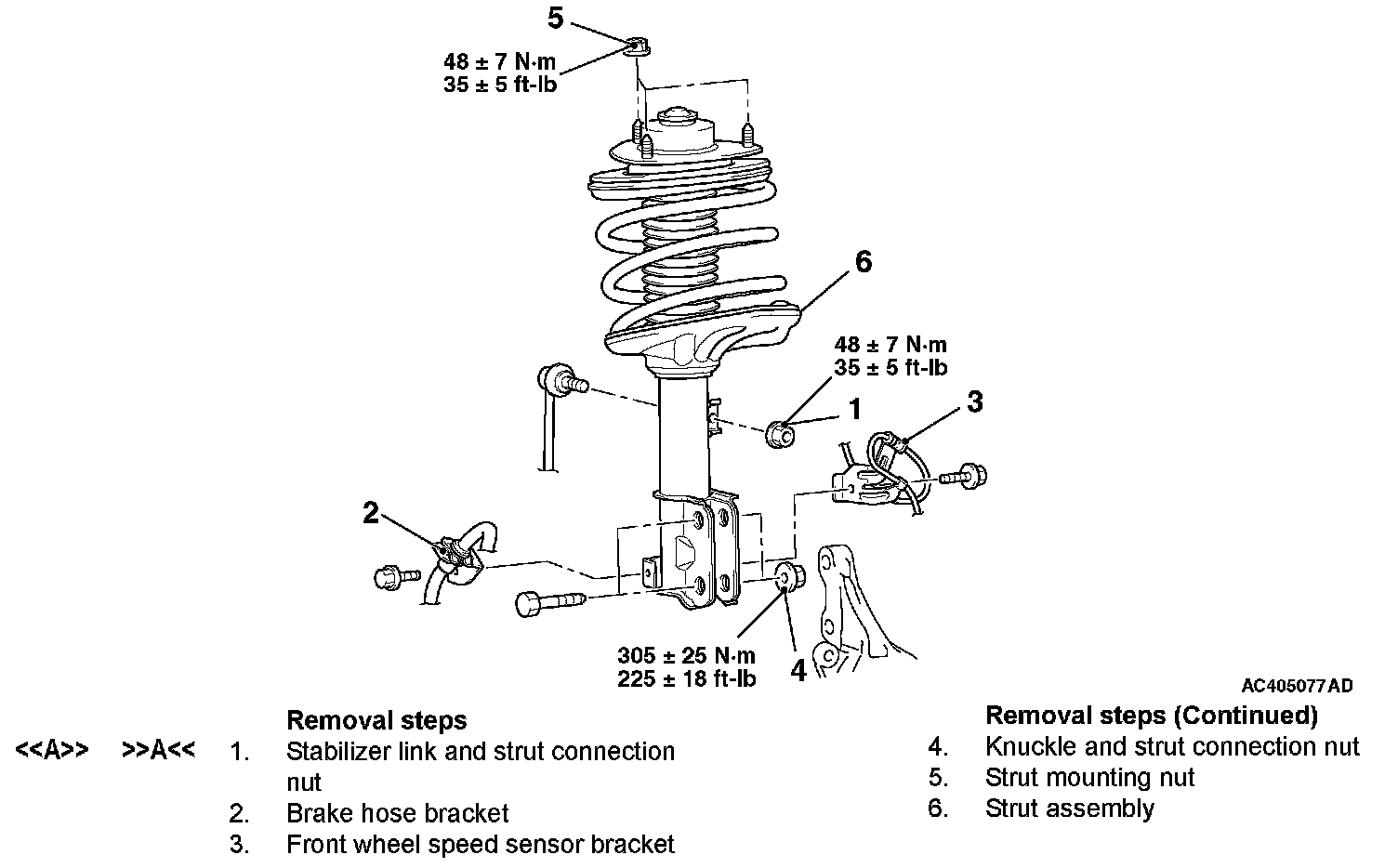

Removal Steps 1-6:

REMOVAL SERVICE POINT

[A] STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL

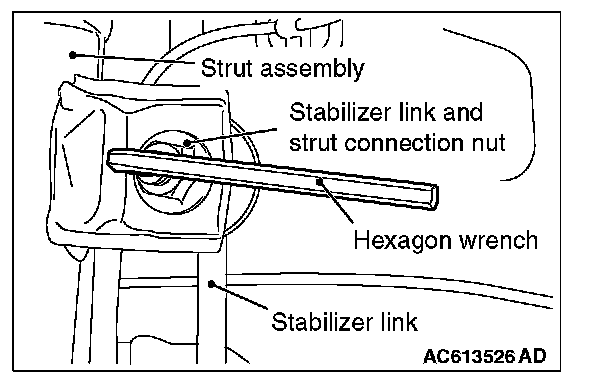

Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINT

[A] STABILIZER LINK AND STRUT CONNECTION NUT INSTALLATION





Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.
