Rear Suspension Bushing Replacement
REAR SUSPENSION BUSHING REPLACEMENTRequired Special Tools:
^ MB992107: Rear Suspension Bush Replacer
^ a: MB992229 Nut
^ b: MB992230 Washer
^ c: MB992231 Base
^ d: MB992232 Center bolt
^ e: MB992233 Replacer
^ f: MB992234 Bearing
^ g: MB992235 Adapter
^ h: MB992268 Spacer
^ i: MB992269 Nut
1. Remove the shock absorber assembly, stabilizer link connection nut and lower arm assembly.

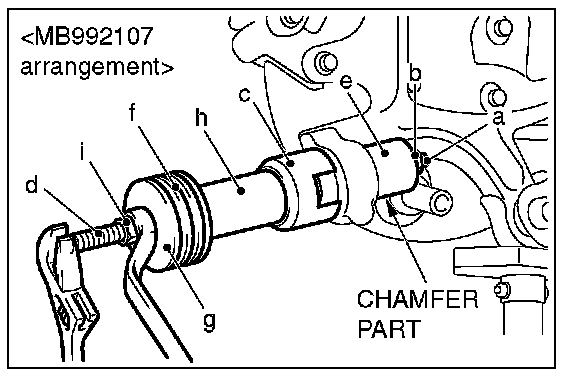

2. Arrange special tool MB992107 as shown in the illustration and remove the bushing.
NOTE: Set the special tool with its chamfered front side facing down in order to prevent interference with the shock absorber mount.

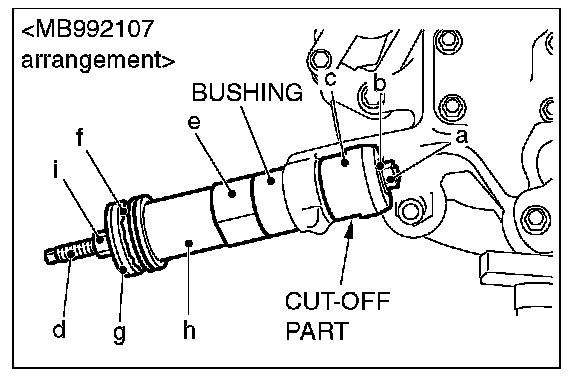

3. Arrange special tool MB992107 as shown in the illustration and press in the bushing until its end is flush with the knuckle by observing through the cut-off part of the special tool.
