Power Steering Pump: Service and Repair

POWER STEERING OIL PUMP ASSEMBLY

REMOVAL AND INSTALLATION [2.4L ENGINE]

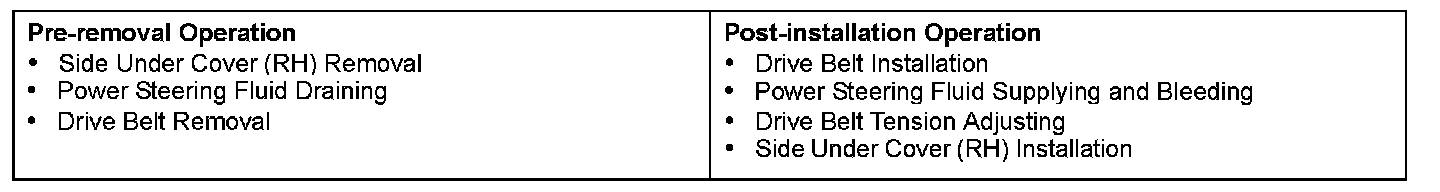

Pre-removal & Post-installation Operation:

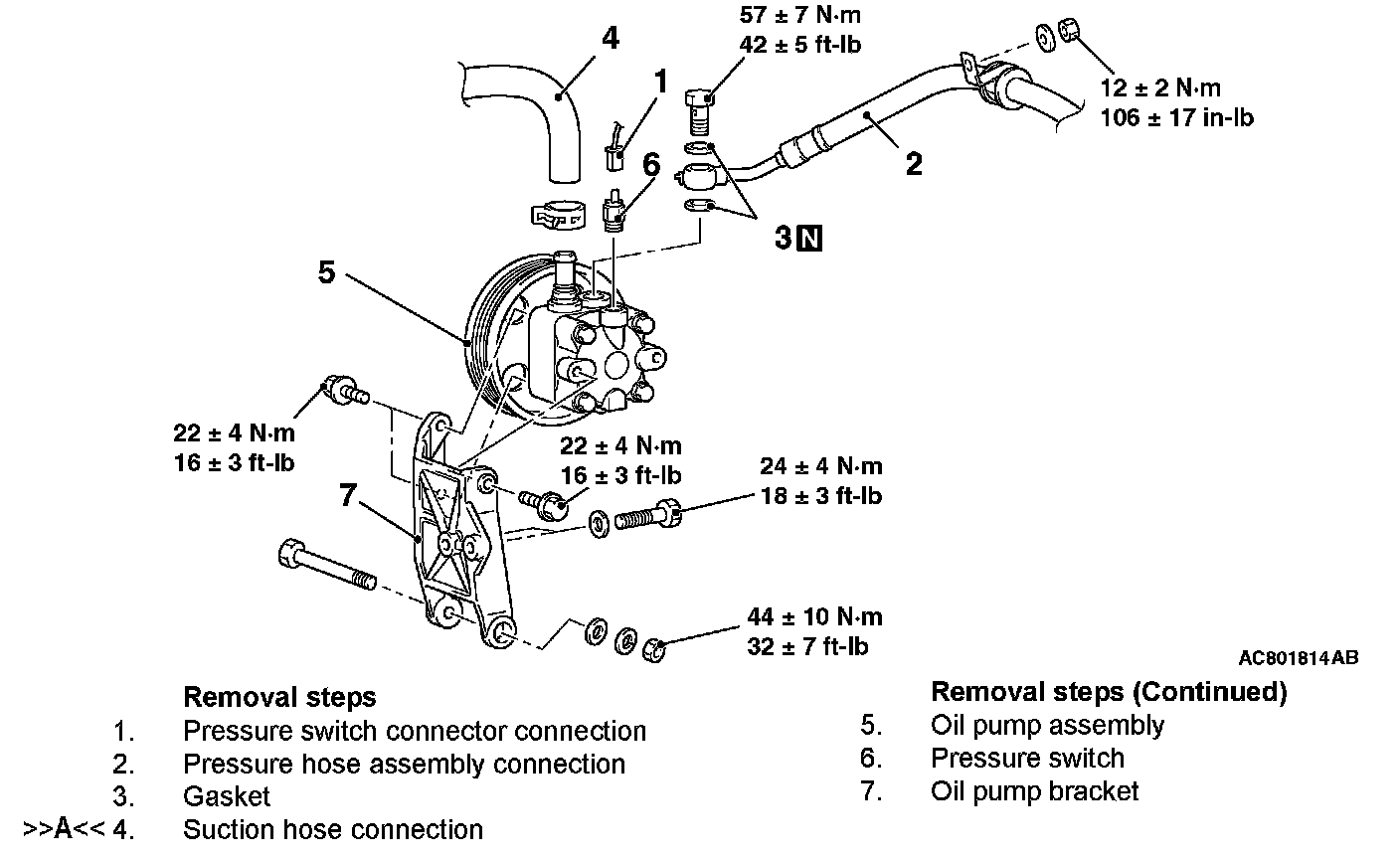

Removal Steps 1-7:

INSTALLATION SERVICE POINT

[A] SUCTION HOSE CONNECTION





Install the suction hose so that the marking is positioned as shown in the illustration.
