Starting System: Specifications
SPECIFICATIONS

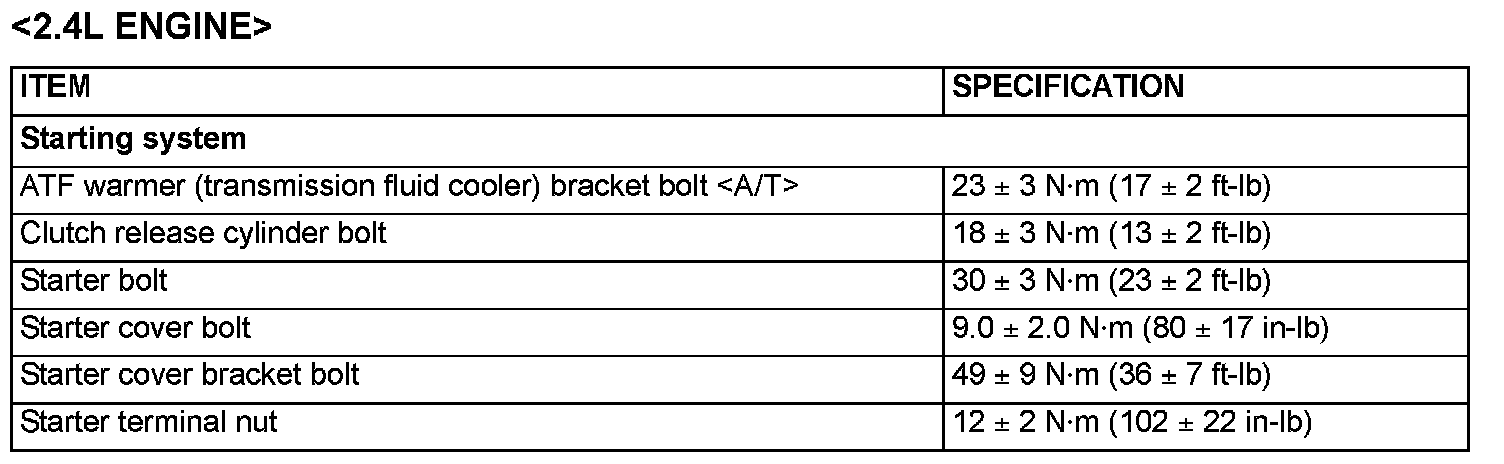

FASTENER TIGHTENING SPECIFICATIONS
Fastener Tightening Specification - Starting System:
