SPECIFICATIONS

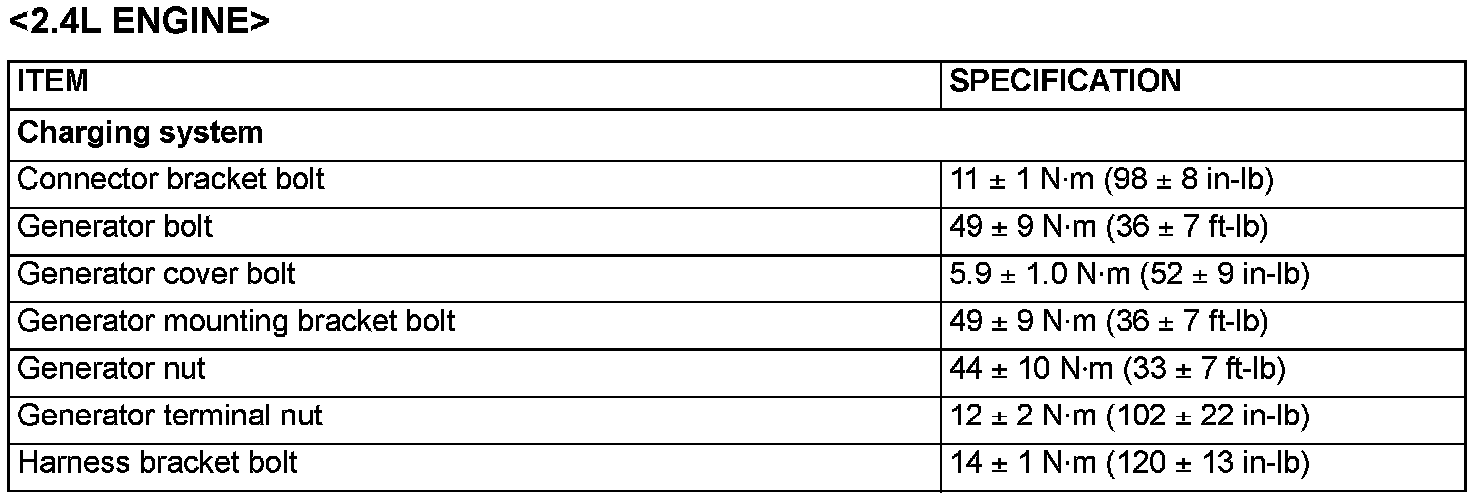

FASTENER TIGHTENING SPECIFICATIONS
Fastener Tightening Specification - Charging System:
