Removal and Replacement
GENERATOR ASSEMBLYREMOVAL AND INSTALLATION [2.4L ENGINE]

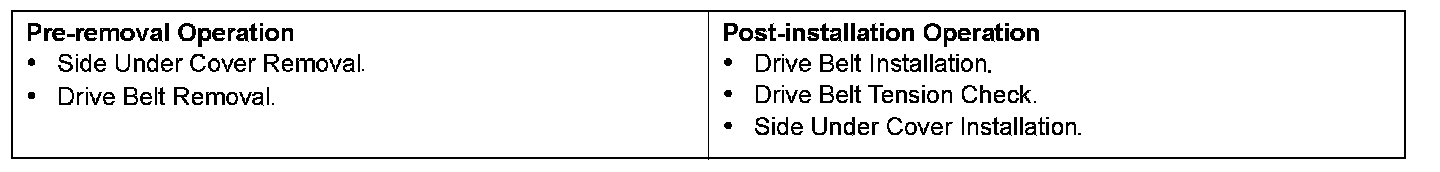

Pre-removal & Post-installation Operation:

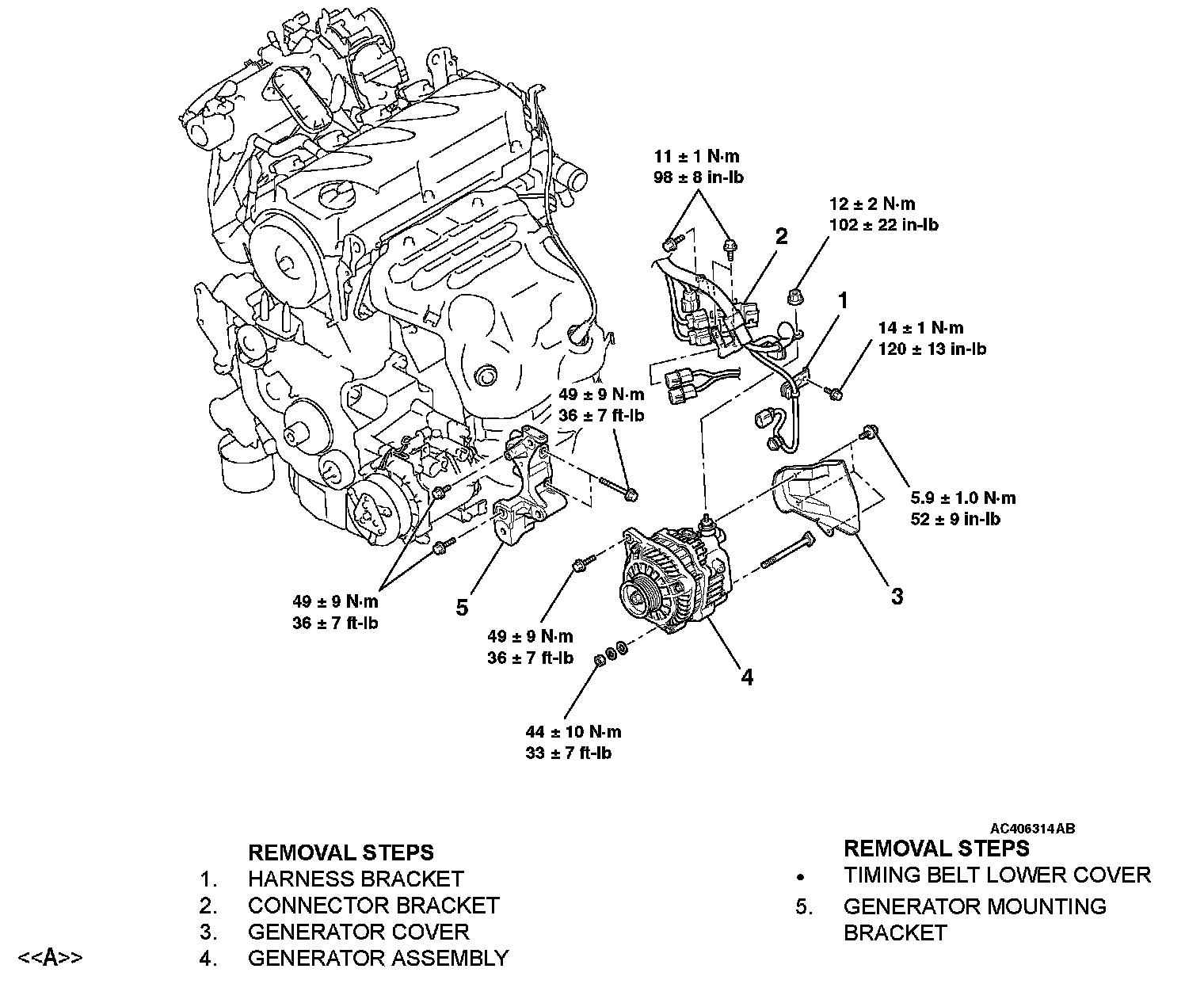

Removal Steps 1-5:
REMOVAL SERVICE POINT
[[A]] GENERATOR ASSEMBLY REMOVAL
Remove the generator assembly from above the vehicle.
