General Data and Specifications

GENERAL DATA AND SPECIFICATIONS

[ECLIPSE]

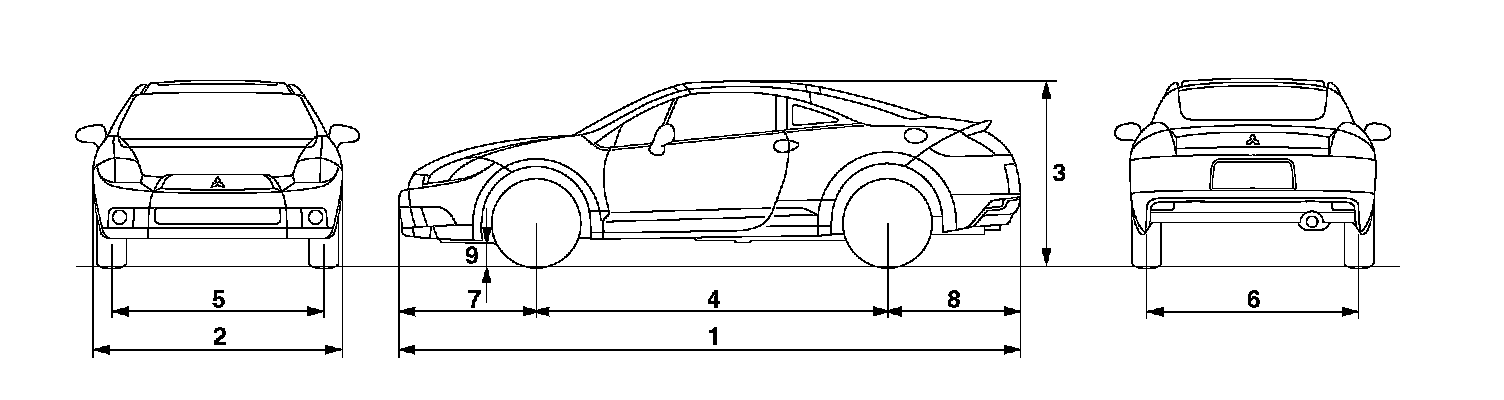

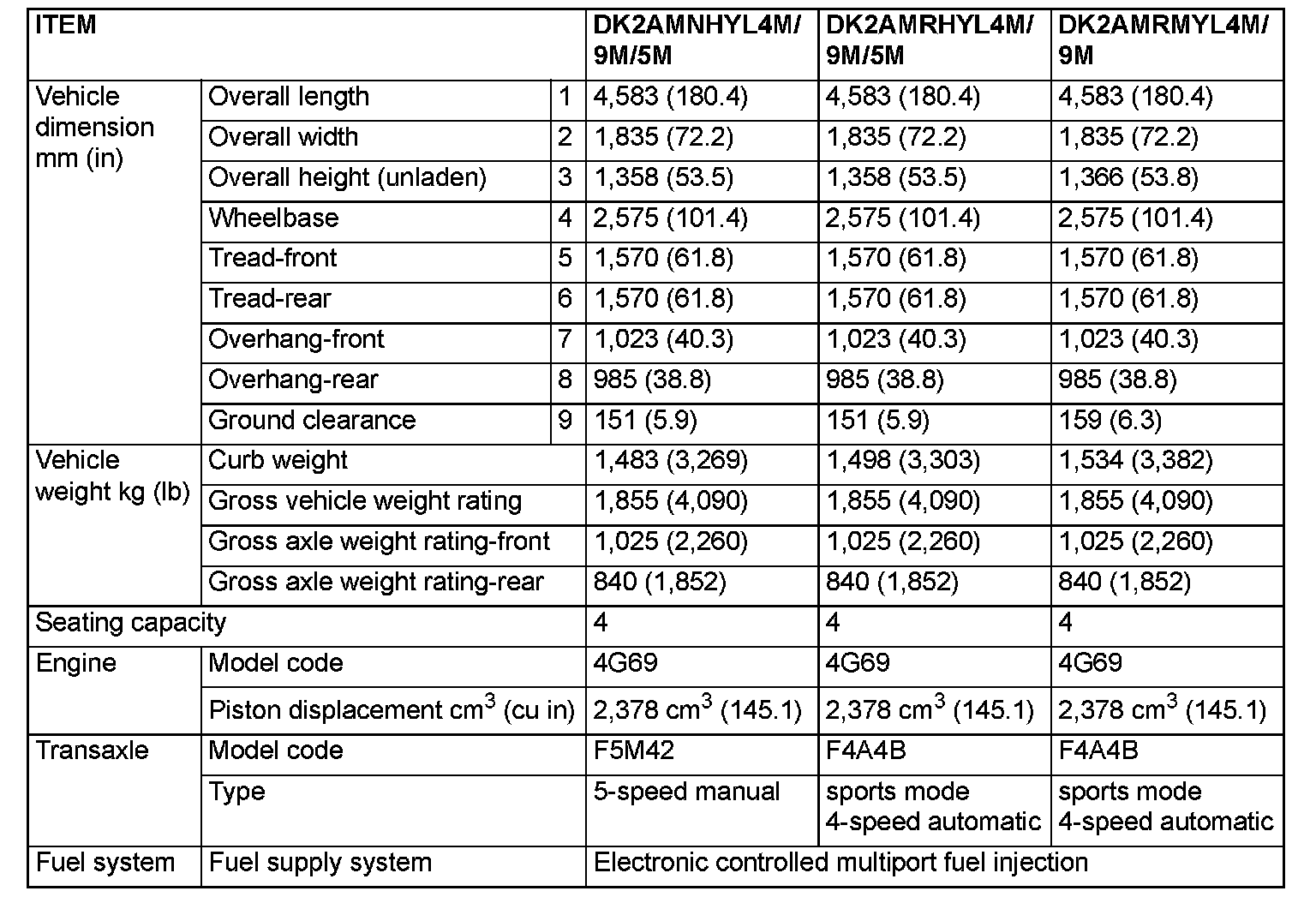

GENERAL SPECIFICATIONS (2.4L ENGINE)

[ECLIPSE SPYDER]

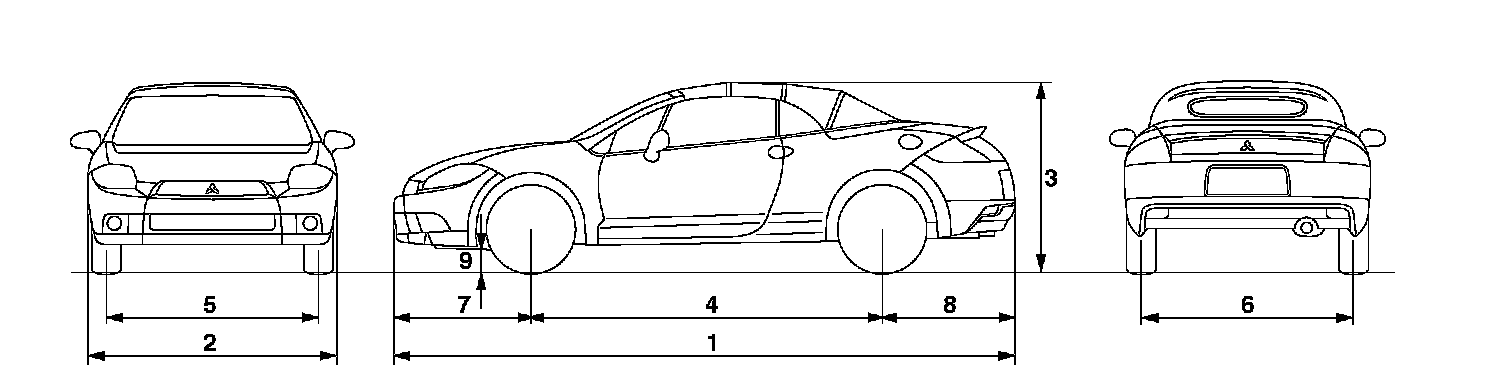

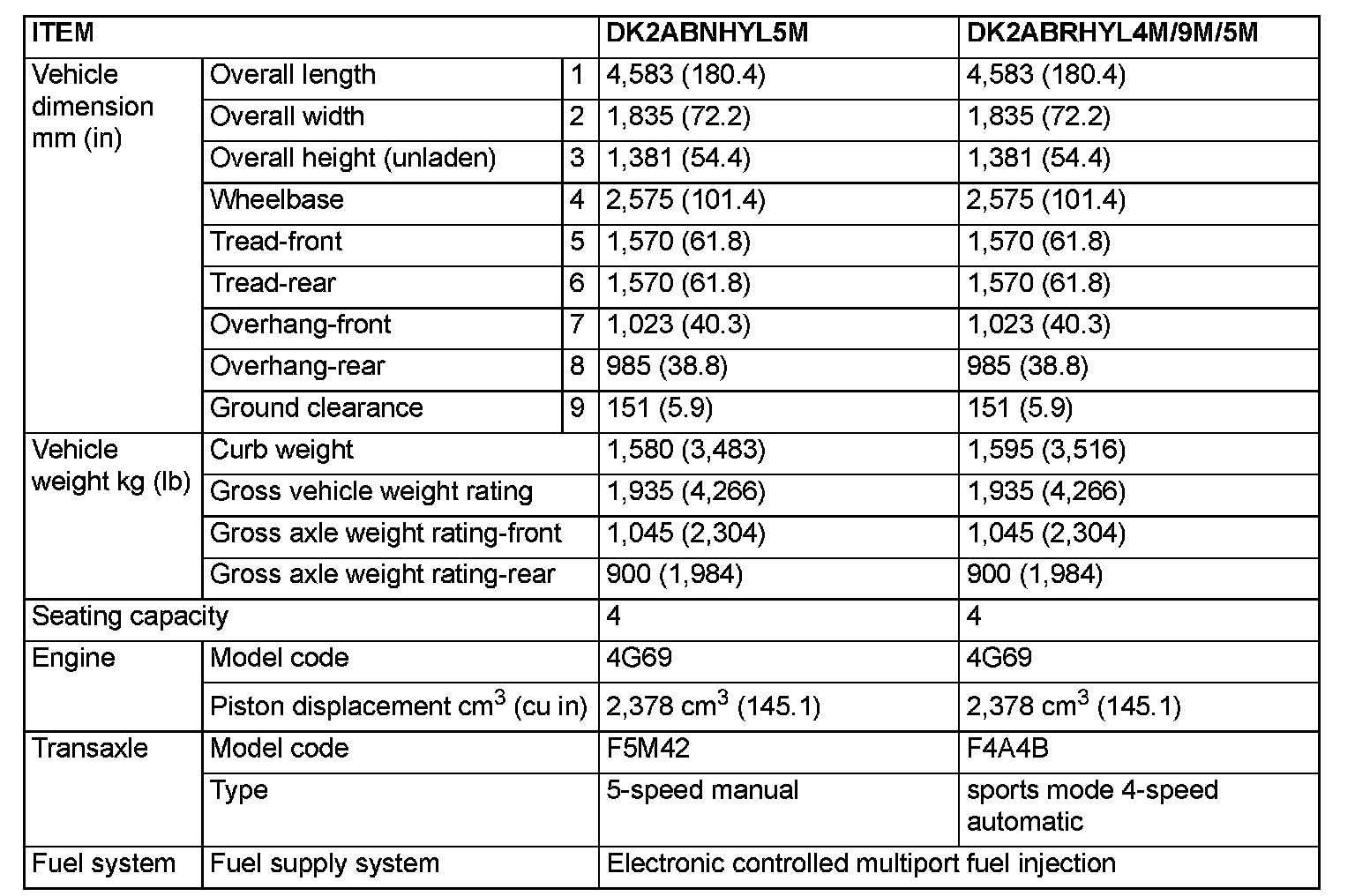

GENERAL SPECIFICATIONS (2.4L ENGINE)
