System Specifications
Piston and connecting rodPiston outside diameter mm (in)
STANDARD VALUE 87 (3.43)
Piston ring side clearance mm (in)
Number 1
STANDARD VALUE 0.03 - 0.07 (0.0012 - 0.0028)
LIMIT 0.1 (0.003)
Number 2
STANDARD VALUE 0.02 - 0.06 (0.0008 - 0.0024)
LIMIT 0.1 (0.003)
Piston ring end gap mm (in)
Number 1
STANDARD VALUE 0.15 - 0.30 (0.006 - 0.012)
LIMIT 0.8 (0.03)
Number 2
STANDARD VALUE 0.28 - 0.43 (0.011 - 0.017)
LIMIT 0.8 (0.03)
Oil ring side rail
STANDARD VALUE 0.10 - 0.40 (0.004 - 0.016)
LIMIT 1.0 (0.03)
Crankshaft pin oil clearance mm (in)
STANDARD VALUE 0.03 - 0.06 (0.0012 - 0.0023)
LIMIT 0.1 (0.003)
Connecting rod big end side clearance mm (in)
STANDARD VALUE 0.10 - 0.25 (0.004 - 0.009)
LIMIT 0.4 (0.015)
Crankshaft and cylinder block
Crankshaft end play mm (in)
STANDARD VALUE 0.05 - 0.25 (0.002 - 0.009)
LIMIT 0.40 (0.015)
Crankshaft journal outside diameter mm (in)
STANDARD VALUE 57.0 (2.24)
Crankshaft pin outside diameter mm (in)
STANDARD VALUE 45.0 (1.77)
Crankshaft journal oil clearance mm (in)
Number 1,2,4 journal
STANDARD VALUE 0.018 - 0.036 (0.0007 - 0.0014)
LIMIT 0.1 (0.003)
Number 3 journal
STANDARD VALUE 0.024 - 0.042 (0.0009 - 0.0017)
LIMIT 0.1 (0.003)
Piston to cylinder clearance mm (in)
STANDARD VALUE 0.02 - 0.04 (0.0008 - 0.0015)
Cylinder block flatness of gasket surface mm (in)
STANDARD VALUE 0.05 (0.002)
LIMIT 0.1 (0.003)
Cylinder block grinding limit of gasket surface mm (in) [Total resurfacing depth of both cylinder head and cylinder block]
LIMIT 0.2 (0.007)
Cylinder block overall height mm (in)
STANDARD VALUE 284 (11.2)
Cylinder block inside diameter mm (in)
STANDARD VALUE 87.0 (3.43)
Cylindricity mm (in)
STANDARD VALUE 0.01 (0.0003)

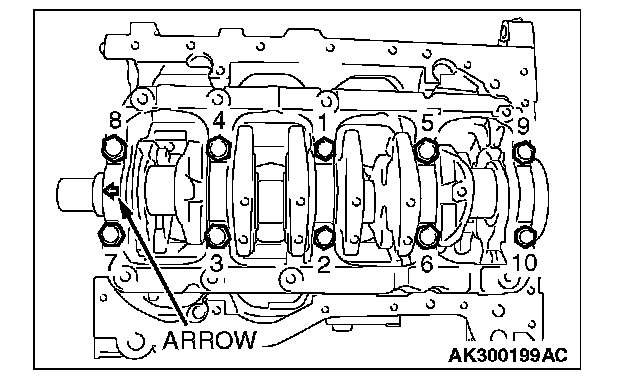

Main Bearing caps 25 ± 2 Nm (18 ± 1 ft-lb)
Crankshaft pulley bolt 25 ± 4 Nm (19 ± 2 ft-lb)
