SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS

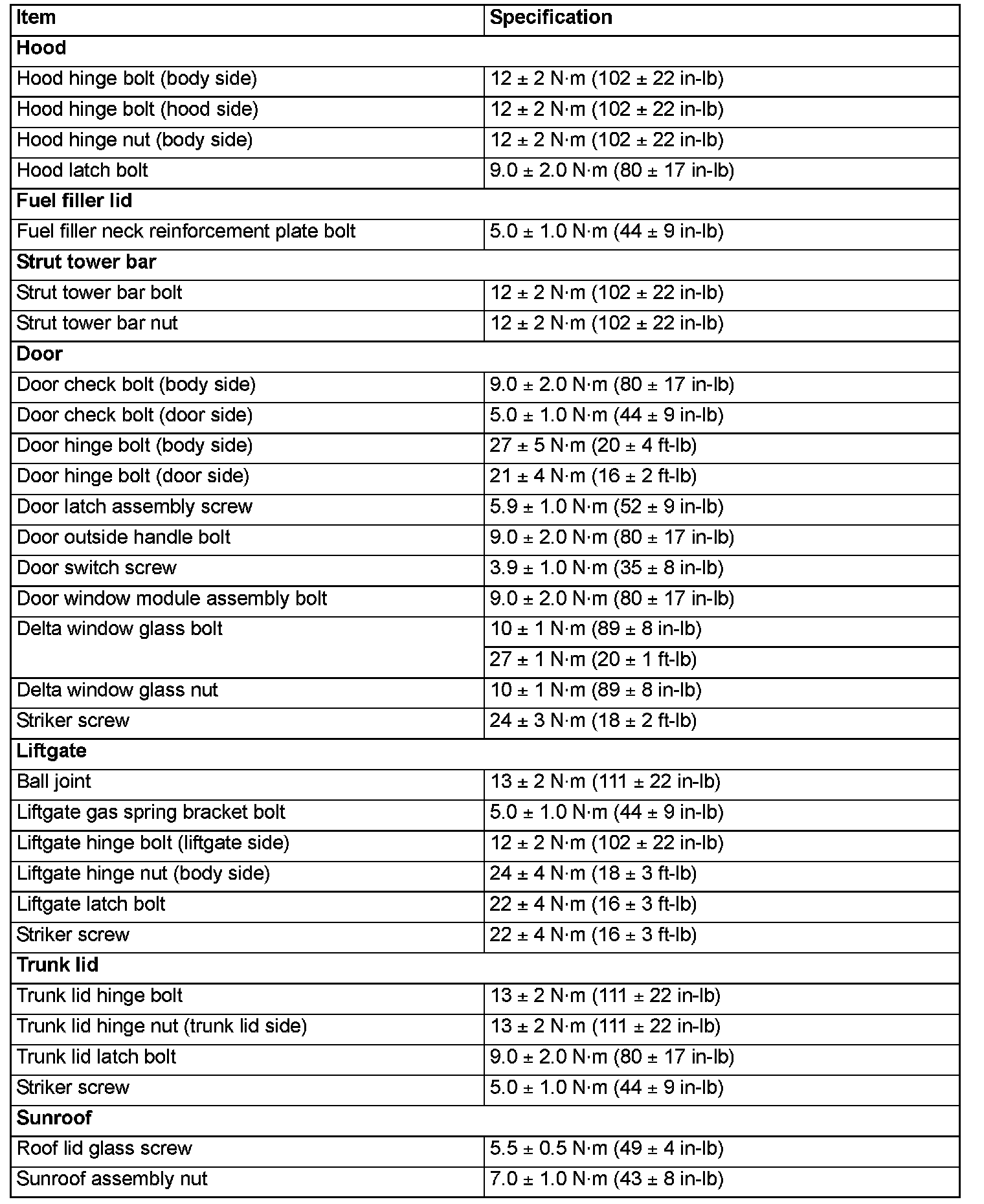

Fastener Tightening Specifications (Part 1):

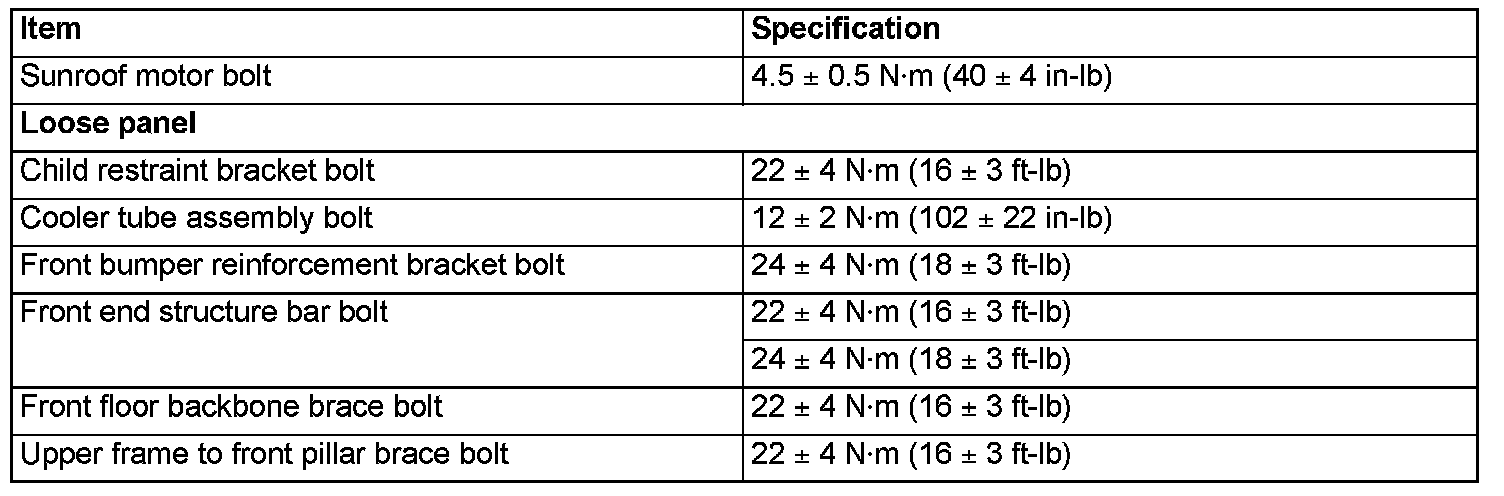

Fastener Tightening Specifications (Part 2):
