Cabin Temperature Sensor / Switch: Testing and Inspection

AIR THERMO SENSOR INSPECTION

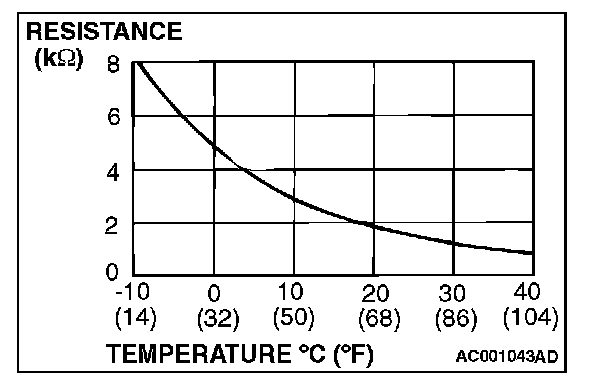

Measure the resistance between connector terminals 1 and 2. under at least two different temperatures. The resistance values should generally match those in the graph.

NOTE: The temperature at the check should not exceed the range in the graph.
