Wheel Speed Sensor: Service and Repair

WHEEL SPEED SENSOR

REMOVAL AND INSTALLATION

Post-Installation Operation:

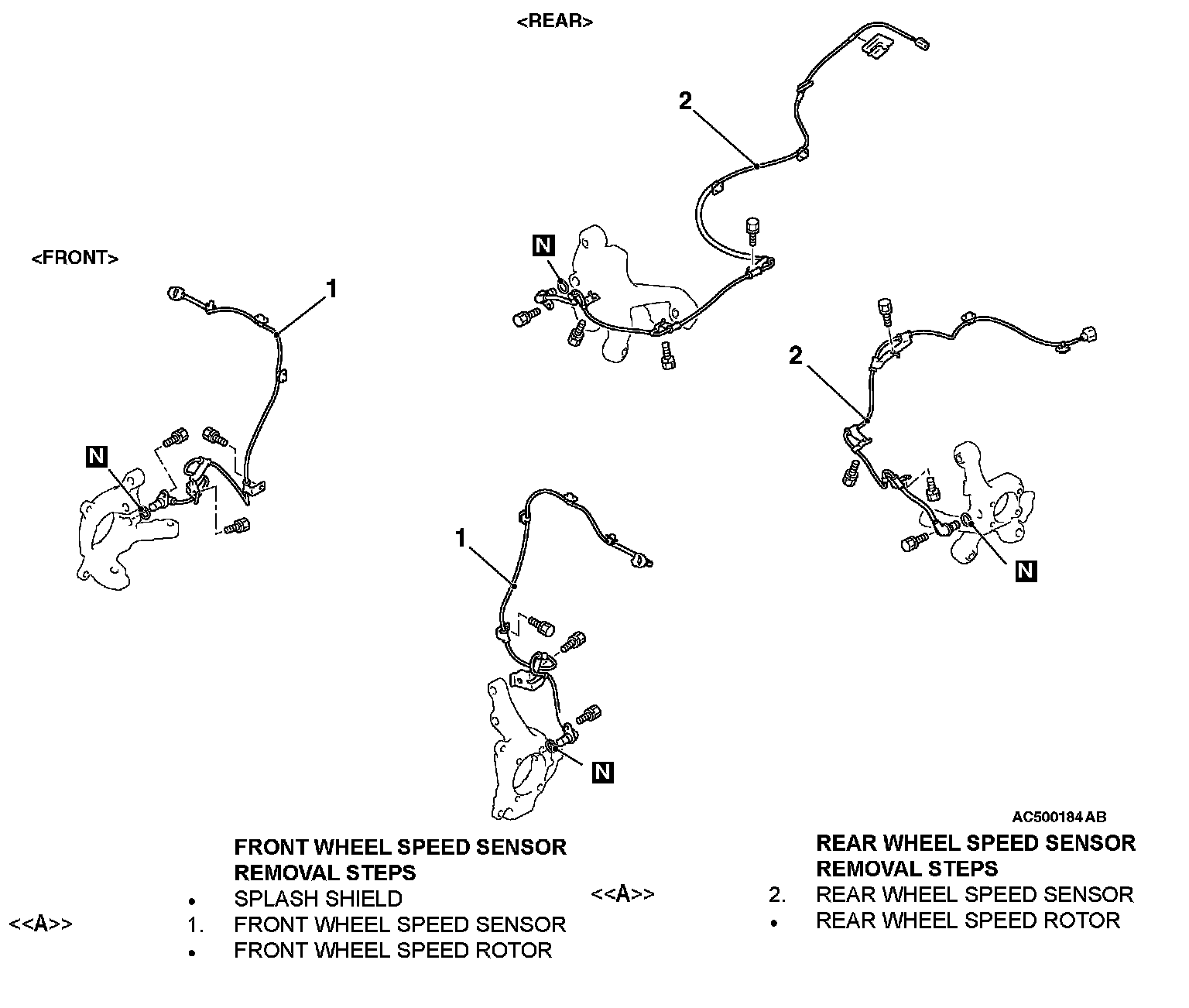

Removal Steps 1-2:

NOTE: Front wheel speed rotors are integrated with the BJ assembly of the drive shaft and cannot be disassembled.

NOTE: Rear wheel speed rotors are integrated with the rear hub assembly and cannot be disassembled.

REMOVAL SERVICE POINT

[A] FRONT WHEEL SPEED SENSOR/REAR WHEEL SPEED SENSOR REMOVAL

CAUTION

Be careful when handling the projection at the tip of the wheel speed sensor and the toothed edge of the wheel speed rotor so as not to damage them by contacting other parts.
