Front Seat Belt
FRONT SEAT BELTREMOVAL AND INSTALLATION
CAUTION:
- When removing and installing the inner seat belt, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to SRS, On-Vehicle Service.)
- SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS, Seat Belt with Pre-tensioner.

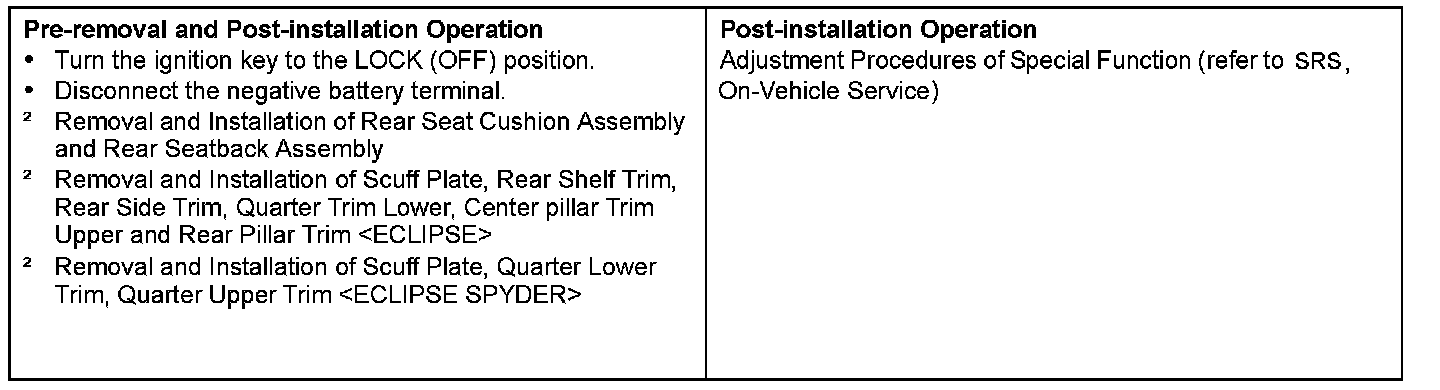

Pre-removal And Post-installation Operation:

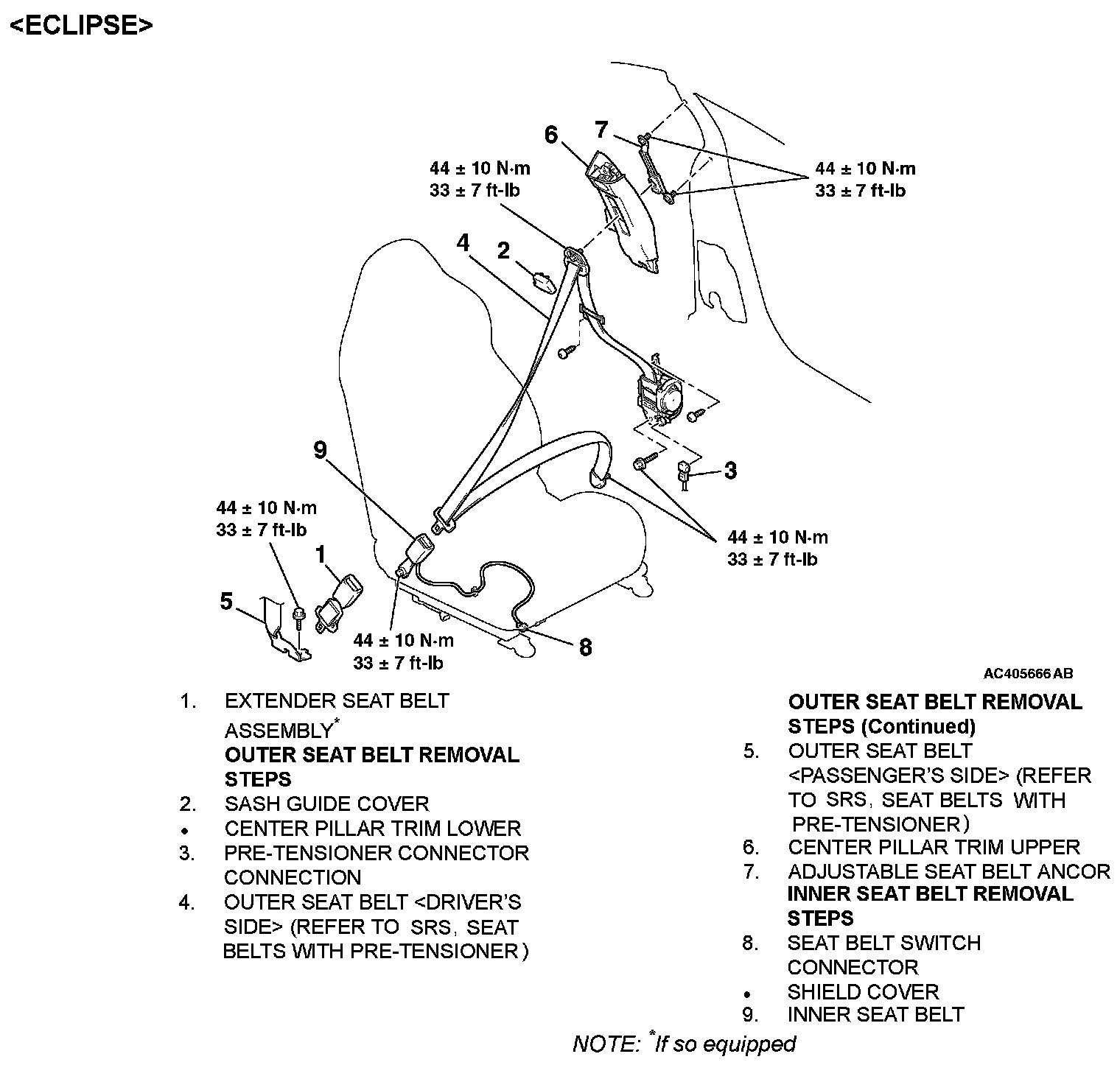

Removal Steps 1-9:

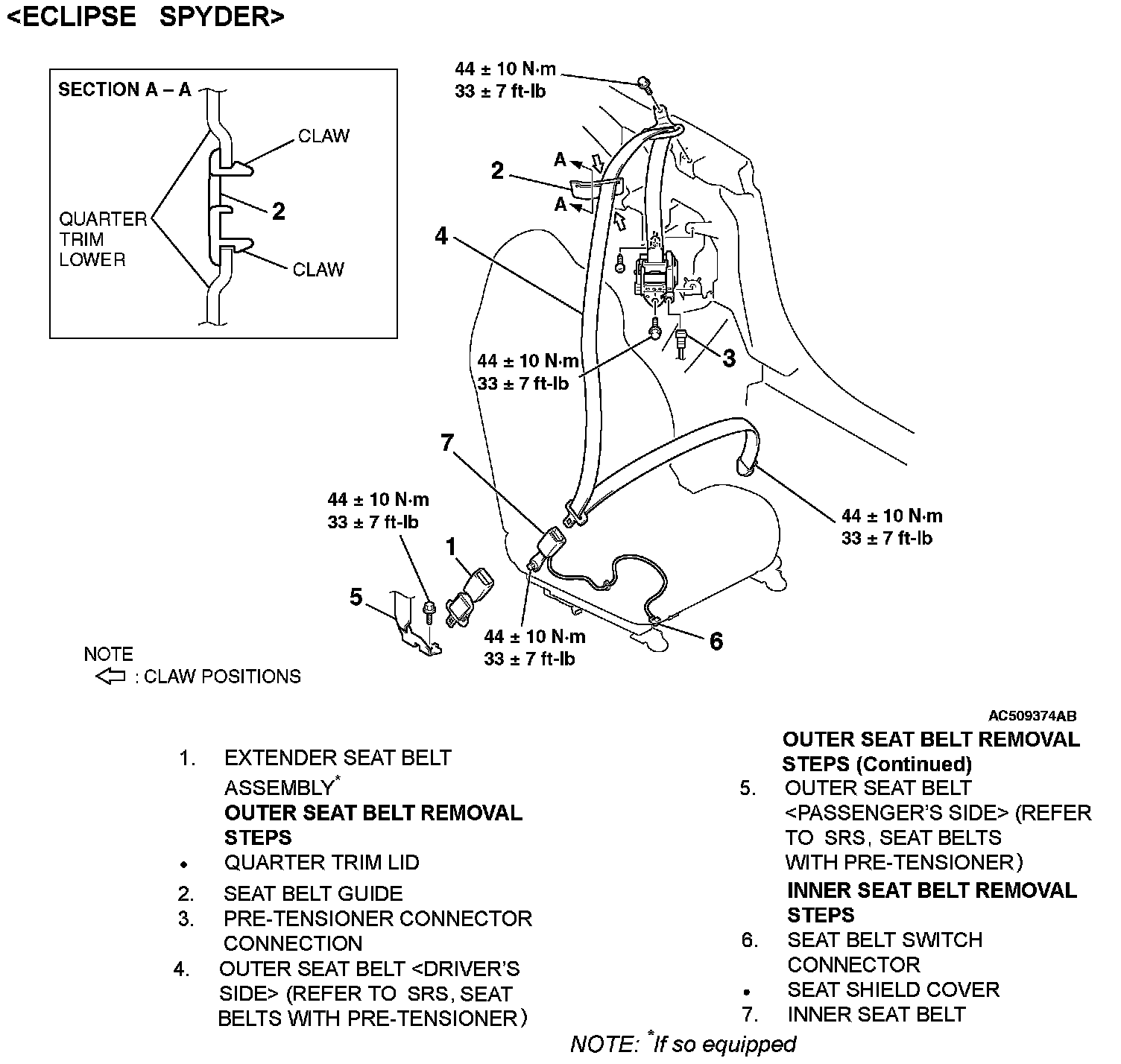

Removal Steps 1-7:
