Inspection Procedure 3

INSPECTION PROCEDURE 3: When the Ignition Switch is Turned to the "ON" Position (Engine Stopped), the SRS Warning Light does not Illuminate.
INSPECTION PROCEDURE 4: After the Ignition Switch is Turned to the "ON" Position, the SRS Warning Light does not Go off after Approximately Seven Seconds.







TECHNICAL DESCRIPTION (COMMENT)

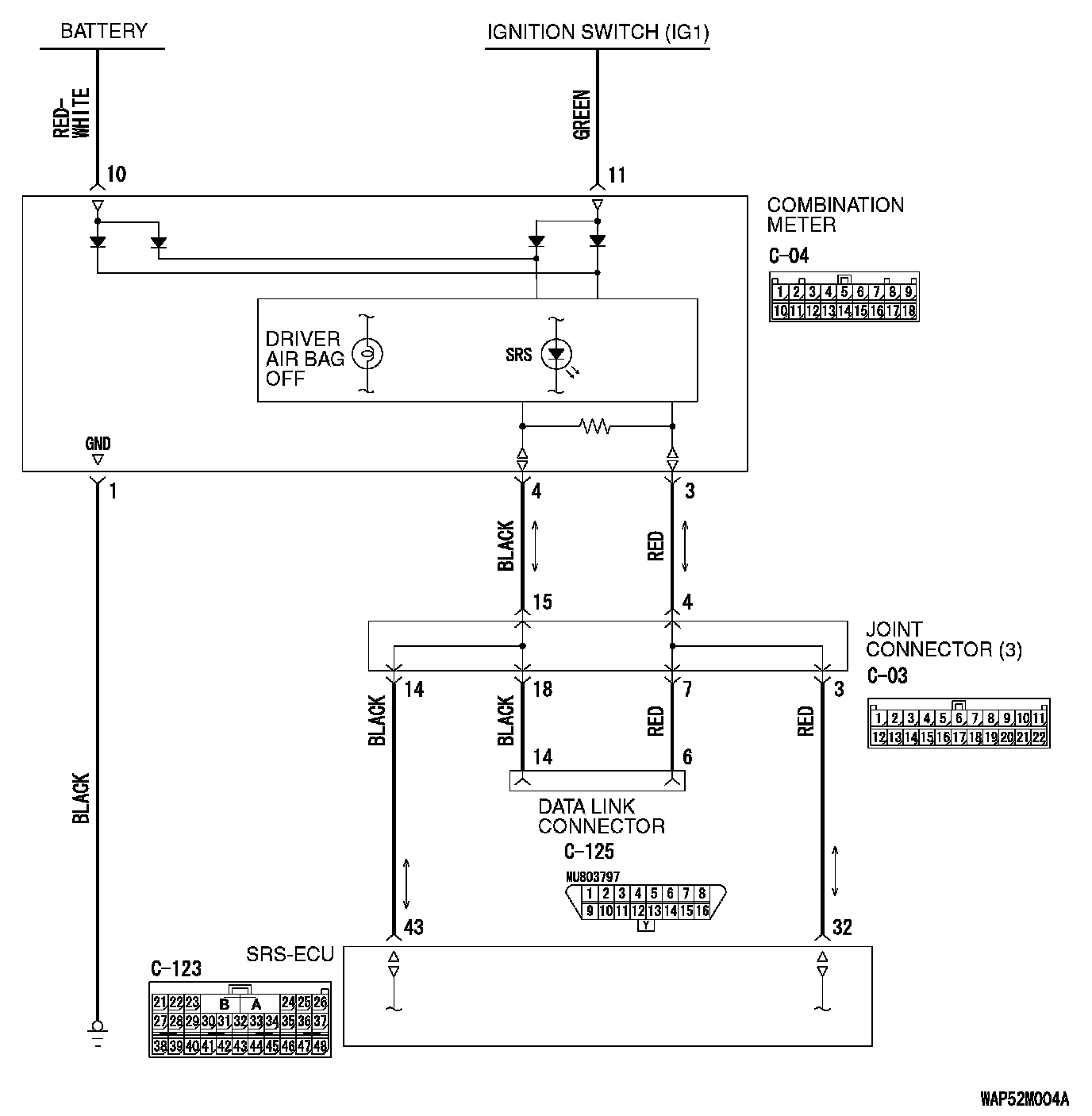

- The SRS-ECU sends the SRS warning light signal to the combination meter via the CAN communication.
- This may be caused by faults in the CAN bus line, the combination meter or the SRS-ECU.

TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CASE:)
- Damaged wiring harness or connector
- Combination meter defect
- Malfunction of the SRS-ECU

DIAGNOSIS

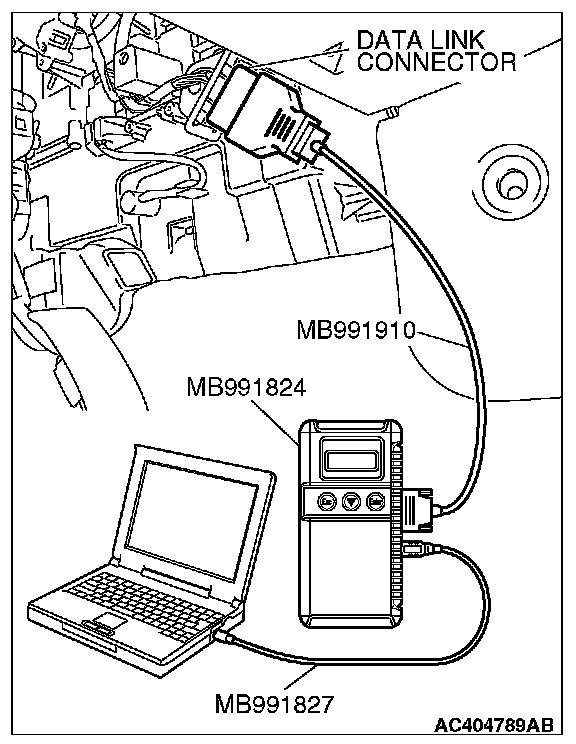

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.







CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Use scan tool MB991958 to diagnose the CAN bus lines.

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : Go to Step 2.

NO : Repair the CAN bus lines and then go to Step 2.

STEP 2. Using scan tool MB991958, read the combination meter diagnostic trouble code.Use scan tool MB991958 to check whether combination meter DTC U1112 has been set.







1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Check whether combination meter DTC U1112 has been set.

Q: Is combination meter DTC U1112 set?

YES : Replace the SRS-ECU.

NO : Replace the combination meter.
