DATA LIST REFERENCE TABLE
The following items can be read by the scan tool from the SRS-ECU input data.

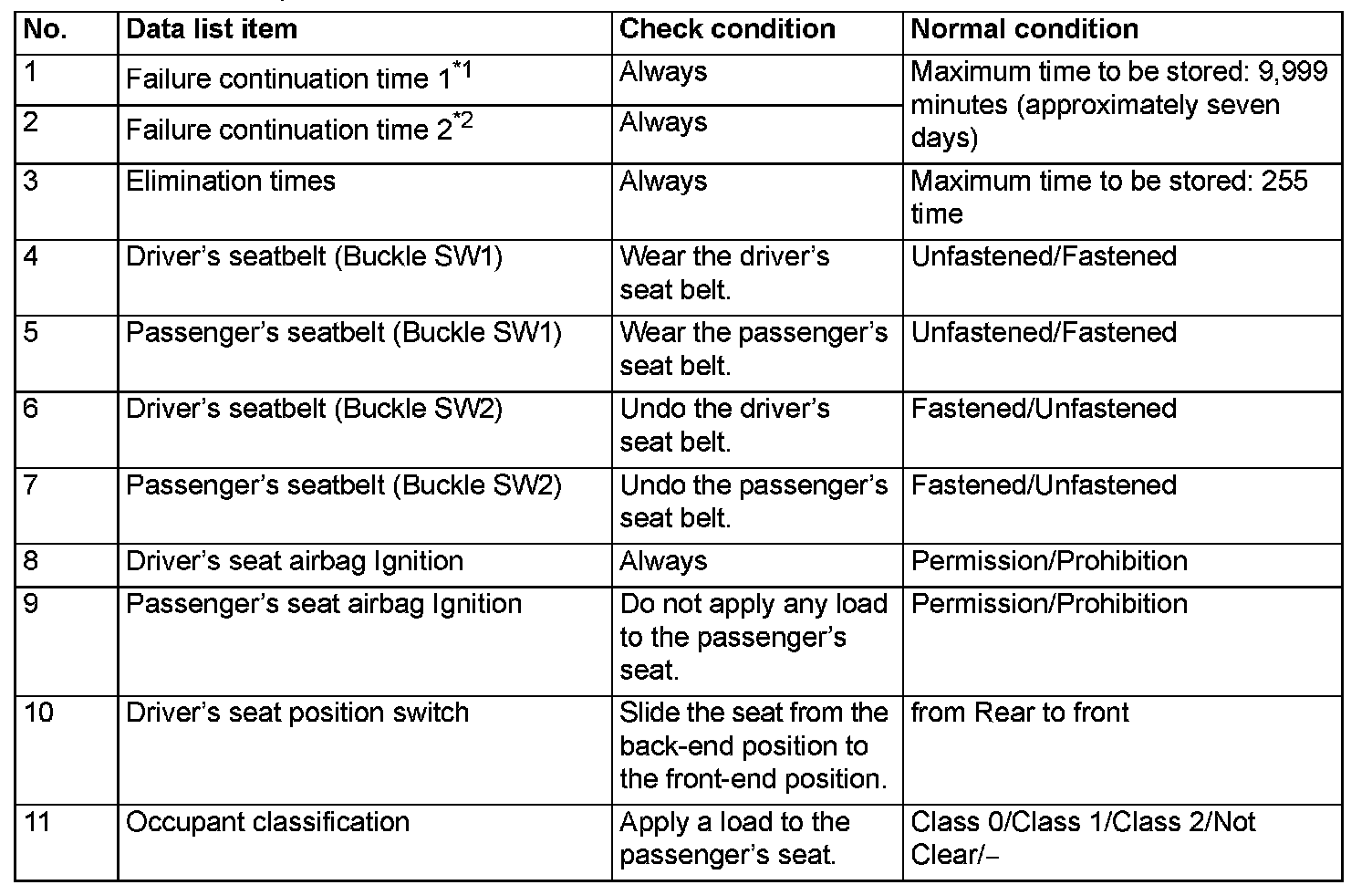

Data List Reference Table (Part 1):
Data List Reference Table (Part 2):
