Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Specifications
>>
Electrical Specifications
Electrical Specifications
SERVICE SPECIFICATION(S)

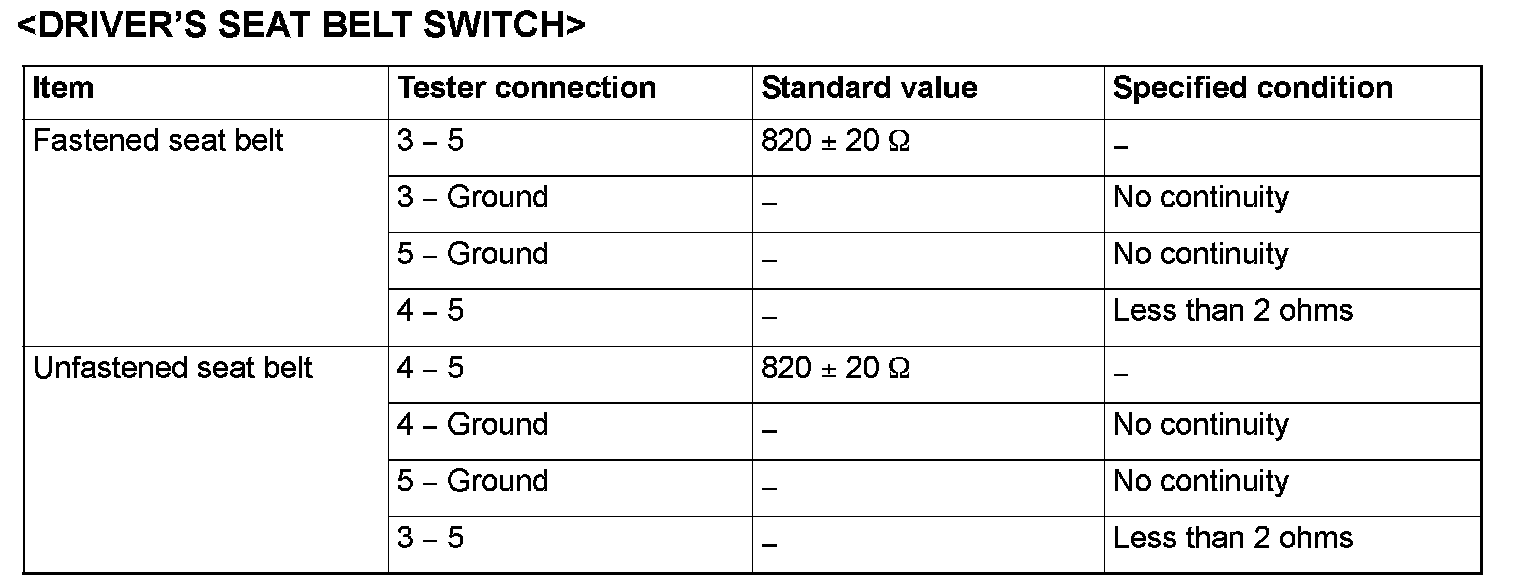

Driver's Seat Belt Switch:

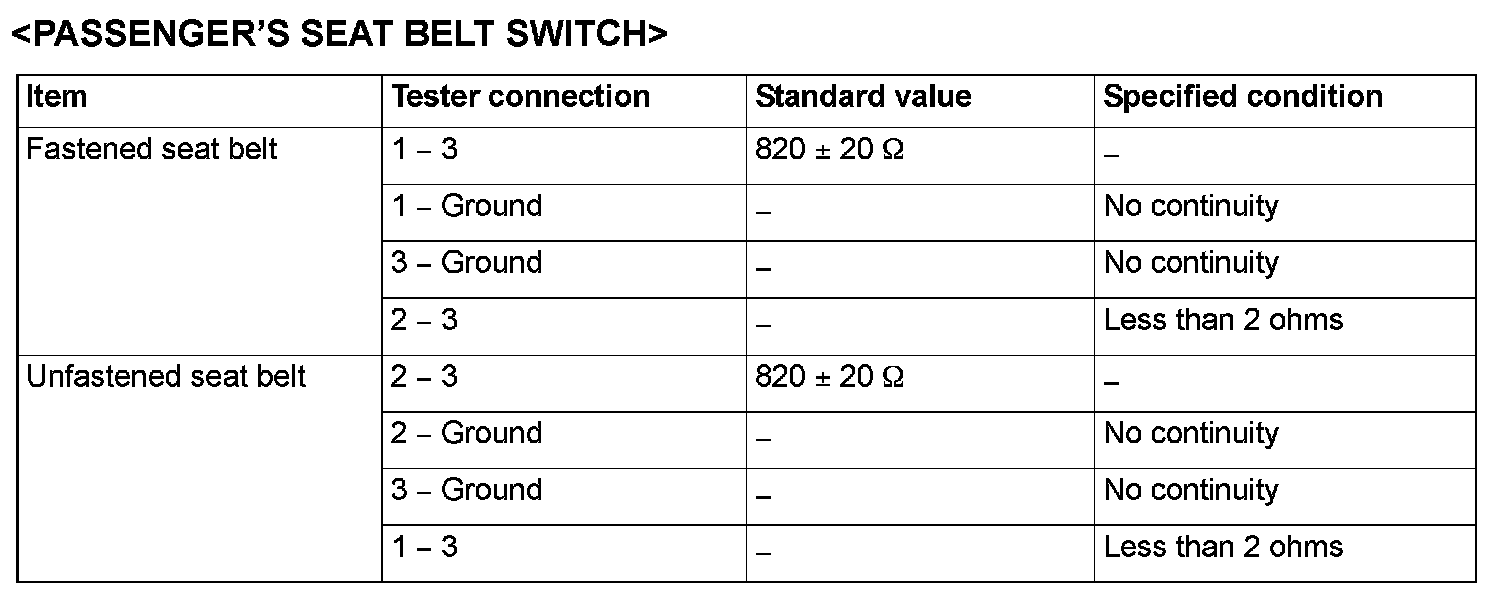

Passenger's Seat Belt Switch:
