Road Test

ROAD TEST
Check using the following procedures.

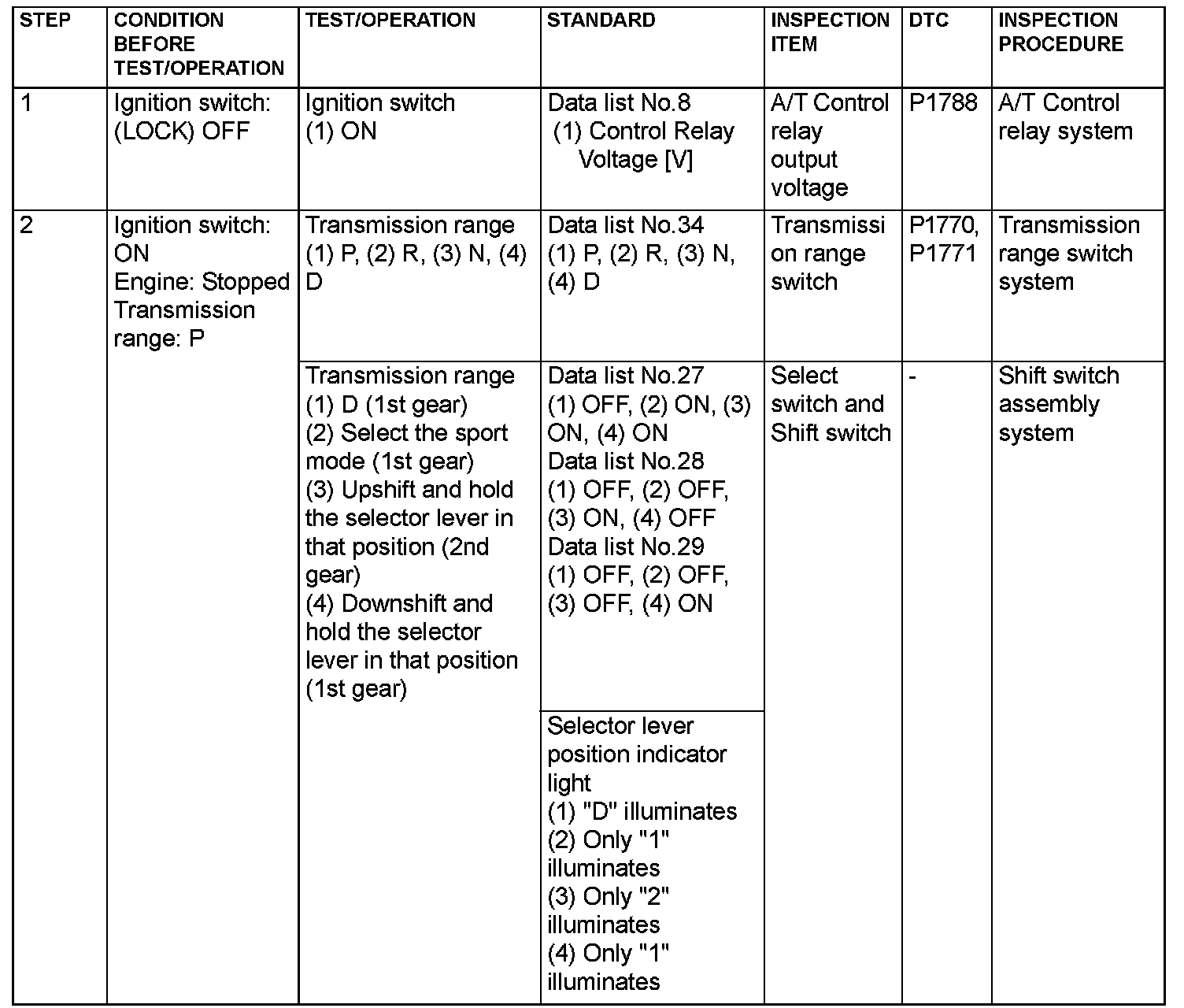

Step 1-2:

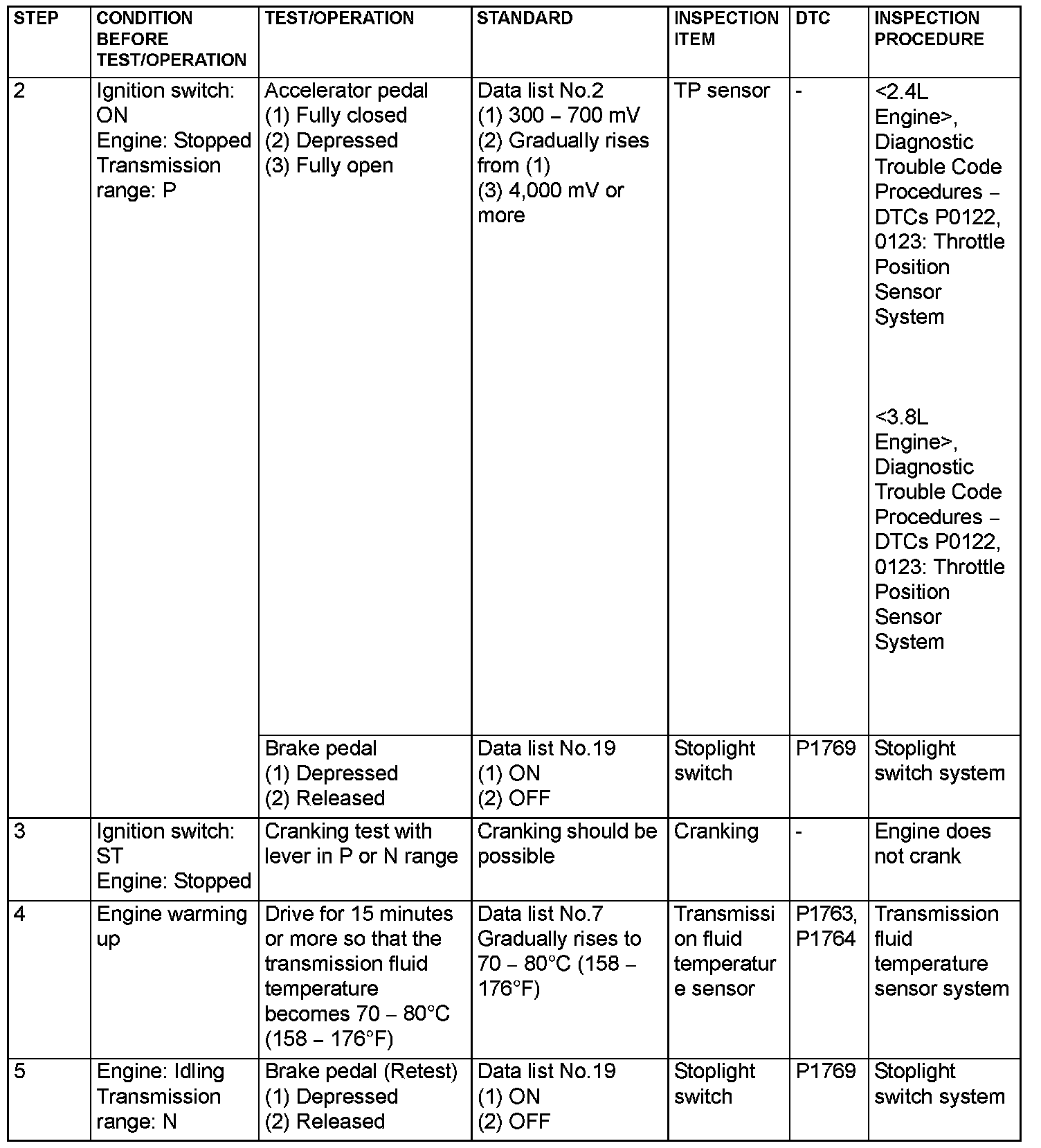

Step 2-5:

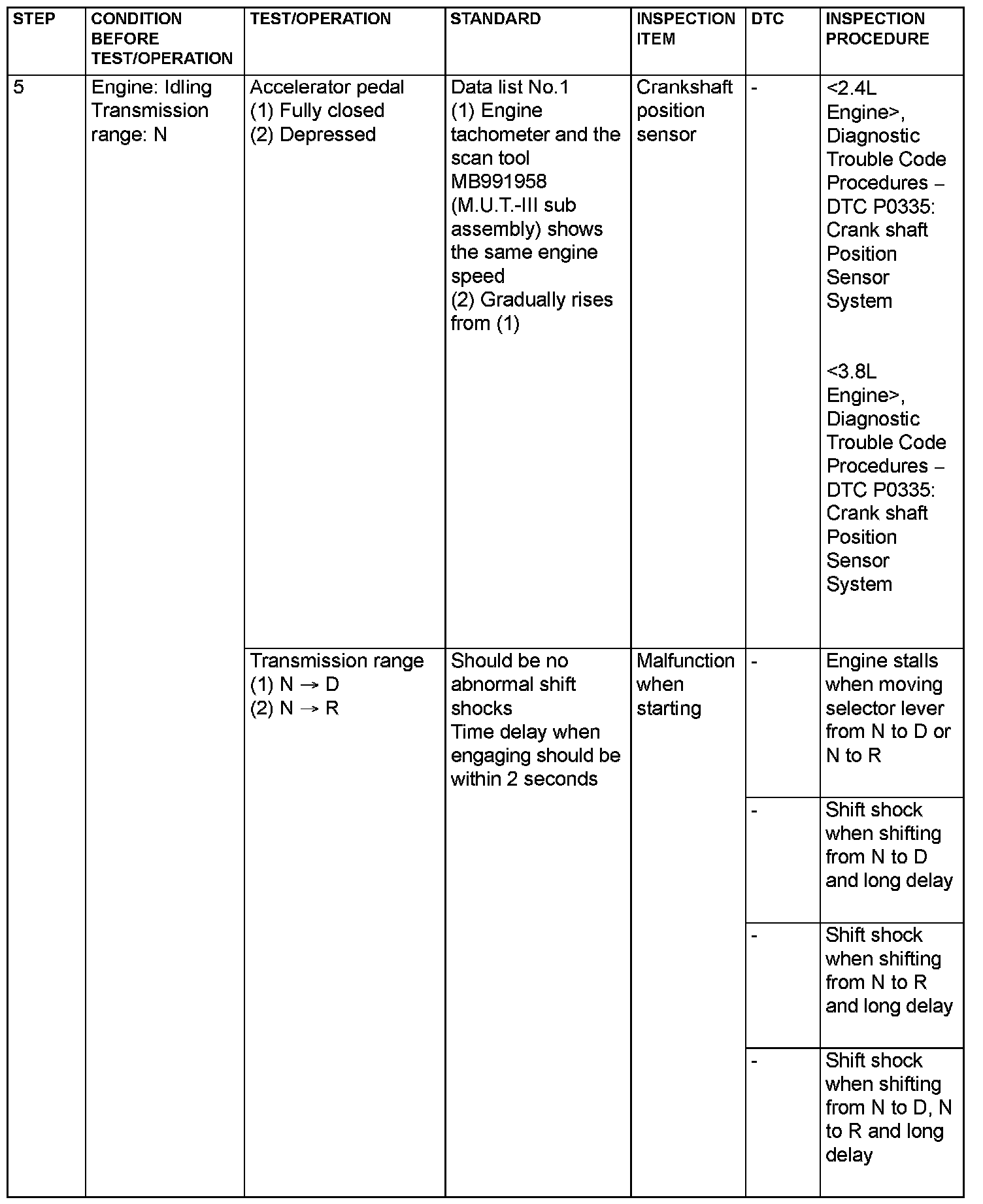

Step 5:

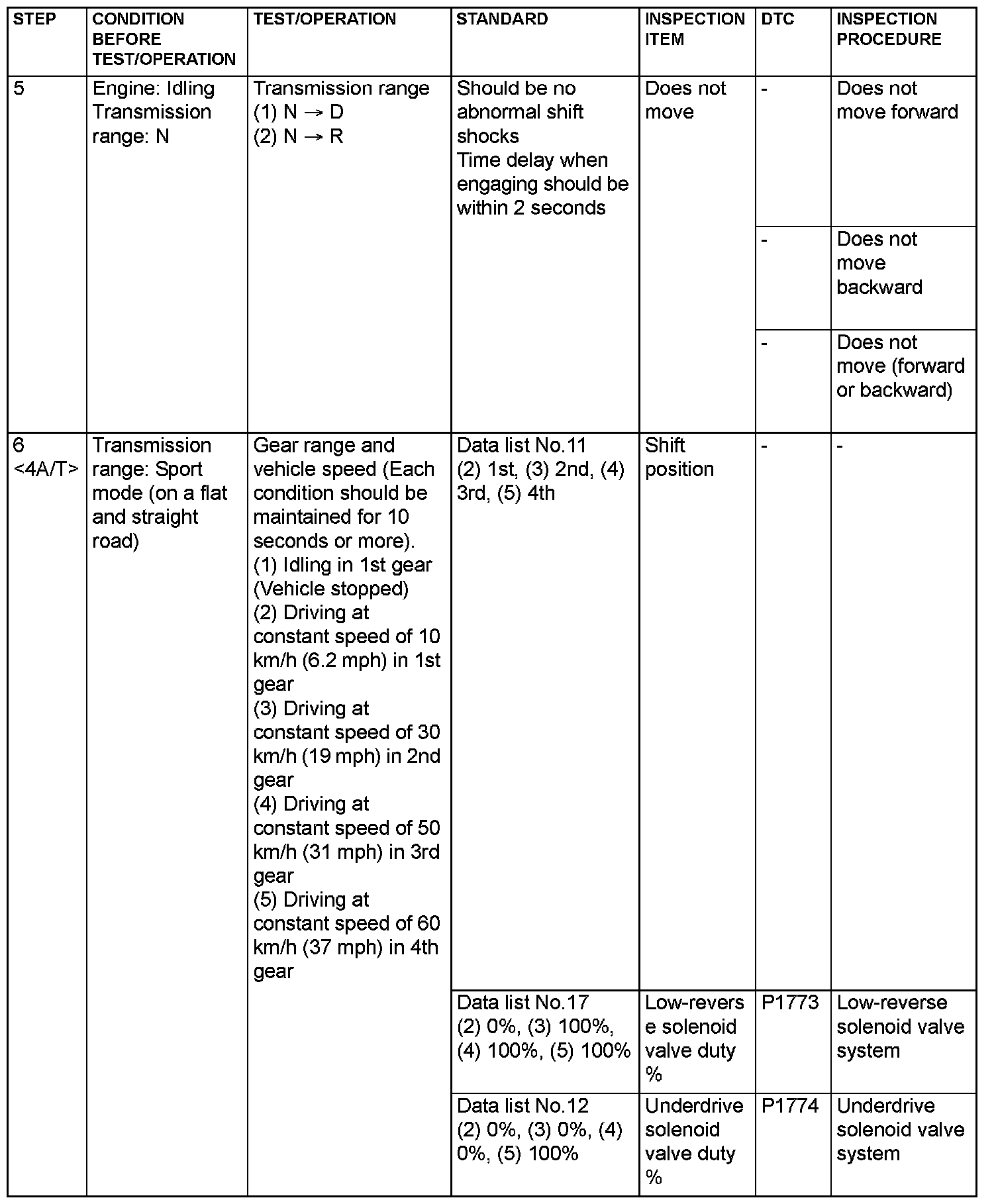

Step 5-6:

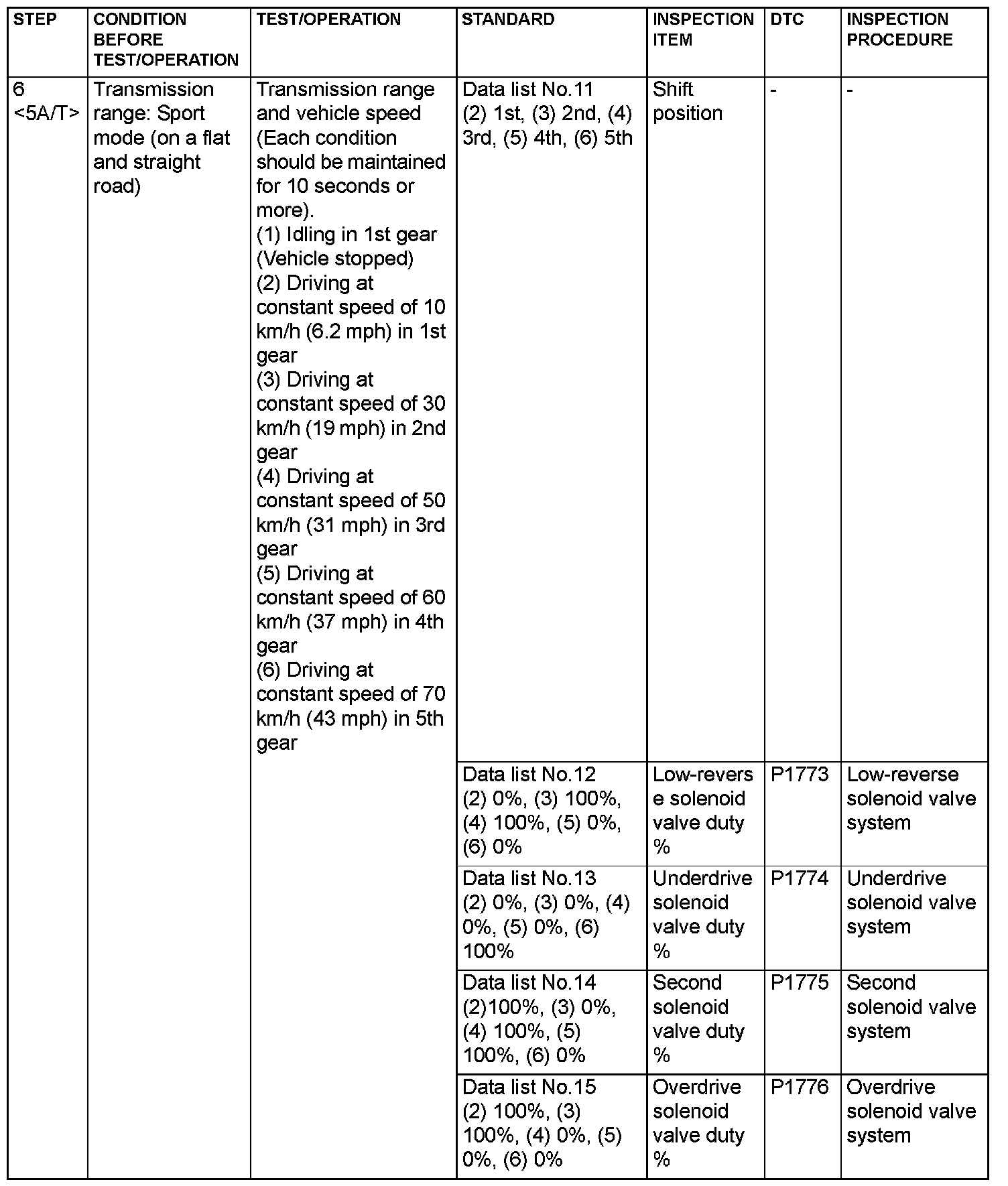

Step 6:




Step 6:

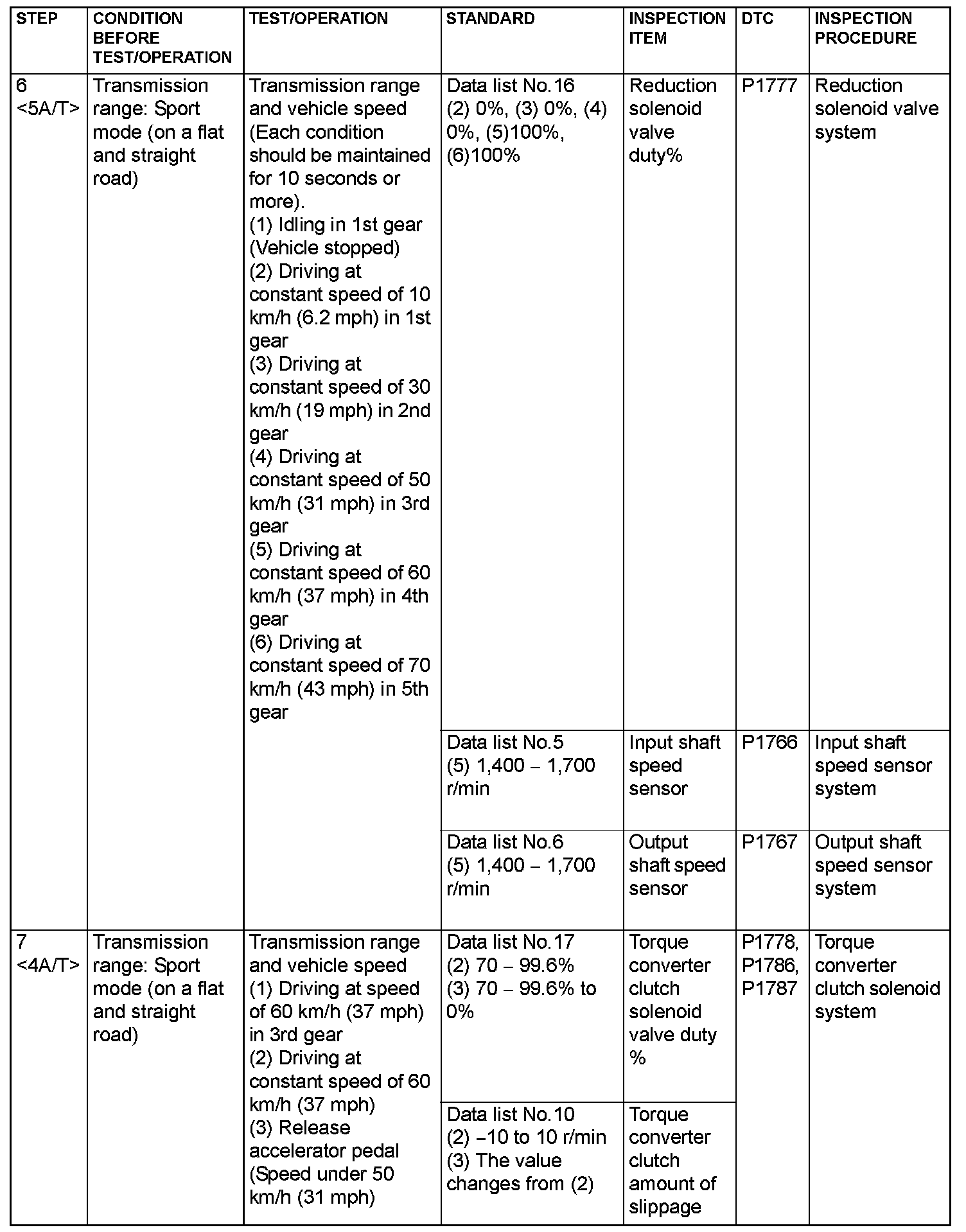

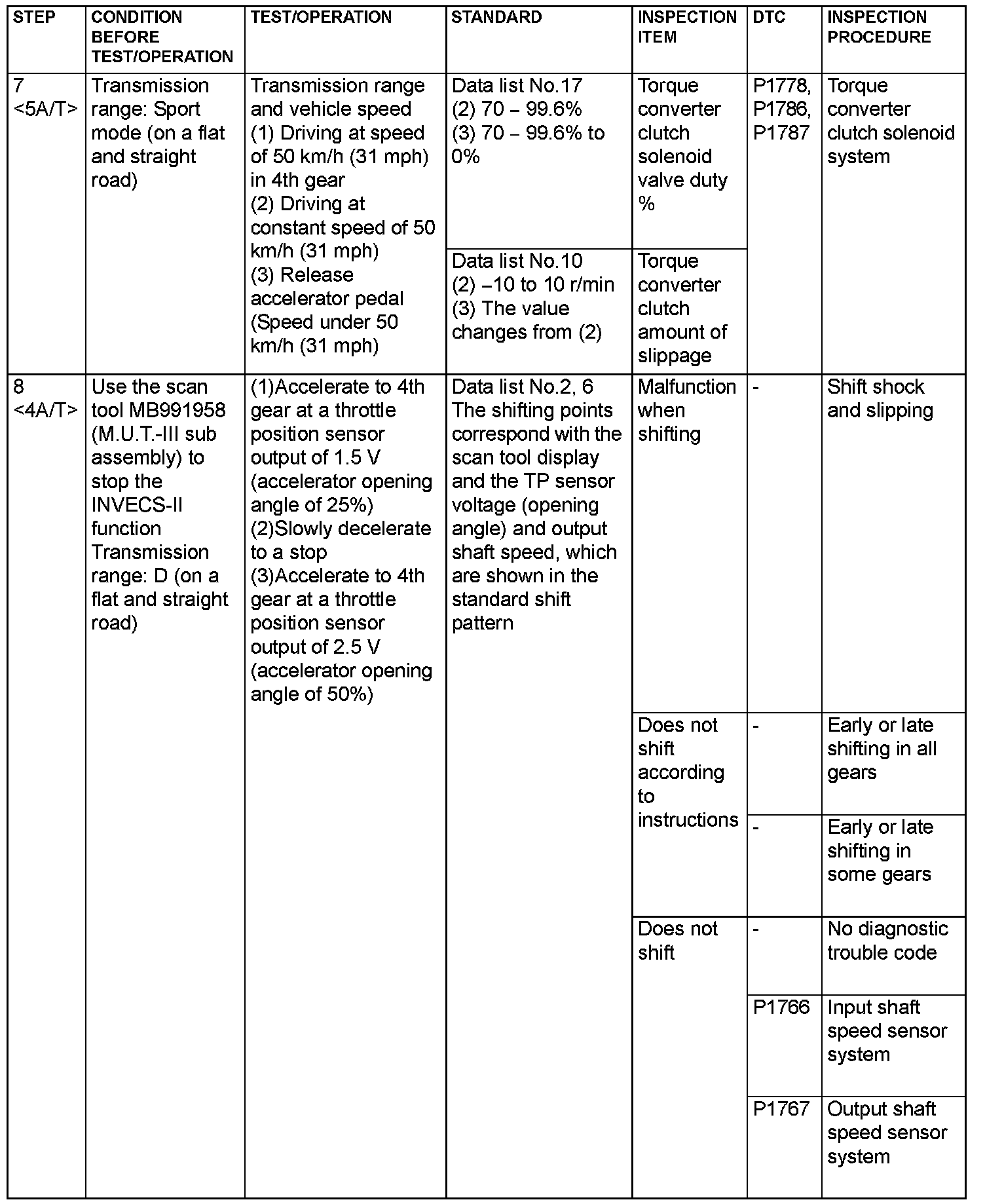

Step 6-7:

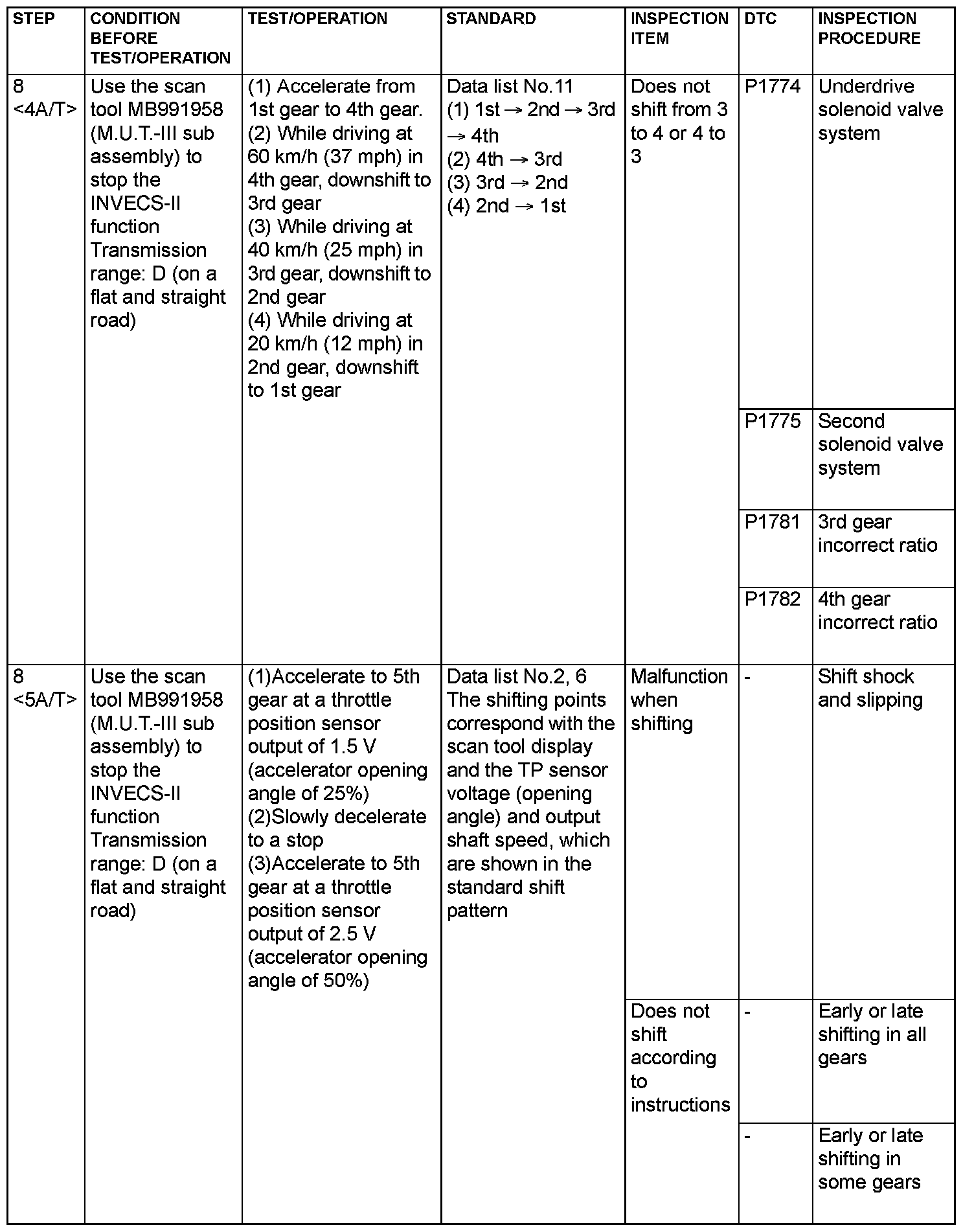

Step 7-8:

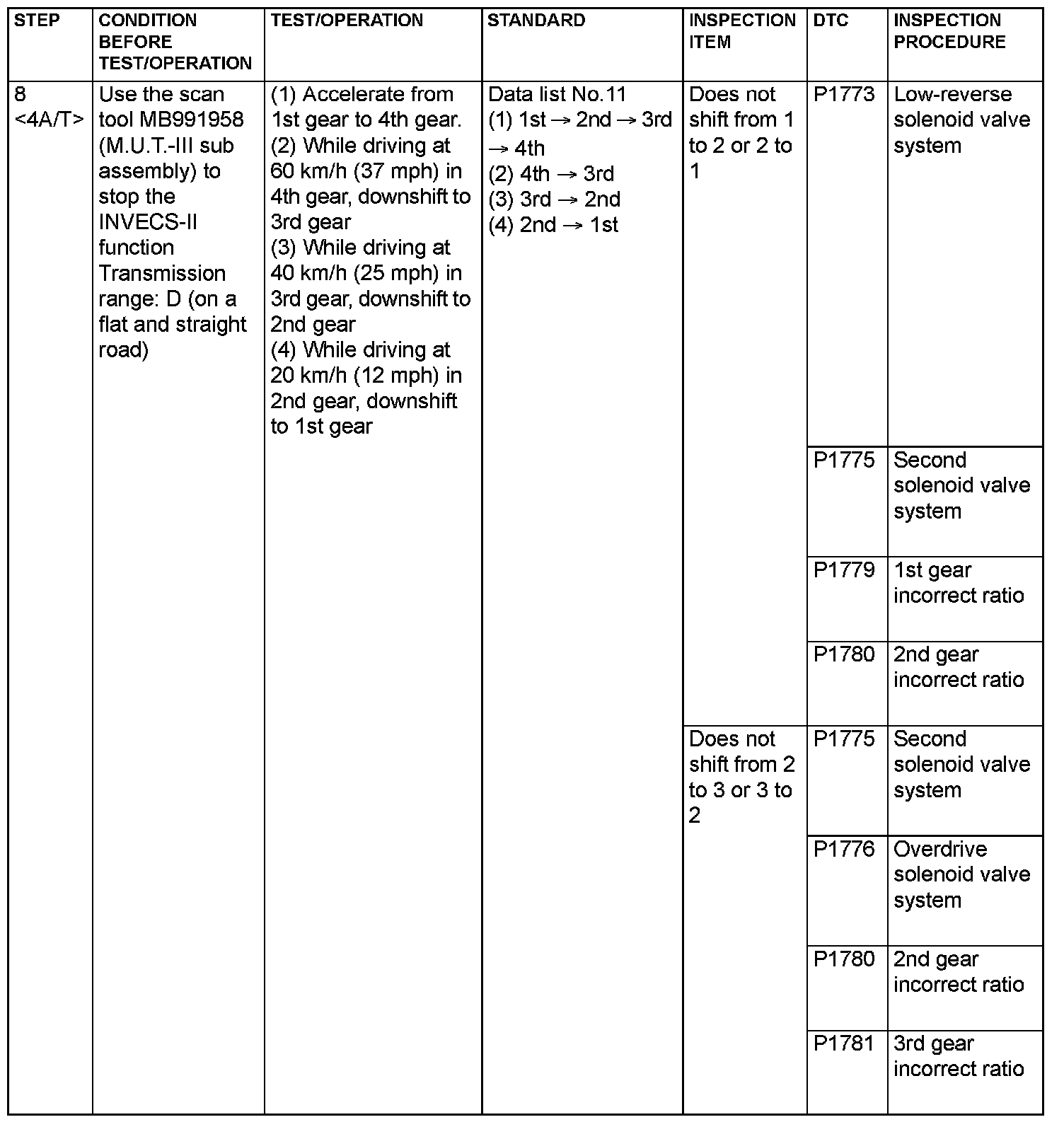

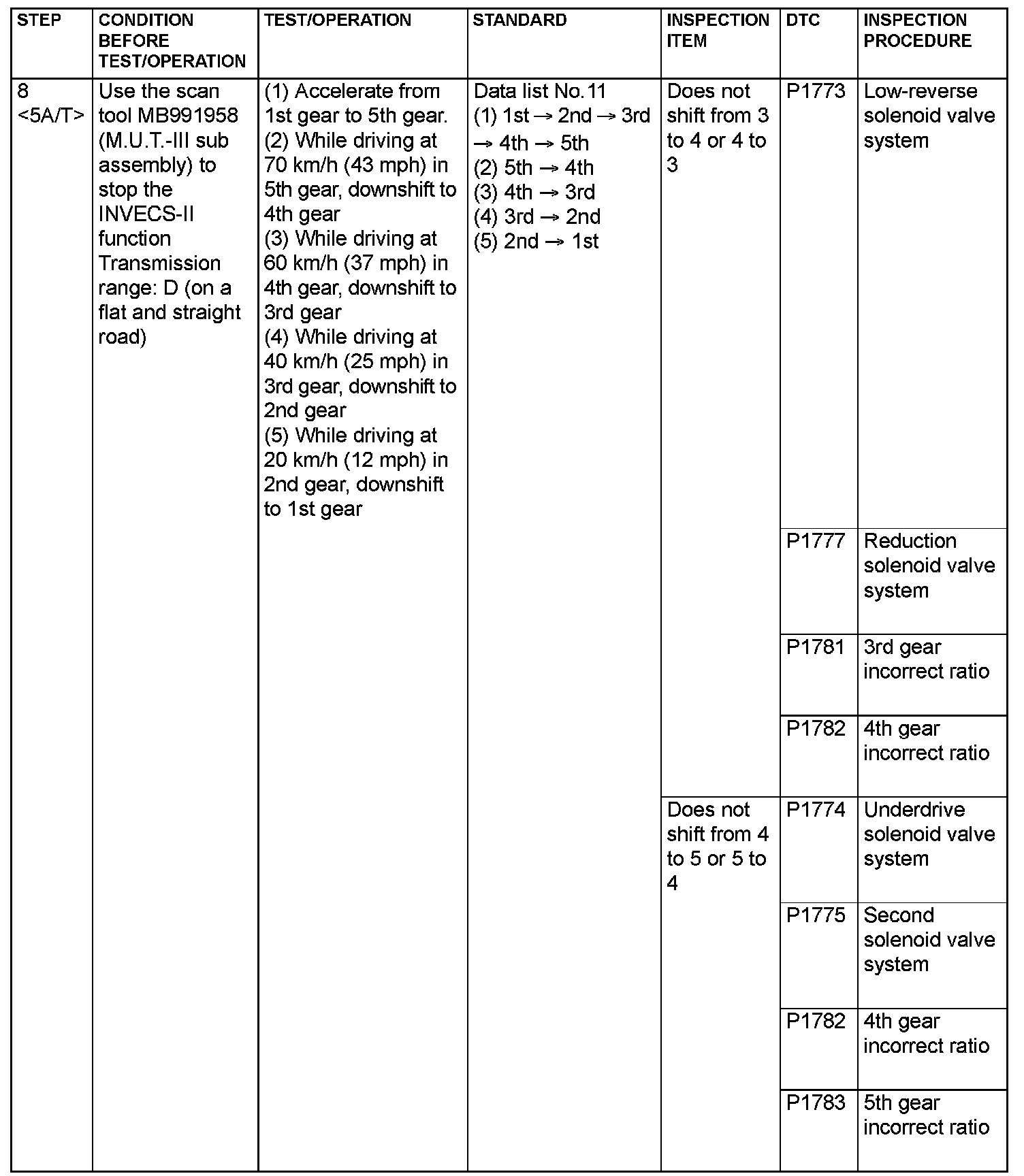

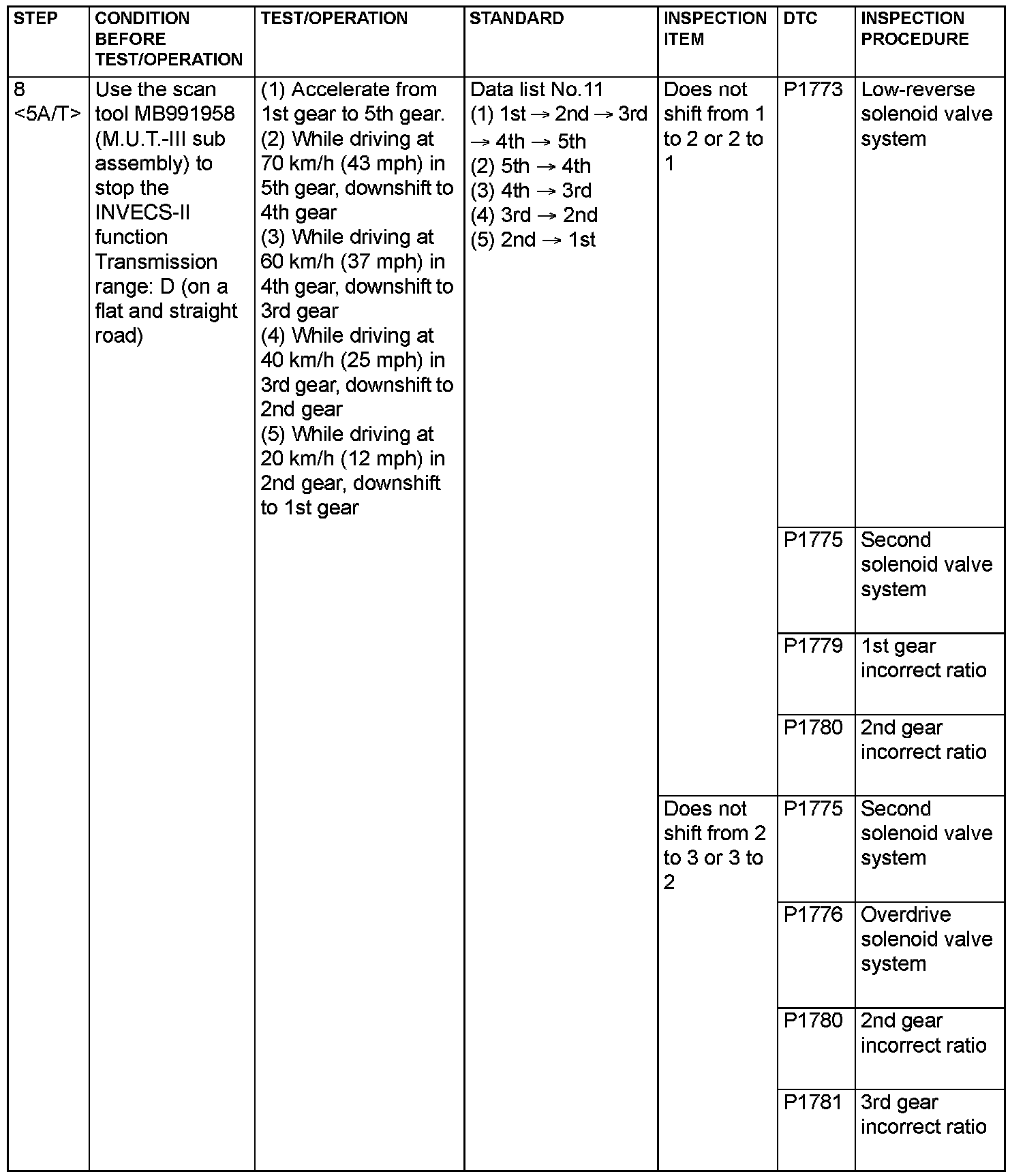

Step 8:




Step 8:




Step 8:




Step 8:




Step 8:

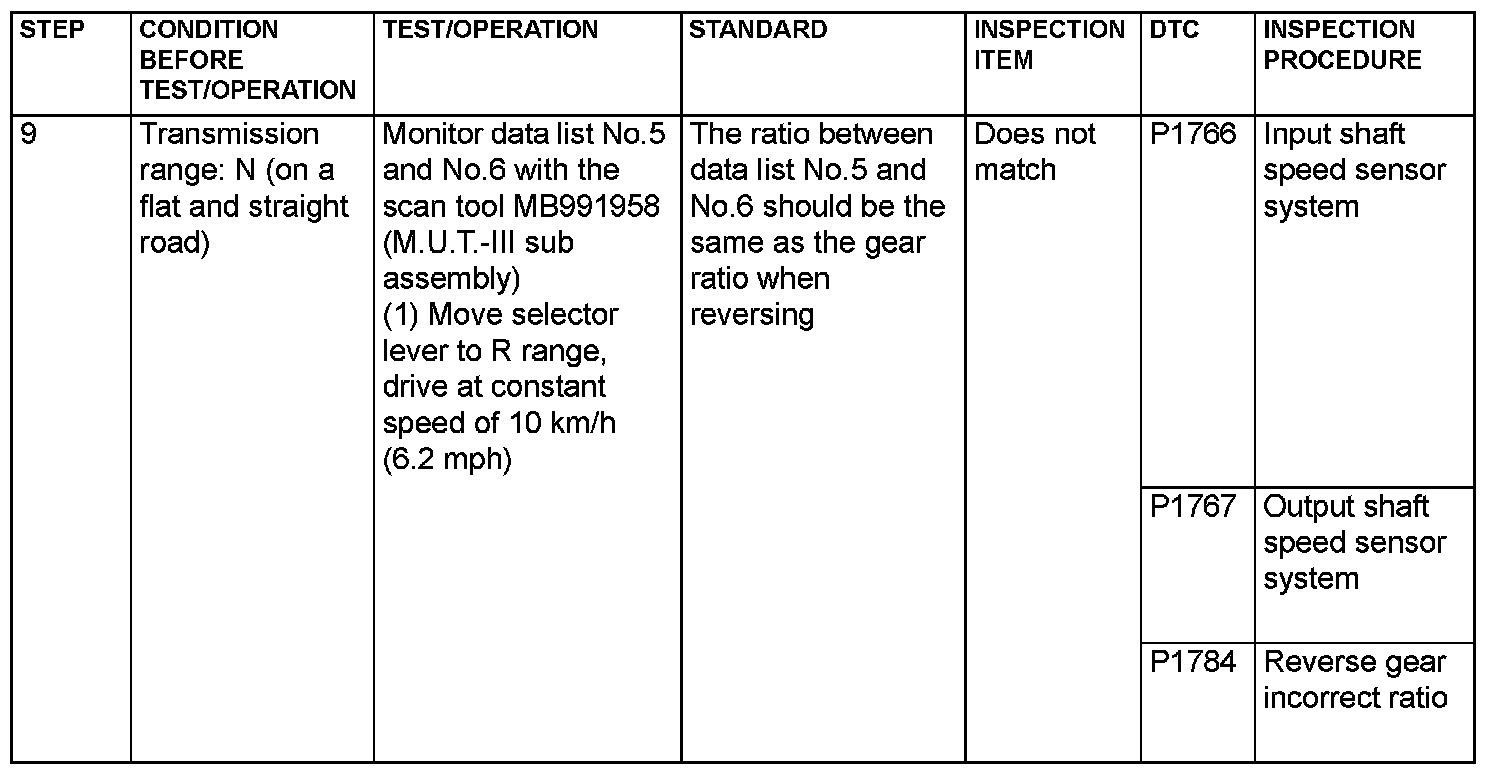

Step 9:
