Powertrain Management: Locations

ON-VEHICLE SERVICE

COMPONENT LOCATION

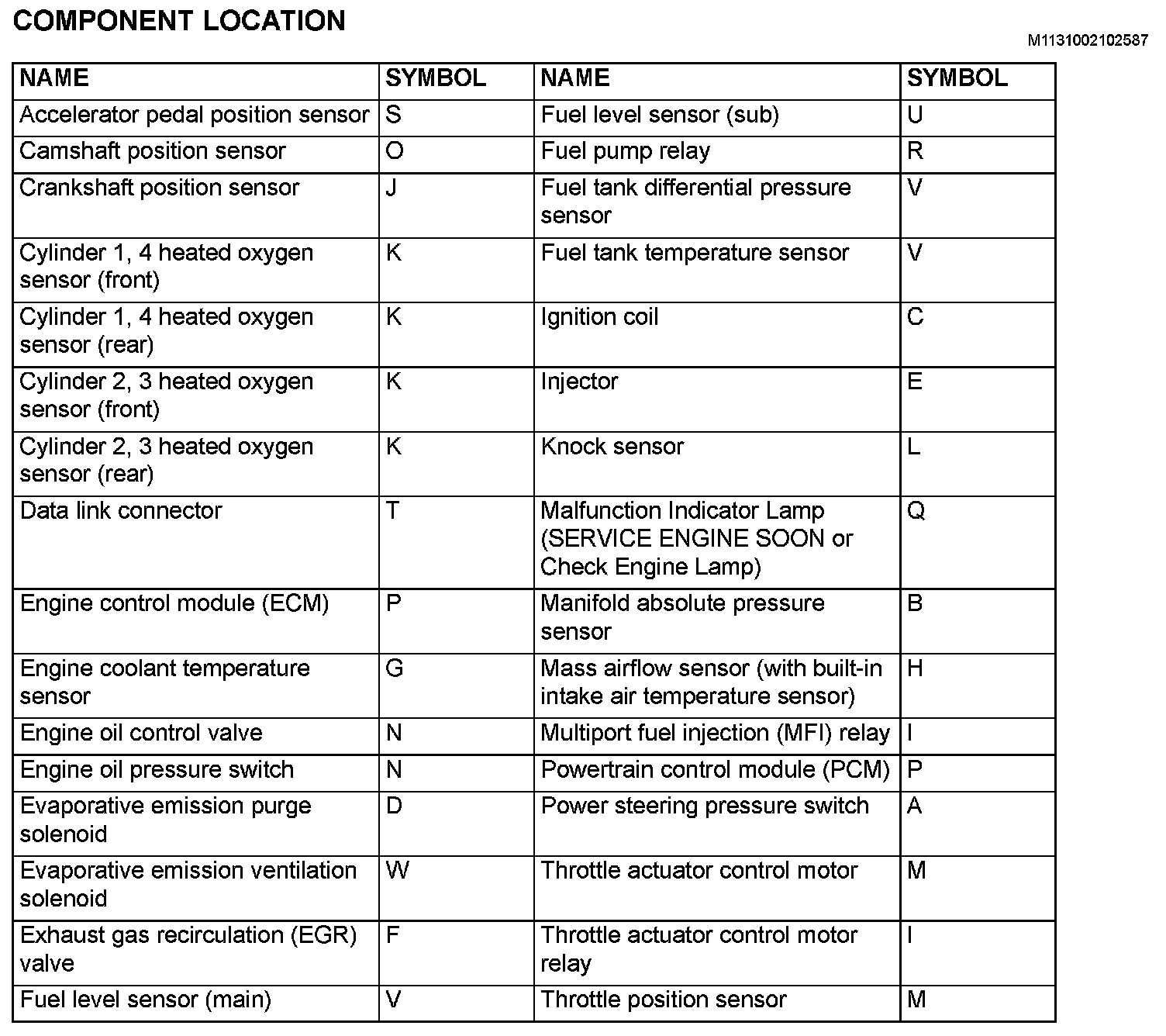

Component Location:

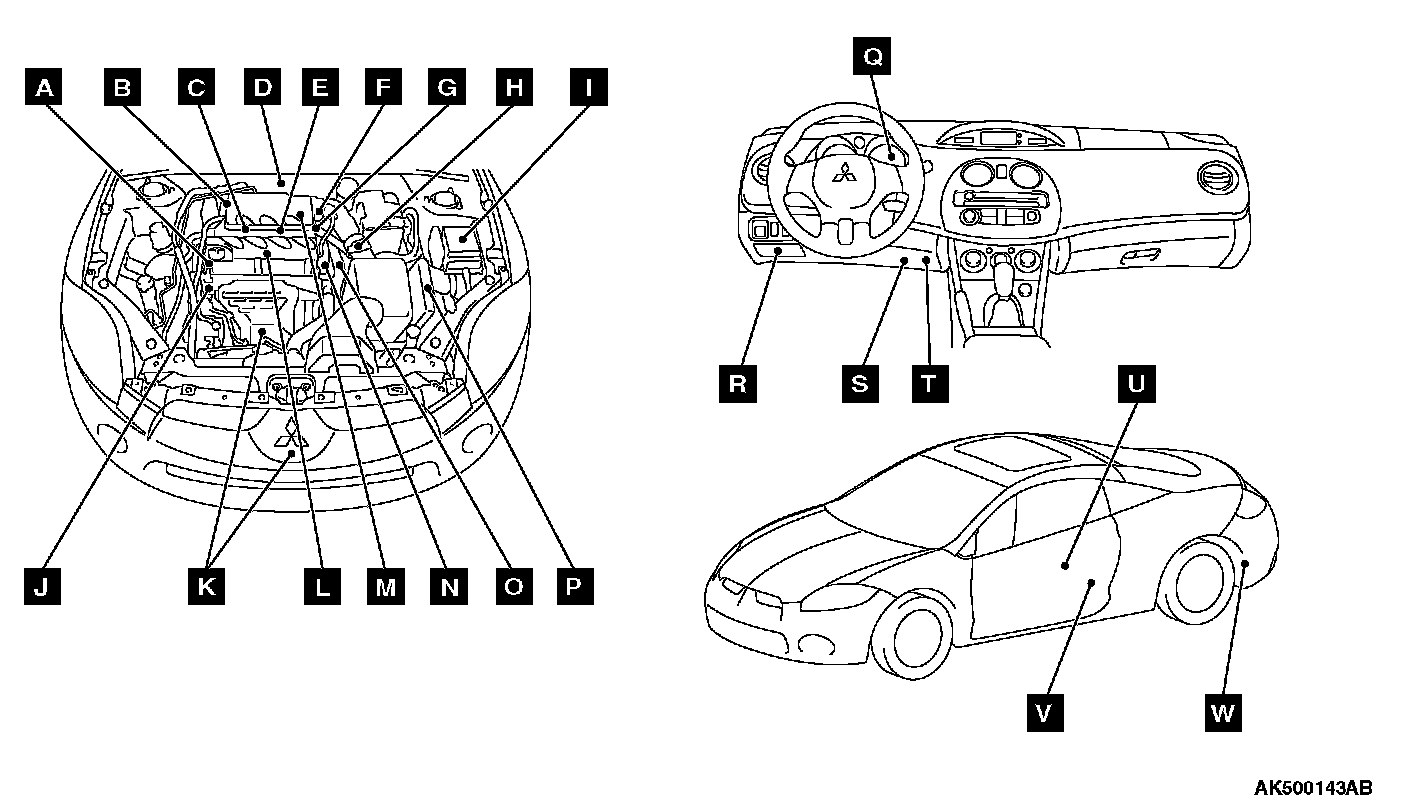

Overall View:

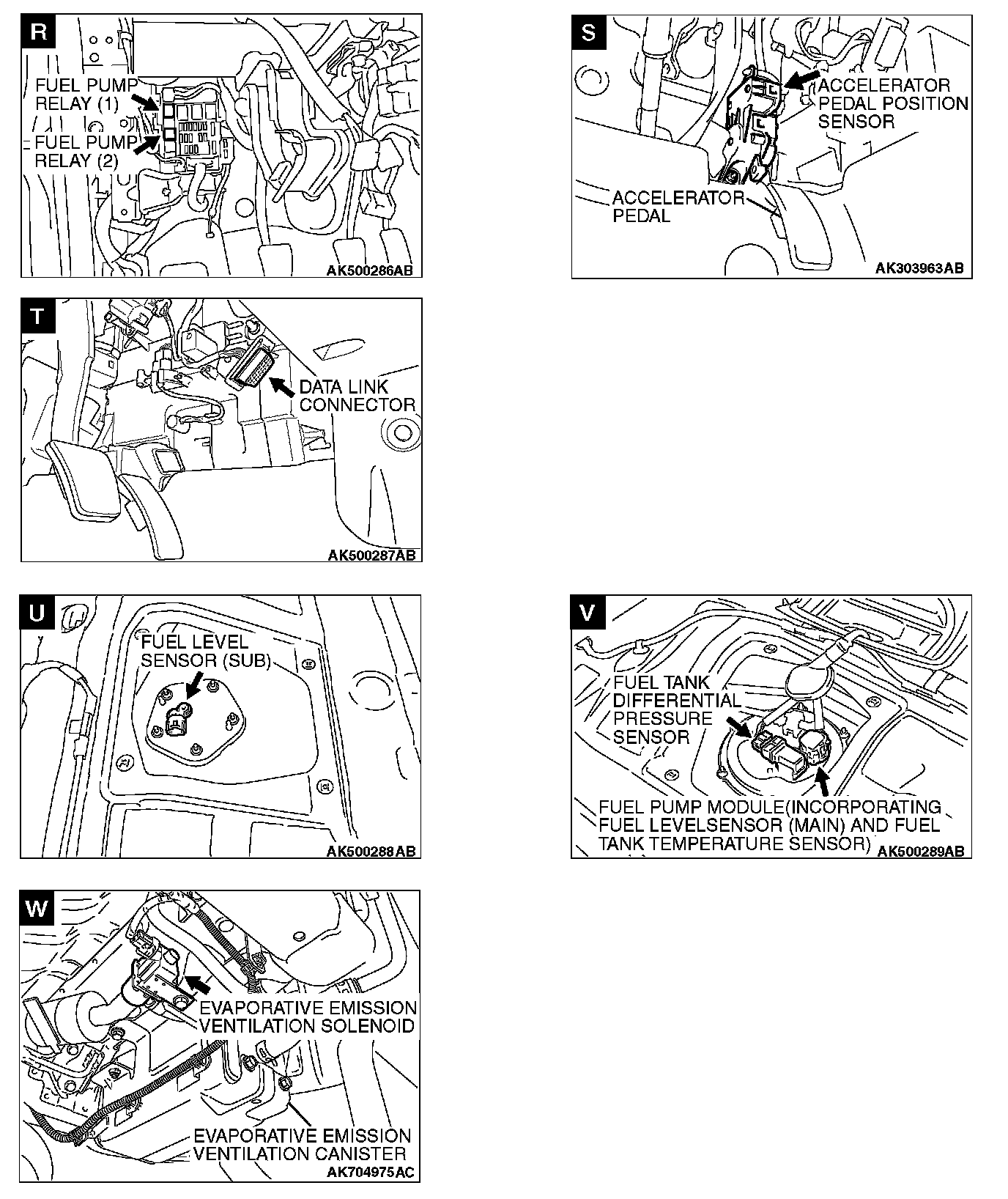

View A-D:

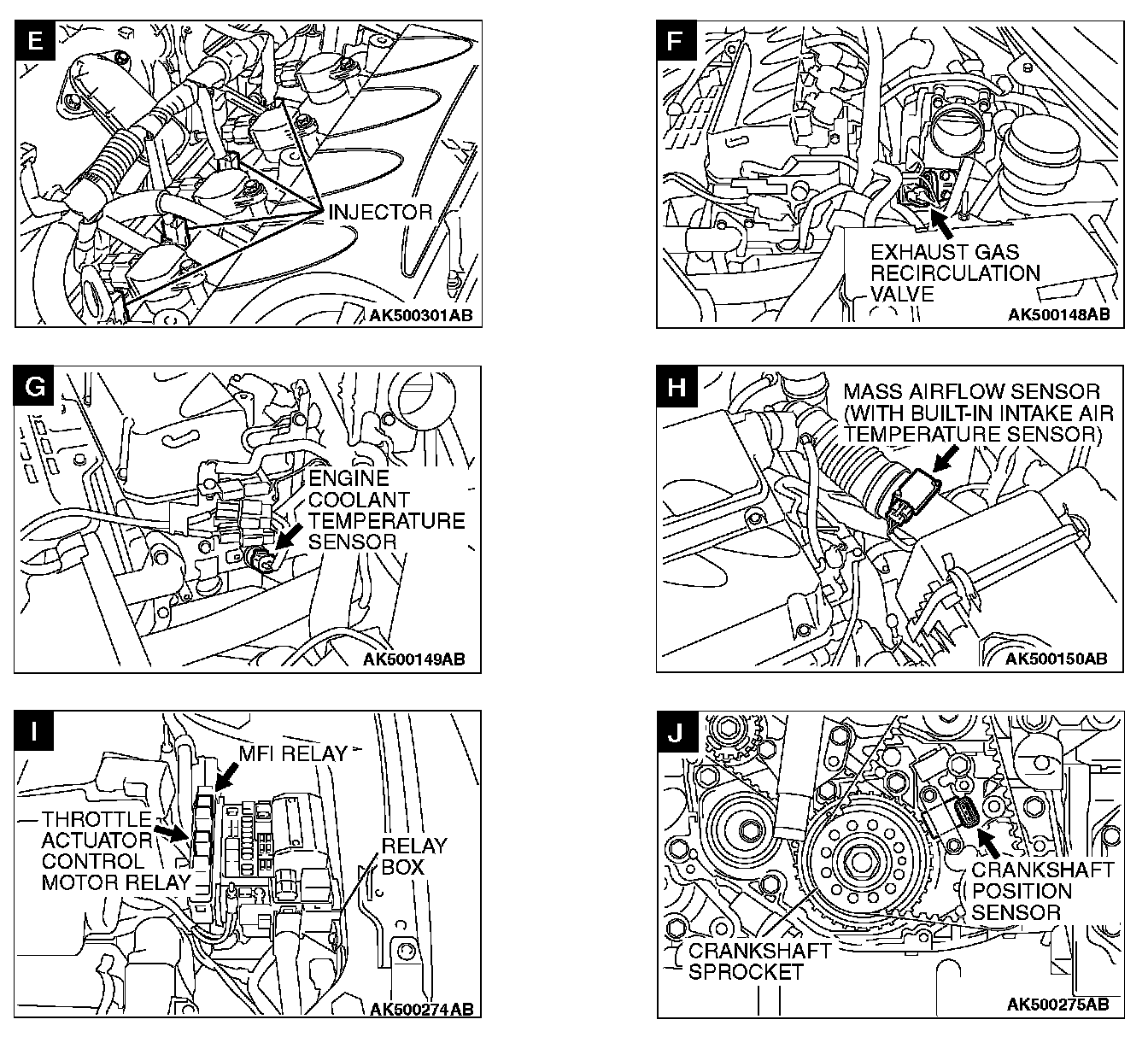

View E-J:

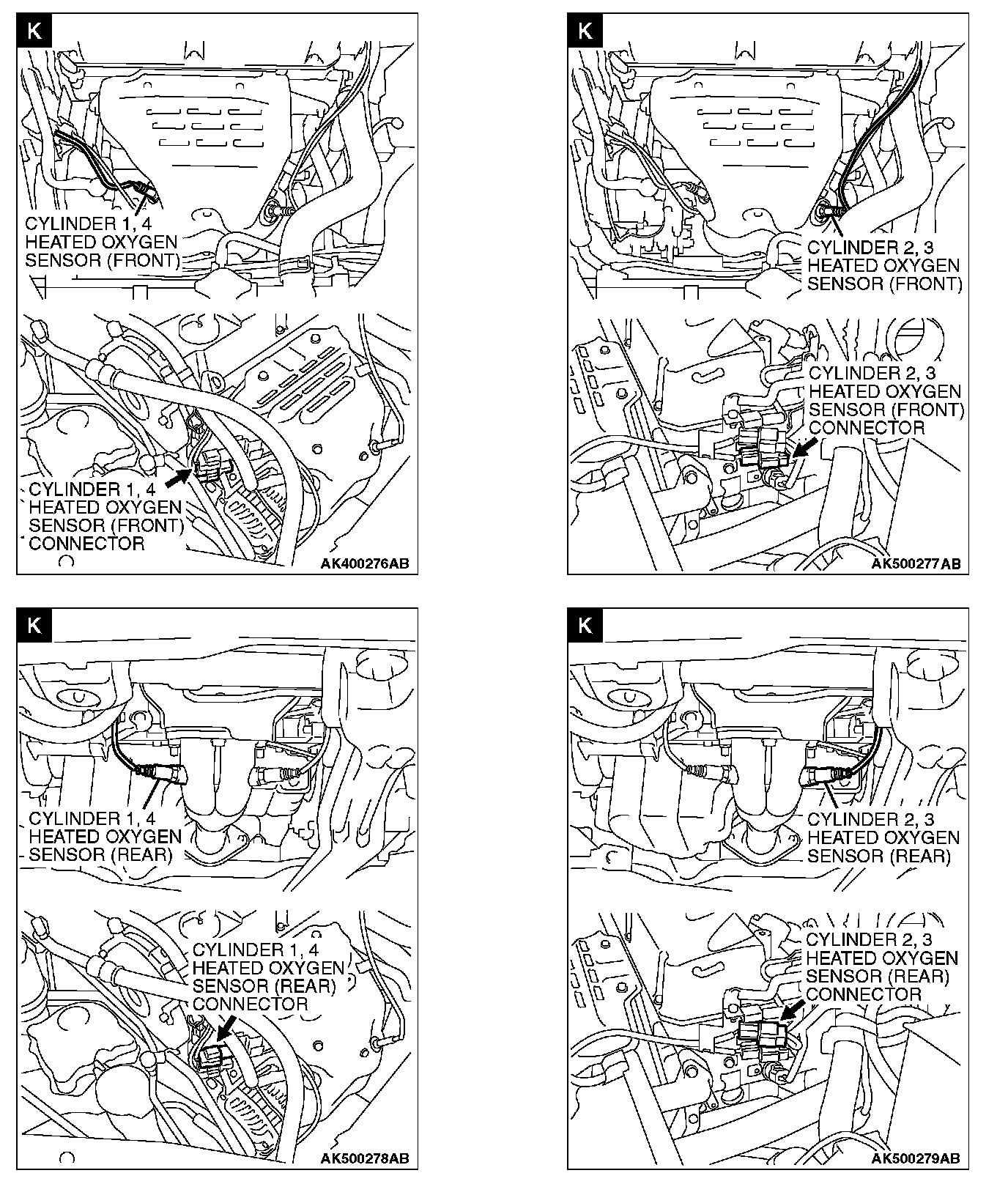

View K:

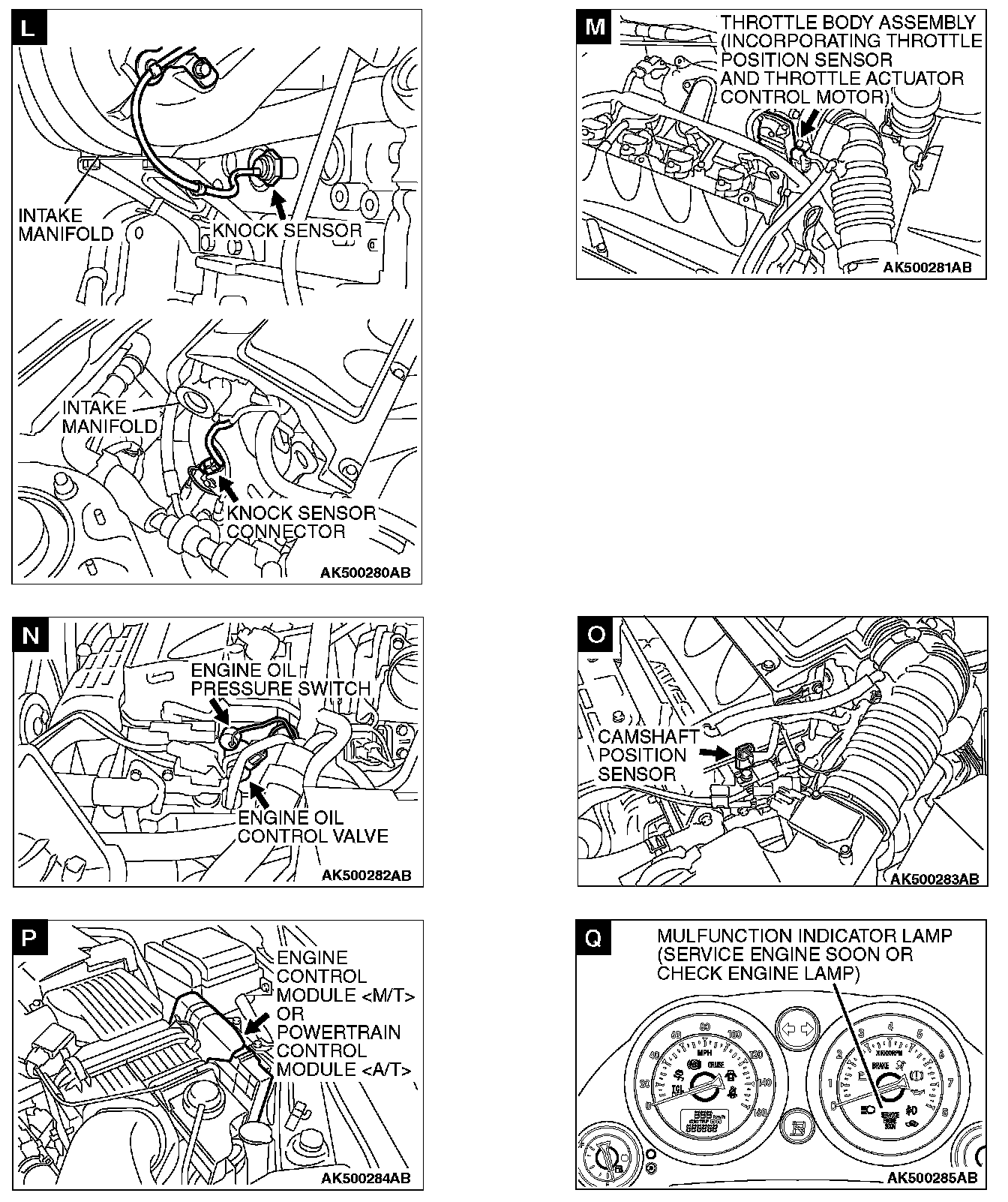

View L-Q:




View R-V:
