Fuel Tank: Description and Operation

GENERAL DESCRIPTION

- The fuel tank is located under the floor below the rear seats.
- A fuel cut-off valve is utilized to prevent fuel from leaking out in the event of a collision.
- A fuel pump module, including fuel pump, fuel filter, fuel pump pressure regulator and fuel level sensor, is used to lighten weight and improve serviceability.

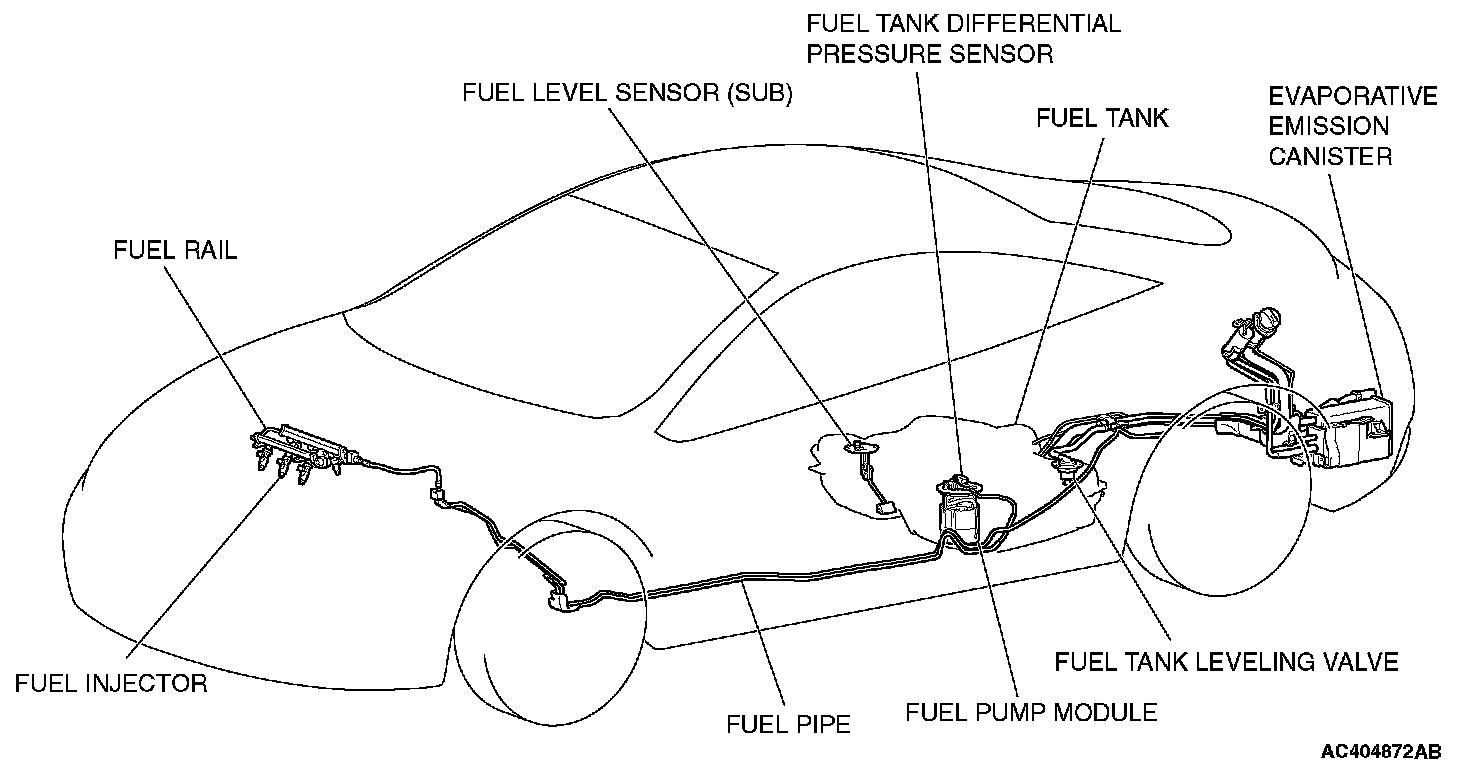

CONSTRUCTION DIAGRAM

Construction Diagram:
