Exhaust Gas Recirculation: Service and Repair

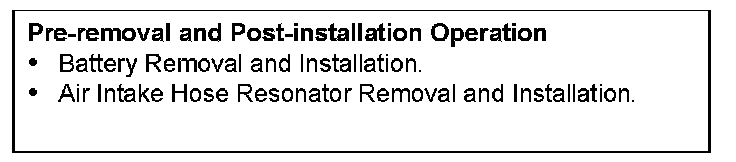

REMOVAL AND INSTALLATION [2.4L ENGINE]Pre-removal And Post-installation Operation:

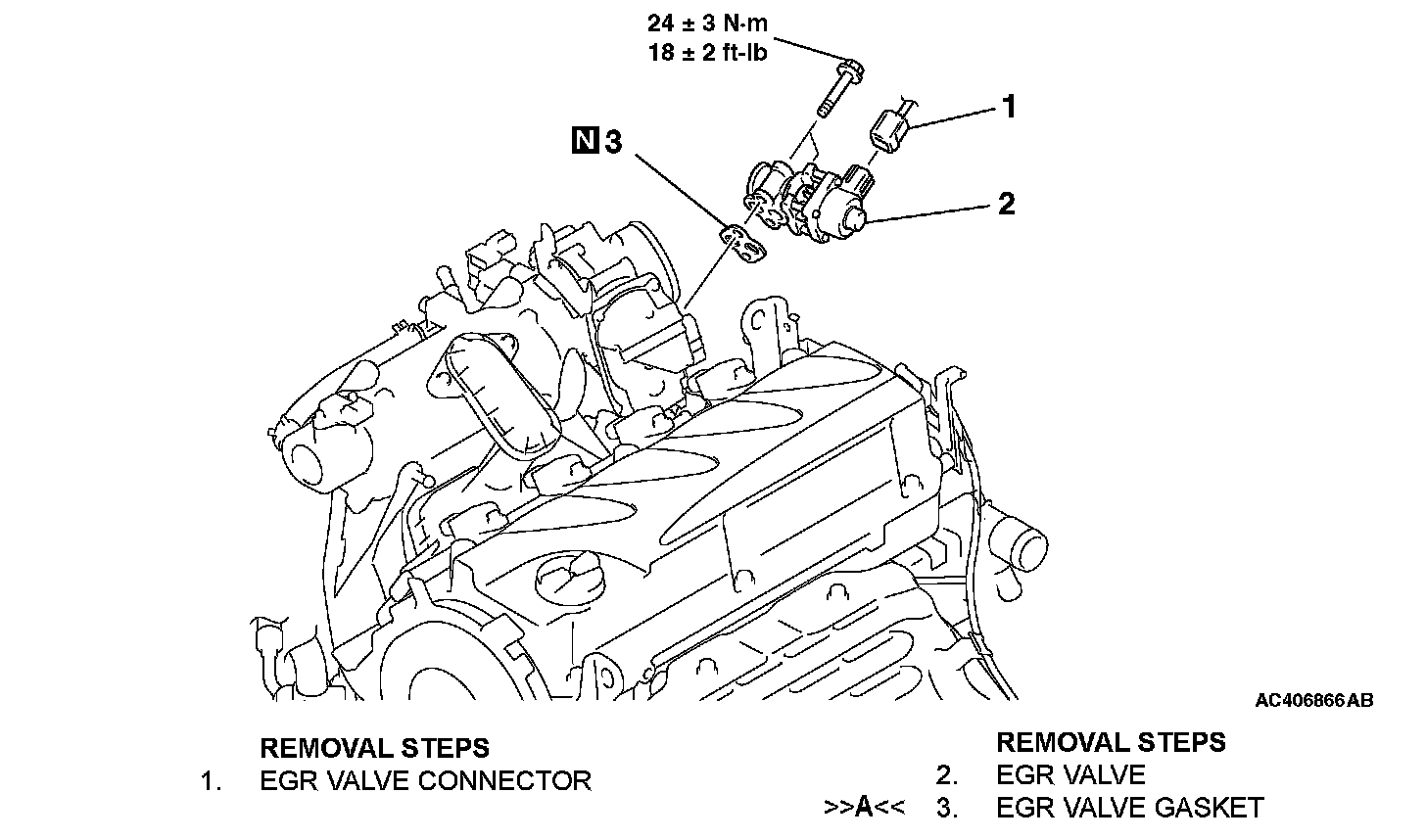

Removal Steps 1-3:
INSTALLATION SERVICE POINT
]]A[[ EGR VALVE GASKET INSTALLATION

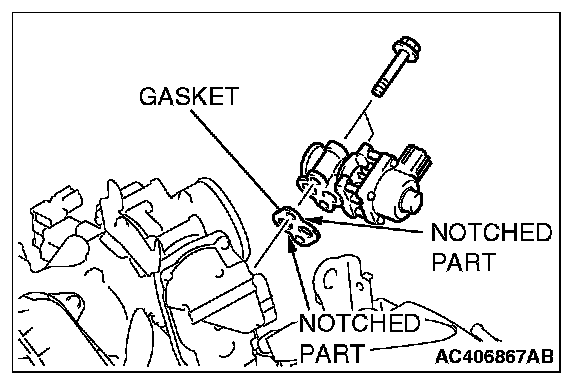

Install the EGR valve gasket as shown in the illustration.
REMOVAL AND INSTALLATION [3.8L ENGINE]
Pre-removal And Post-installation Operation:

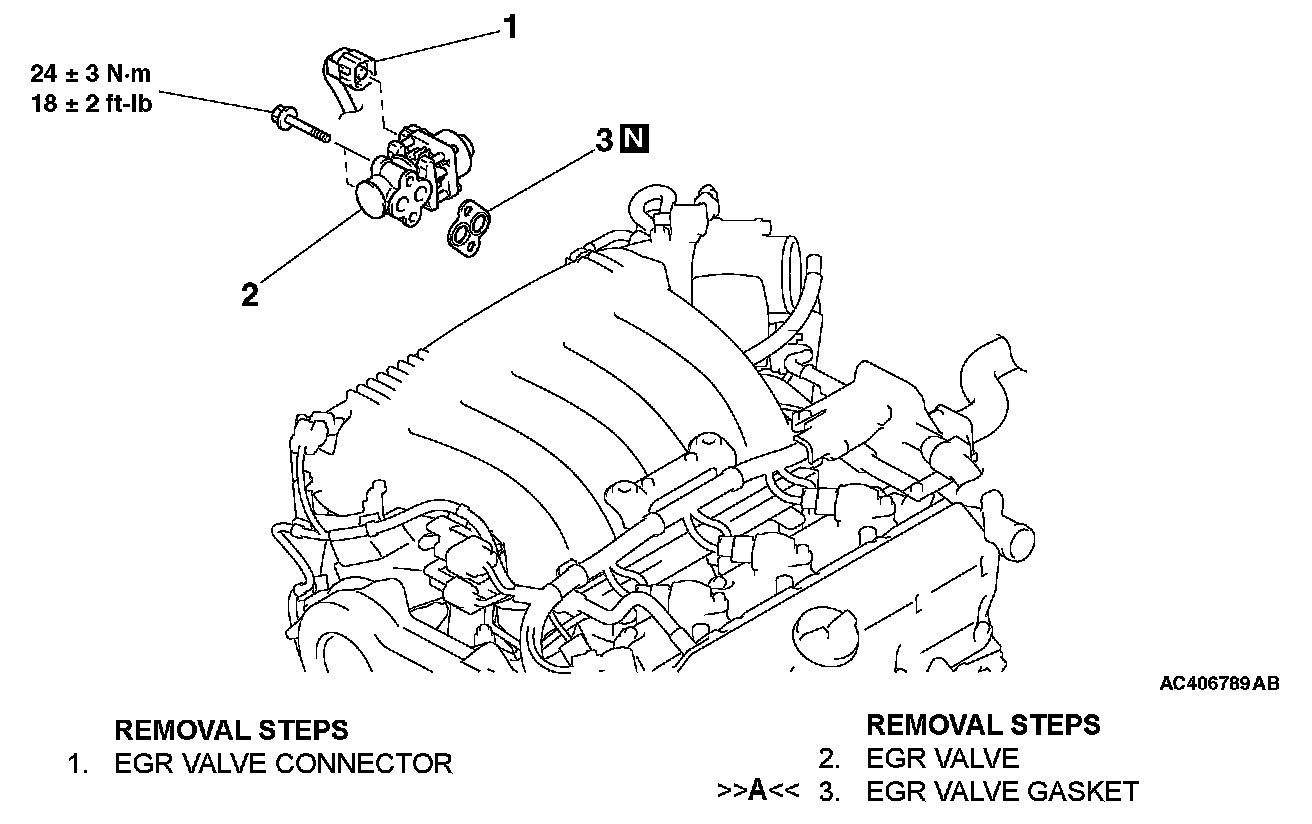

Removal Steps 1-3:
INSTALLATION SERVICE POINT
]]A[[ EGR VALVE GASKET INSTALLATION

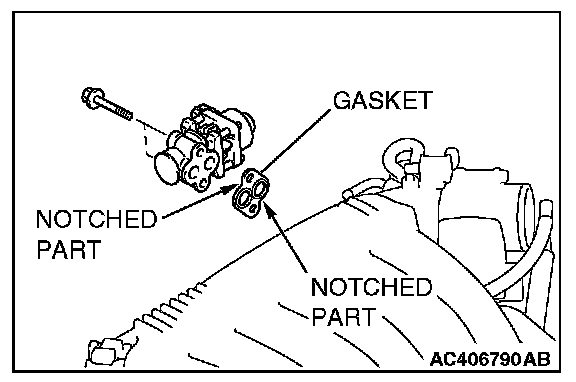

Install the EGR valve gasket as shown in the illustration.
