Home >> Mitsubishi >> 2010 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Problem Symptoms Table (For Your Information)

Problem Symptoms Table (For Your Information)

PROBLEM SYMPTOMS TABLE (FOR YOUR INFORMATION)

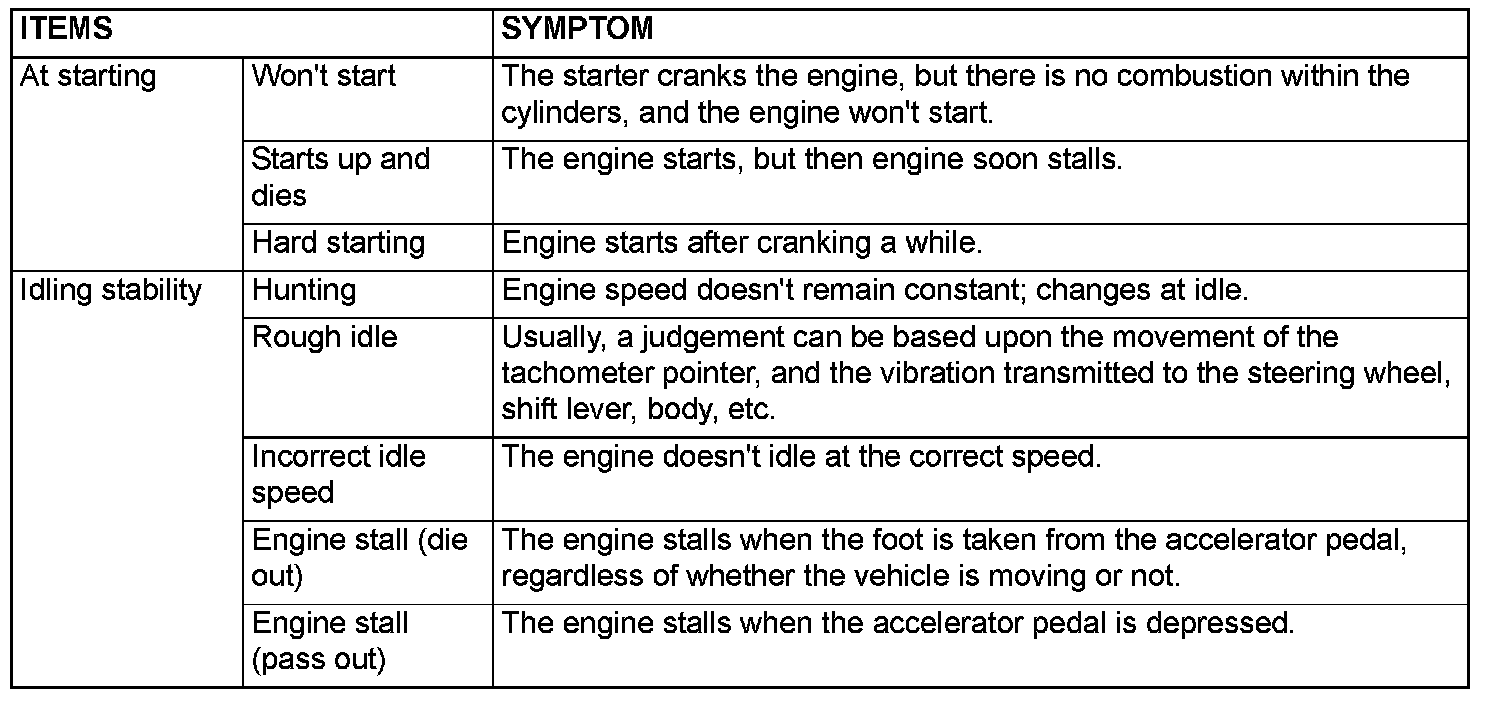

Problem Symptoms Table (For Your Information) (Part 1):

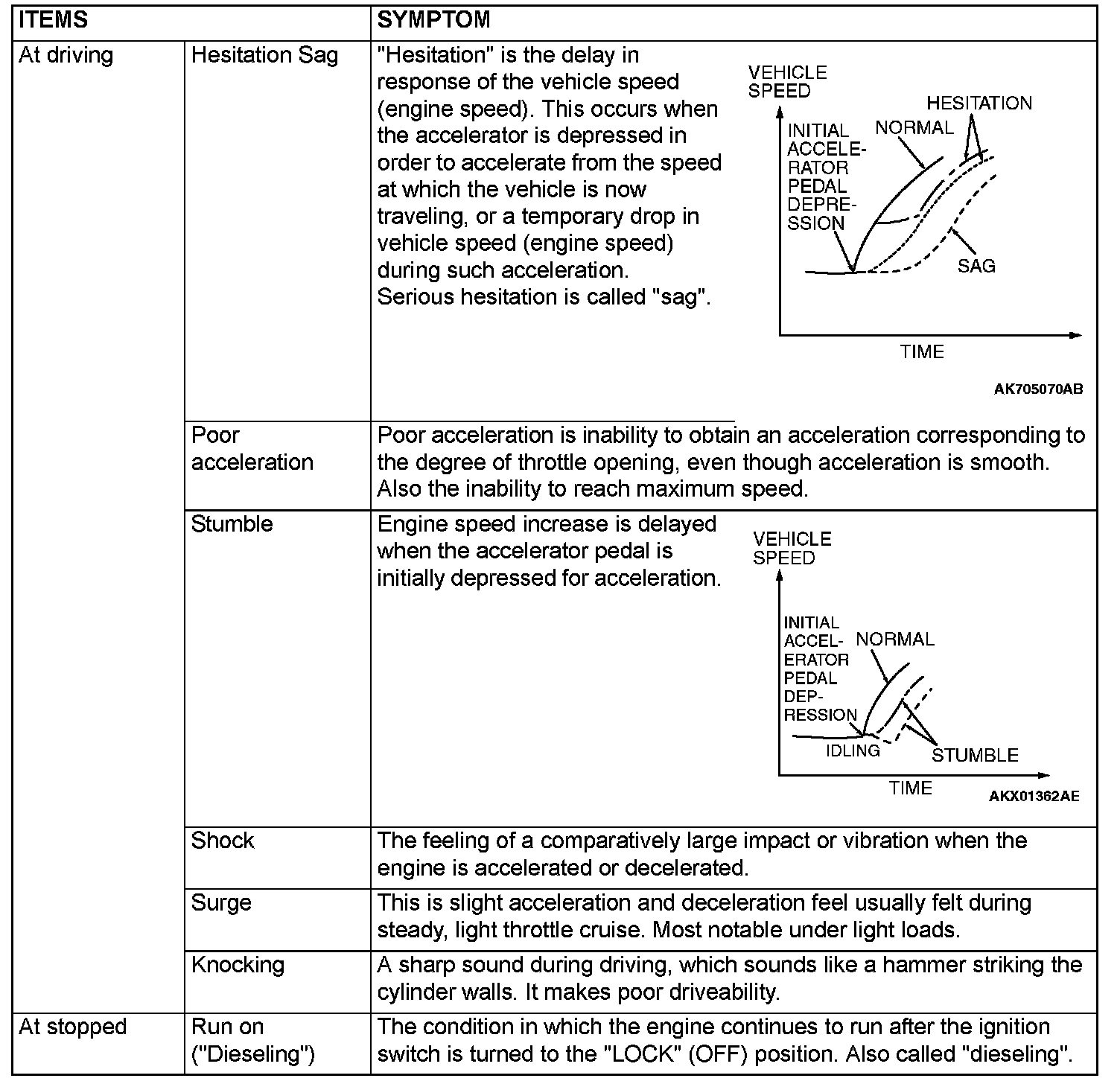

Problem Symptoms Table (For Your Information) (Part 2):
