Inspection Procedure 28

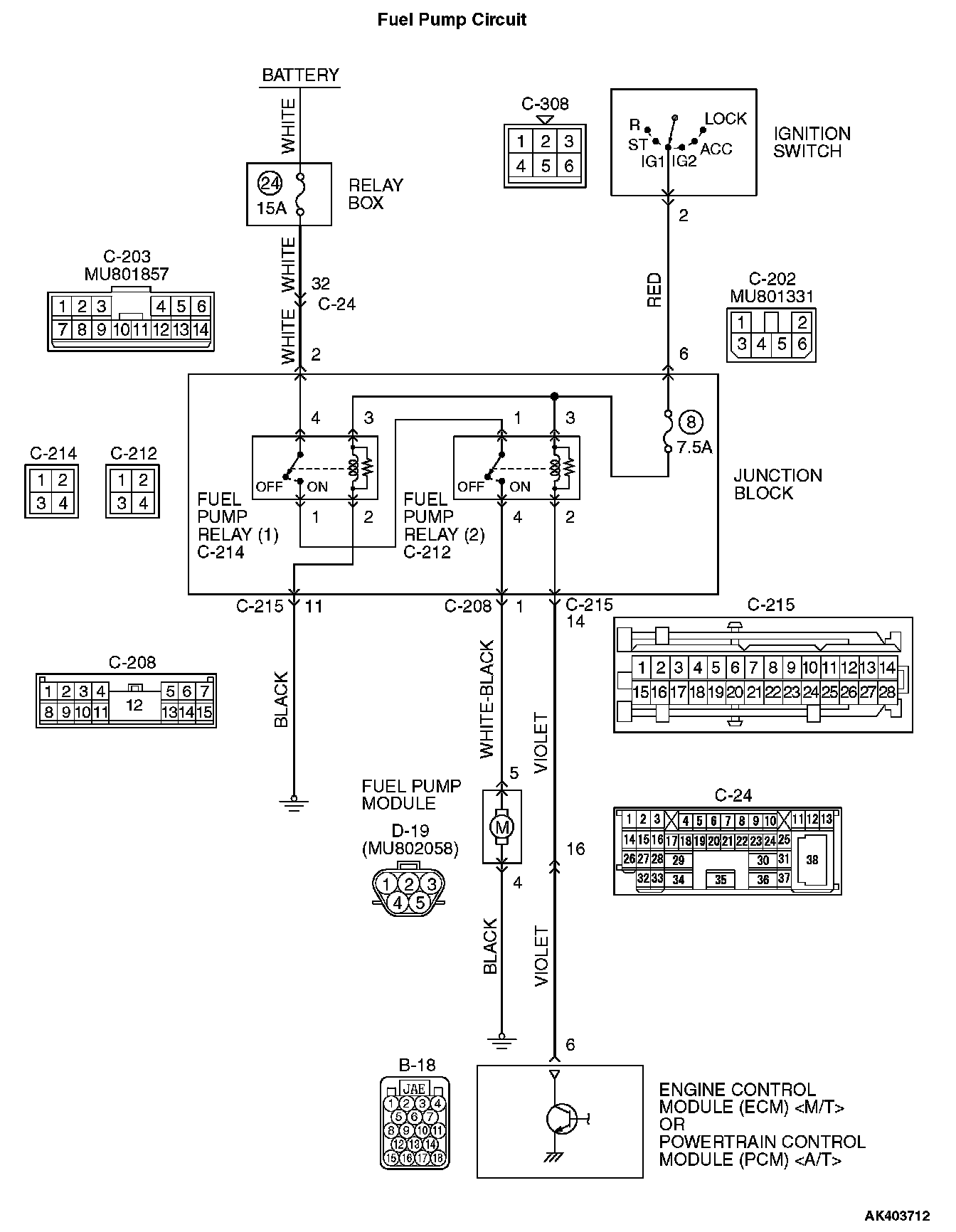

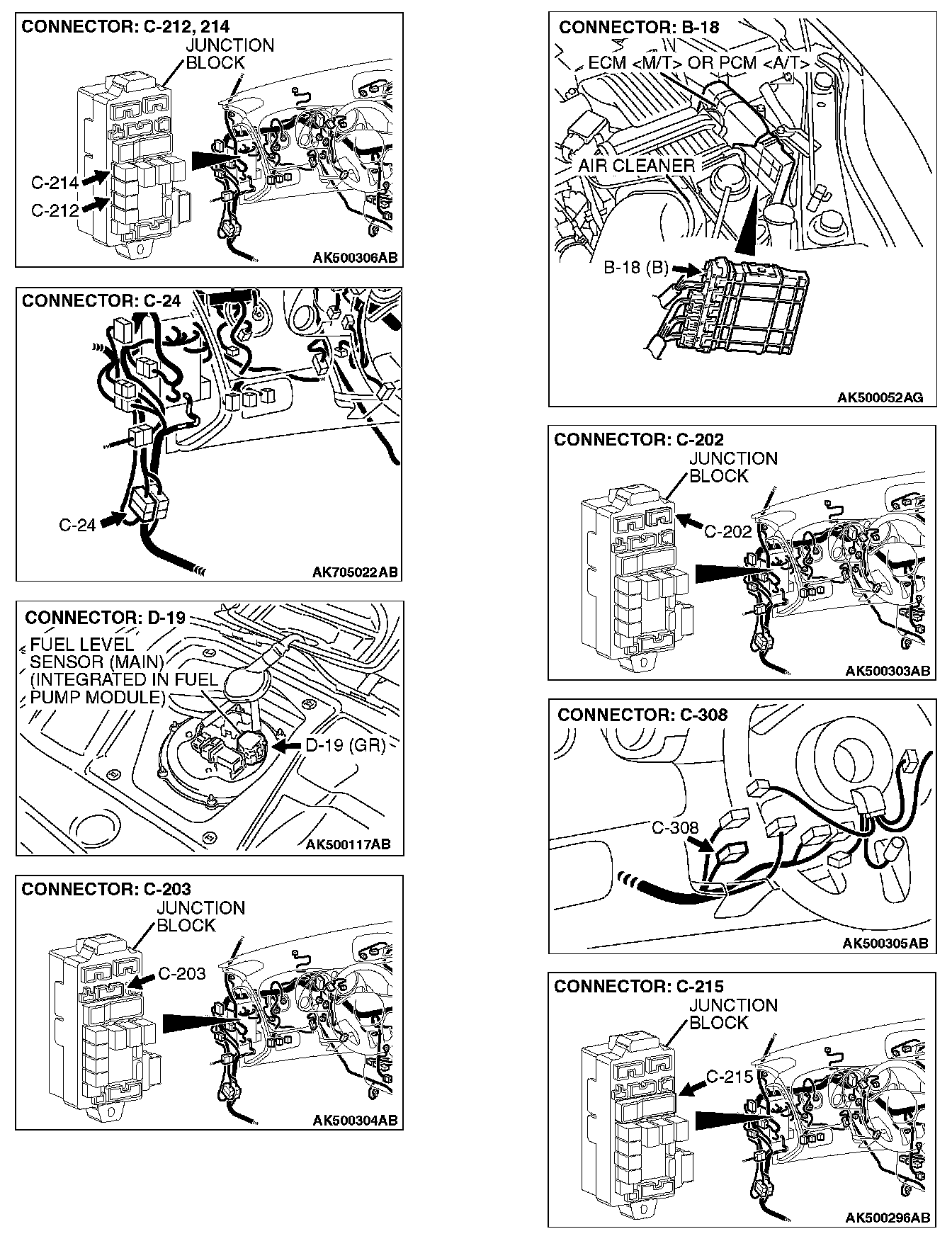

1INSPECTION PROCEDURE 28: Fuel pump systemFuel Pump Circuit (Part 1):
Fuel Pump Circuit (Part 2):
Fuel Pump Circuit (Part 3):
CIRCUIT OPERATION
- Battery positive voltage is applied to the fuel pump relay 1 (terminal No.3) from the ignition switch-IG.
Ground is provided through terminal No.2 to chassis ground.
- When the ignition switch is turned to the "ON" position the battery positive voltage is applied to the fuel pump relay 2 (terminal No.1) from the fuel pump relay 1 (terminal No.1).
- Battery positive voltage is applied to the fuel pump relay 2 (terminal No.3) from the ignition switch- IG.
- During cranking and while the engine is running the ECM [M/T] or the PCM [A/T] turns the power transistor in the ECM [M/T] or the PCM [A/T] ON to ground the fuel pump relay 2 coil. With this the fuel pump relay turns ON and the battery positive voltage is supplied to the fuel pump from the fuel pump relay 2 (terminal No.4).
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Malfunction of the fuel pump relay.
- Malfunction of the fuel pump.
- Improper connector contact open or short-circulated harness wire.
- Malfunction of the ECM [M/T] or the PCM [A/T].
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T-III Sub Assembly)
- MB991824:V.C.l.
- MB991827: USB Cable
- MB991910: Main Harness A
STEP 1. Using scan tool MB991958, check actuator test item 9: Fuel Pump.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

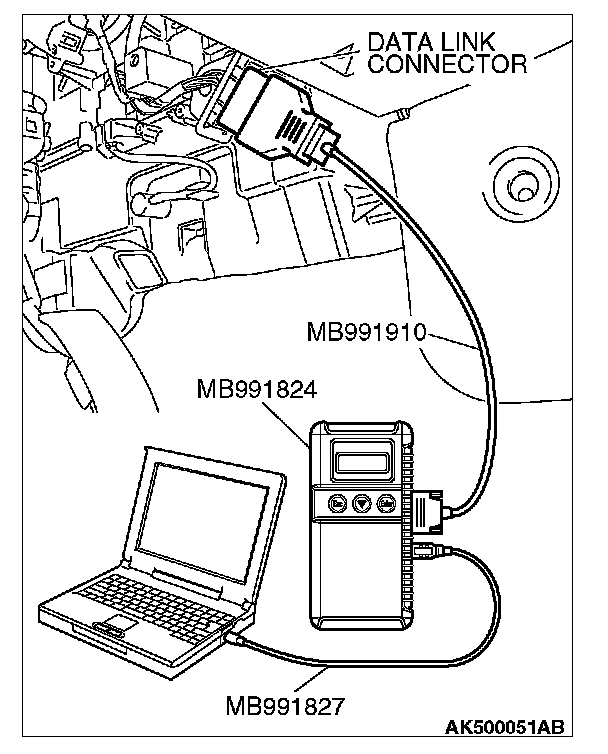

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991958 to the actuator test mode for item 9 Fuel Pump.
- An operation sound of the fuel pump should be heard.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the fuel pump operating properly?
YES : That this malfunction is intermittent.
NO : Go to Step 2.

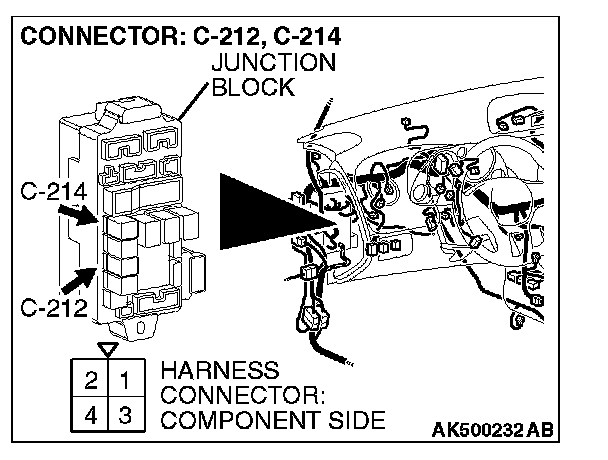

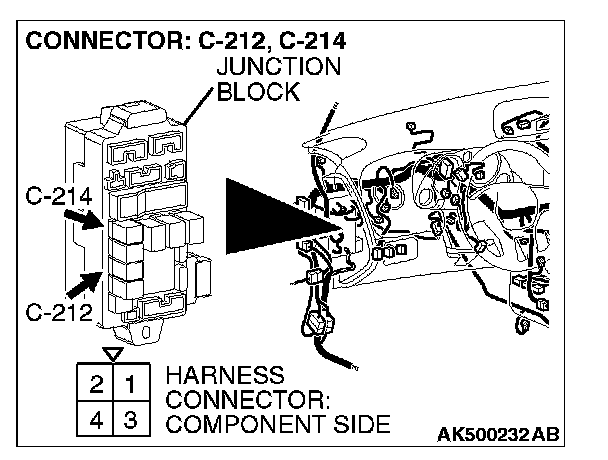

STEP 2. Check harness connector C-214 at fuel pump relay 1 and harness connector C-212 at fuel pump relay 2 for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 3.
NO : Repair or replace it. Then confirm that the malfunction symptom is eliminated.
STEP 3. Check the fuel pump relay 1 and 2.
CAUTION: Because it is not possible to distinguish the top and the bottom of the fuel pump relay, inspect it with the triangle mark printed on the relay facing upward.
1. Remove the fuel pump relay 1 and 2.

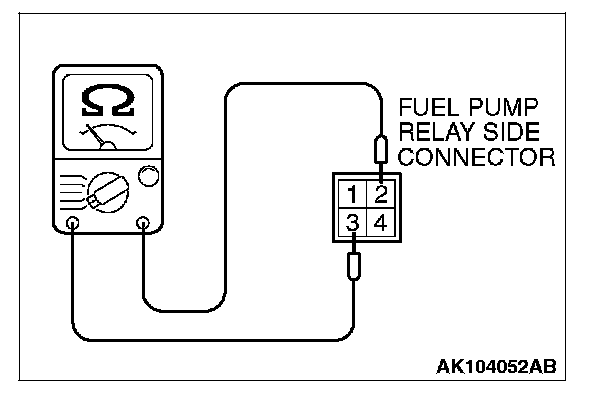

2. Check for continuity between the each fuel pump relay terminals No.2 and No.3.
- There should be continuity. (approximately 70 ohms)

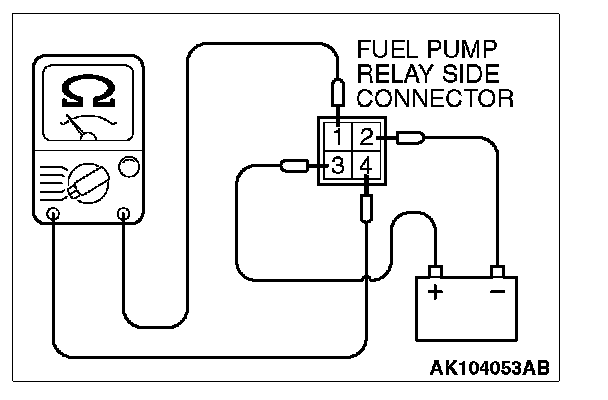

3. Use jumper wires to connect each fuel pump relay terminal No.3 to the positive battery terminal and terminal No.2 to the negative battery terminal.
4. Check for continuity between the each fuel pump relay terminals No.1 and No.4 while connecting and disconnecting the jumper wire at the negative battery terminal.
- Continuity (2 ohms or less) [Negative battery terminal connected]
- Should be open loop. (Negative battery terminal disconnected)
5. Install the fuel pump relay 1 and 2.
Q: Is the measured resistance normal?
YES : Go to Step 4.
NO : Replace the fuel pump relay 1 and/or 2. Then confirm that the malfunction symptom is eliminated.

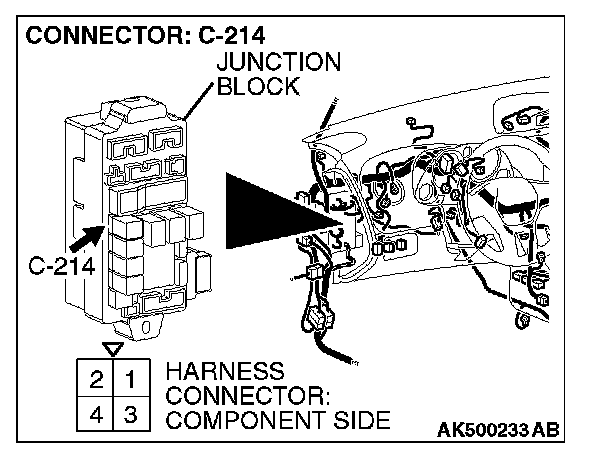

STEP 4. Measure the power supply voltage at fuel pump relay 1 harness side connector C-214.
CAUTION: Because it is difficult to distinguish the top and bottom of the fuel pump relay connector at the wiring harness, inspect it by using the triangle mark on the junction block as a reference.
1. Disconnect the connector C-214 and measure at the harness side.

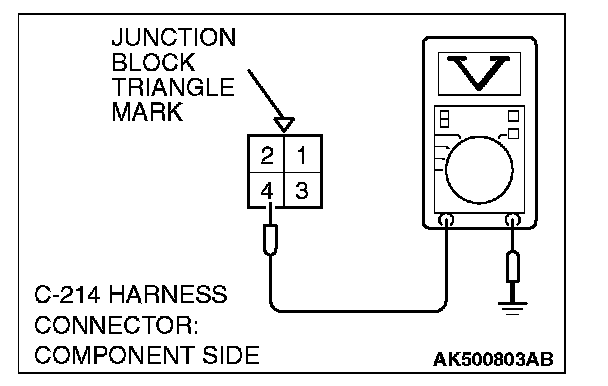

2. Measure the voltage between terminal No.4 and ground. Voltage should measure battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES : Go to Step 5.
NO : Check harness connector C-203 at intermediate connector for damage and repair or replace as required. If intermediate connector is in good condition repair harness wire between relay box and fuel pump relay 1 connector C-214 (terminal No.4) because of open circuit. Then confirm that the malfunction symptom is eliminated.
STEP 5. Measure the power supply voltage at fuel pump relay 1 harness side connector C-214.
CAUTION: Because it is difficult to distinguish the top and bottom of the fuel pump relay connector at the wiring harness, inspect it by using the triangle mark on the junction block as a reference.
1. Disconnect the connector C-214 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.

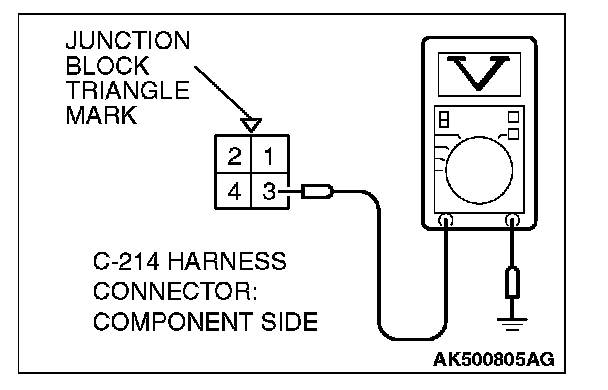

3. Measure the voltage between terminal No.3 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES : Go to Step 6.
NO: Check harness connector C-202 at intermediate connector for damage and repair or replace as required. If intermediate connector is in good condition repair harness wire between ignition switch connector C-308 (terminal No.2) and fuel pump relay 1 connector C-214 (terminal No.3) because of open circuit. Then confirm that the malfunction symptom is eliminated.
STEP 6. Check for continuity at fuel pump relay 1 harness side connector C-214.
CAUTION: Because it is difficult to distinguish the top and bottom of the fuel pump relay connector at the wiring harness, inspect it by using the triangle mark on the junction block as a reference.
1. Disconnect the connector C-214 and measure at the harness side.

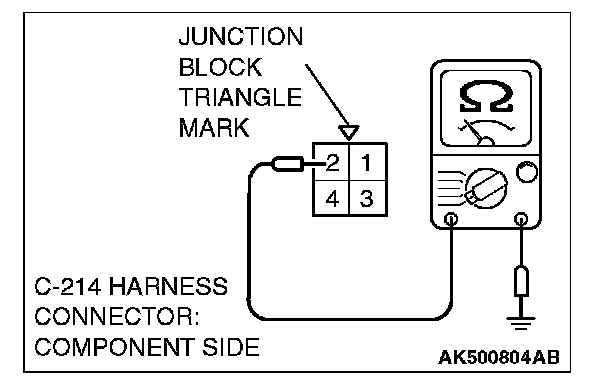

2. Check for the continuity between terminal No.2 and ground.
- Continuity (2 ohms or less)
Q: Does continuity exist?
YES : Go to Step 7.
NO : Check connector C-215 at intermediate connector for damage and repair or replace as required. If intermediate connector is in good condition repair harness wire between fuel pump relay 1 connector C-214 (terminal No.2) and ground because of open circuit. Then confirm that the malfunction symptom is eliminated.

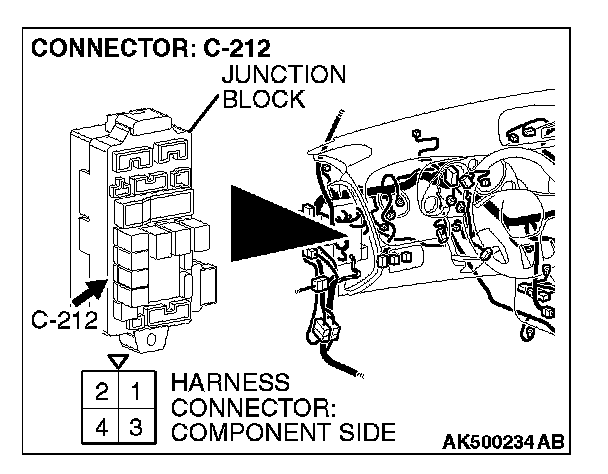

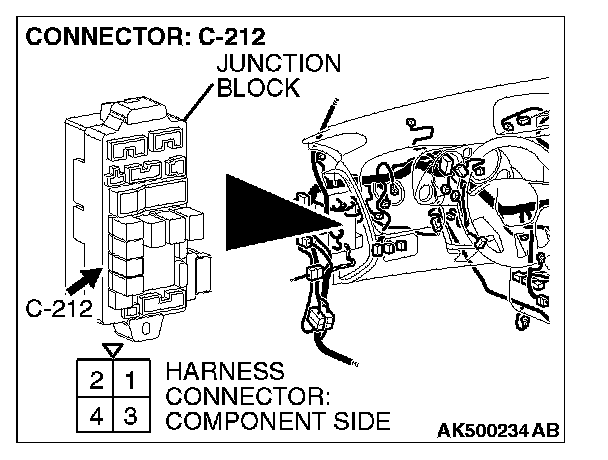

STEP 7. Measure the power supply voltage at fuel pump relay 2 harness side connector C-212.
CAUTION: Because it is difficult to distinguish the top and bottom of the fuel pump relay connector at the wiring harness, inspect it by using the triangle mark on the junction block as a reference.
1. Disconnect the connector C-212 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.

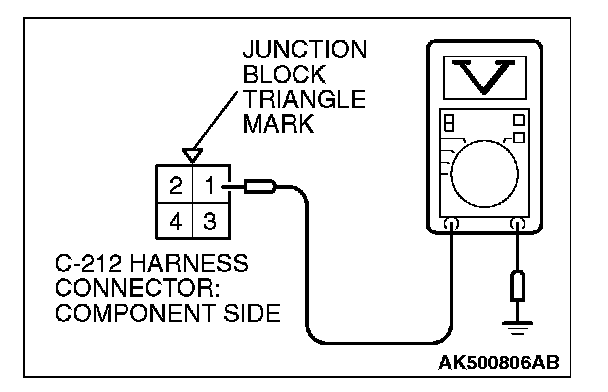

3. Measure the voltage between terminal No.1 and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES : Go to Step 8.
NO : Repair harness wire between fuel pump relay 1 connector C-214 (terminal No.1) and fuel pump relay 2 connector C-212 (terminal No.1) because of open circuit. Then confirm that the malfunction symptom is eliminated.

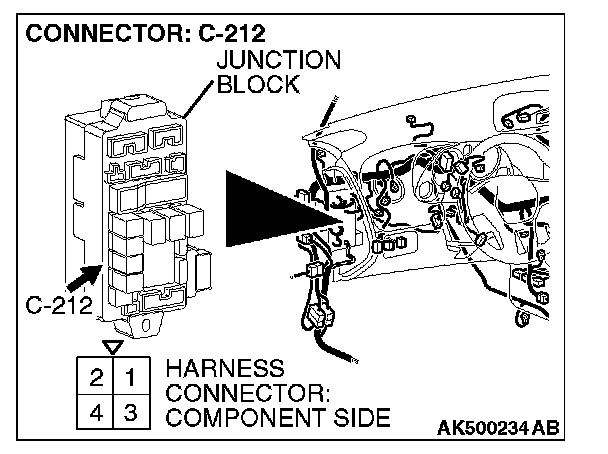

STEP 8. Measure the power supply voltage at fuel pump relay 2 harness side connector C-212.
CAUTION: Because it is difficult to distinguish the top and bottom of the fuel pump relay connector at the wiring harness, inspect it by using the triangle mark on the junction block as a reference.
1. Disconnect the connector C-212 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.

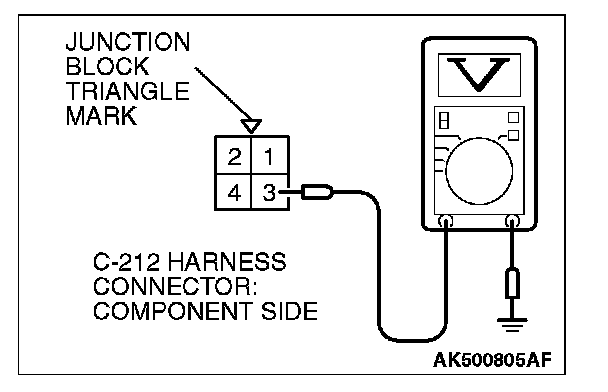

3. Measure the voltage between terminal No.3 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES : Go to Step 9.
NO : Check harness connector C-202 at intermediate connector for damage and repair or replace as required. If intermediate connector is in good condition repair harness wire between ignition switch connector C-308 (terminal No.2) and fuel pump relay 2 connector C-212 (terminal No.3) because of open circuit. Then confirm that the malfunction symptom is eliminated.

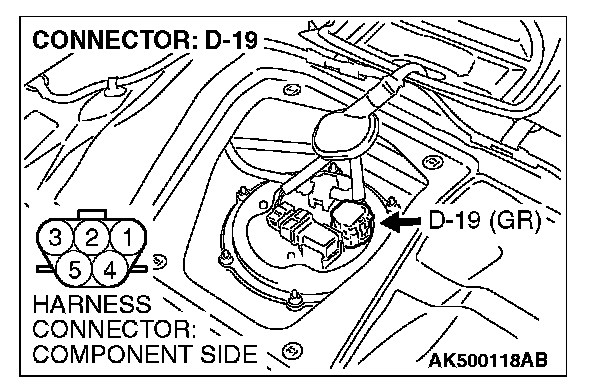

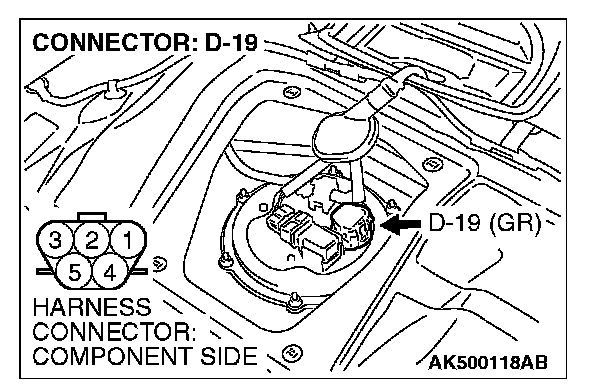

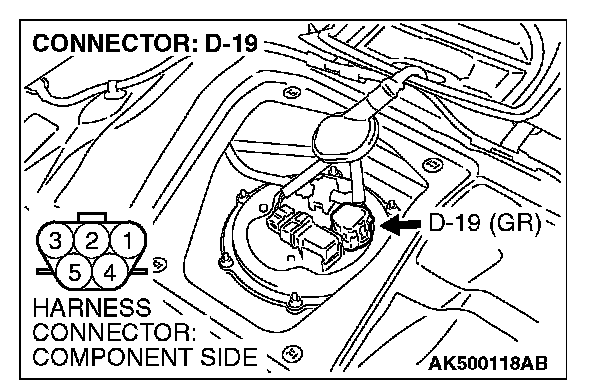

STEP 9. Check connector D-19 at fuel pump for damage.
Q: Is the connector in good condition?
YES : Go to Step 10.
NO : Repair or replace it. Then confirm that the malfunction symptom is eliminated.
STEP 10. Check the fuel pump operation.

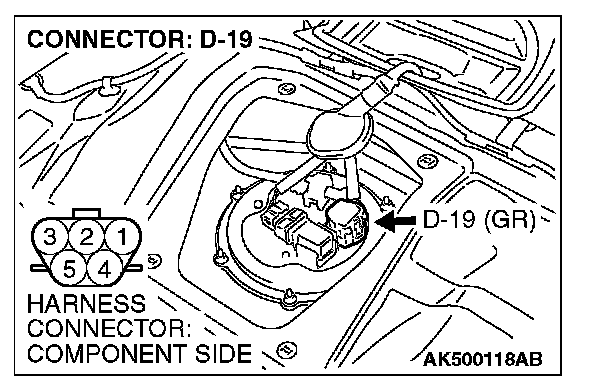

1. Disconnect fuel pump connector D-19.

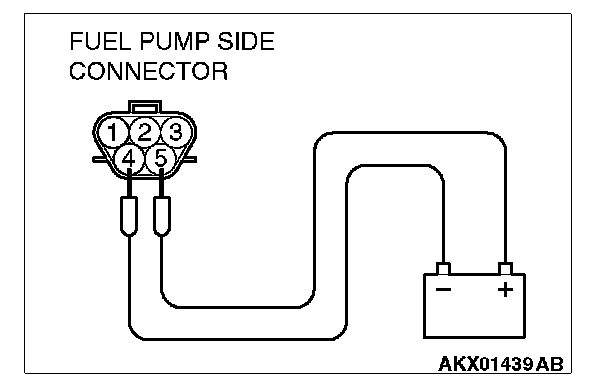

2. Use jumper wires to connect fuel pump connector terminal No.5 to the positive battery terminal and terminal No.4 to the negative battery terminal.
- An operating sound of the fuel pump should be heard.
Q: Is the fuel pump operating properly?
YES : Go to Step 11.
NO : Replace the fuel pump. Then confirm that the malfunction symptom is eliminated.
STEP 11. Check for continuity at fuel pump harness side connector D-19.
1. Disconnect the connector D-19 and measure at the harness side.

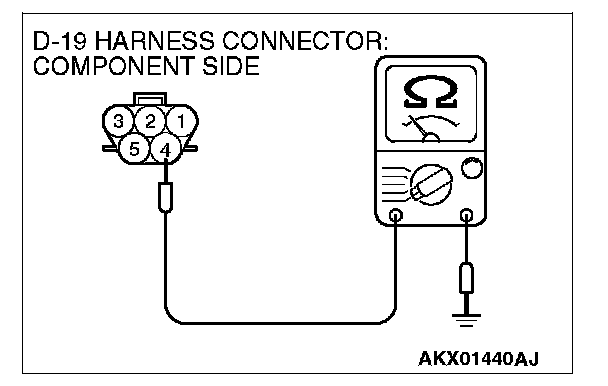

2. Check for the continuity between terminal No.4 and ground.
- Continuity (2 ohms or less)
Q: Does continuity exist?
YES : Go to Step 12.
NO : Repair harness wire between fuel pump connector D-19 (terminal No.4) and ground because of open circuit. or harness damage. Then confirm that the malfunction symptom is eliminated.
STEP 12. Check for open circuit and short circuit to ground and harness damage between fuel pump relay 2 connector C-212 (terminal No.4) and fuel pump connector D-19 (terminal No.5).

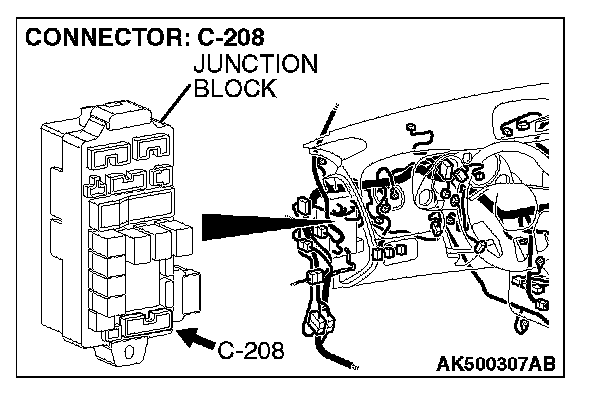

NOTE: Check harness after checking intermediate connector 0-208. If intermediate connector is damaged, repair or replace it. Then check that the malfunction is eliminated.
Q: Is the harness wire in good condition?
YES : Go to Step 13.
NO : Repair it. Then confirm that the malfunction symptom is eliminated.

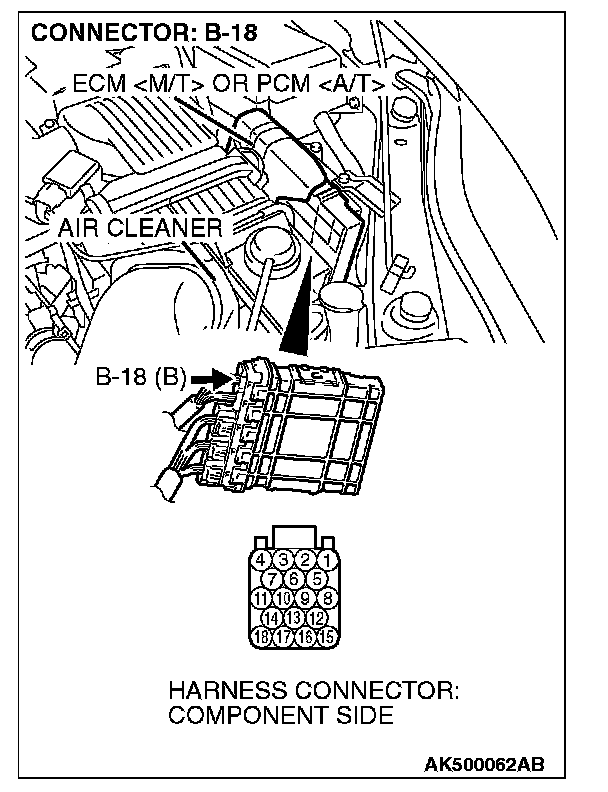

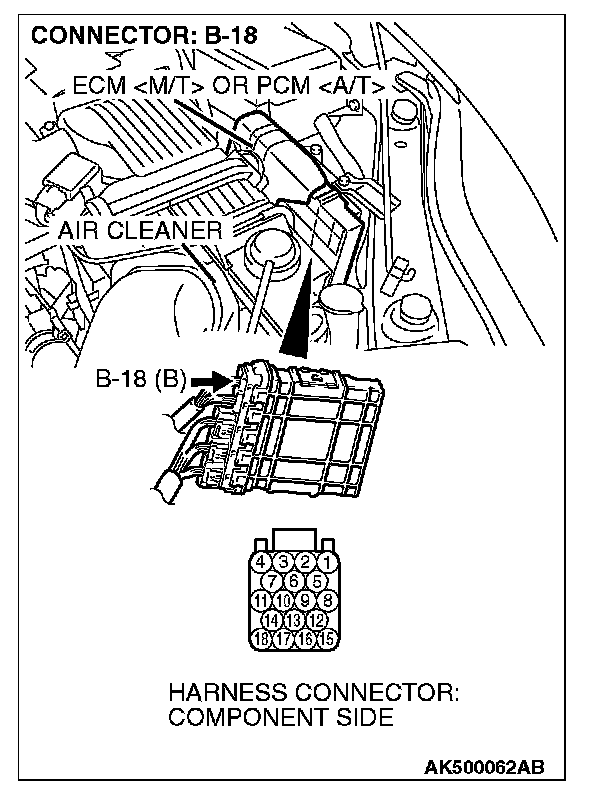

STEP 13. Check connector B-18 at ECM [M/T] or PCM [A/T] for damage.
Q: Is the connector in good condition?
YES : Go to Step 14.
NO: Repair or replace it. Then confirm that the malfunction symptom is eliminated.
STEP 14. Measure the power supply voltage at ECM [M/T] or PCM [A/T] connector B-18.
1. Disconnect the connector B-18 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.

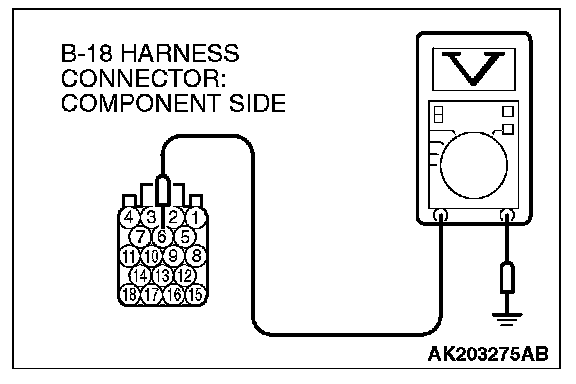

3. Measure the voltage between terminal No.6 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES : Replace the ECM or the PCM. When the ECM or the PCM is replaced register the encrypted code. Then confirm that the malfunction symptom is eliminated.
NO : Check harness connectors C-24 and C-215 at intermediate connector for damage and repair or replace as required. If intermediate connectors are in good condition repair harness wire between fuel pump relay 2 connector C-212 (terminal No.2) and ECM [M/T] or PCM [A/T] connector B-18 (terminal No.6) because of open circuit. Then confirm that the malfunction symptom is eliminated.
