Freeze Frame Data

Freeze Frame Data For M.U.T.-III

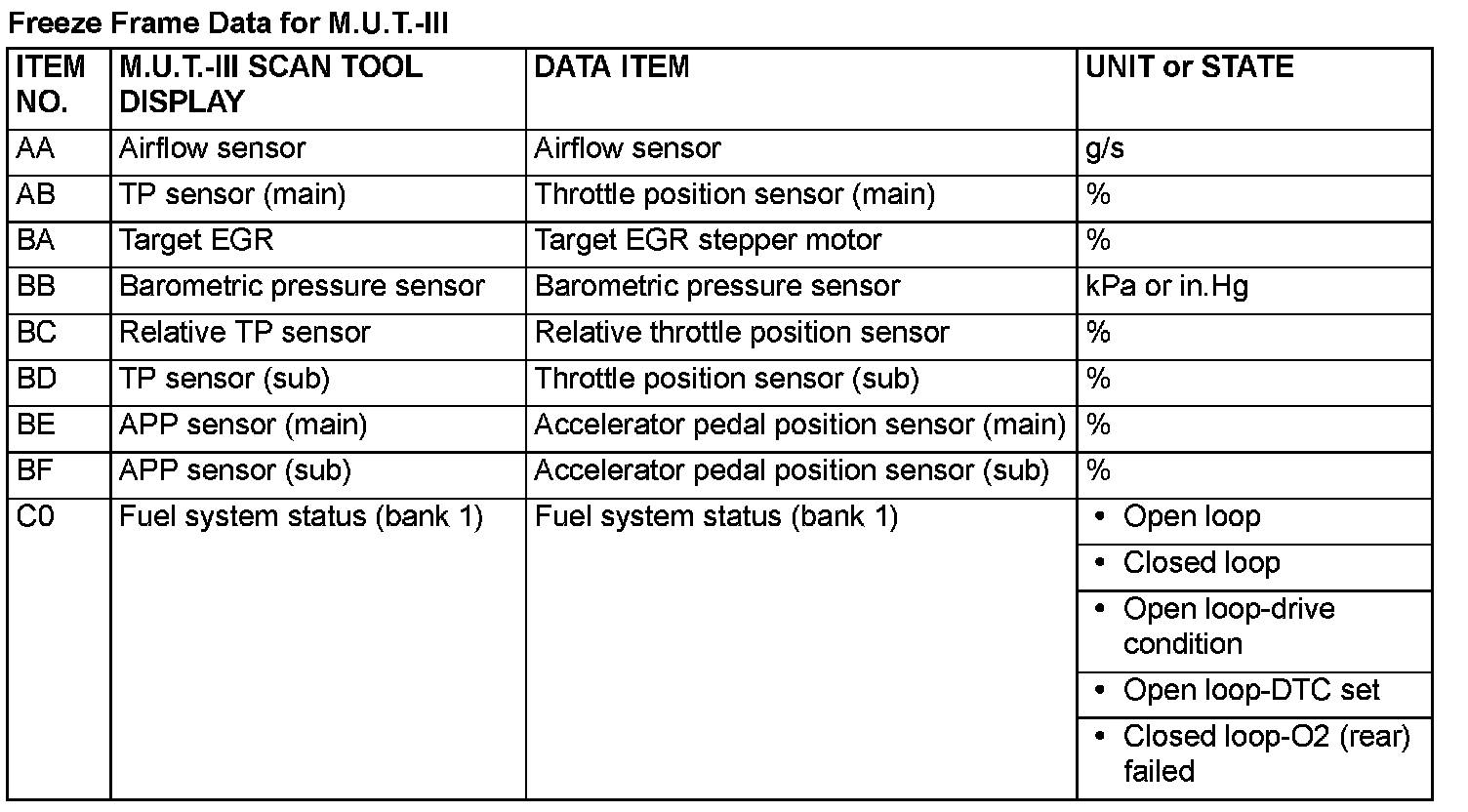

Freeze Frame Data for M.U.T.-III (Part 1):

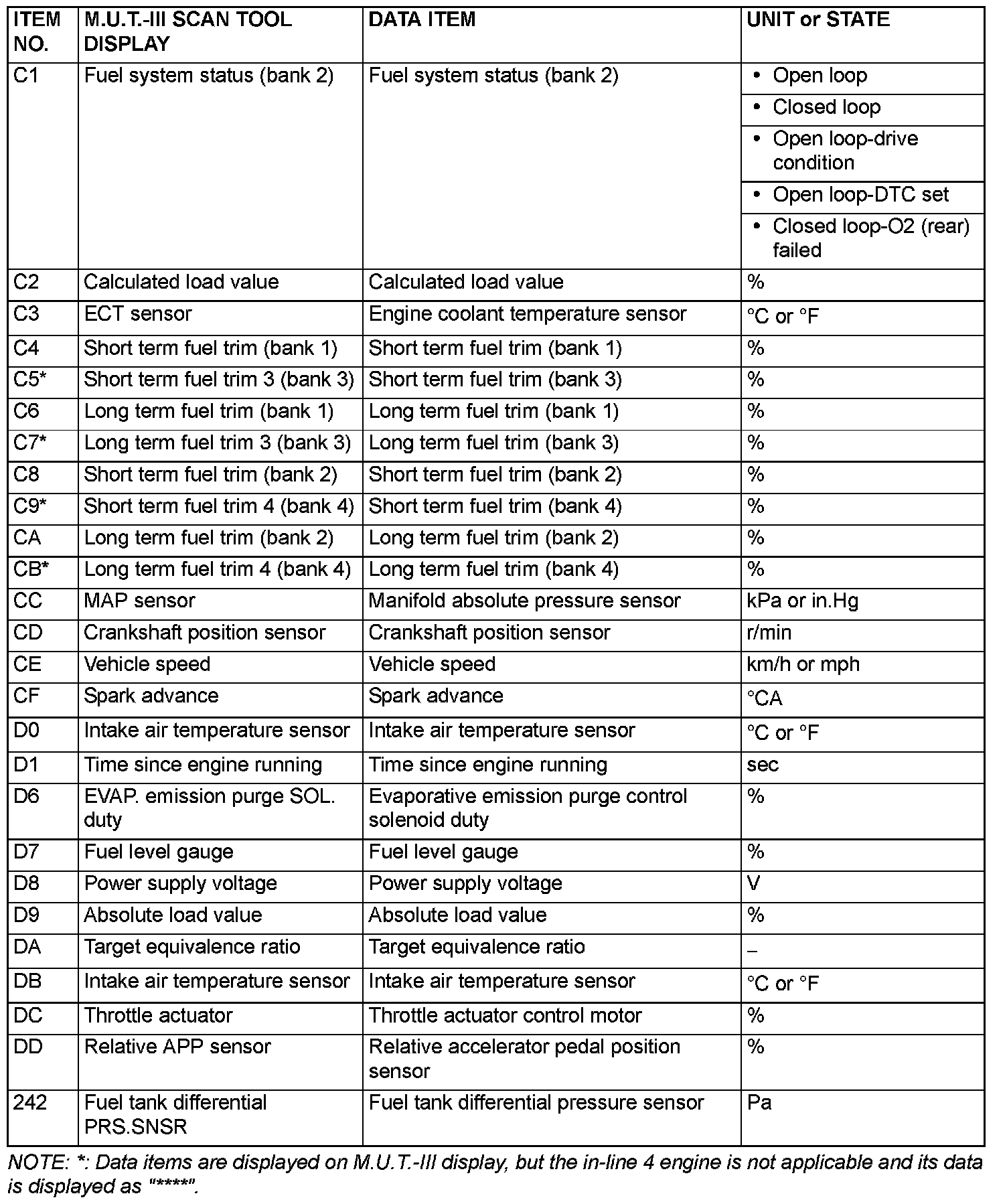

Freeze Frame Data for M.U.T.-III (Part 2):






Freeze Frame Data for General Scan Tool

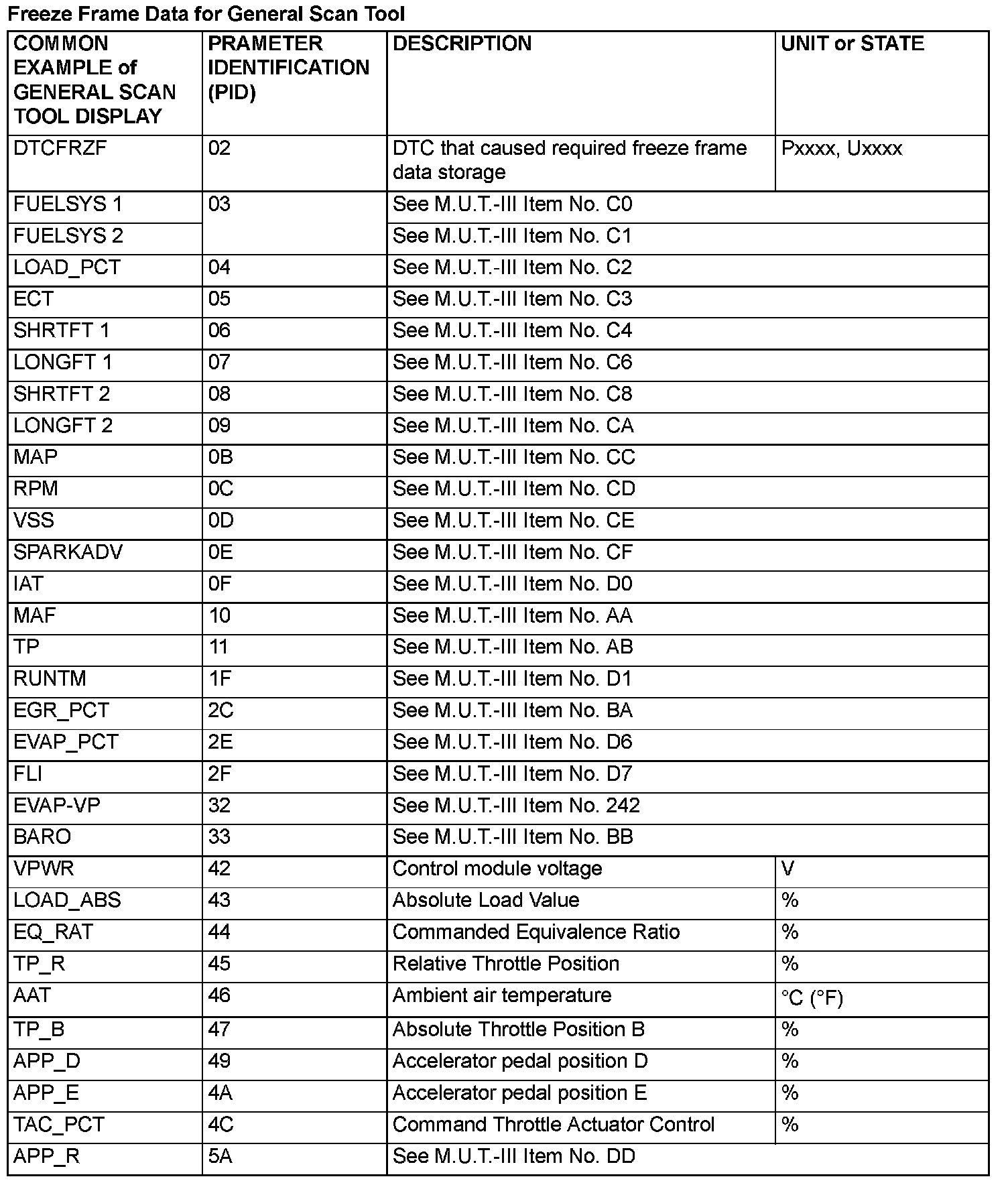

Freeze Frame Data for General Scan Tool:
