Pinout Values and Diagnostic Parameters

CHECK AT THE ENGINE CONTROL MODULE (ECU) [M/T] OR THE POWERTRAIN CONTROL MODULE (PCM) [A/T]

1. Disconnect the ECM [M/T] or the PCM [A/T] connectors B-18 B-19 B-20 B-21 and B-22 and connect check harness special tool MB991923 between the ECM [M/T] connectors or the PCM [A/T] connectors.
2. Measure the voltage between each check harness connector terminal and check harness connector ground terminal (No.25 or No.29).

TERMINAL VOLTAGE CHECK CHART

NOTE:
*1: The average voltage through an analog voltmeter is described in this service manual (because the average voltage is too stable to be shown on a digital voltmeter).
*2: Vehicles for Canada, the headlight, taillight, etc. remain lit even when the lighting switch is in "OFF" position but this is no problem for checks.

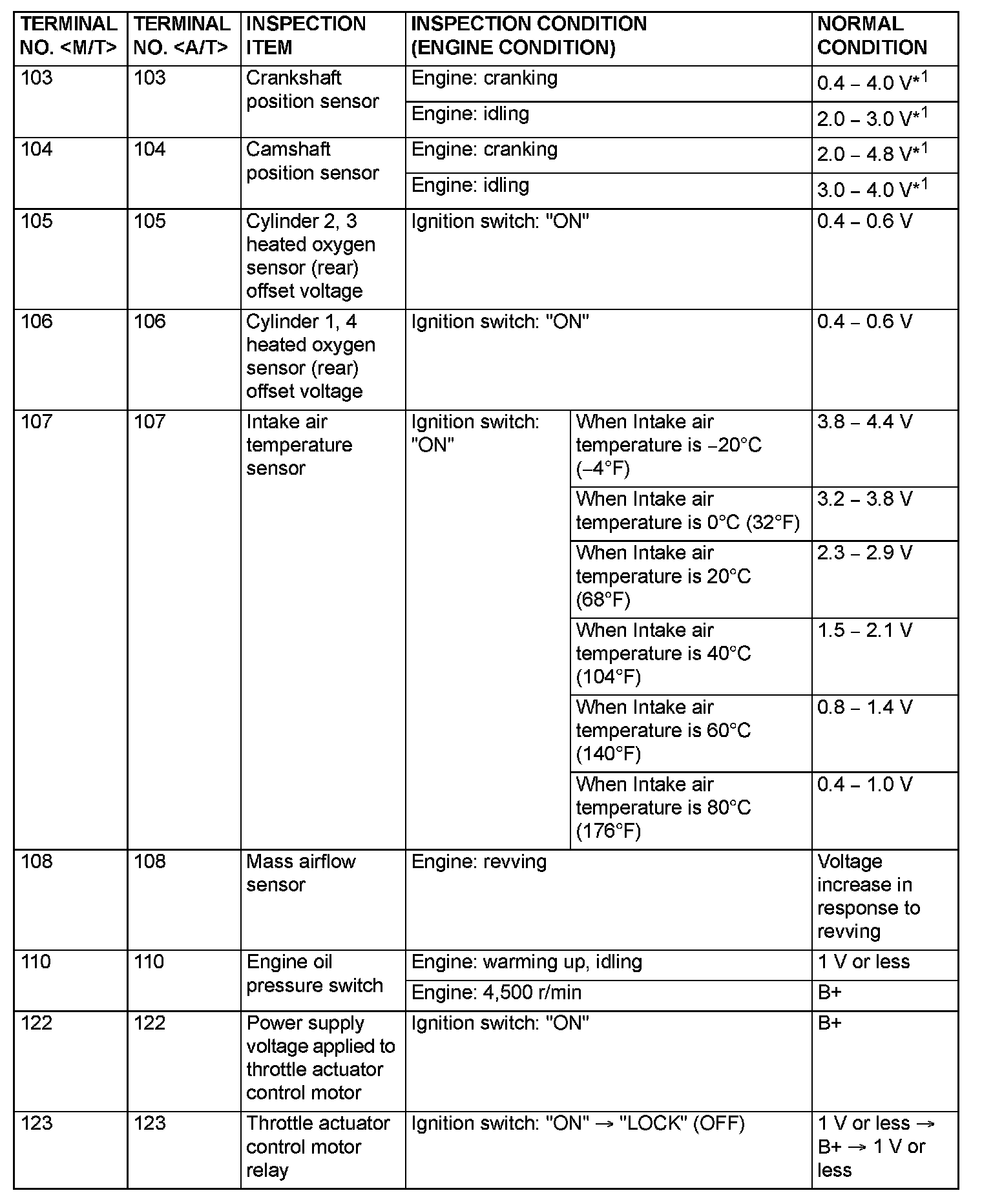

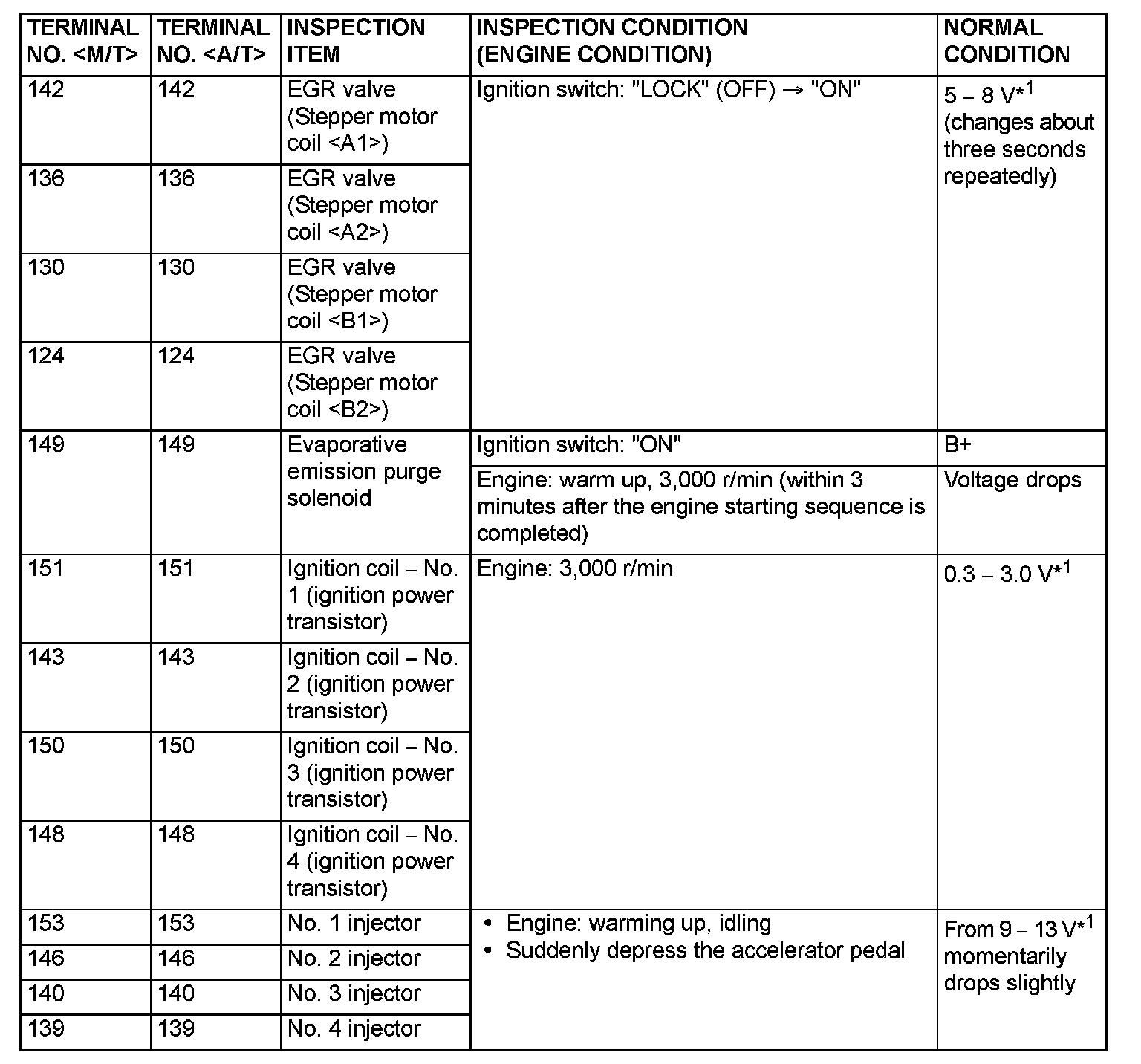

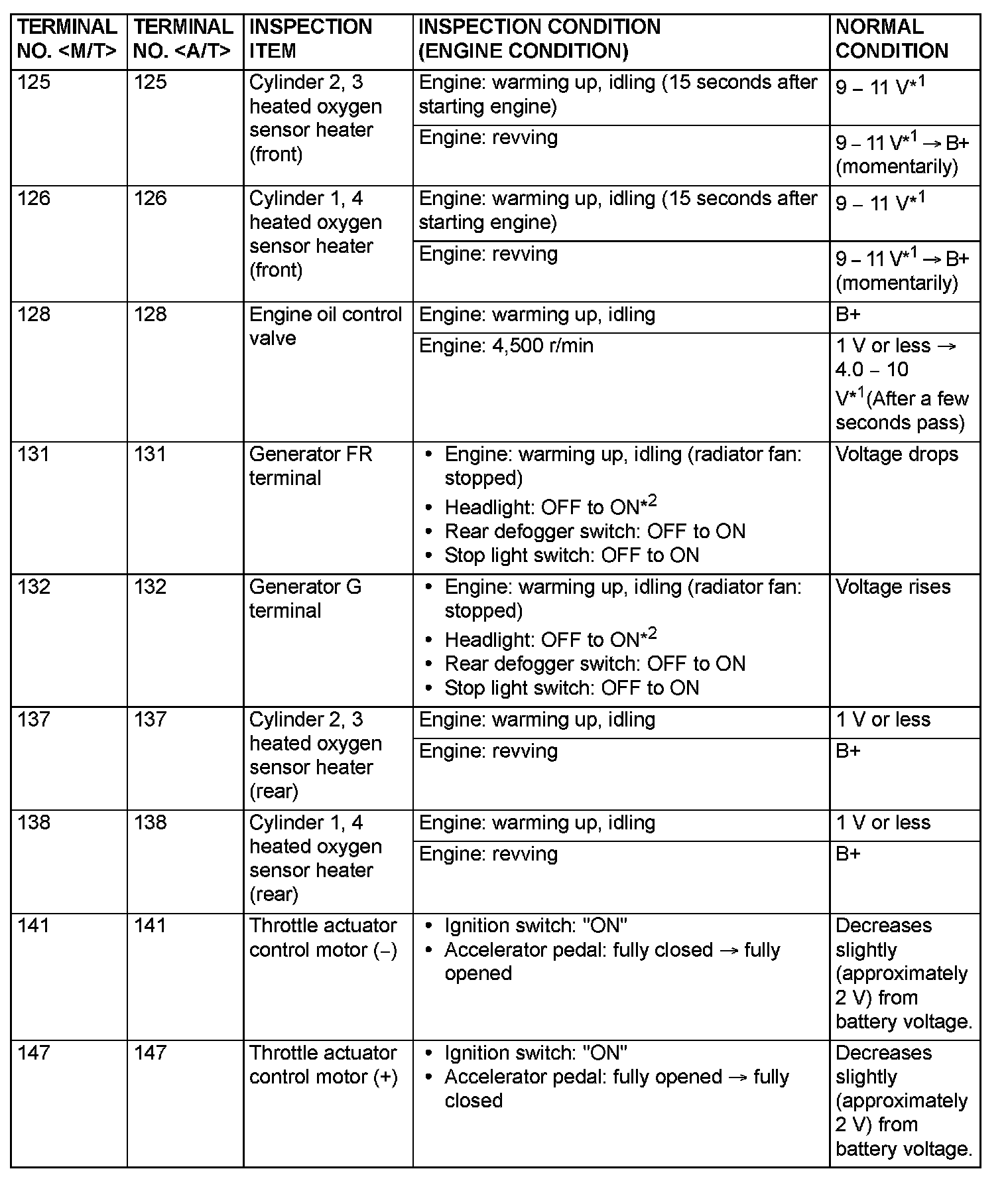

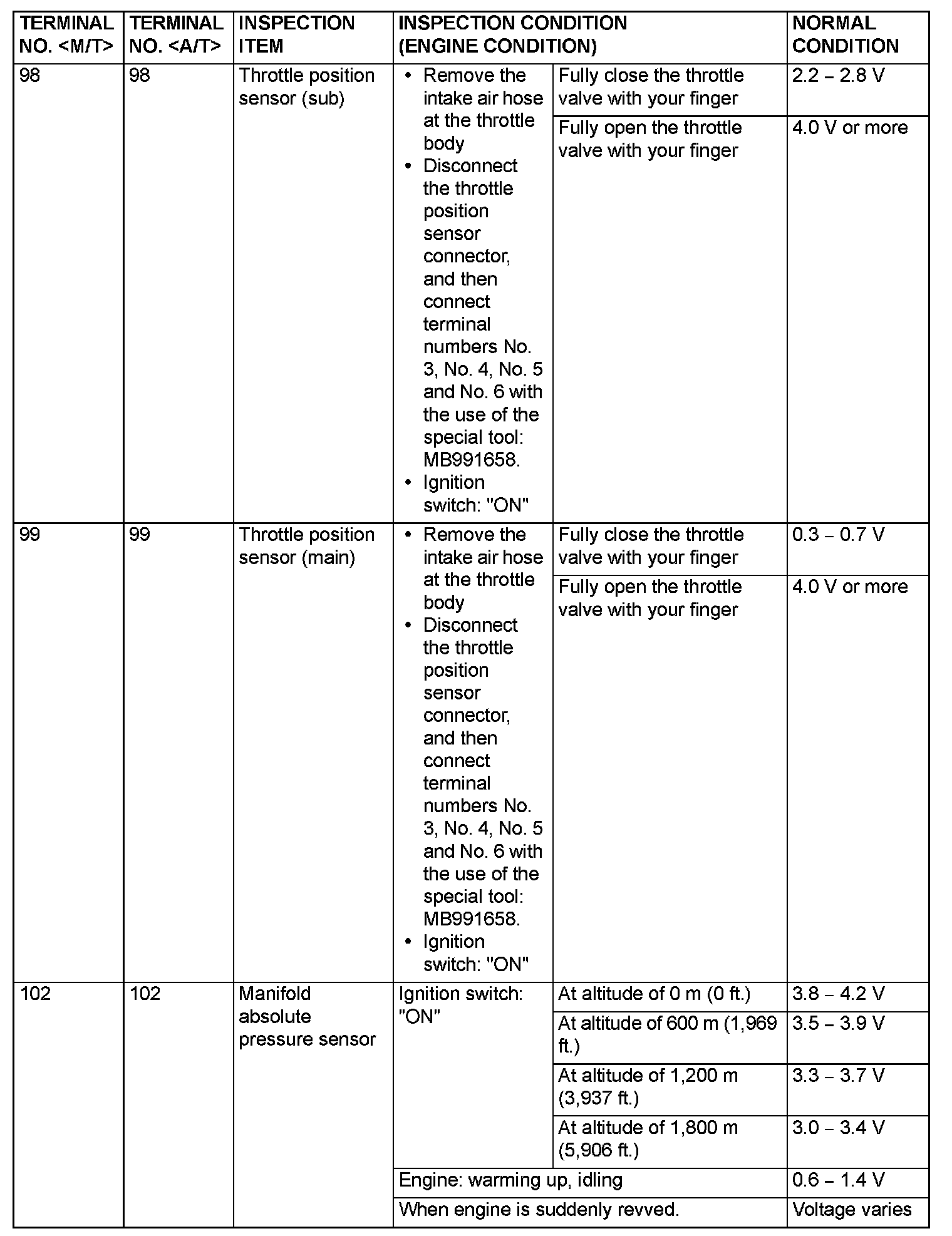

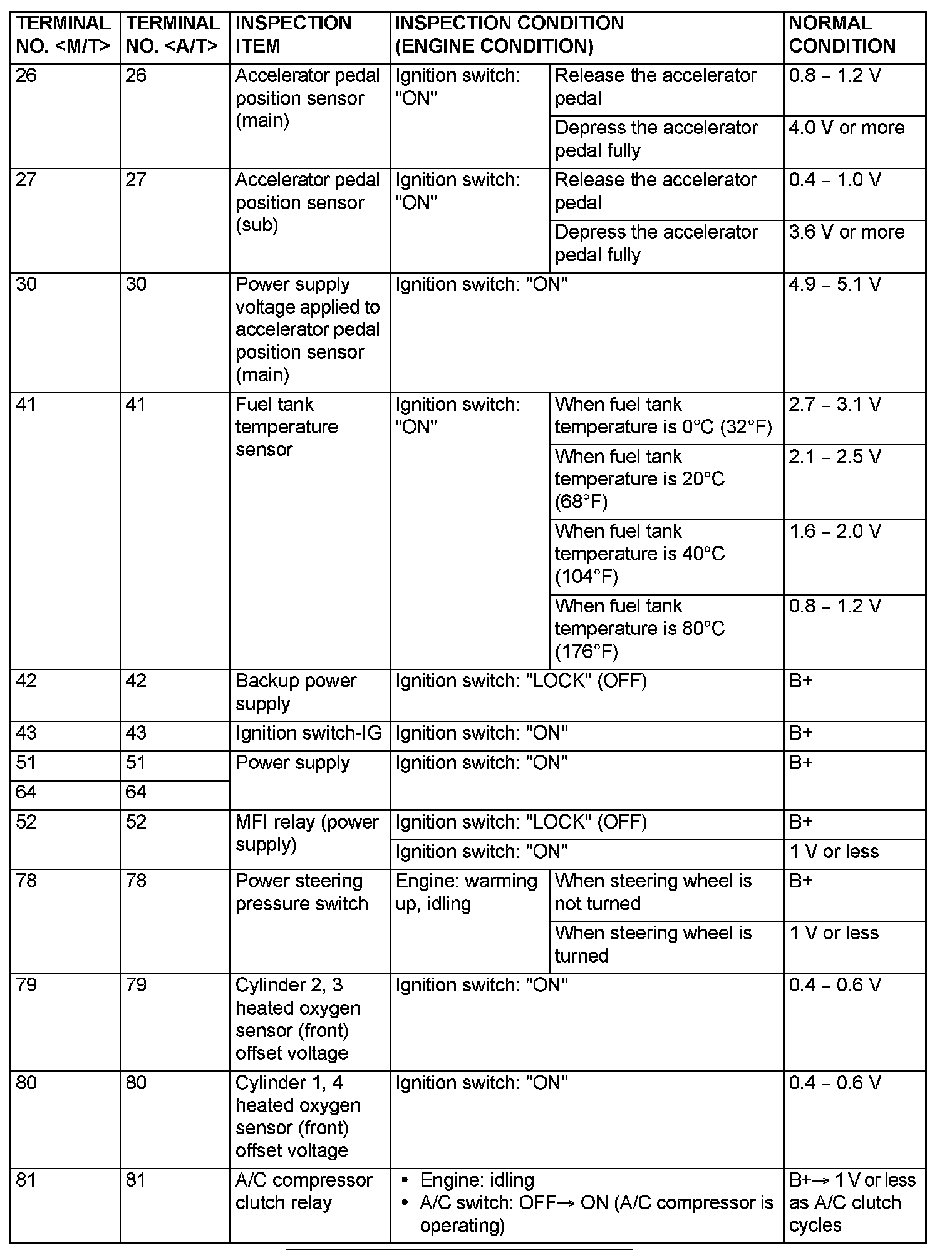

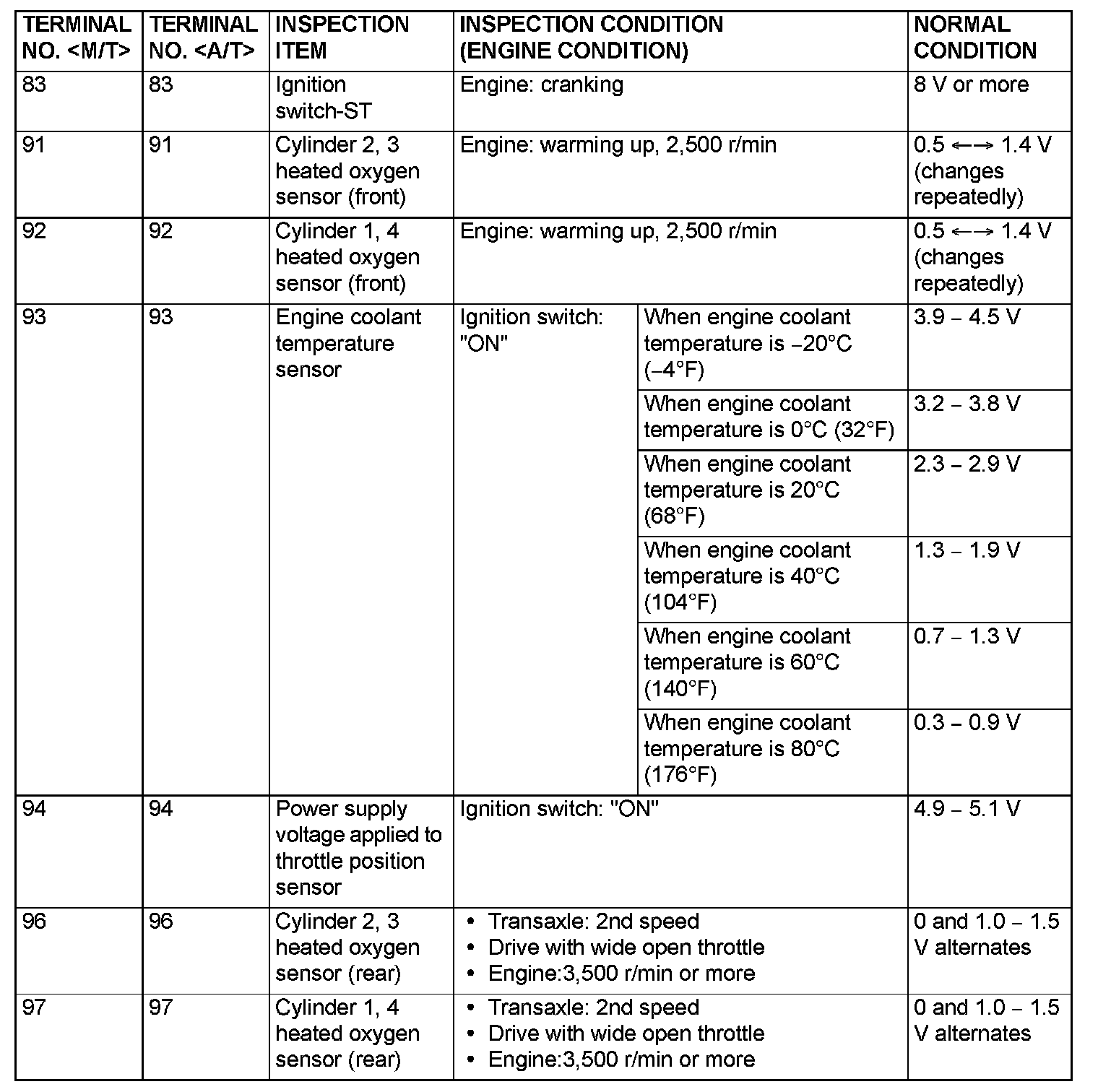

Terminal Voltage Check Chart (Part 1):

Terminal Voltage Check Chart (Part 2):

Terminal Voltage Check Chart (Part 3):

Terminal Voltage Check Chart (Part 4):

Terminal Voltage Check Chart (Part 5):

Terminal Voltage Check Chart (Part 6):

Terminal Voltage Check Chart (Part 7):

TERMINAL RESISTANCE AND CONTINUITY CHECK

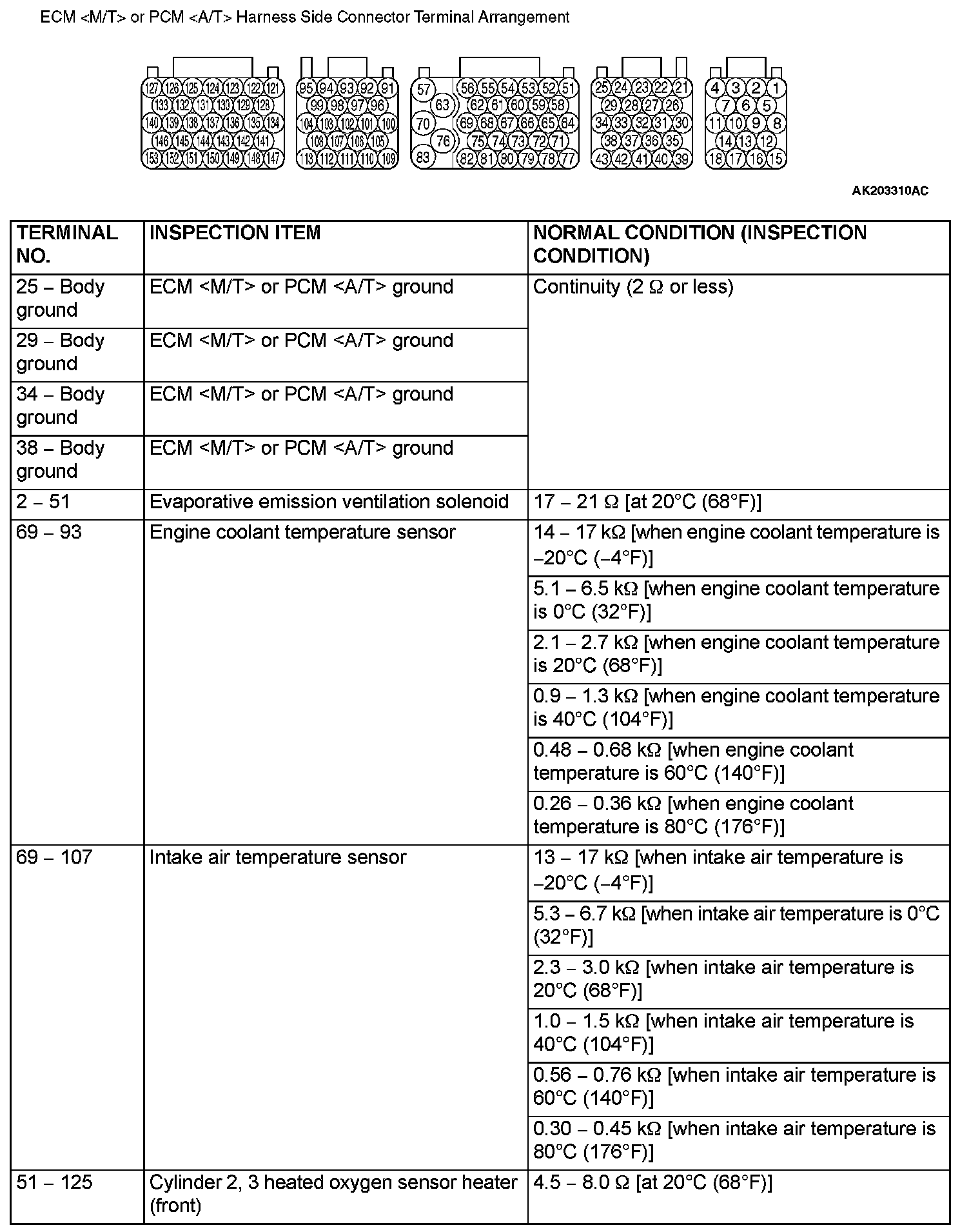

Terminal Resistance And Continuity Check (Part 1):

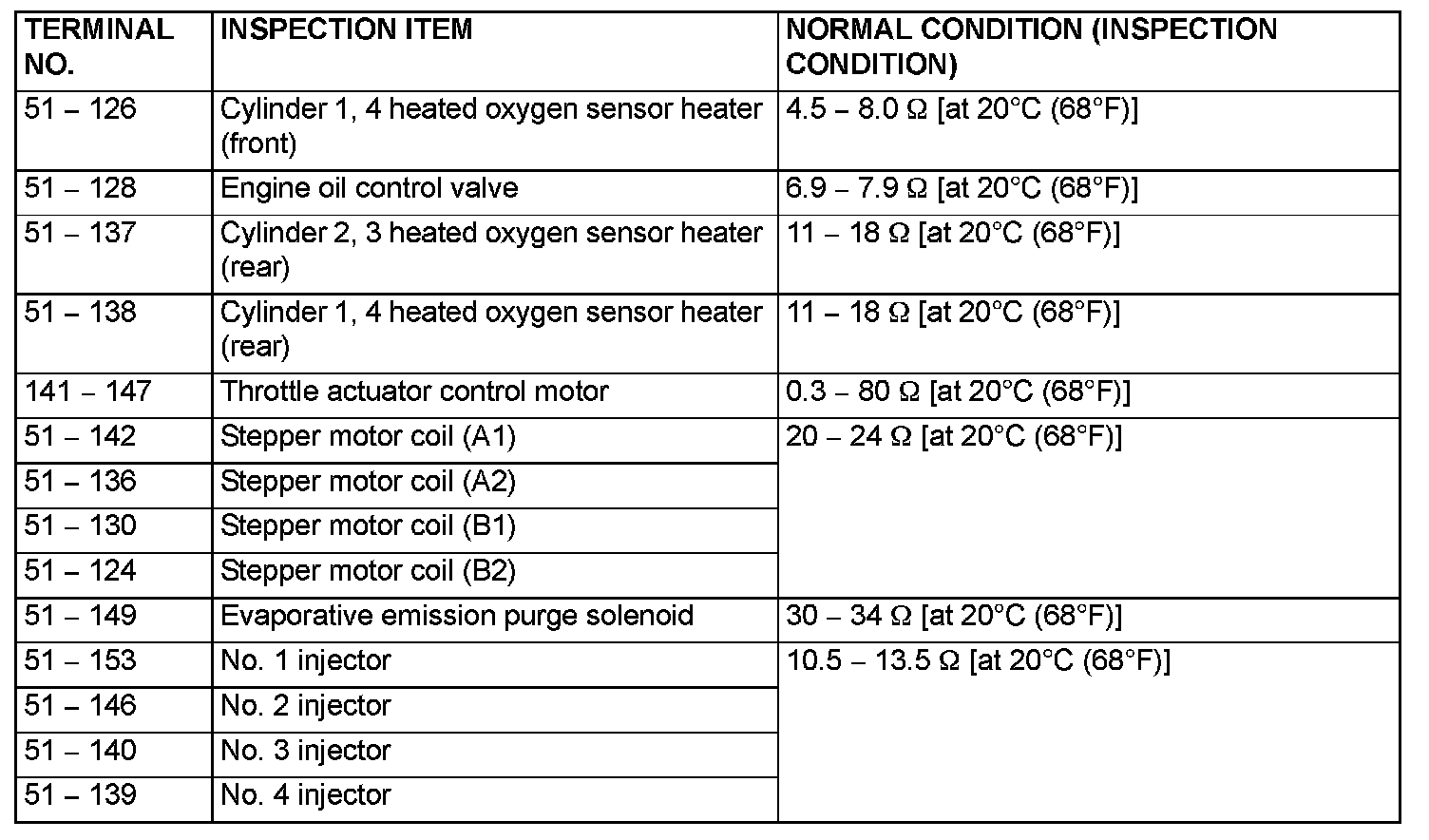

Terminal Resistance And Continuity Check (Part 2):
