Mode 6 Data
MODE 6 REFERENCE TABLEThe engine control module (ECM) [M/T] or the powertrain control module (PCM) [A/T] monitors the condition of emission control system.
By selecting MODE 6 using scan tool, Test Result and Limit Value (minimum) *1 or (maximum) *2 about the main items of emission control system which ECM/PCM monitors can be confirmed. The value at the last monitoring is output by ECM/PCM as a test result.

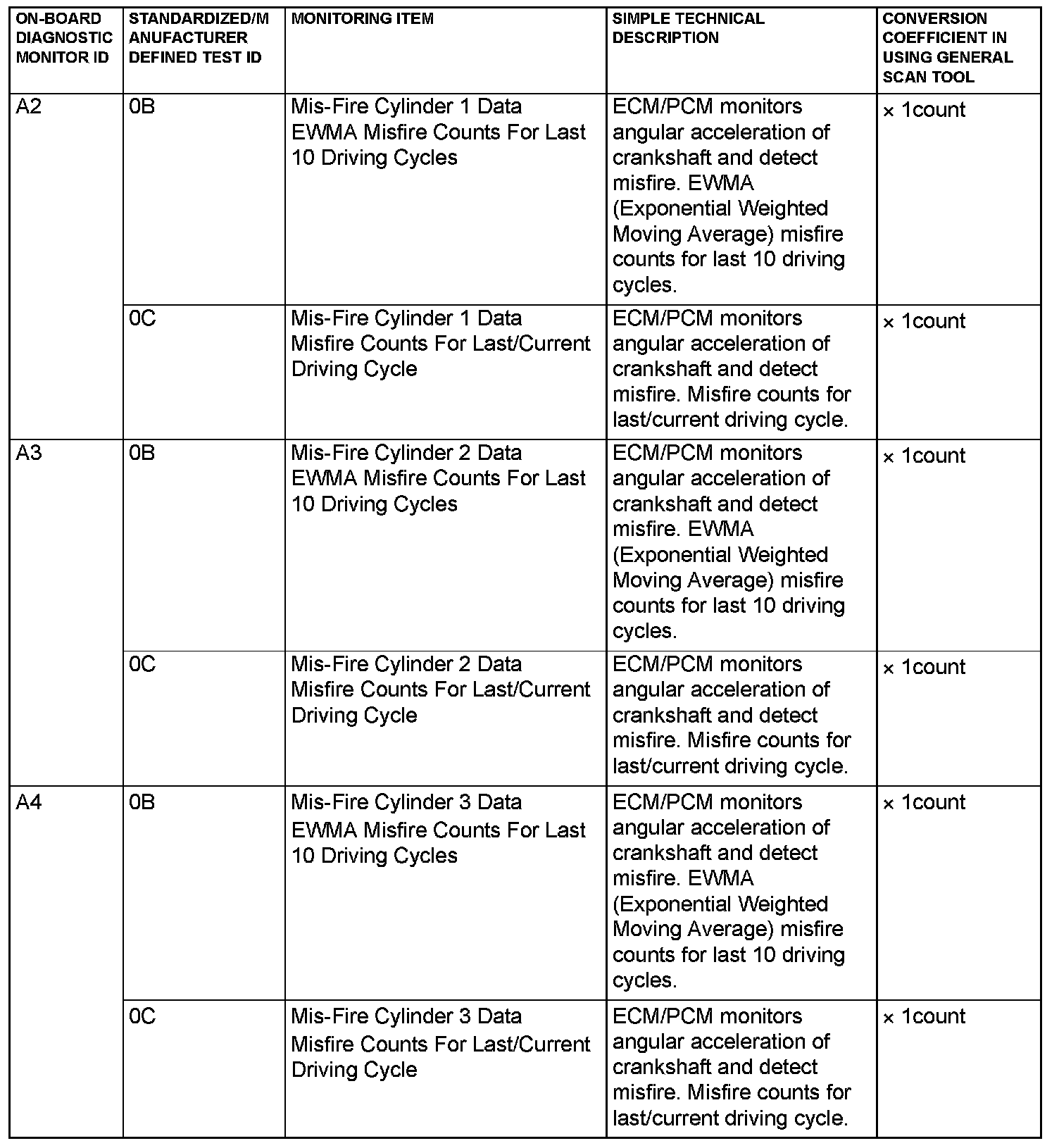

Mode 6 Reference Table (Part 1):

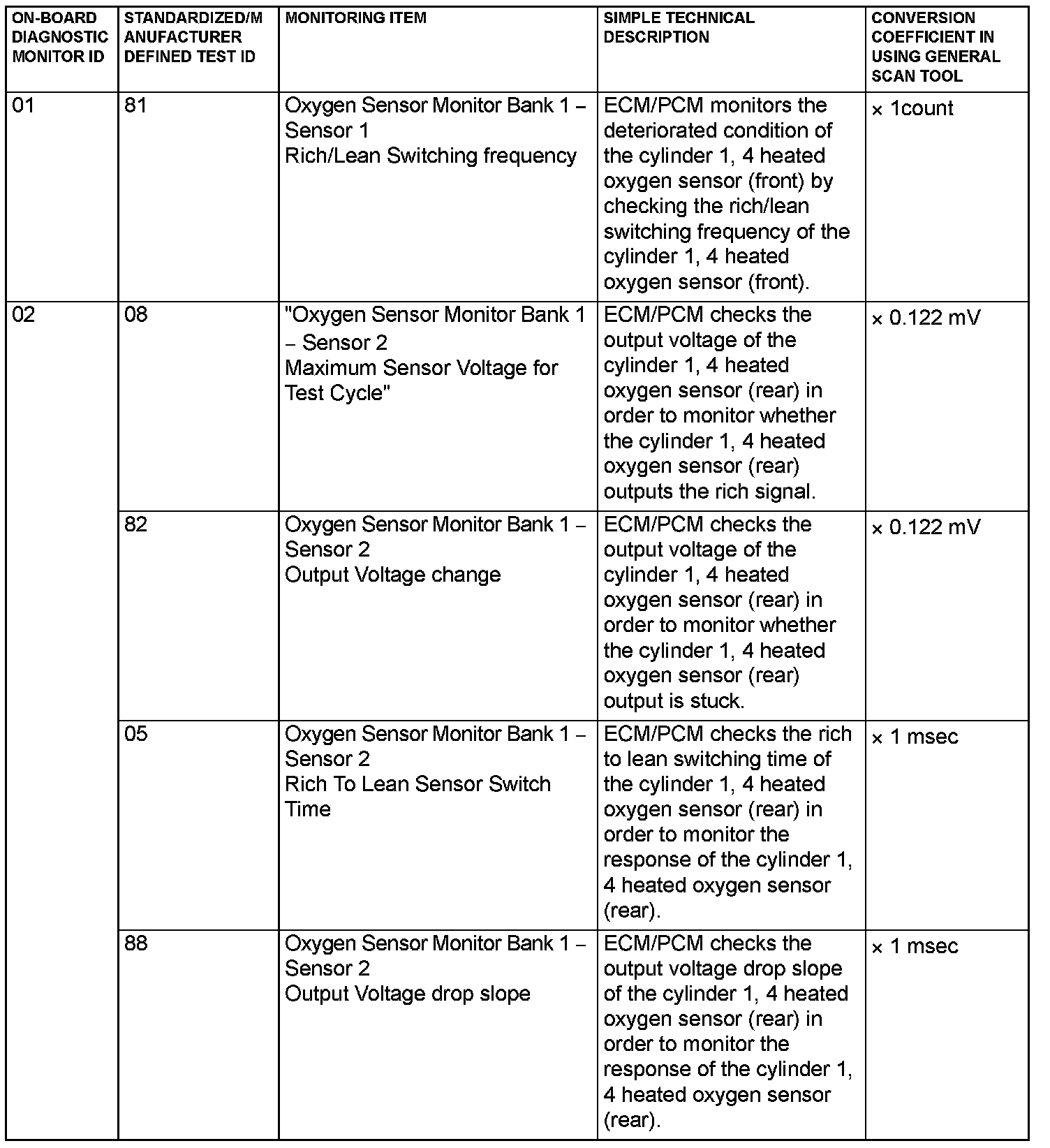

Mode 6 Reference Table (Part 2):

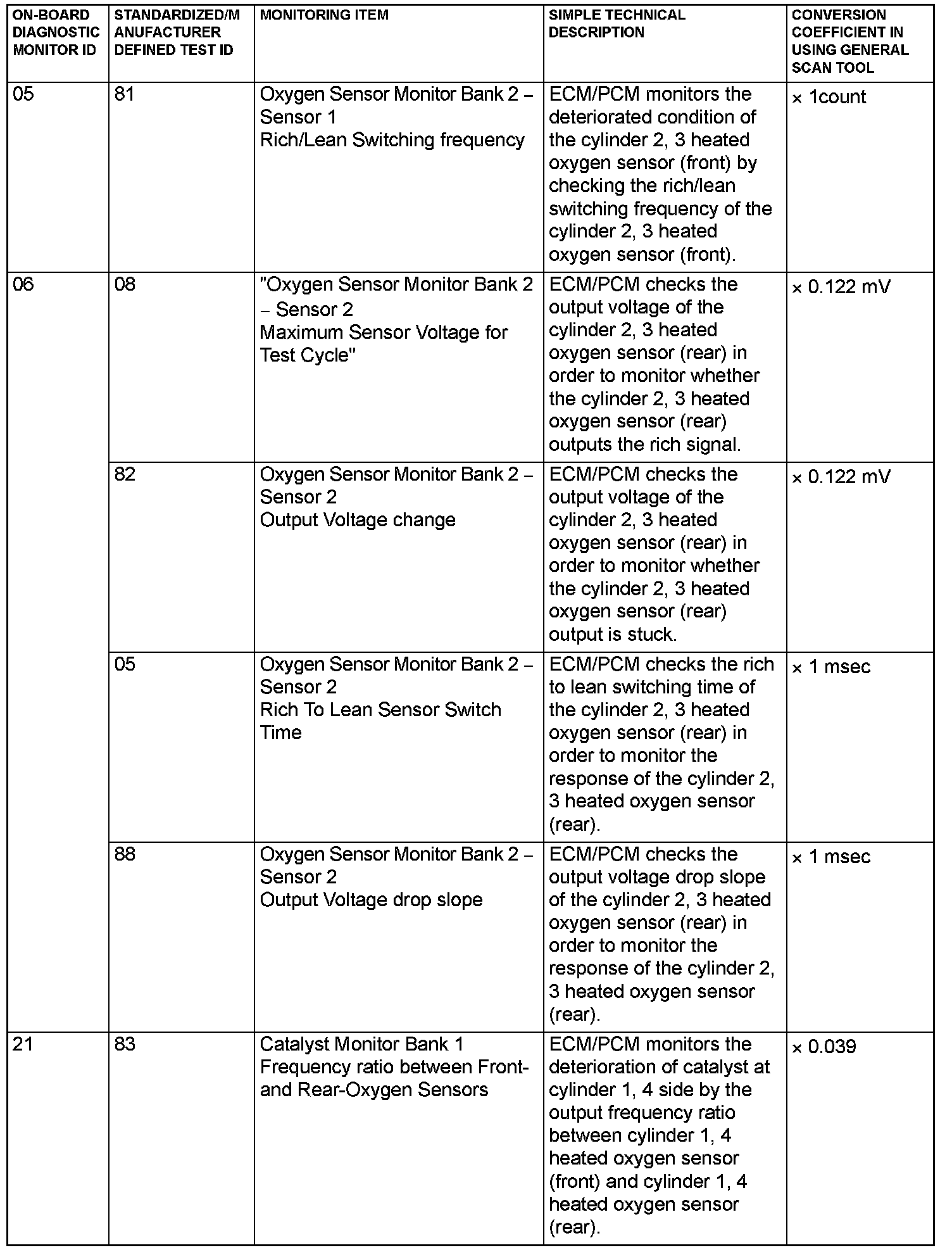

Mode 6 Reference Table (Part 3):

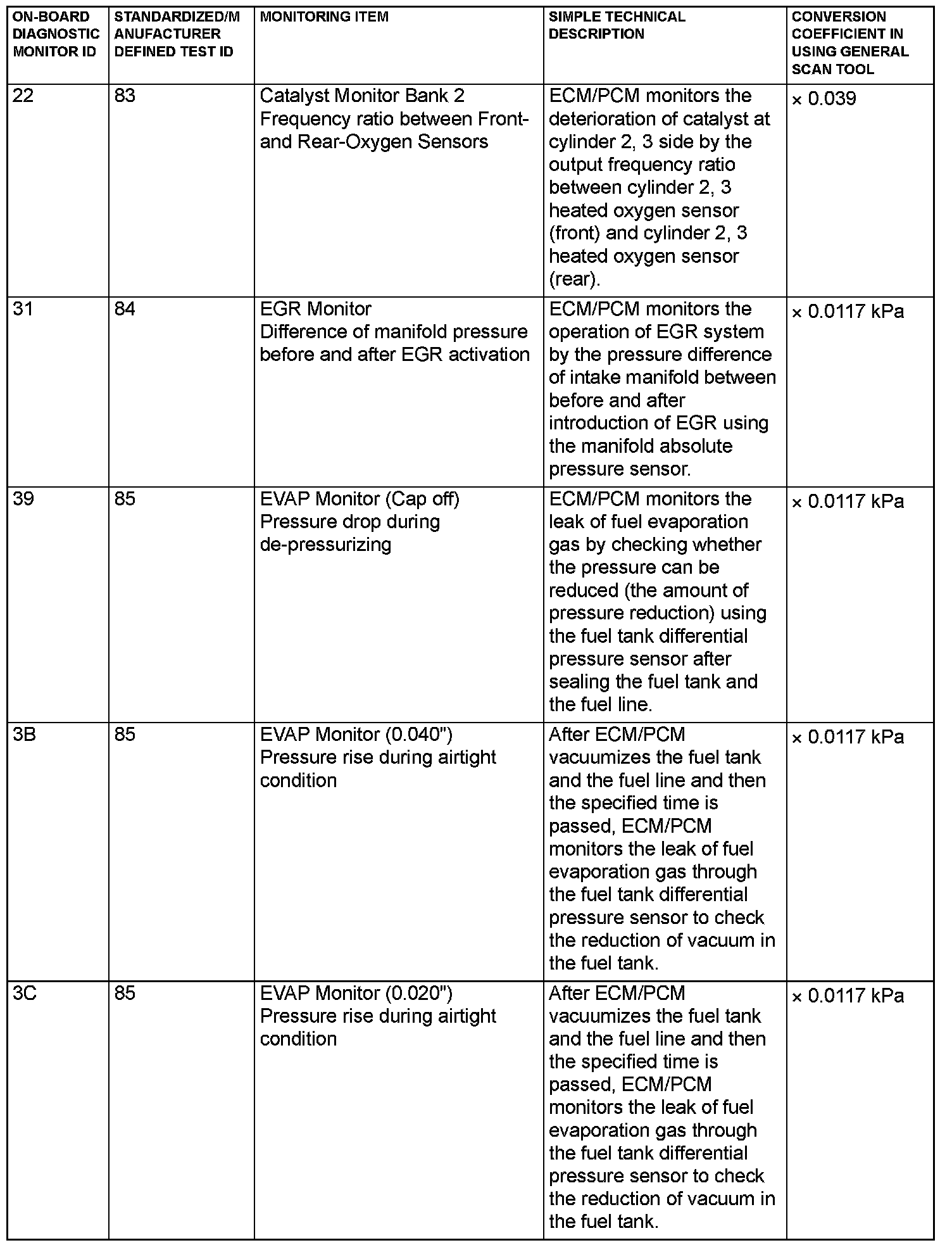

Mode 6 Reference Table (Part 4):
Mode 6 Reference Table (Part 5):
NOTE:
- *1: Minimum value: The test fails if test value is less than this value.
- *2: Maximum value: The test fails if test value is greater than this value.
- When not finishing the monitor of the driving cycle for the request of On-Board Monitoring Test Request, the ECM/PCM outputs the stored latest monitor test result.
- When the monitored test results are erased by the battery disconnection and so on, the ECM/PCM outputs the values in hexadecimal of "0000" or "FFFF", otherwise it outputs abnormal values and so on. In case of this, the ECM/PCM outputs are handled as invalid-values. When the first monitor (Readiness Status) is completed after this, the ECM/PCM outputs the valid-values.
- "Test Limit Type & Component ID byte" output from the ECM/PCM is given in hexadecimal of "00" or "80". "00" means the maximum value and "80" means the minimum value.
