Intake Air Temperature Sensor Check

INTAKE AIR TEMPERATURE SENSOR CHECK







1. Disconnect the mass airflow sensor connector.

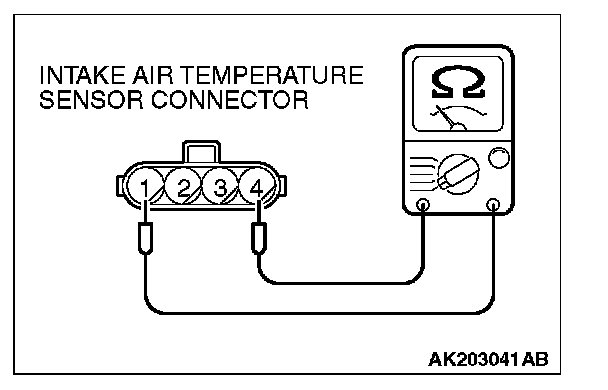

2. Measure resistance between terminal No.1 and No.4.

Standard value:
13 - 17 kohms [at -20 °C (-4 °F)]
5.3 - 6.7 kohms [at 0 °C (32 °F)]
2.3 - 3.0 kohms [at 20 °C (68 °F)]
1.0 - 1.5 kohms [at 40 °C (104 °F)]
0.56-0.76 kohms [at 60 °C (140 °F)]
0.30-0.45 kohms [at 80 °C (176 °F)]







3. If not within specifications replace the mass airflow sensor.

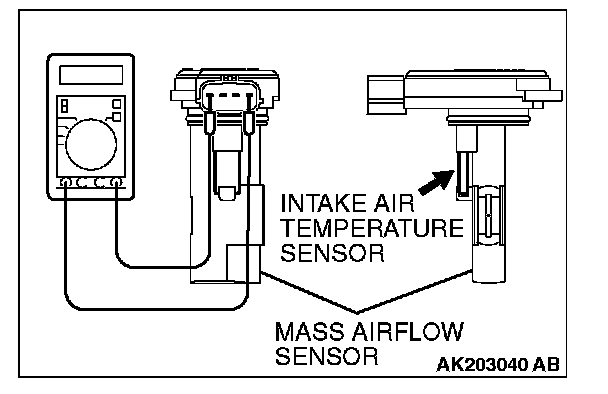

4. Measure resistance while heating the sensor using a hair dryer.

Normal Condition:

5. If resistance does not decrease as heat increases replace the mass airflow sensor.
