Drive Belt (For Generator, Power Steering Oil Pump and Air Conditioning) Tension Check and Adjustment

DRIVE BELTS (FOR THE GENERATOR AND POWER STEERING PUMP) (CHECK)

DRIVE BELT TENSION CHECK [2.4L ENGINE]

CAUTION
Check the drive belt tension after turning the crankshaft clockwise one turn or more.

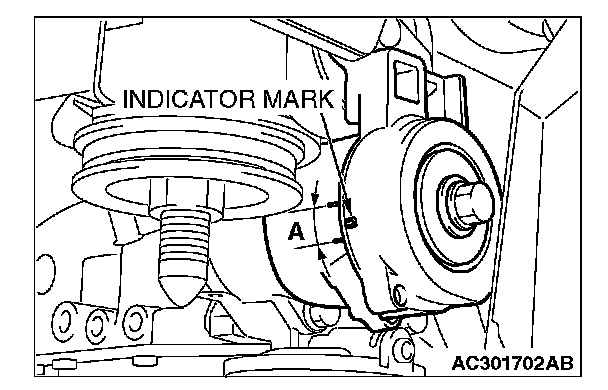

1. Make sure that the indicator mark is within the area marked with A in the illustration.
2. If the mark is out of the area, replace the drive belt.

NOTE: The drive belt tension adjustment is not necessary as auto-tensioner is adopted.
