Combination Switch: Service and Repair

COLUMN SWITCH

REMOVAL AND INSTALLATION

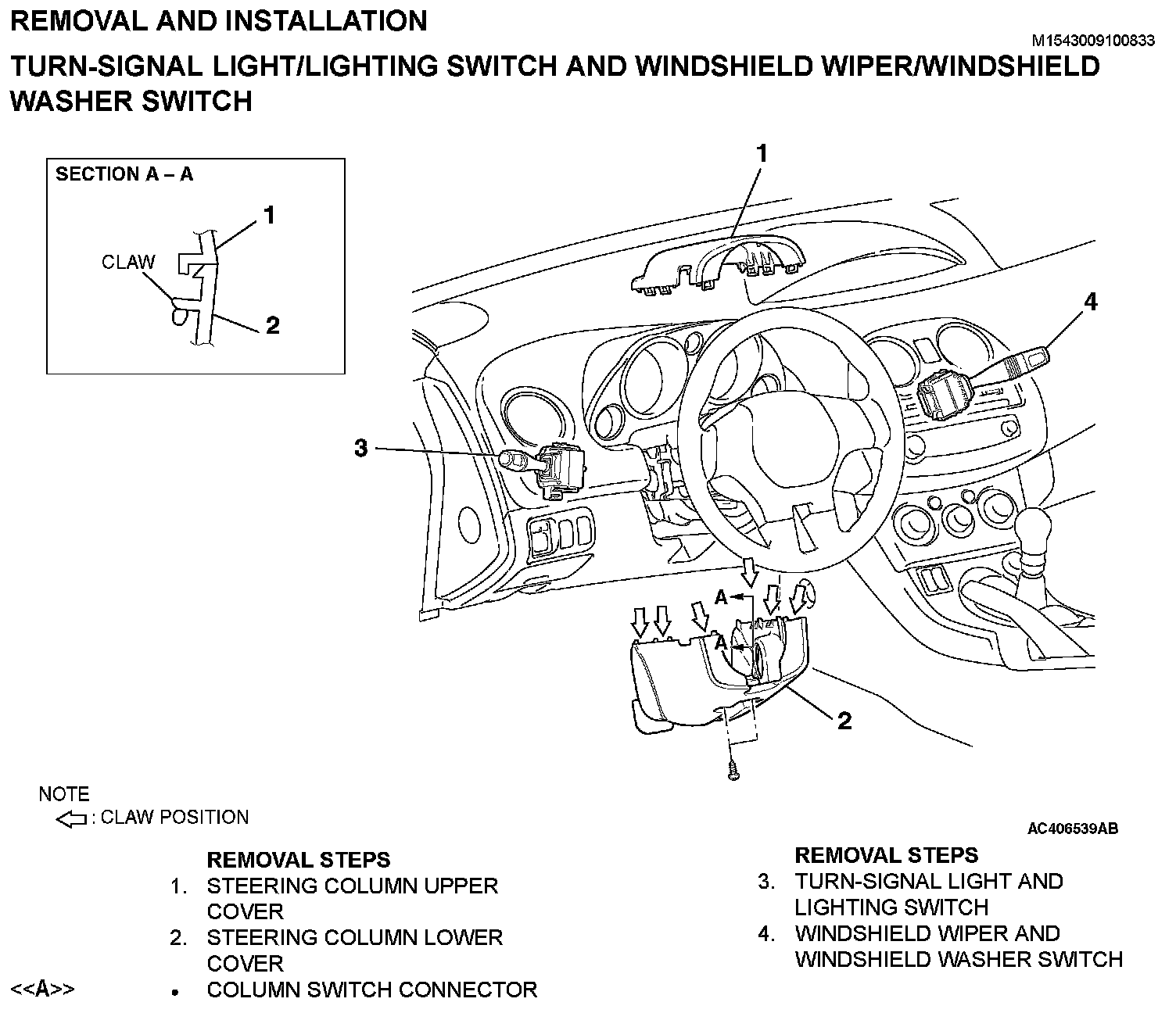

TURN-SIGNAL LIGHT/LIGHTING SWITCH AND WINDSHIELD WIPER/WINDSHIELD WASHER SWITCH

Removal Steps 1-4:

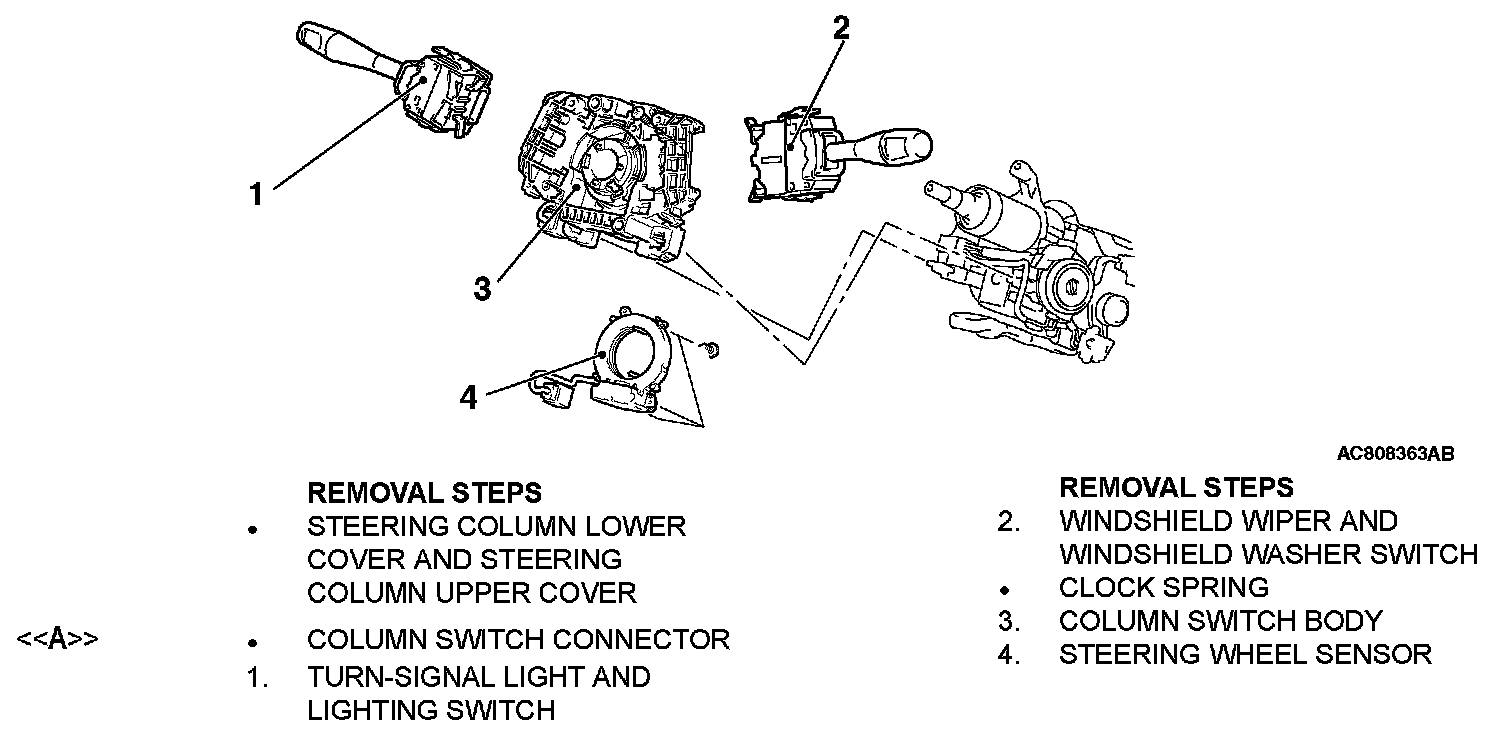

COLUMN SWITCH BODY

CAUTION:
- To remove the driver airbag module, refer to Service Precautions and Air Bag Module and Clock Spring.
- When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point.

Removal Steps 1-4:

REMOVAL SERVICE POINT

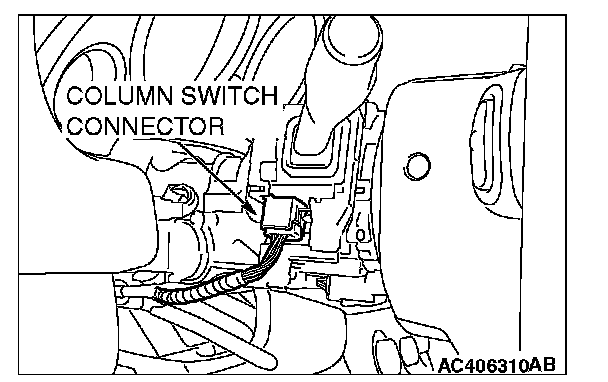

[[A]] COLUMN SWITCH CONNECTOR

REMOVAL







Disconnect column switch connector C-309 shown in the illustration.
