Horn: Service and Repair

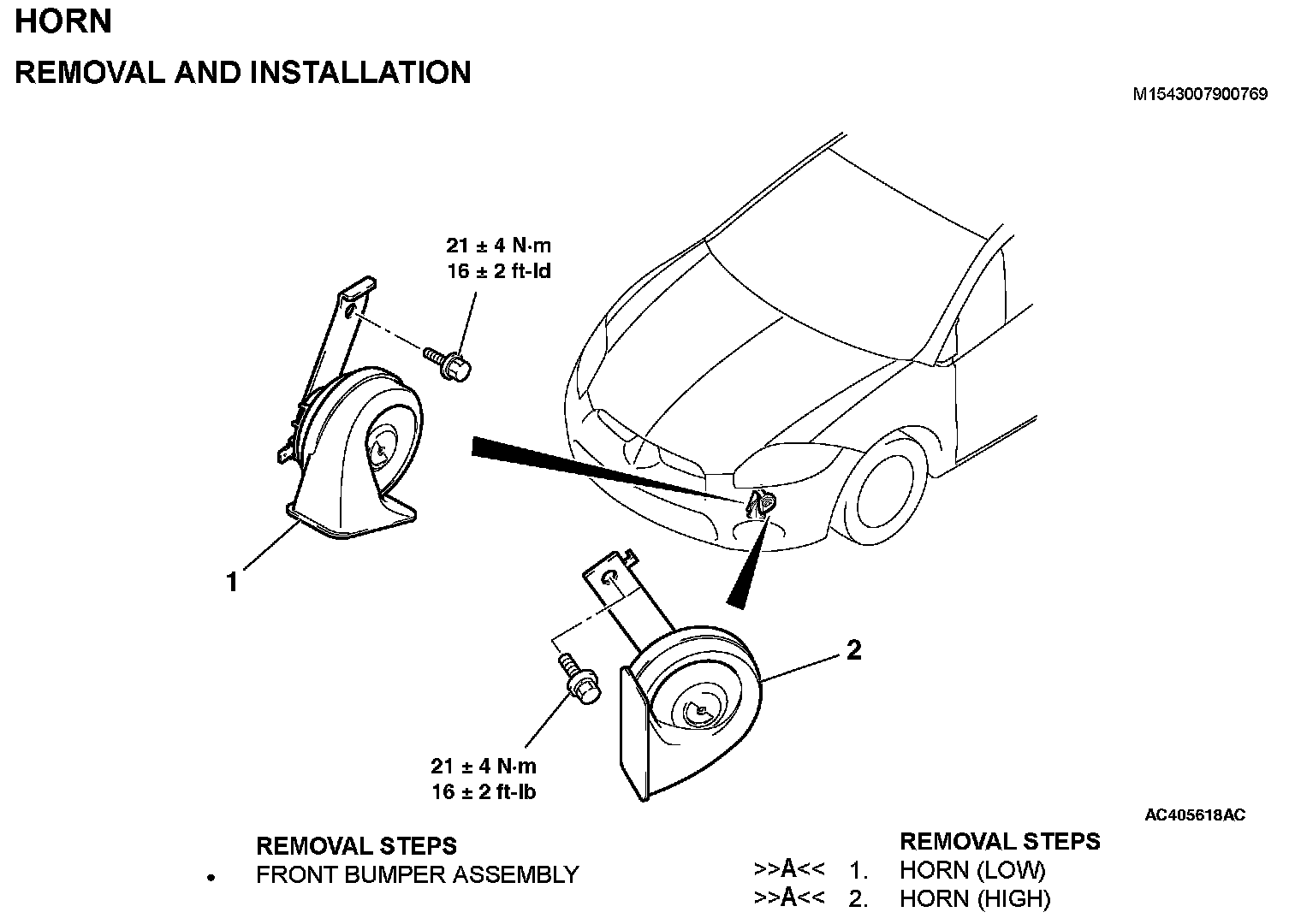

HORN

REMOVAL AND INSTALLATION


Removal Steps 1-2:






INSTALLATION SERVICE POINT

]]A[[ HORN (LOW) / HORN (HIGH) INSTALLATION

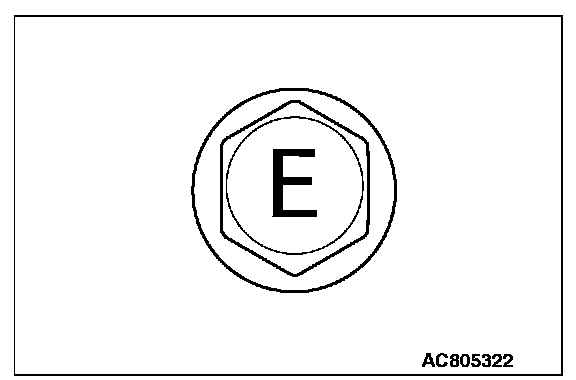

Use earth bolts as the mounting bolts for horn (low) and horn (high). Earth bolts have "E" mark on the bolt heads.
