Symptom Related Diagnostic Procedures

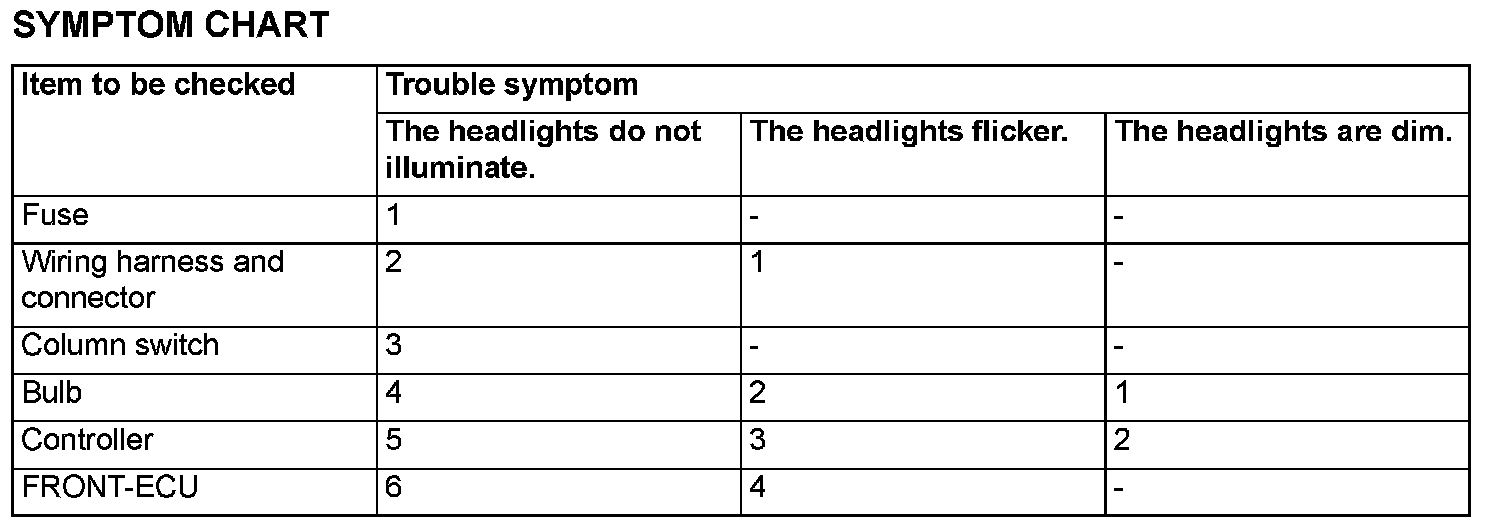

SYMPTOM CHARTSymptom Chart:
NOTE:
1. The numbers indicate the sequence in which the component is checked.
2. The troubleshooting items other than those above are controlled by the smart wiring system. For troubleshooting, refer to Troubleshooting Symptom Chart.
3. If ETACS-ECU fails, only the low-beam headlights will illuminate as a fail-safe measure.
